DEPRAG - W52 DRY- WET Dental Milling unit Set - Water Cooling System - Tank - Cabinet - # DEP-0002
14148_f.jpg)
14147_f.jpg)
14146_f.jpg)
Description

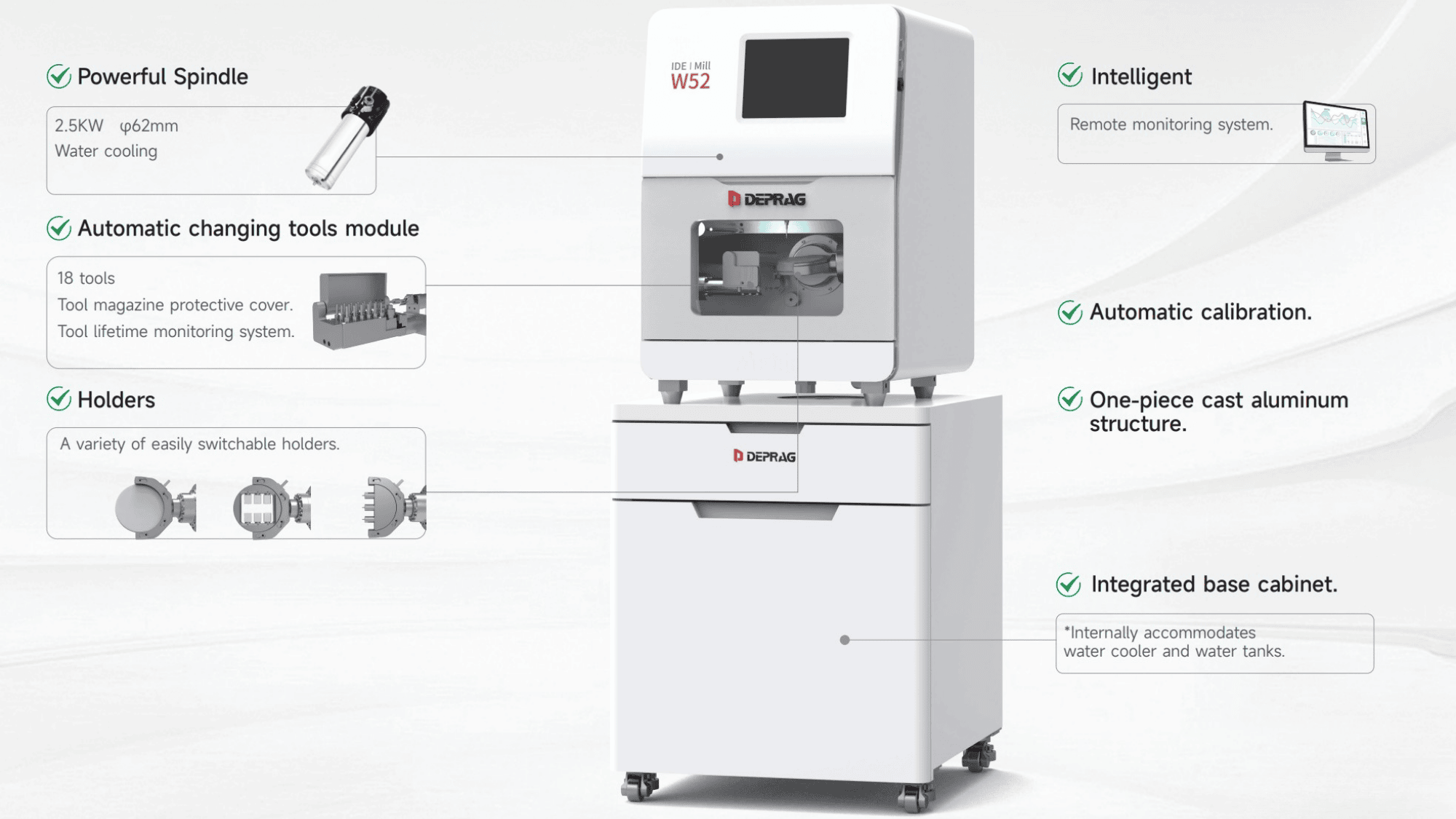

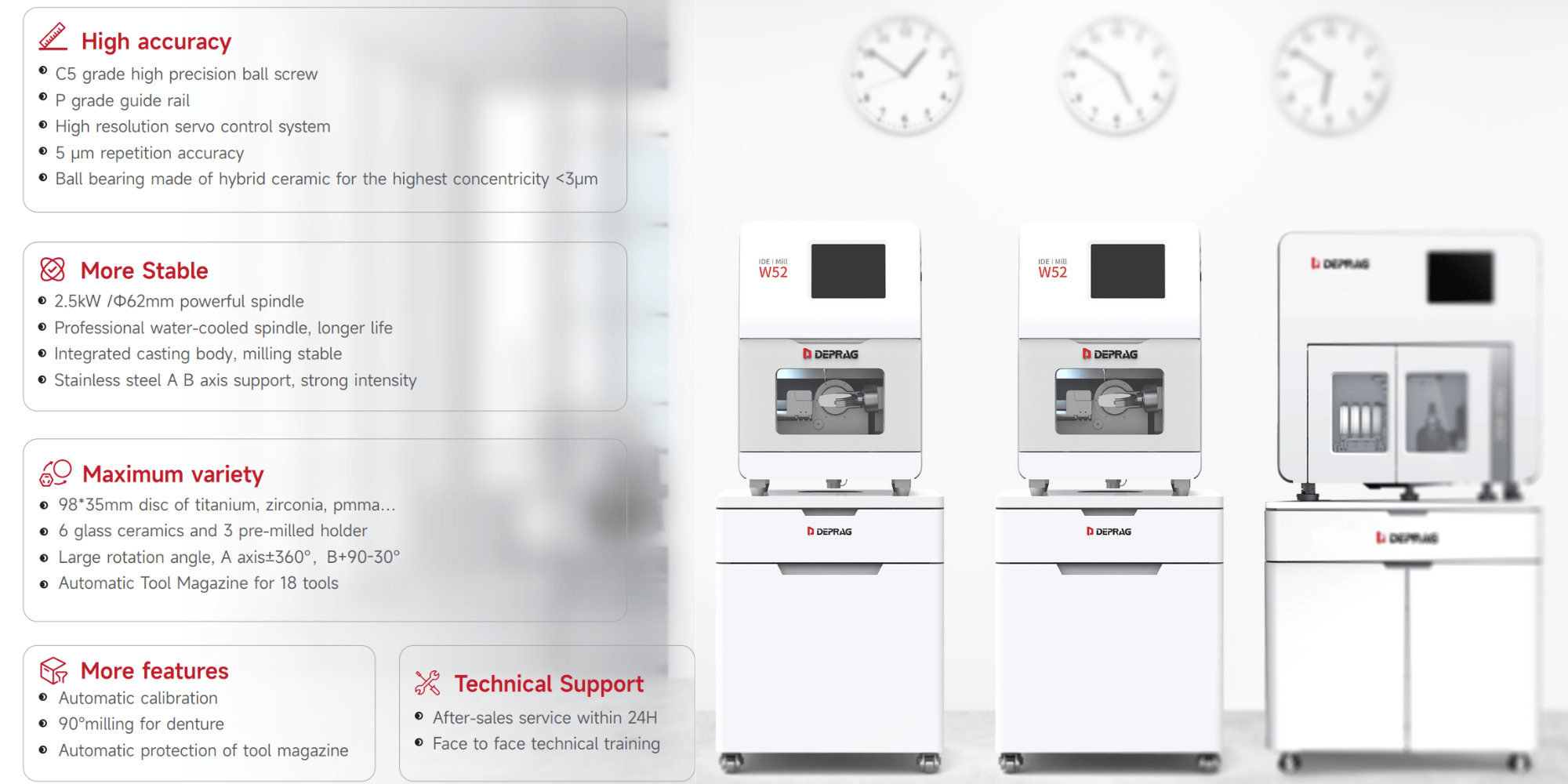

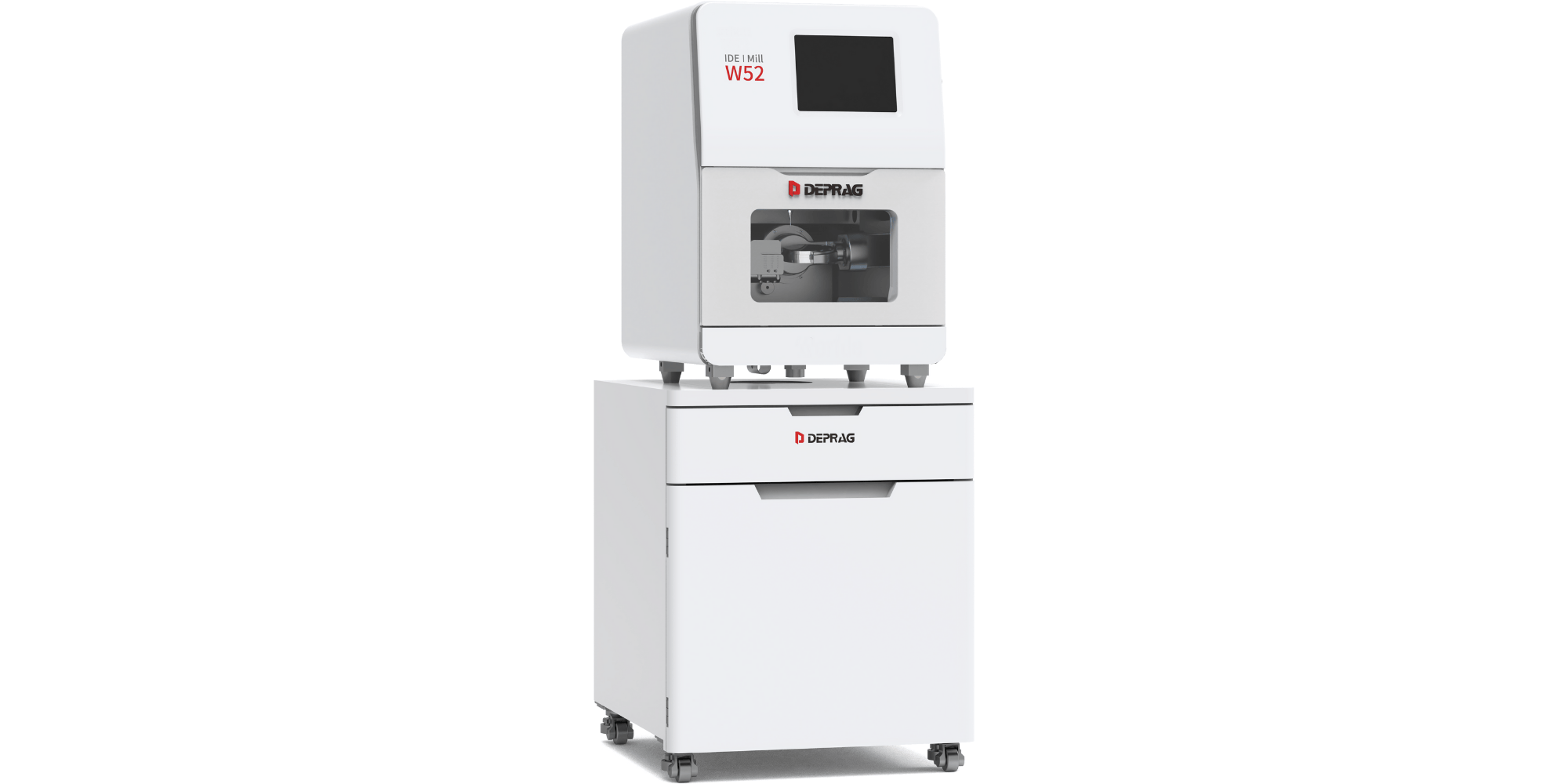

W52
The 5-axis Milling machine for dry and WET machining
✅ All materials available
✅ Excellent Milling results
✅ Large spindle and high rigidity
ALL in one: Maximize your profits
The W52 is a dry and WET integrated Milling machine that can complete 90% of Dental cases. It is capable of Milling a range of materials, including titanium discs, pre-milled blanks, glass ceramics, zirconia and more. The investment cost is reduced as only one machine is needed.
Excellent Milling results
The W52 is the machine you need for powerful Milling and good precision. It will deliver excellent results when Milling various Dental cases. We have conducted more optimisation and testing in the details of Milling, reducing the polishing process after Milling, and saving production time.

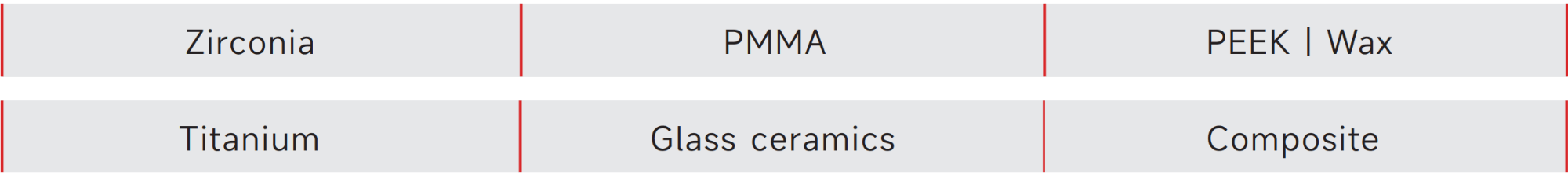

MILLABLE MATERIAL

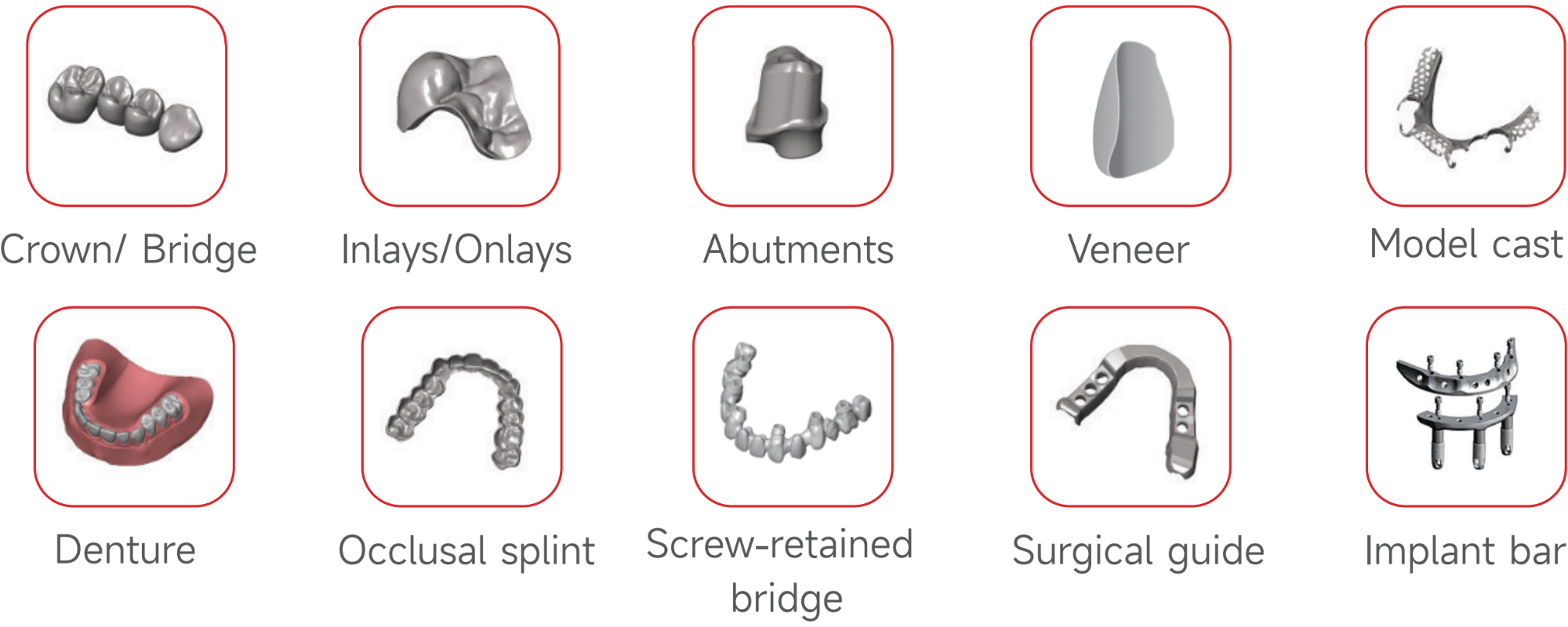

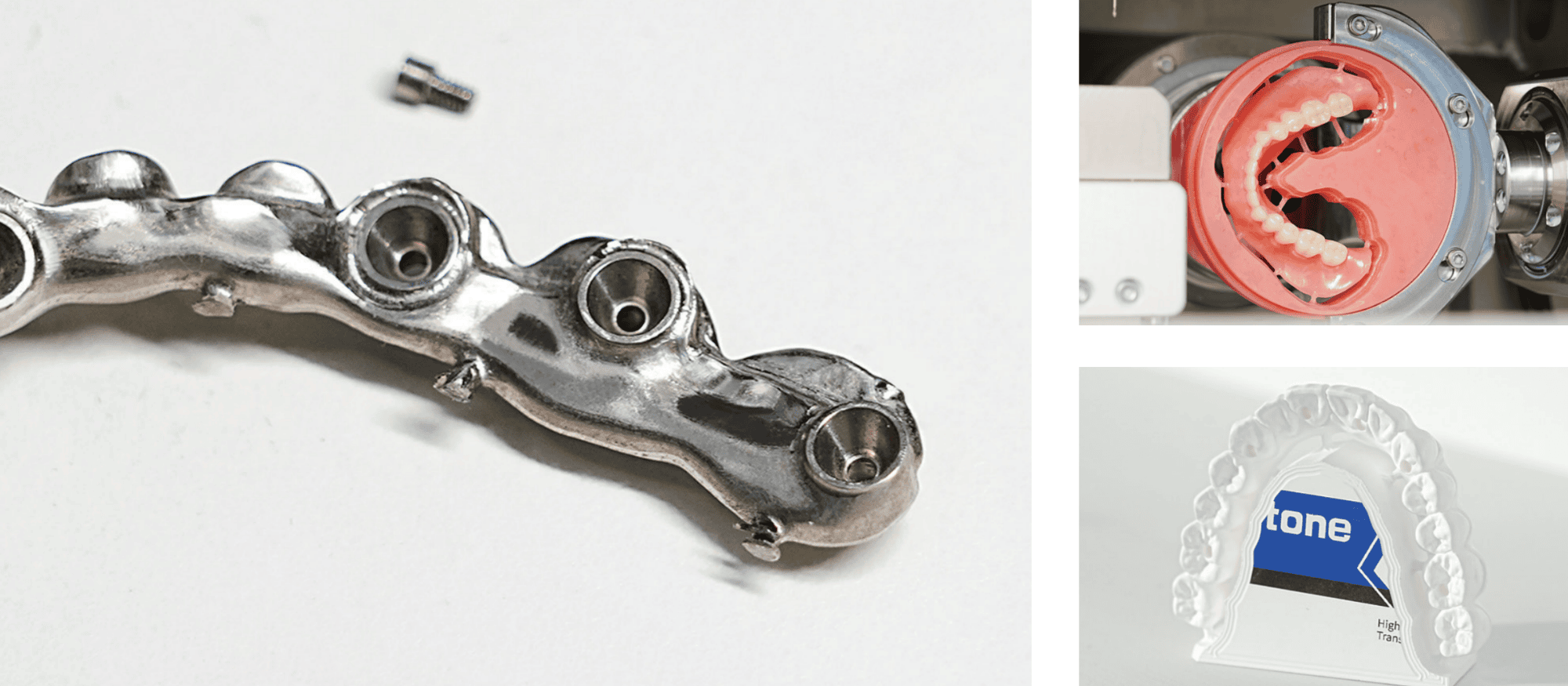

APPLICATIONS

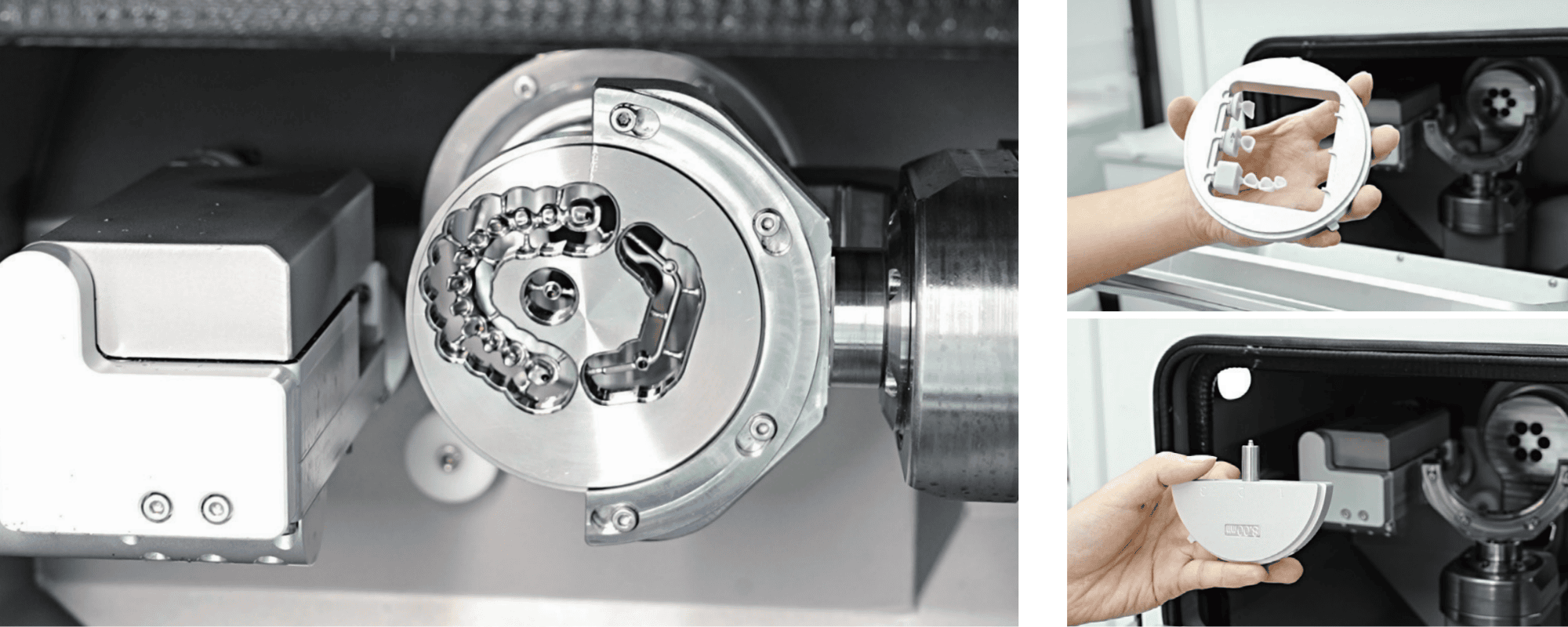

HOLDER TYPES

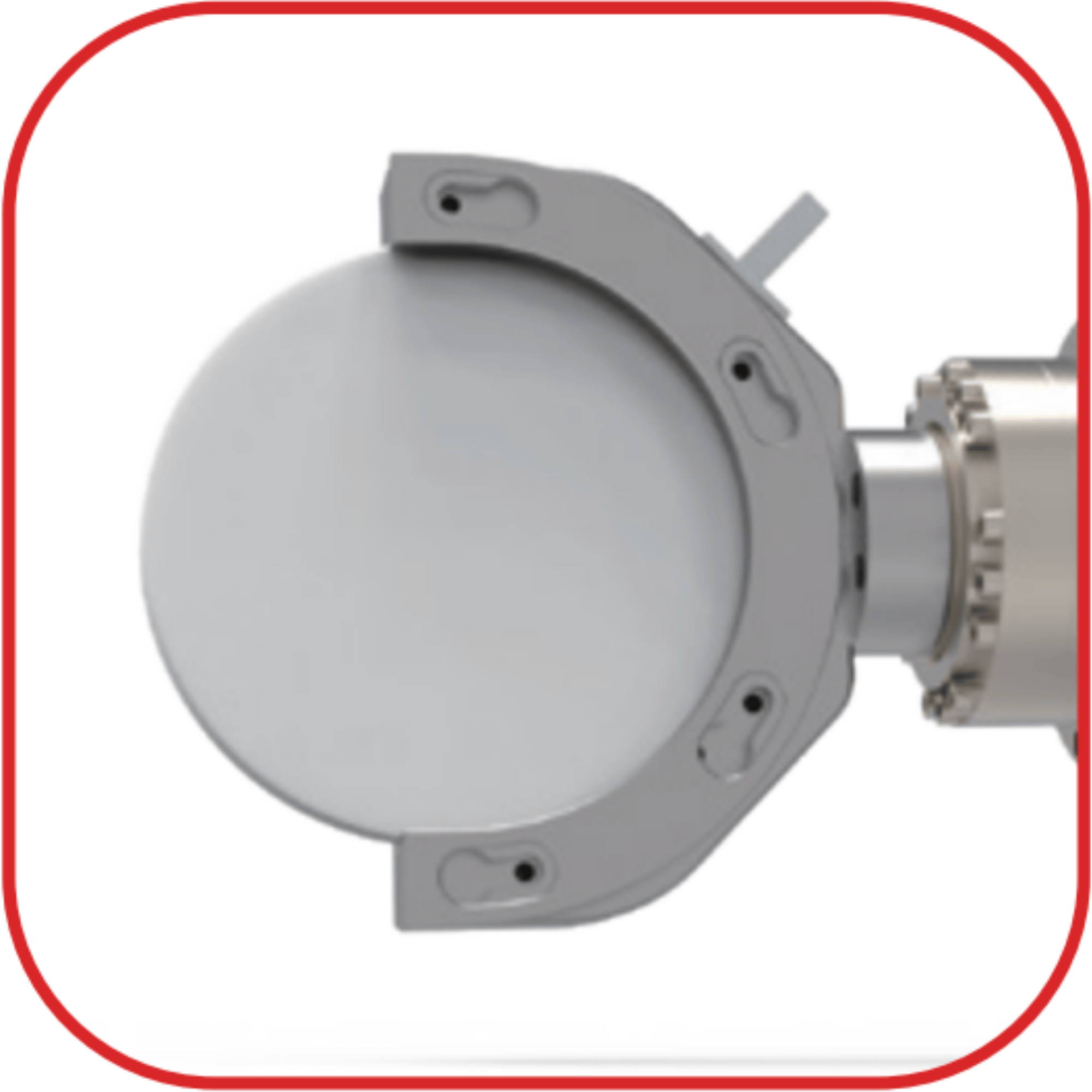

Half-open blank holder(C-CLAMP)
• Standard
• Suitable for processing φ98mm zirconia discs, resin discs, titanium discs, etc
• Enables 5-axis Milling up to 90° axis adjustment
• Maximum material thickness 35mm

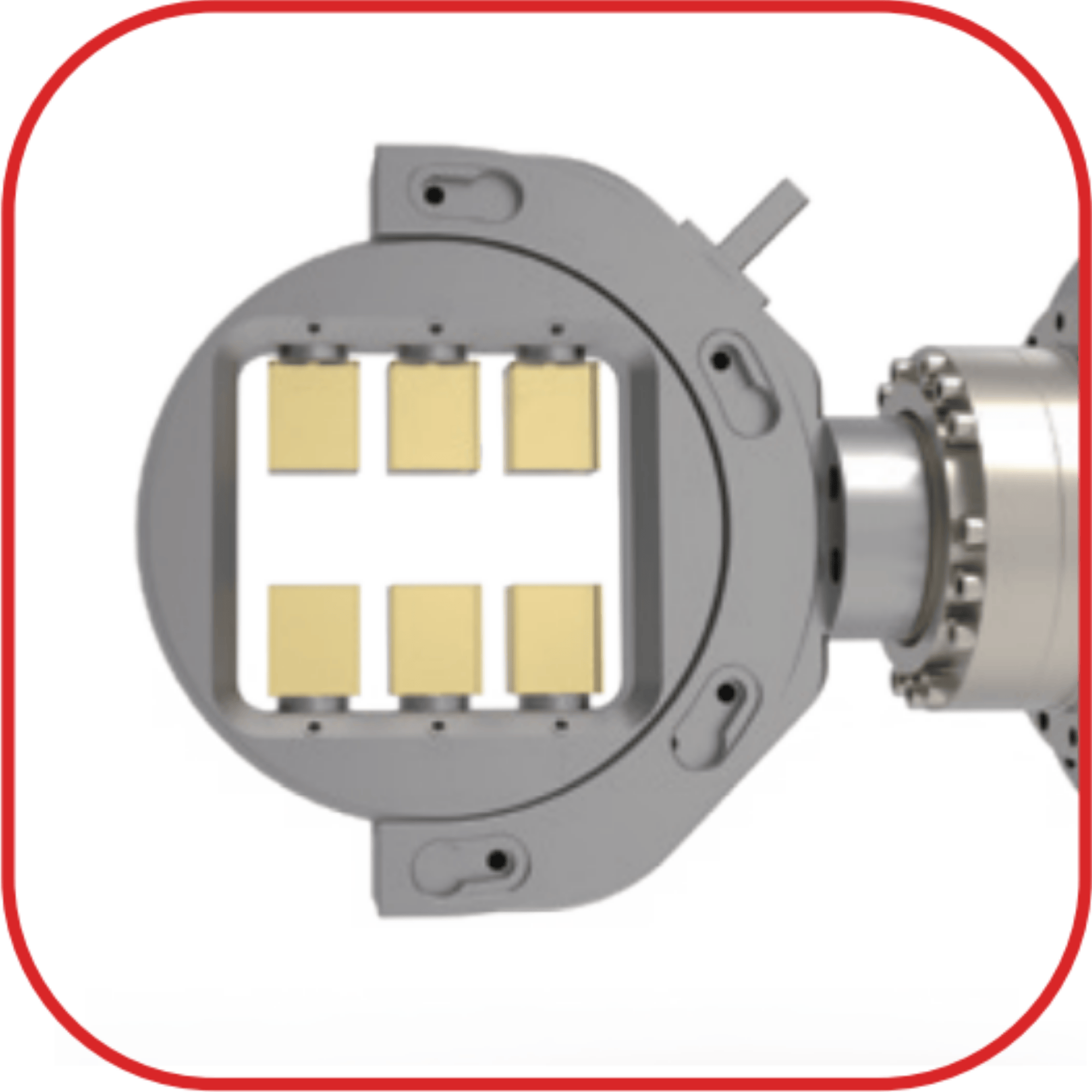

Block holder
• Standard
• 6 positions, suitable for blocks of glass ceramics, resin and zirconia
• Glass-ceramic block size I13 / C14 / C16 / B32 / B40 available
• PMMA and zirconia block size
• 18 * 13 * 15/20 * 15 * 14/20 * 15 * 19/40 * 15 * 14/40 * 15 *19/55 *15.5 *19 available

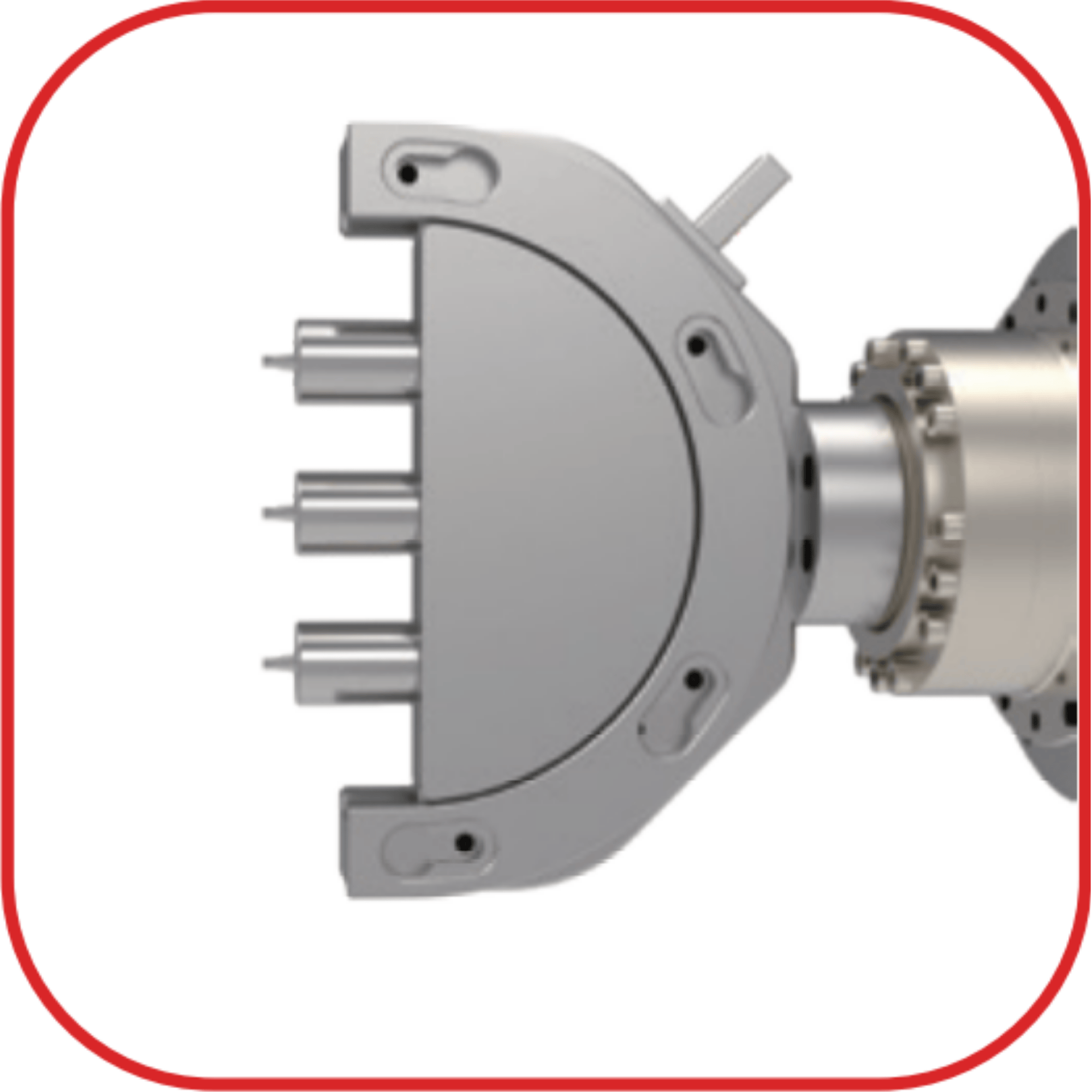

Premill Abutment holder
• Standard
• 3 positions, Suitable for pre-milled blank
• Current available Systems: Arum, Geo, Medentika
• Other systems continue to be developed

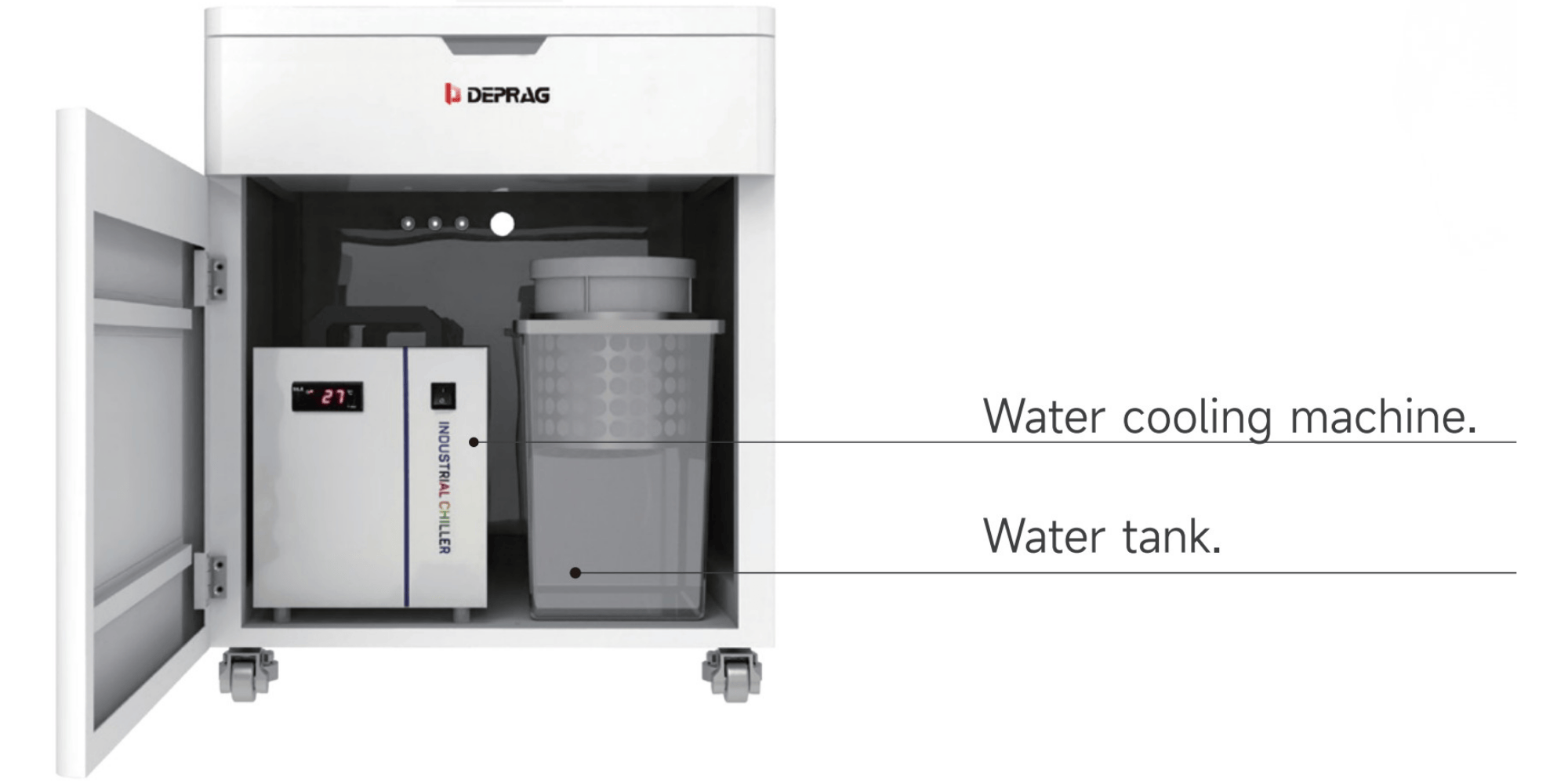

BASE Cabinet (Standard)
PARAMETERS
Size
Weight
700*650*900mm
80kg
VACUUM CLEANER (Optional)
PARAMETERS
Power
Size
Capacity
360W(220V~50/60HZ)
260mmx420mmx450mm
3.6L

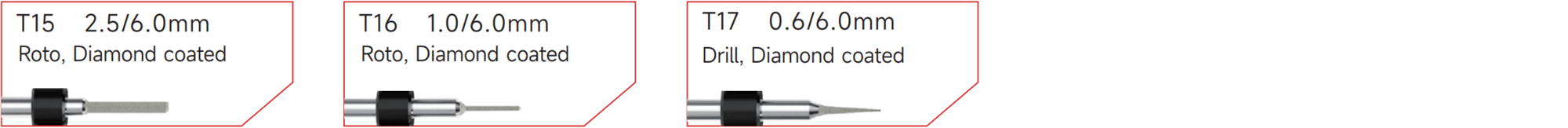

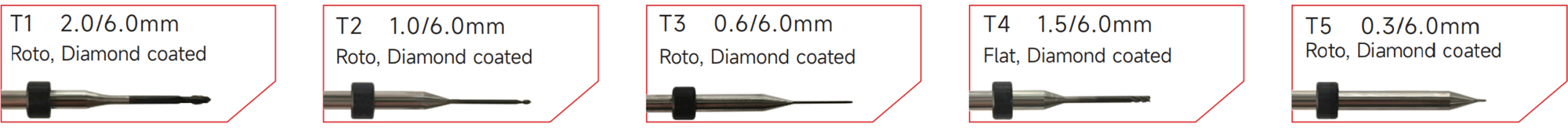

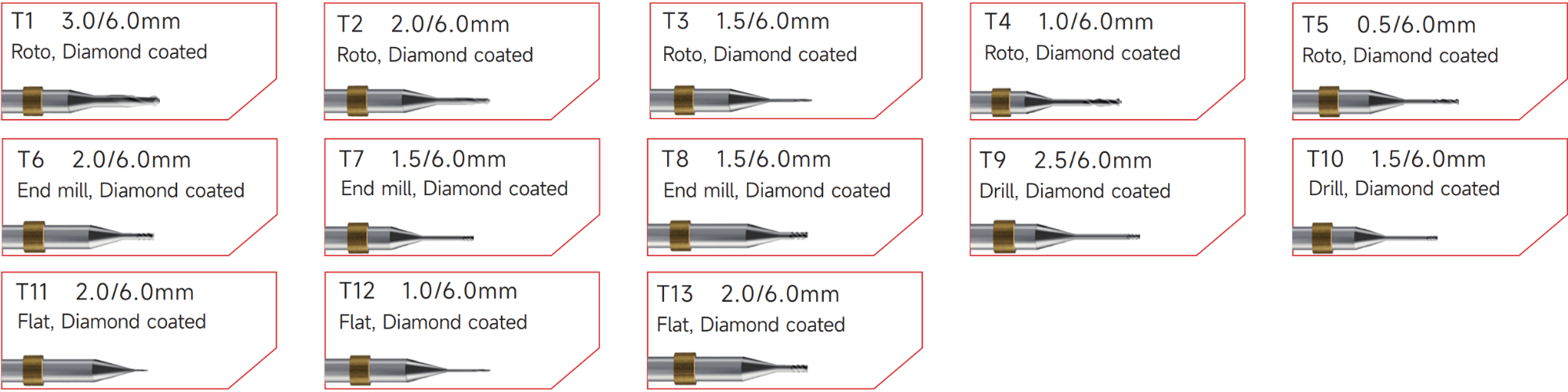

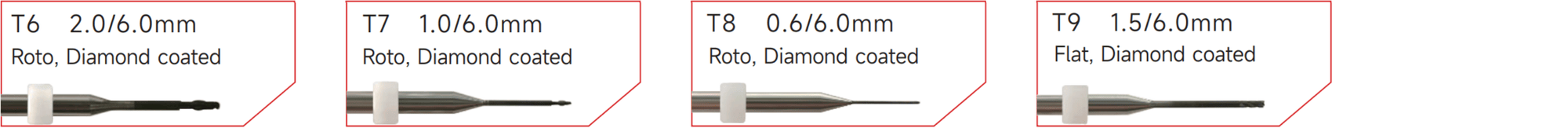

ZIRCONIA Milling BURS
RESIN Milling BURS
TITANIUM Milling BURS
GLASS CERAMIC Milling BURS
GENERAL
Processing mode
Millable material
Applications
Power

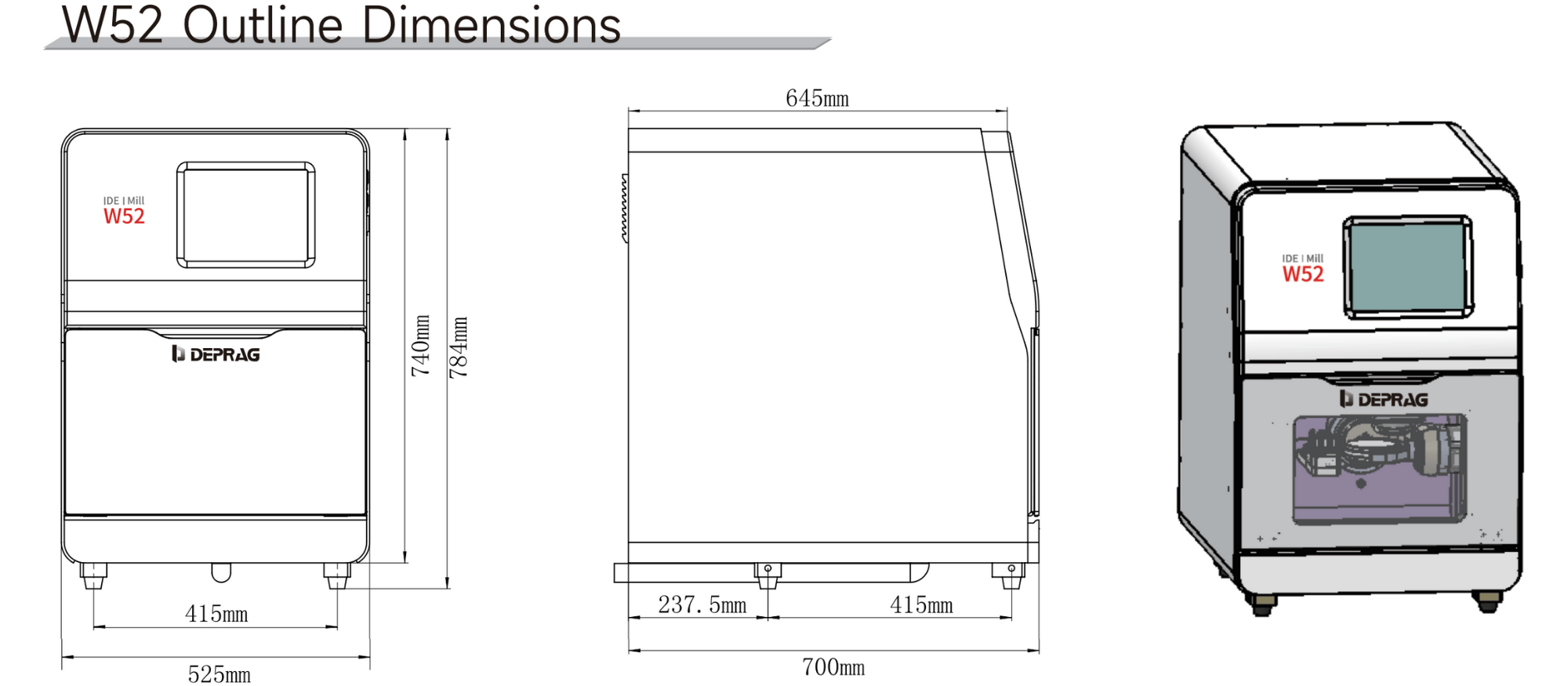

Dimension
Weight
Air supply pressure
Air flow
Water Tank capacity
Dry and WET
Zirconia, Glass ceramics, Plastics | Wax, PEEK, Composite, Titanium
Crown | Bridge, Veneer, Inlay | Onlay, Abutment, Denture, Screw-retained bridge, Model cast, Occlusal splint, Surgical guide, Implant bar
220V/3.2kW
525 × 700 × 784 mm
150 kg
>0.5 MPa
>90 L/min
10L

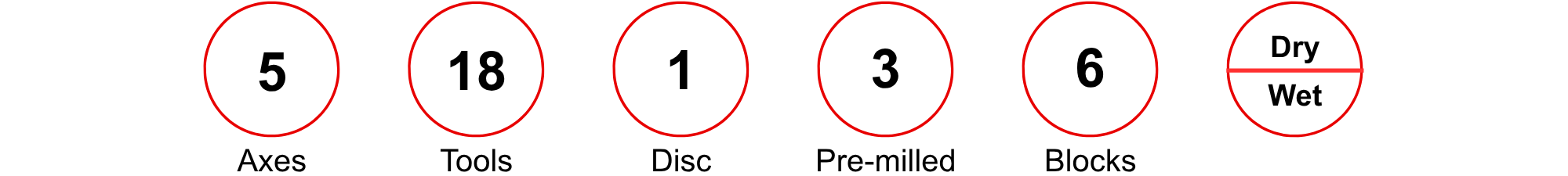

STRUCTURE PARAMETERS
Basic construction
Number of axes
Rotary axis A-axis
Rotary axis B-axis
Tool
Aluminium
5
360°
+30°~-90°
18
SPINDLE
Speed
Power
Positioning/Repositioning accuracy
Collet
Cooling method
60,000 rpm
2.5kW
0.01/ 0.005 mm
Φ6 mm
Water Cooling
APPROVALS
All models
North America model
CE
FCC
SCOPE OF DELIVERY
CAM Software
Clamps
Millbox / Hyperdent / WorkNC available
Half-open blank holder(C-CLAMP)
Block holder
Premill abutment holder
