DEPRAG - D5 AIR FREE - DRY Dental Milling unit Set - # DEP-0030
16338_f.jpg)
Earn up to 18,256 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
DEPRAG D5 Air Free 5-Axis Dry Milling Machine — No Compressed Air
Compressor-free dry mill for the small lab and clinic — No compressor, no noise, no problem — plug-and-play.
Overview

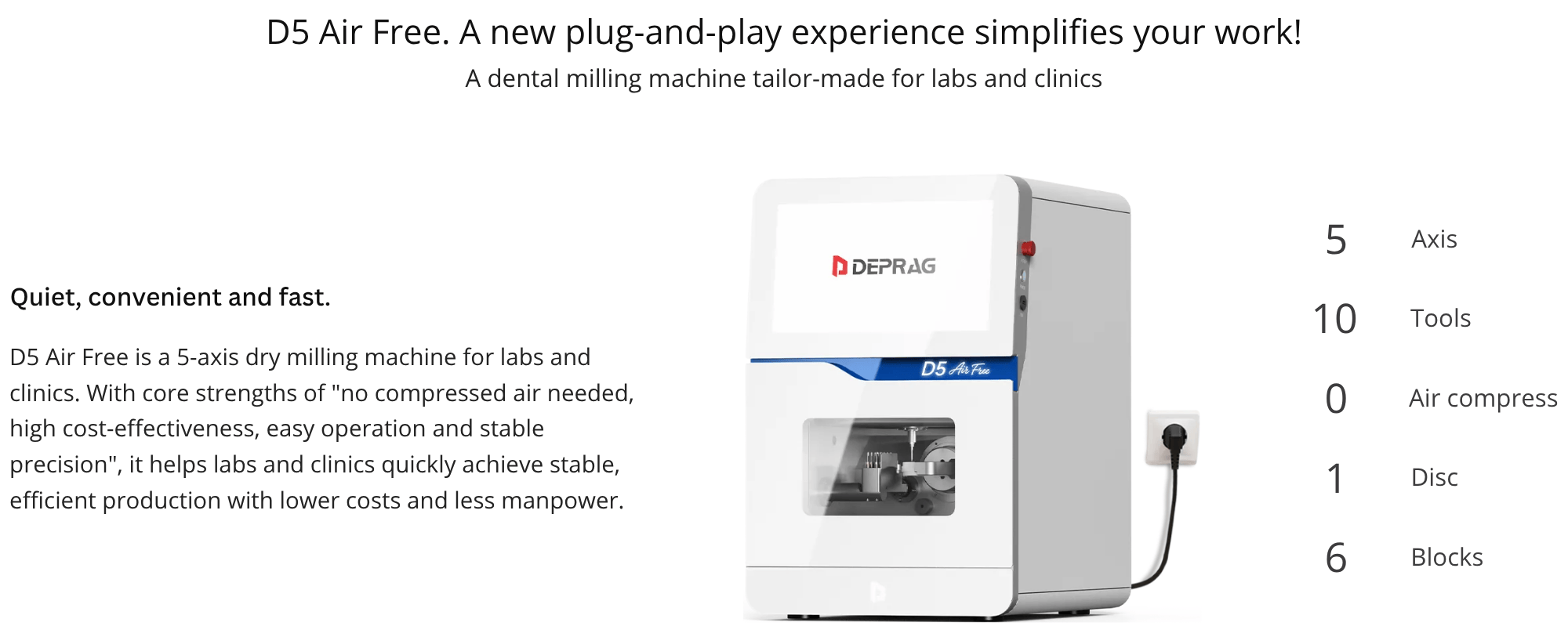

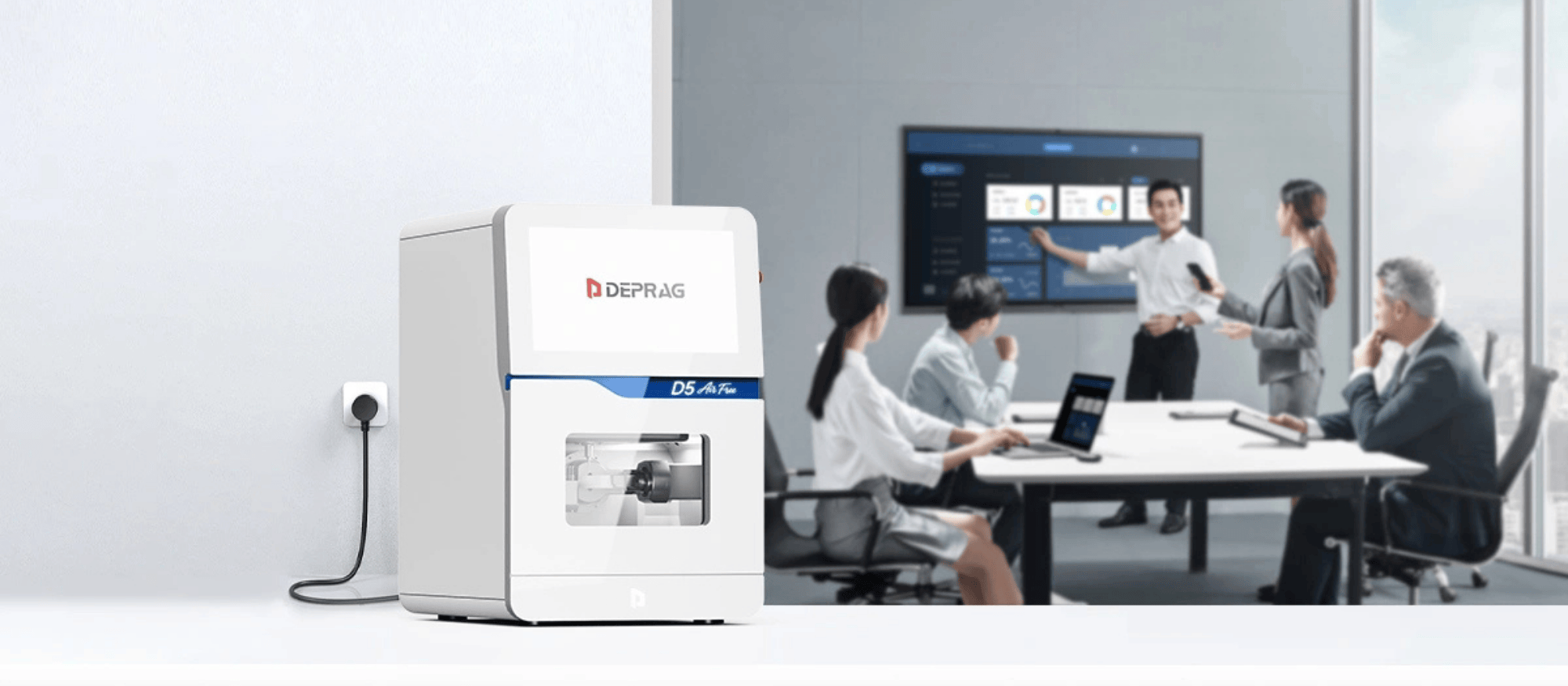

The D5 Air Free is DEPRAG's compressor-free, 5-axis dry Milling machine for small labs and clinics that don't want a compressed-air source on site. An air-free design lowers operating noise and simplifies room layout, while a high-quality German spindle (800 W, 60,000 rpm) holds 0.01 mm accuracy for the surface texture of anterior aesthetics. A C5-grade ball screw, HIWIN P-grade guide rail and INOVANCE servo control sit in an integrated rigid structure; φ0.3 mm ultra-fine tooling and 90° vertical machining support detailed work. At 130 kg with a 19.5-inch Windows 10 touchscreen, it is a quiet, plug-and-play five-axis machine that an operator can master in a single training session.
- 5-axis dry machining with NO compressed-air source required — quieter, simpler room layout

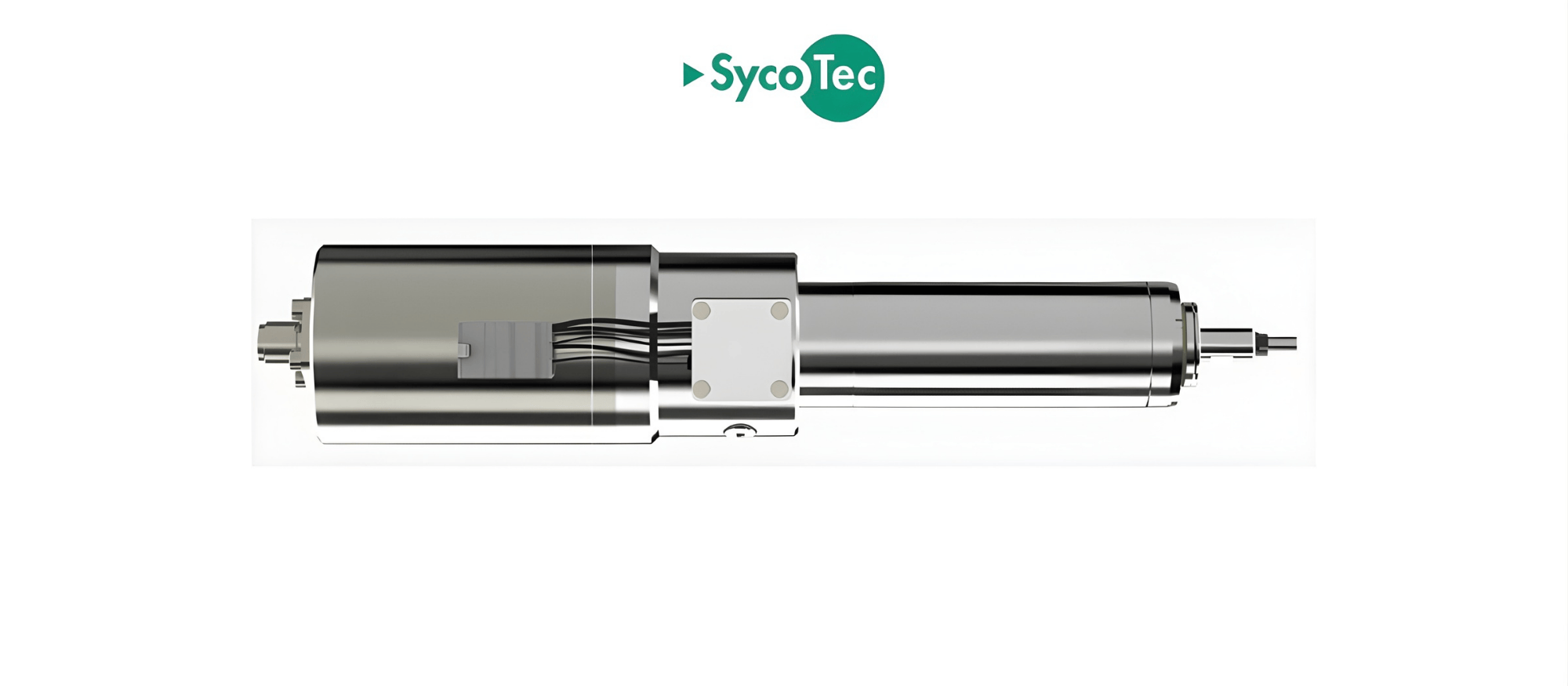

- German high-precision spindle, 800 W, 60,000 rpm; 0.01 mm processing accuracy

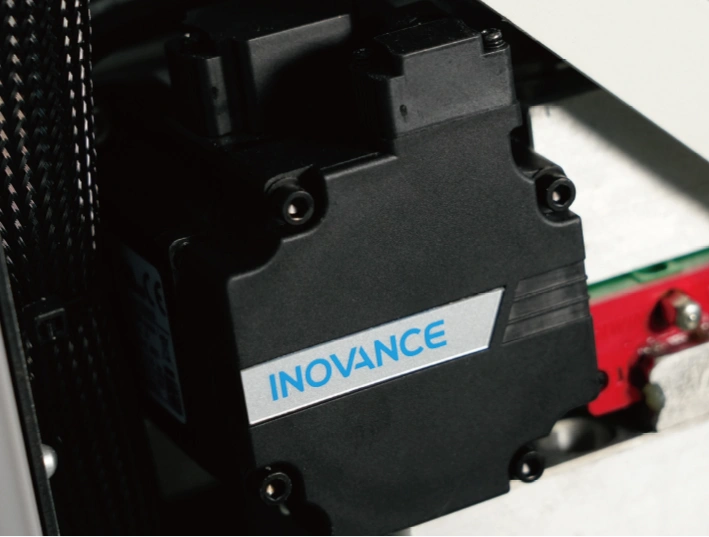

- C5 ball screw, HIWIN P-grade guide rail, INOVANCE servo control; integrated rigid structure

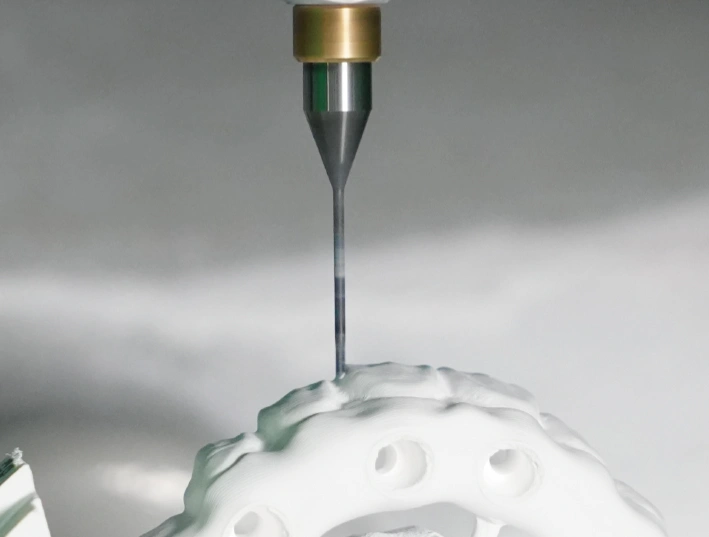

- 10-tool magazine; 6-block capacity; φ0.3 mm ultra-fine tooling; 90° vertical processing
- 19.5" touchscreen, Windows 10; automatic calibration; true wireless remote (control + file transfer)
- Plug-and-play: operators productive after one training session; 24/7 after-sales support
Why You'll Love It
The D5 Air Free removes the single biggest barrier to in-house Milling for a small clinic: the noisy, maintenance-heavy compressor. Plug it in, skip the air line, and run quiet five-axis dry jobs in a treatment-room-friendly 130 kg footprint — digital dentistry without rebuilding the utility room, and a learning curve short enough to be producing the same day.

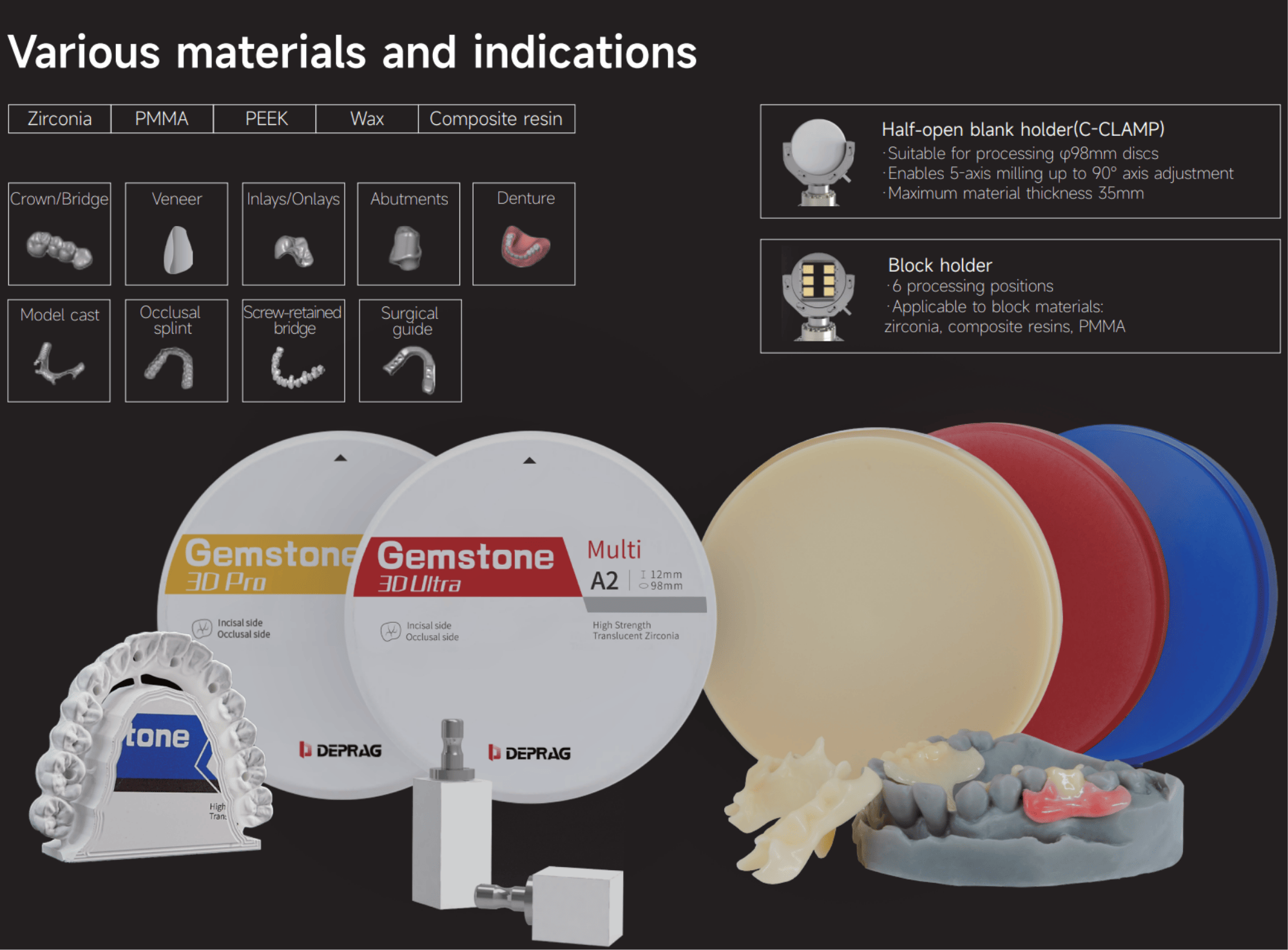

Materials & Applications
Millable materials:
Indications:
Technical Specifications
| Processing mode | Dry (no compressed air) |
| Axes | 5 (A 360°, B -30°~+90°) |
| Spindle | German · 800 W · 60,000 rpm |

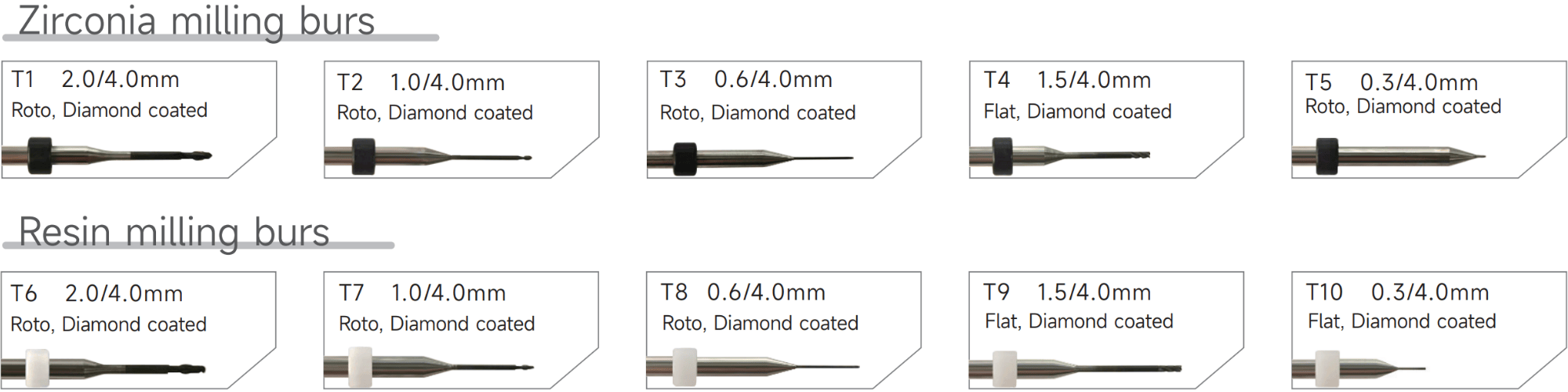

| Tooling | 10-tool magazine; φ0.3 mm ultra-fine tools |
| Capacity | 6 blocks |
| Drive | C5 ball screw · HIWIN P-grade rail · INOVANCE servo |
| Accuracy | 0.01 mm; 90° vertical machining |
| Collet | Ø4 mm |

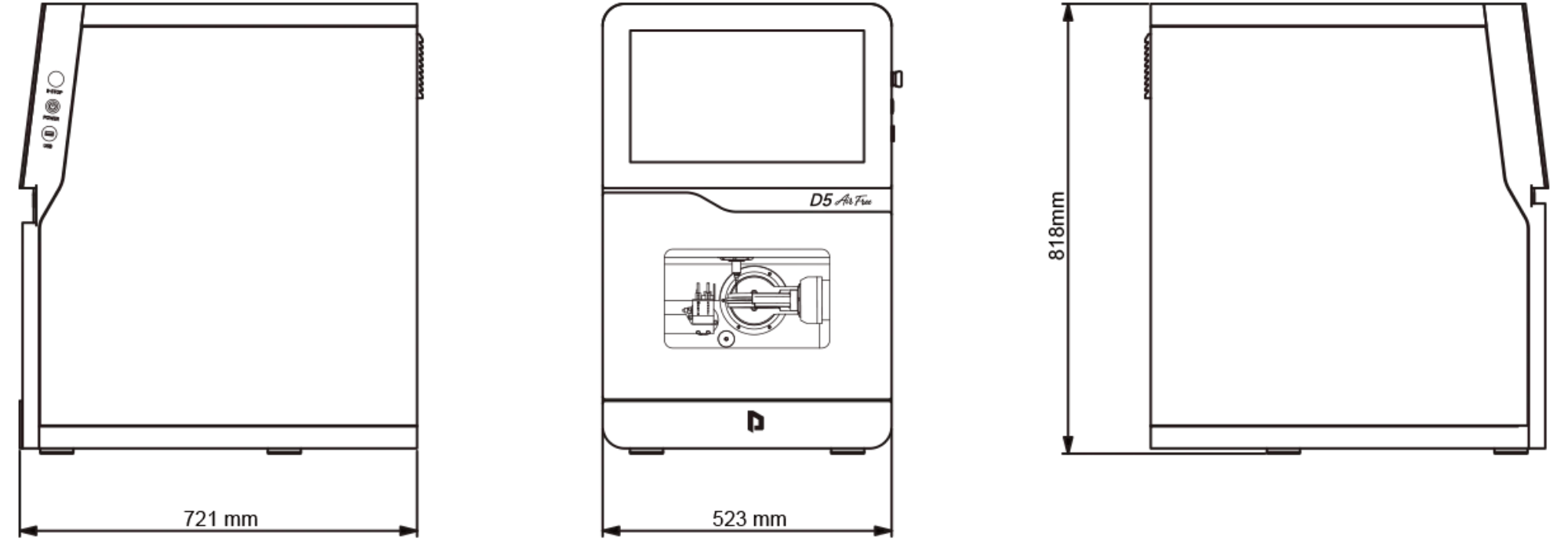

| Dimensions | 523 × 718 × 820 mm |
| Weight | 130 kg |
| Power | 220 V / 1.8 kW |
| Holders | C-CLAMP + Block |
| Control | 19.5" touchscreen, Windows 10, wireless remote |
| Compliance | CE · FCC (N. America) |
How It Compares — Other Lab Mills at US Dental Depot
| Machine | Axes | Mode | Changer / Holder | Spindle |
|---|---|---|---|---|
| DEPRAG D5 Air FreeCURRENT | 5-axis | Dry (no air) | C-CLAMP + Block | German 800 W (air-free) |
| ROLAND DWX-52D | 5-axis | Dry (wet optional) | 6-disc auto | Air-cooled |
| YETI Digi-MILL5 K5 | 5-axis | Dry (wet module opt.) | Single disc | Air-cooled |
| ECCO MILL Pantograph | Pantograph | Dry | Manual | Handpiece |
Alternatives shown are other Milling machines stocked by US Dental Depot, for comparison. Tap a model to view it.
Video
Documentation
Download the full DEPRAG D5 Air Free brochure for complete specifications, holder options and accessories: DOWNLOAD BROCHURE (PDF)
