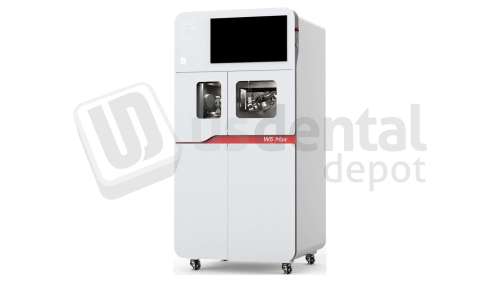

DEPRAG - W5Max DC DRY- WET Disc Changer (10) Dental Milling unit Set - Water Colling System - Ttank - Cabinet - Self Calibration - Remote assistance - # DEP-0004
14156_f.jpg)
14155_f.jpg)
Description
Download the brochure for all details.
Download ↓
HIGHLIGHTS
JUST ONE IS ENOUGH
W5 MAX meets the needs of most laboratories, offering a cost-effective solution for multi-purpose use

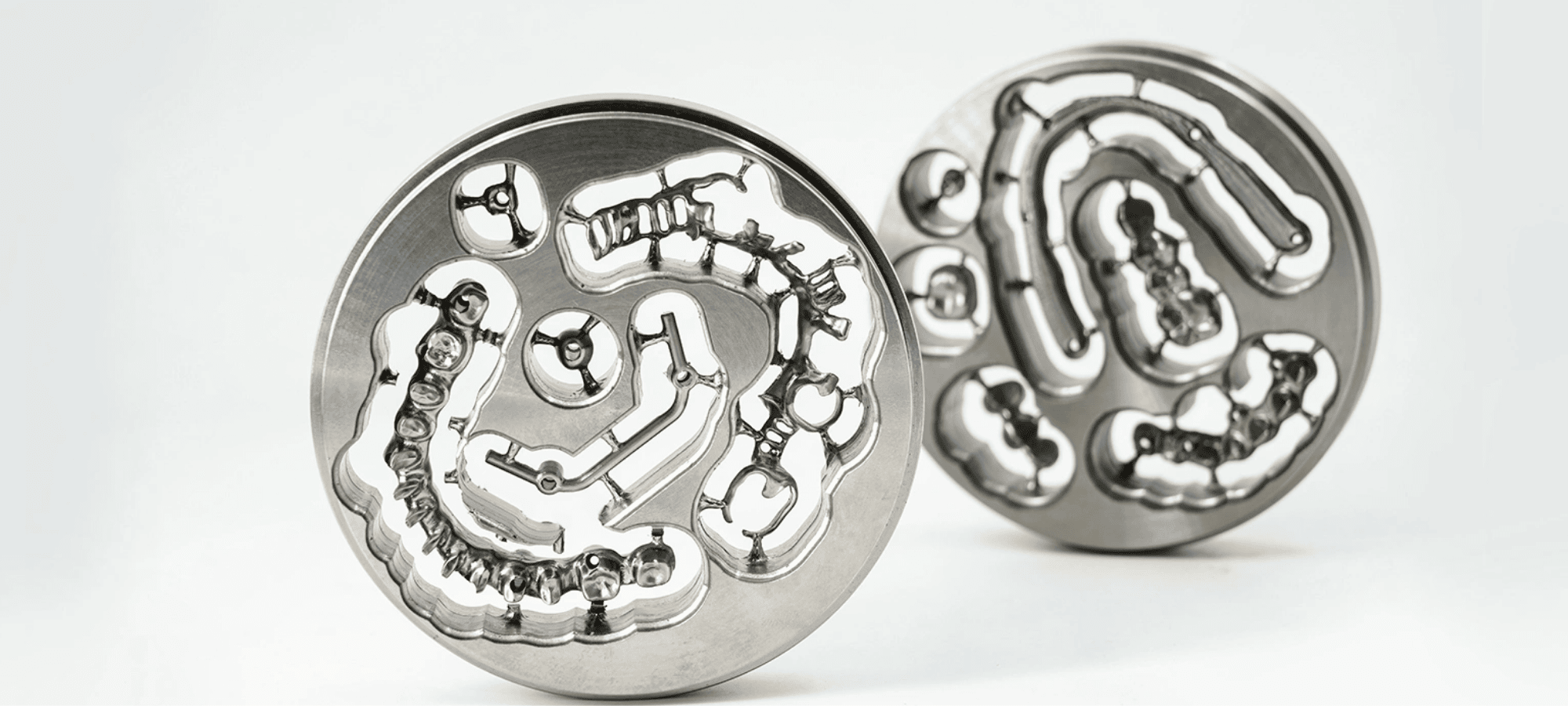

Ttitanium Disc
Glass ceramic
Zirconia
PMMA
Non-stop machining

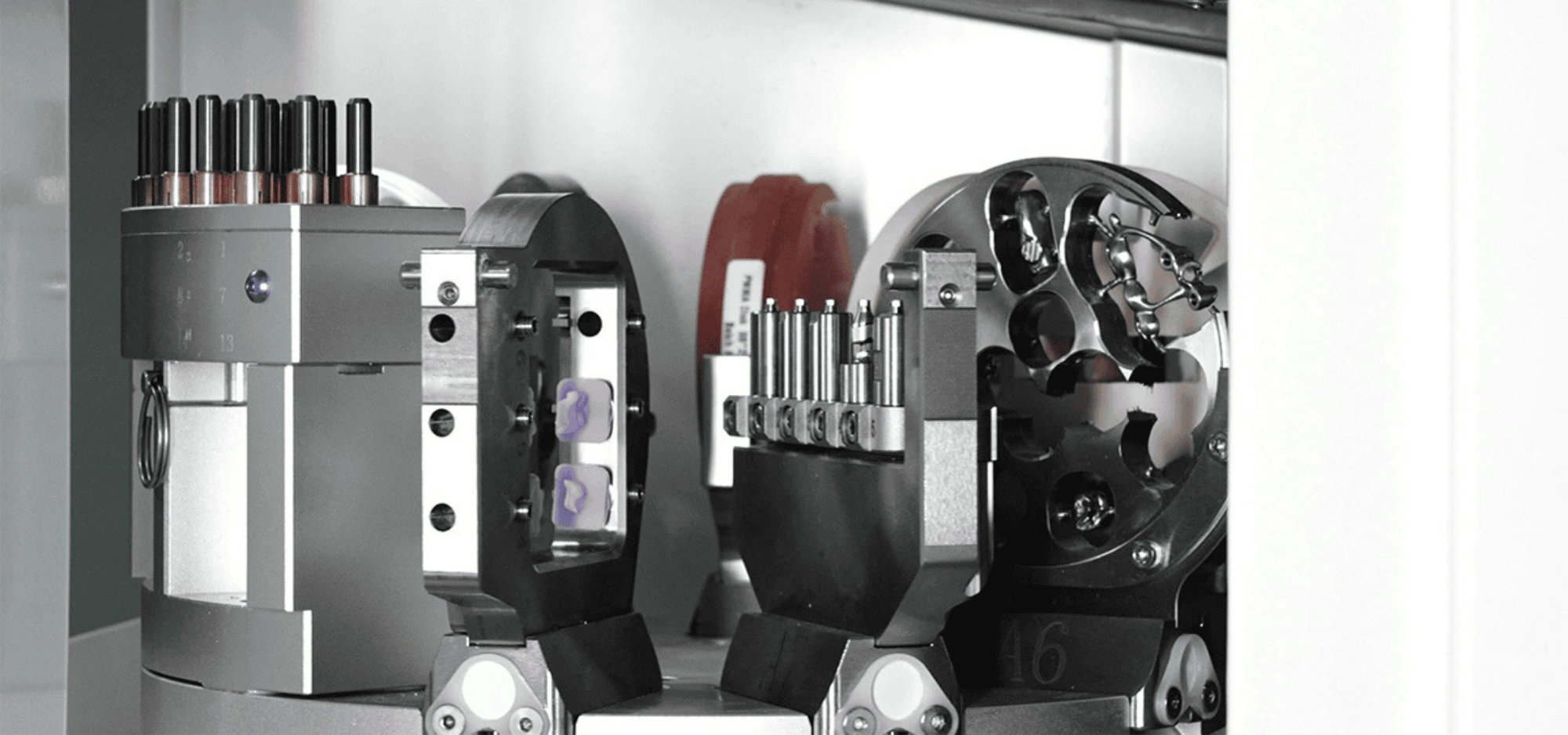

The W5 MAX is equipped with an 8-slot rotary automatic Disc Changer, which enables continuous processing, minimizing downtime, reducing manual labor time, and maximizing productivity.
No manual Calibration

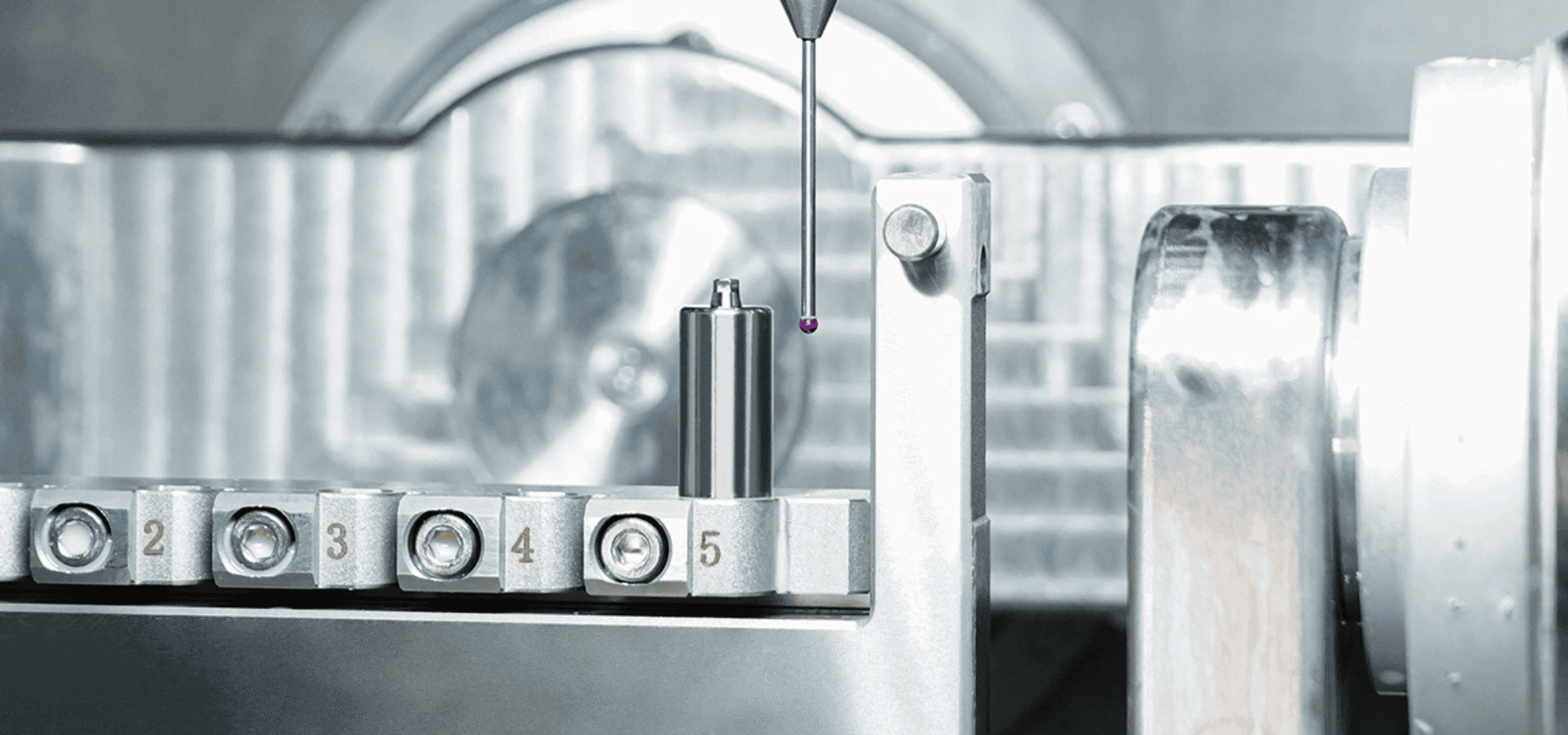

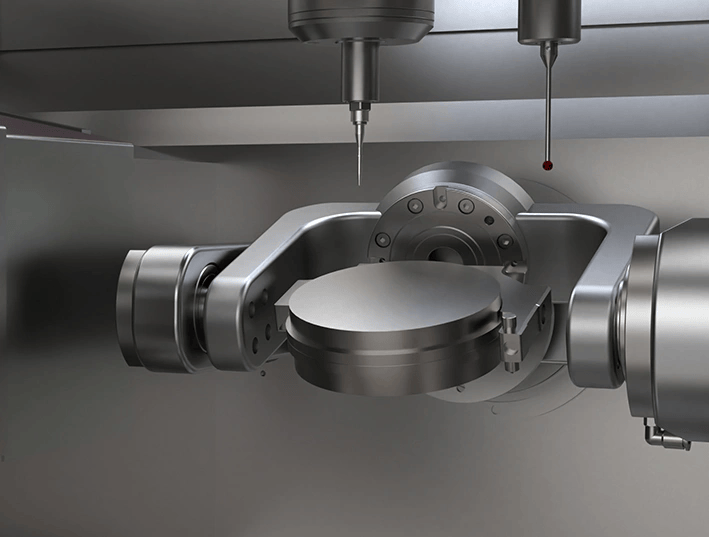

The W5 MAX is equipped with an industrial-grade probe head, ensuring high measurement accuracy. It Self-calibrates regularly for top performance without needing to be Set up manually, effortlessly achieving permanently high accuracy.
User-friendly

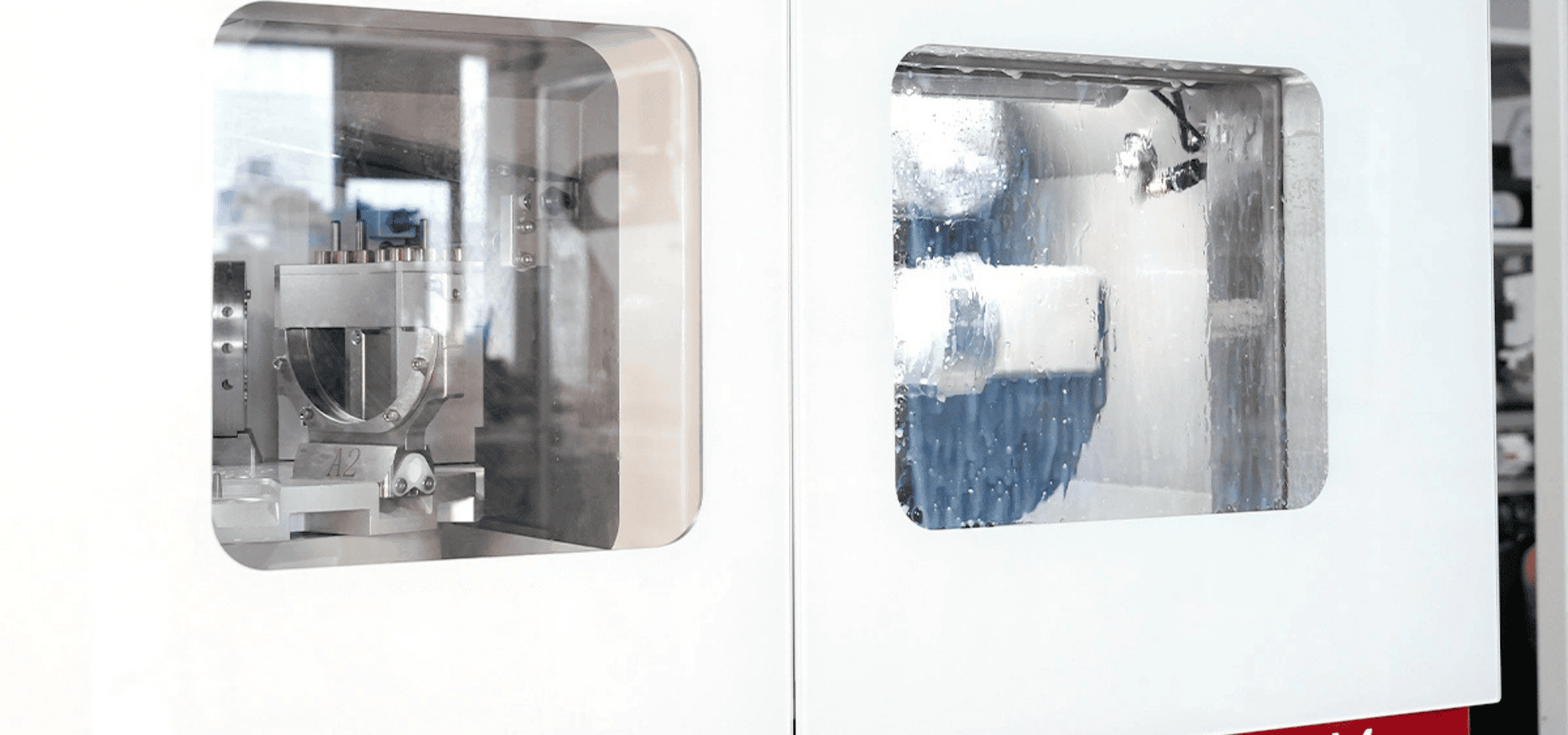

The Changer and tool magazine are separated from the working chamber, prevent contamination and facilitate easy cleaning. The drawable tool magazine simplifies tool replacement. Additionally, the dry/WET switch module further boosts convenience and comfort.
Intelligent design

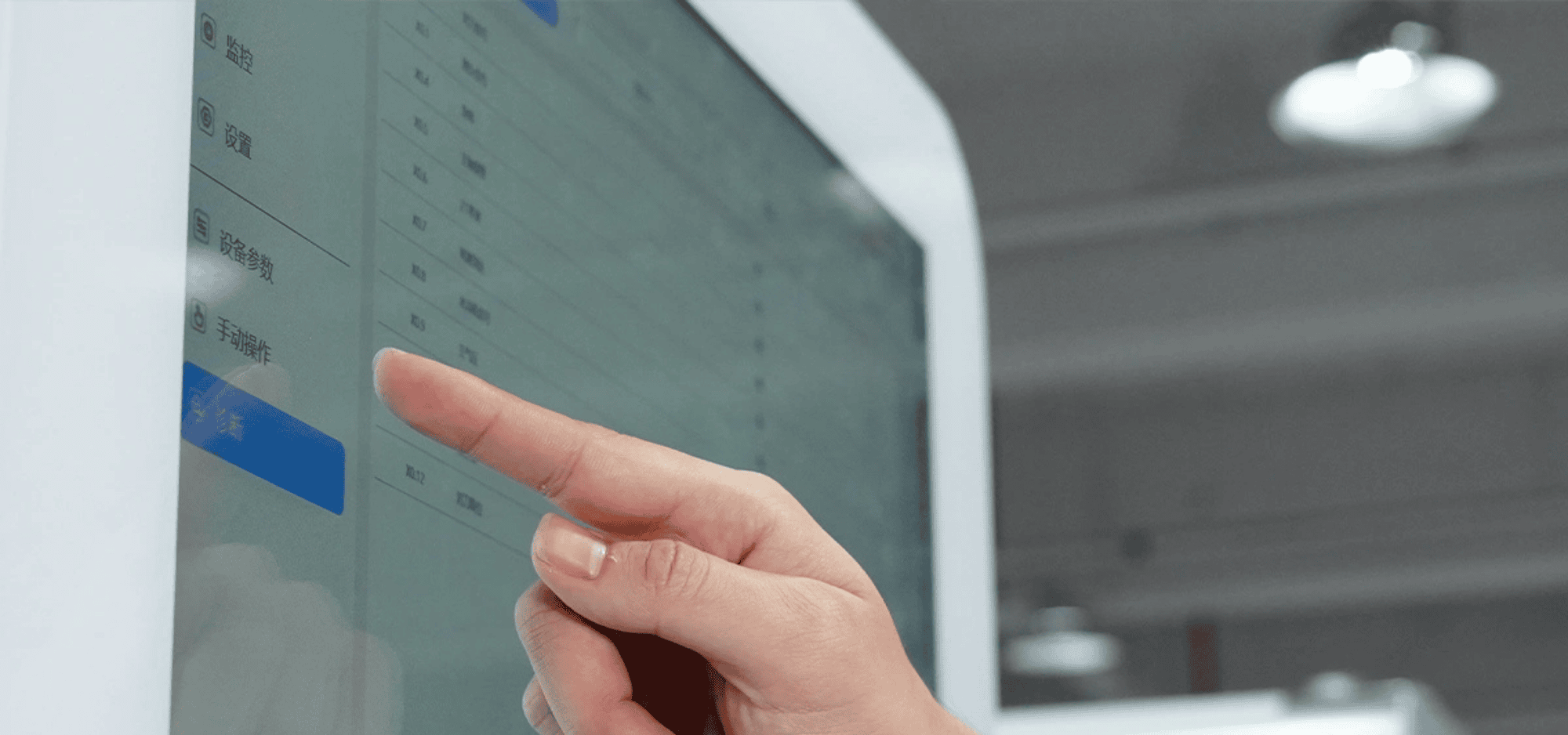

HD camera for Remote monitoring, instant file sharing, NC memory recall, burs lifespan alerts, and RFID tray identification. 24" HD touchscreen with Win 10, supporting software such as Hyperdent, Millbox, WorkNC. Switch effortlessly between WET/dry modes for all Milling needs.
FEATURES
HIGH ACCURACY

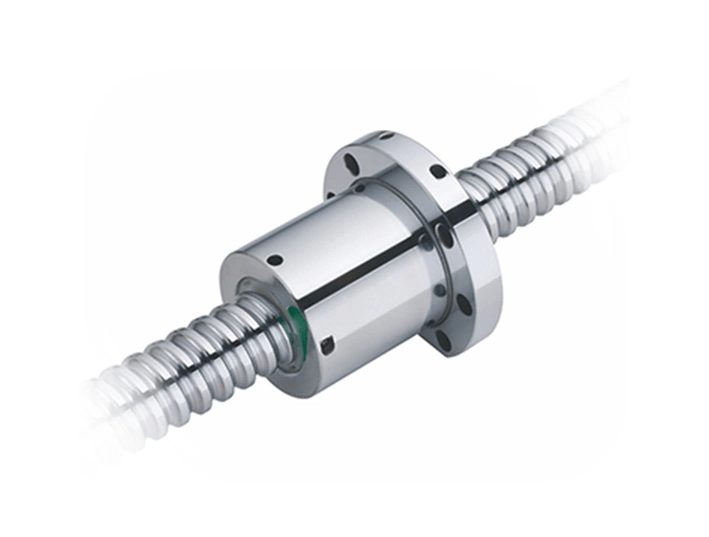

• Aerospace-grade HIWIN-C5 ball screws and P-grade guideways.
• The HAOZHI Water-cooled spindle with precision bearings 60,000 rpm.

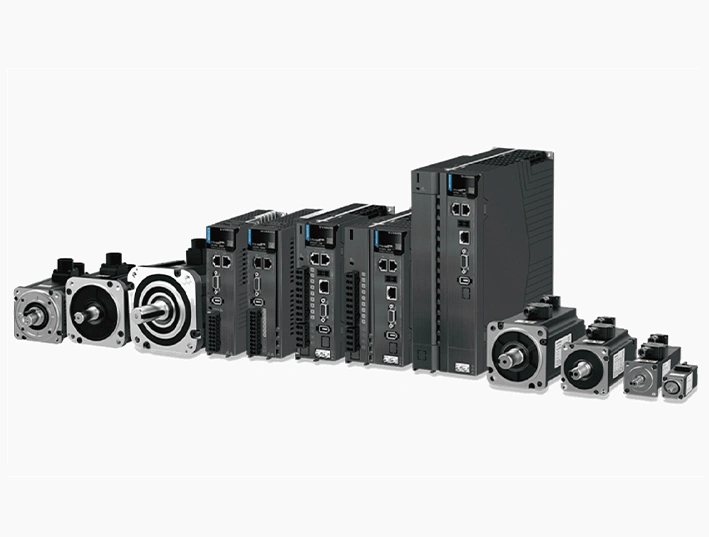

• INOVANCE high resolution encoder servo control System.
• Floor-mounted integrated casting is stronger and more stable.
• Harmonic reducer for rotary high-precision repetitive positioning.
• Finite element analysis-validated for superior stress distribution & rigidity, ensuring precision & stability 5 um repetition accuracy.
HIGH EFFICIENCY
• Automatic Disc Changer for 8 discs, 48 blocks, or 40 per-milled blanks.

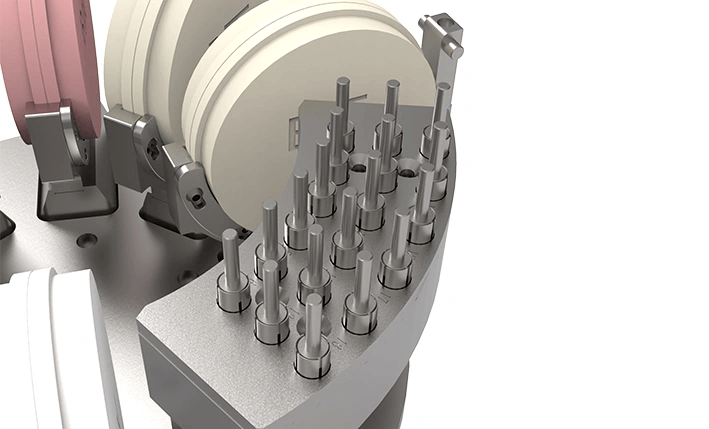

• Automatic Tool Magazine for 18 tools.

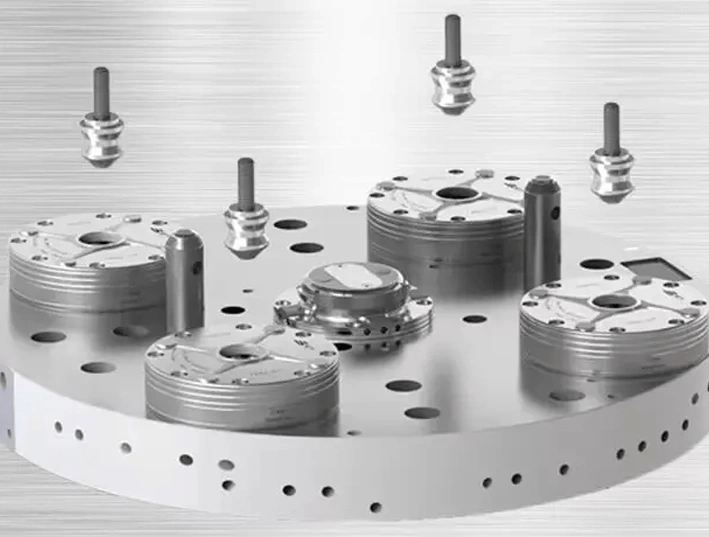

• Revolutionary Zero-Point Quick-Change System, avoiding clamping failure.
MAXIMUM VERSATILITY

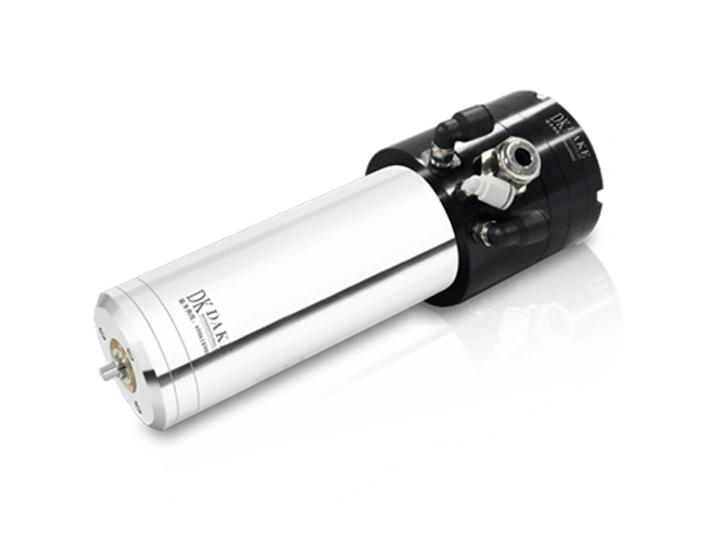

• 62mm Water-cooled spindle offers exceptional rigidity, handling metals and other Dental materials with precision.

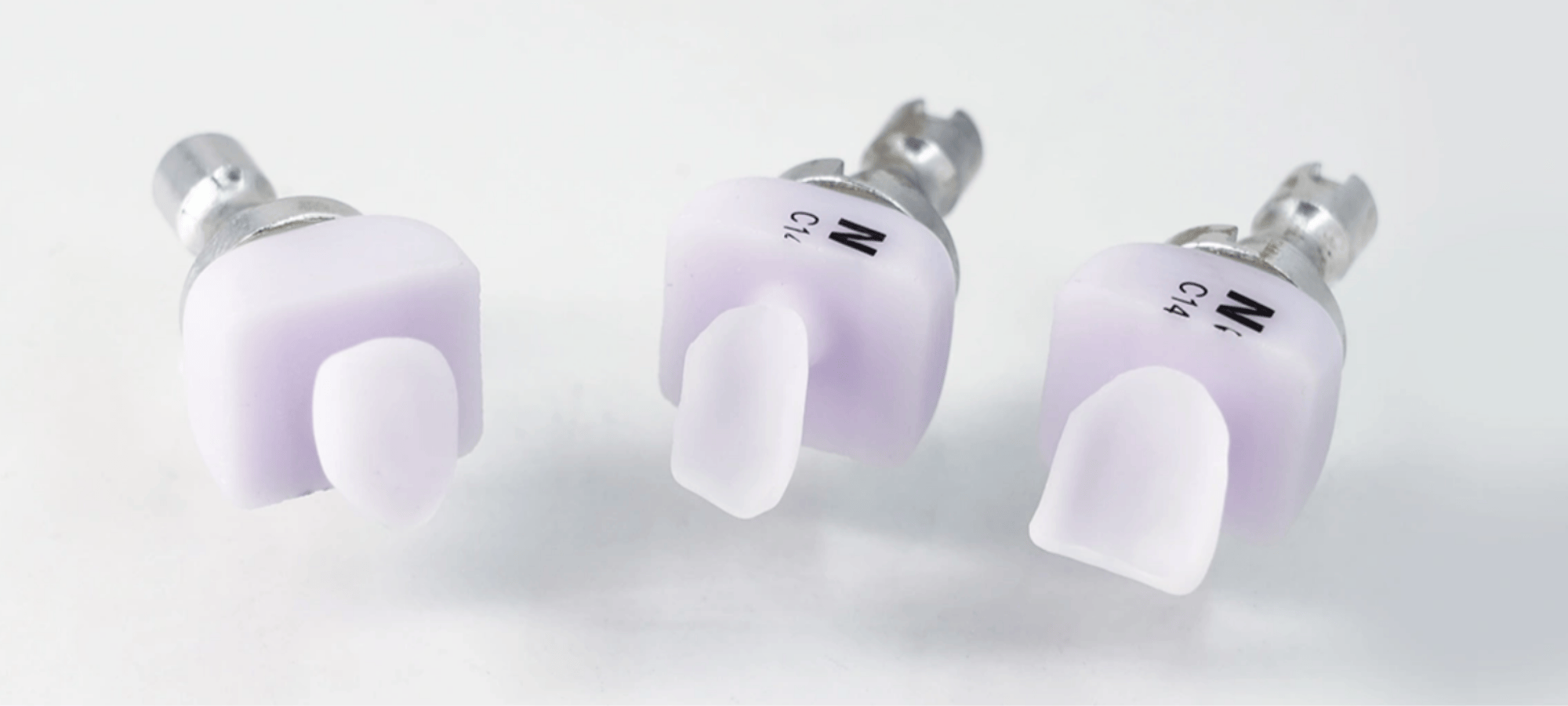

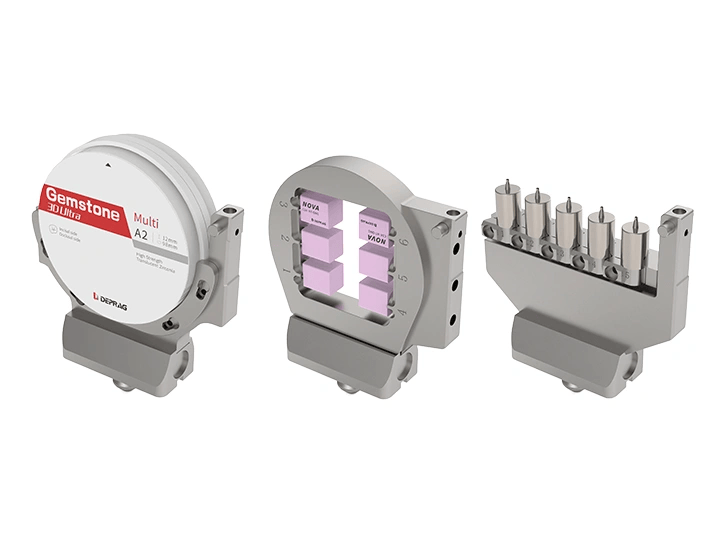

• 3 types of holders are available for 98mm Disc block, pre-milled blank, and glass ceramics.
• With a 360°rotation on the A-axis and a ±30°ange on the B-axis, it supports intricate processing of varied angles.
• It is capable of accommodating discs up to 35 mm.
MORE STABLE
• Cast iron body for durability and robustness.
• Floor-mounted structure with a heavier base to reduce vibration.
• Steel C-type B-axis.
STRONG RELIABILITY
• Equipped with reliable accessories from the renowned bands (HIWIN, HAOZHI and INOVANCE).
• 24-month warranty on core non-destructive parts.
• 24-hour Remote service.
STRONG SCALABILITY
• Advanced intelligent dry & WET switching module, powerful vacuum cleaning System, comprehensive Remote control capability.

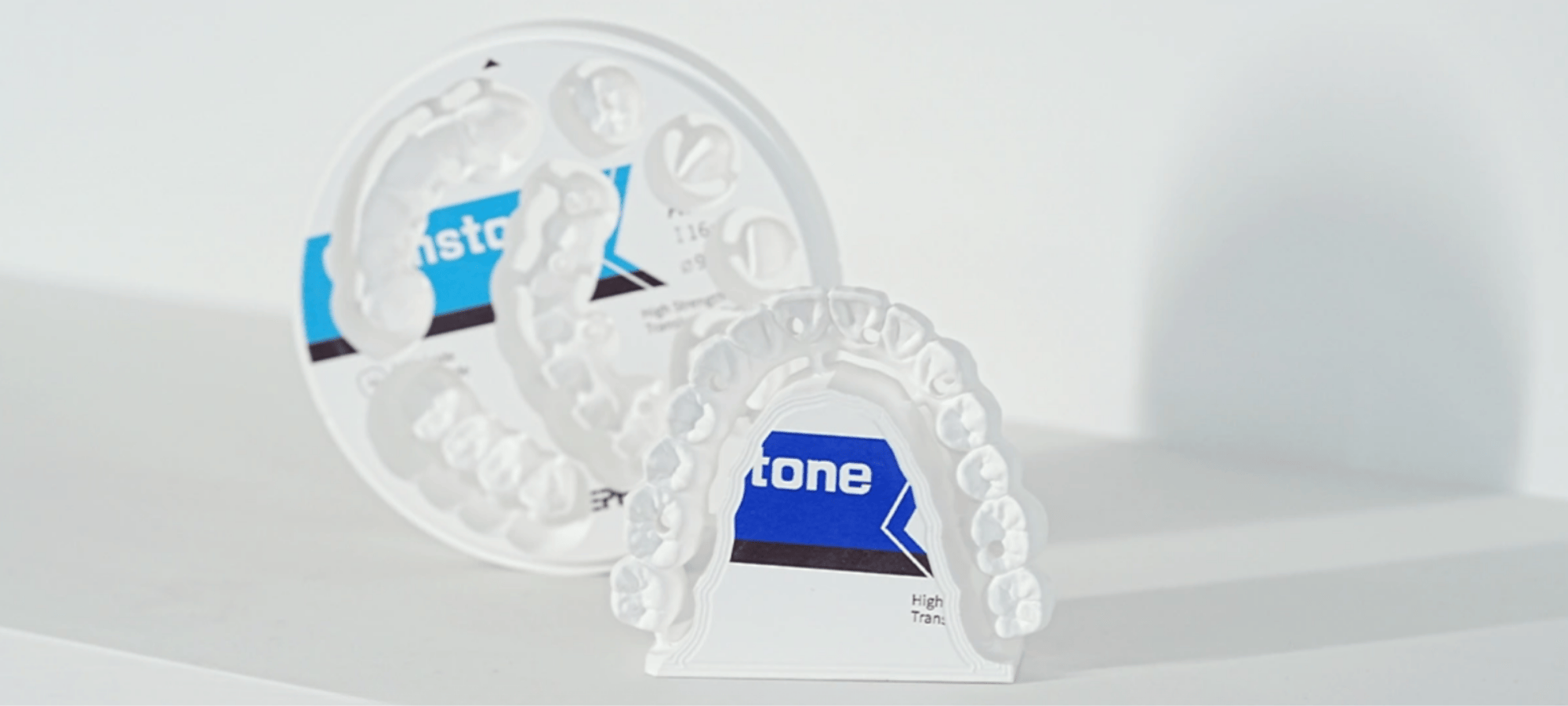

MACHINABLE MATERIALS
APPLICATIONS
ACCESSORIES

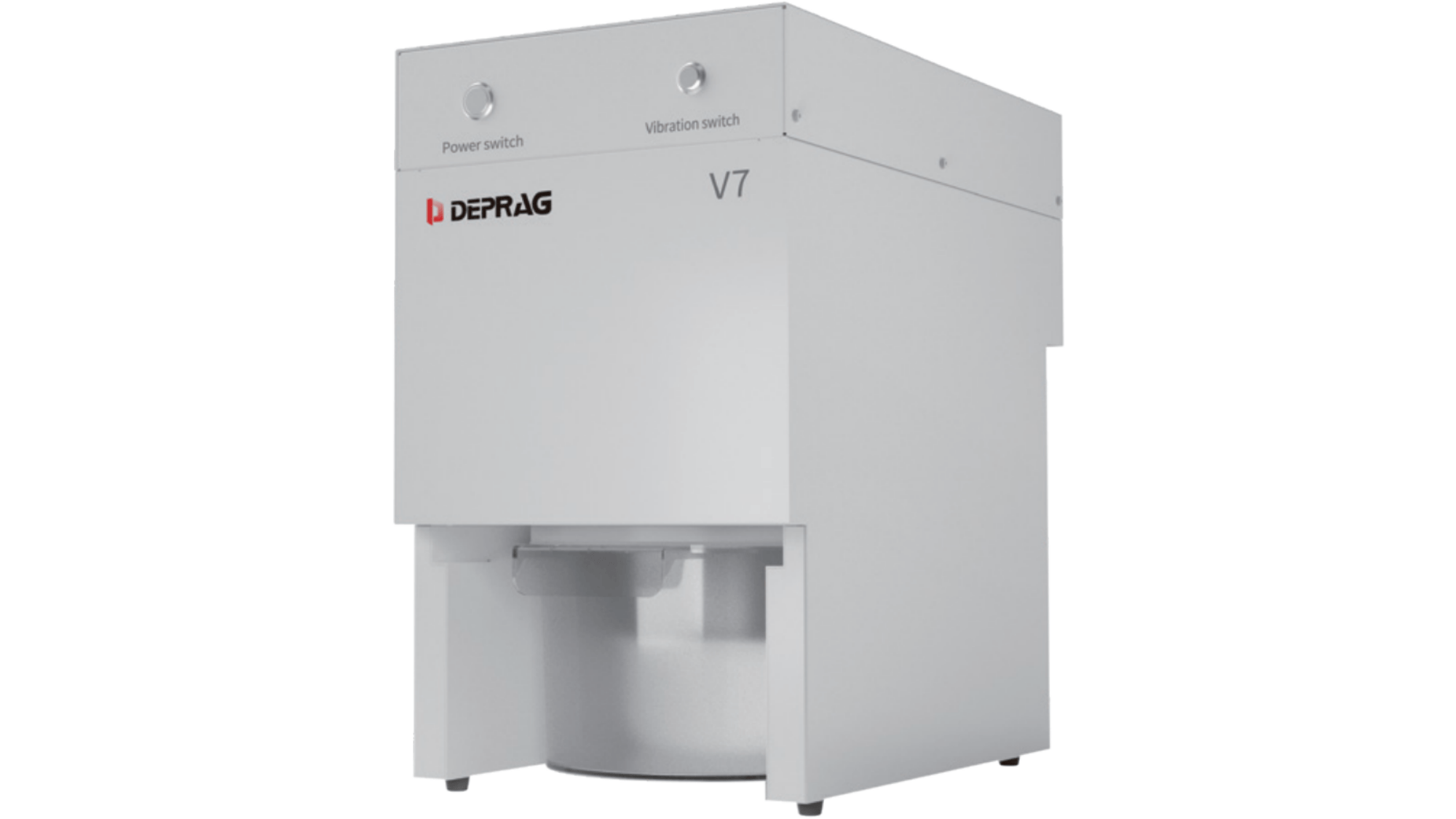

VACUUM CLEANER (Optional)
PARAMETERS
Power
Size
Capacity
360W(220V~50/60HZ)
260mmx420mmx450mm
3.6L

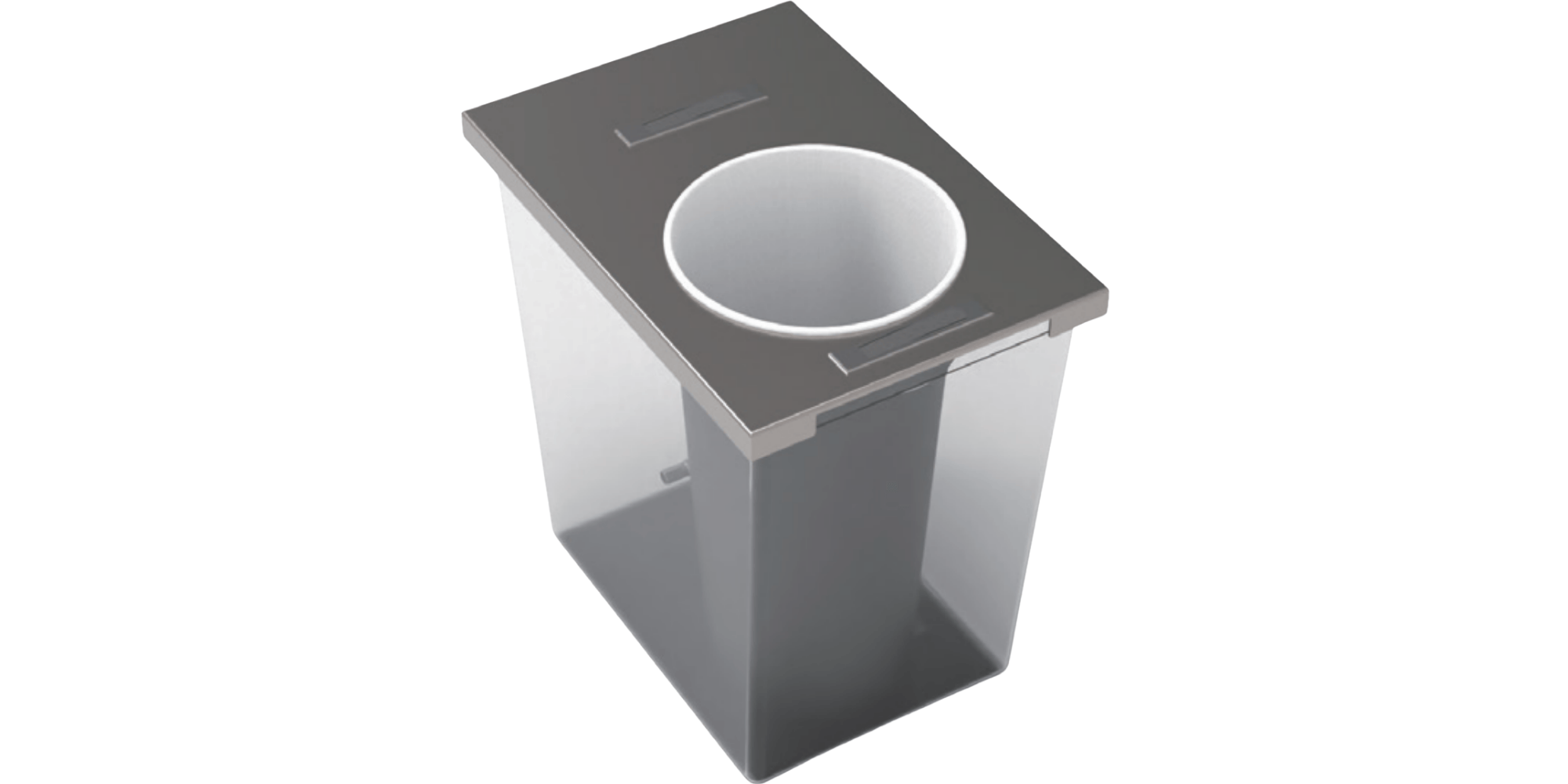

WET AND DRY CONVERSION (Optional)
PARAMETERS
Size
Capacity
335mmx225mmx350mm
30L
VIDEOS
EQUIPMENT PARAMETERS
GENERAL
Processing mode
Millable material
Applications
Power

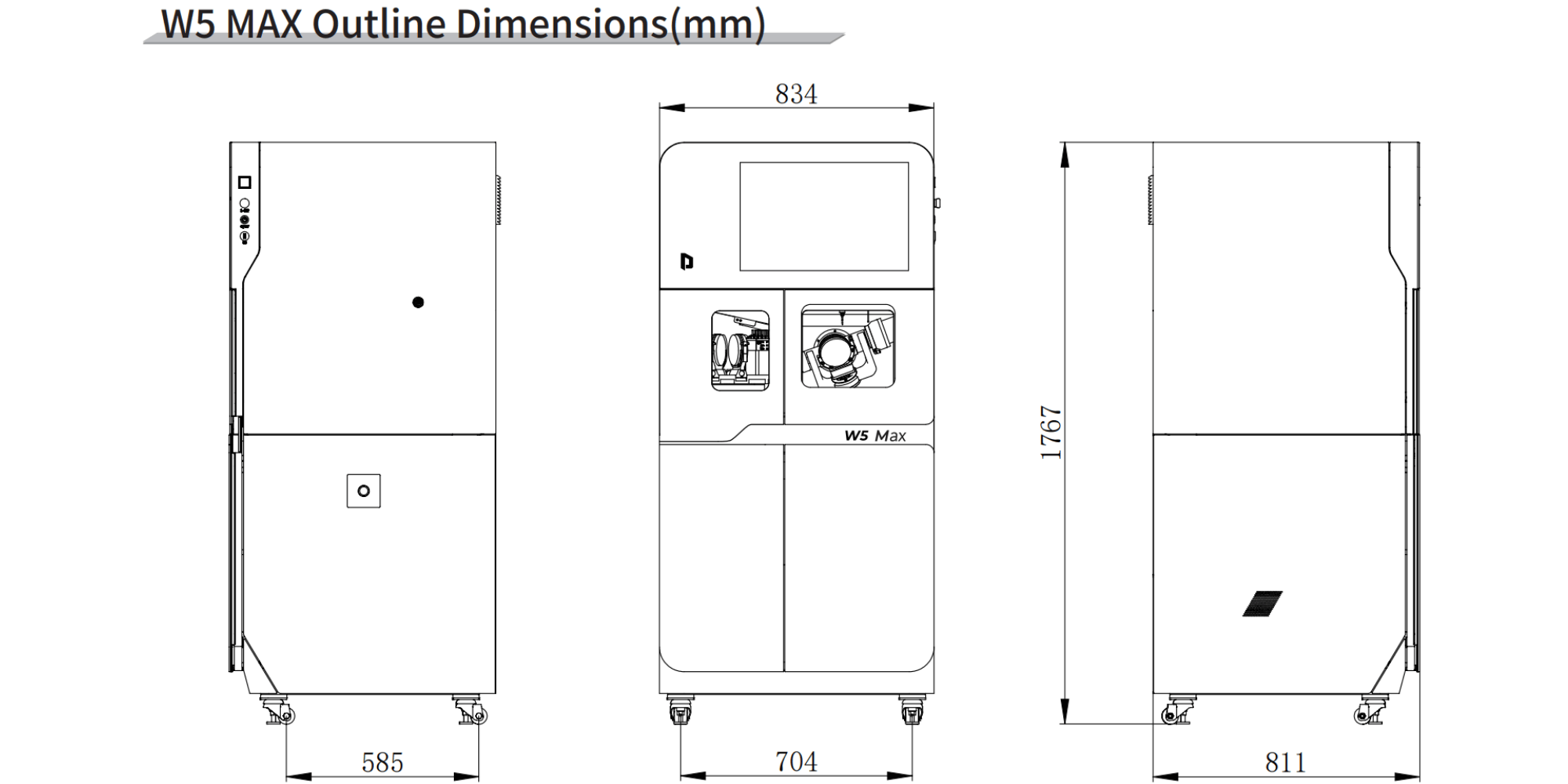

Dimension
Weight
Air supply pressure
Air flow
Water tank capacity

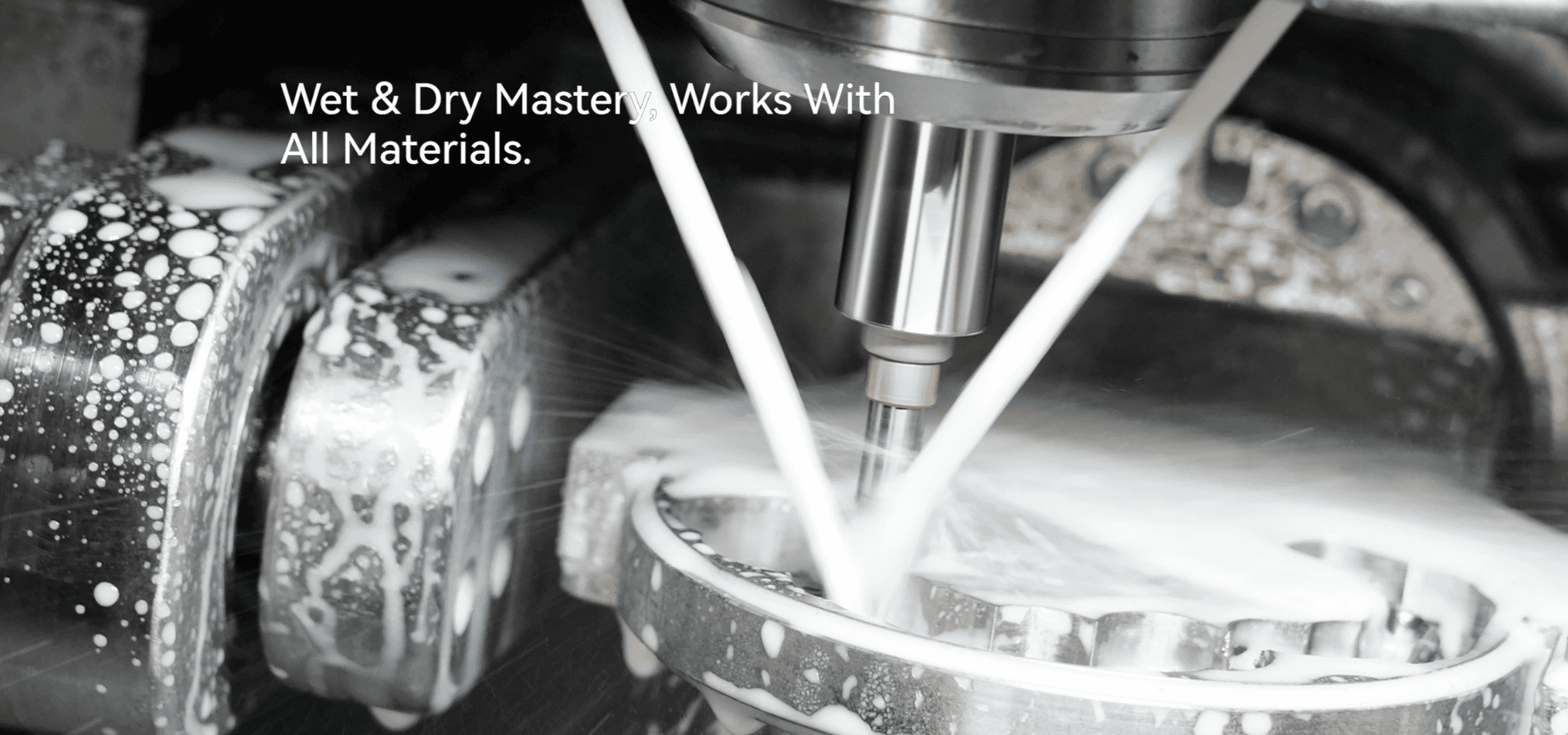

Dry and WET
Zirconia, Glass ceramics, Plastics | Wax, Composite, Premill, Titanium, CoCr
Crown | Bridge, Veneer, Inlay | Onlay, Abutment, Denture, Screw-retained bridge, Model cast, Occlusal splint, Surgical guide, Implant bar
220V/3.5kW
834 × 811 ×1767mm
330 kg
>0.5 MPa
>100 L/min
35L
STRUCTURE PARAMETERS
Basic construction
Number of axes
X-axis working stroke
Y-axis working stroke
Z1-axis working stroke
Z2-axis working stroke
Rotary axis A-axis
Rotary axis B-axis
Tool
Tool setting accuracy
Maximum feed speed
Maximum idle speed
Integrated cast iron
5
280mm
135mm
105mm
165mm
0~360°
-30°~+30°
18
0.01mm
4000mm/min
8000mm/min
SPINDLE
Speed
Power
Collet
Cooling method
10,000~60,000 rpm/min
3.0kW
Φ6 mm
Water cooling
SCOPE OF DELIVERY
CAM Software
Clamps
Millbox / Hyperdent / WorkNC available
Half-open blank holder(C-CLAMP)
Block holder
Premill Abutment holder
