CALIFORNIA TOOLS - 4.0 HP Ultra Quiet Oil-Free - 220v/60Hz - 20Gal - 4-Chairs Steel Tank NO-Air Dryer - C# CAT-20040CAD
11762_f.jpg)
11761_f.jpg)
11760_f.jpg)
11759_f.jpg)
Earn up to 1,392 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
CALIFORNIA Air TOOLS
• CAT-20040CAD
DESCRIPTION

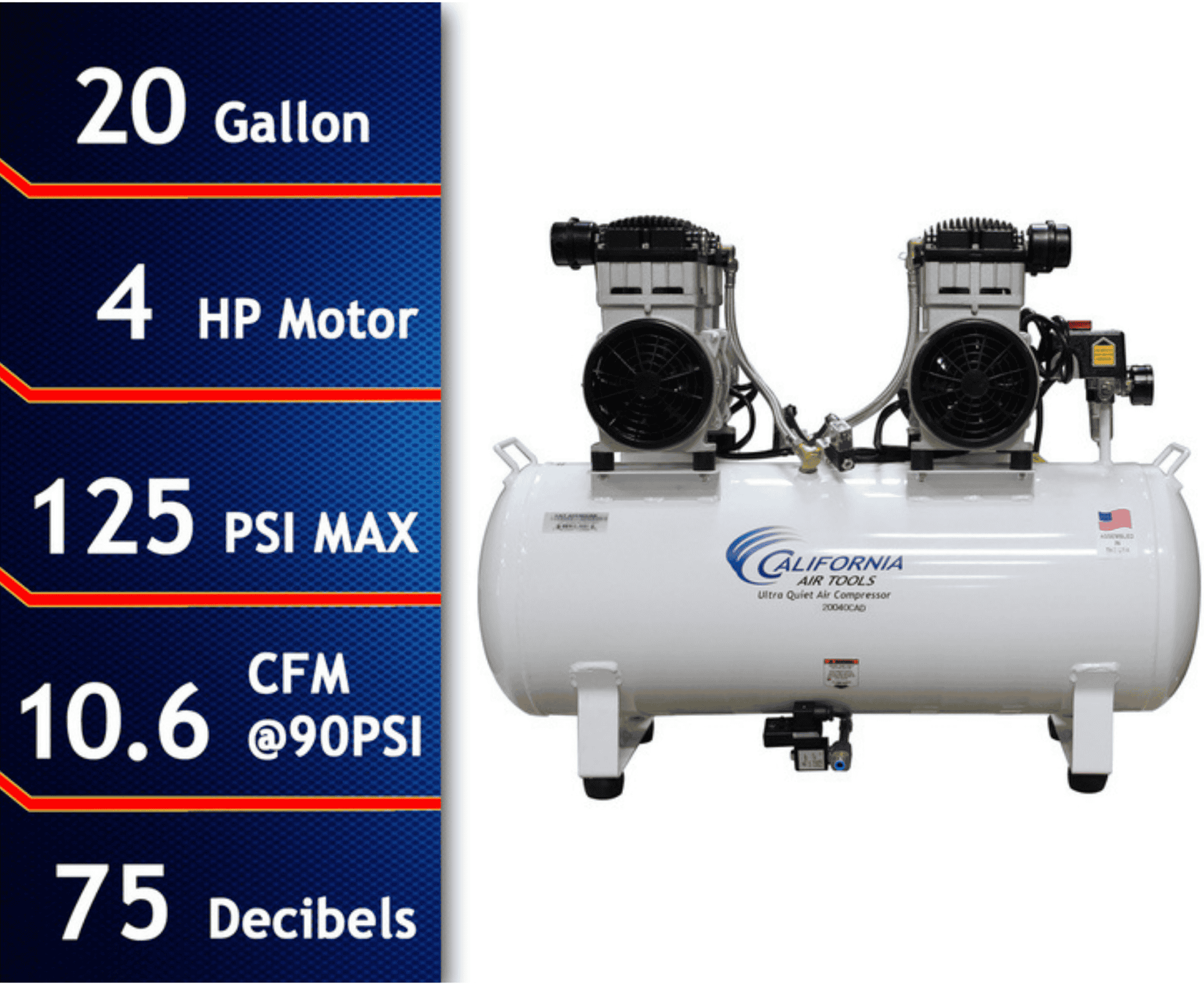

Powerful 4.0 Hp Ultra Quiet & Oil-Free 20 Gallon Air Compressor, with Automtic Drain Valve
• 75 dB Noise Level
• 4.0 HP (Rated/Running)
• 20 Gallon Steel Tank
• 12.80 CFM @ 40 PSI
• 10.60 CFM @ 90 PSI
• 220 Volts / 60 Hertz / Single Phase
CALIFORNIA Air TOOLS

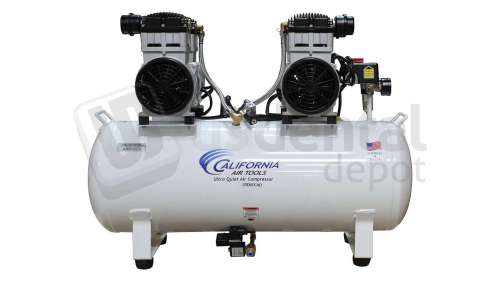

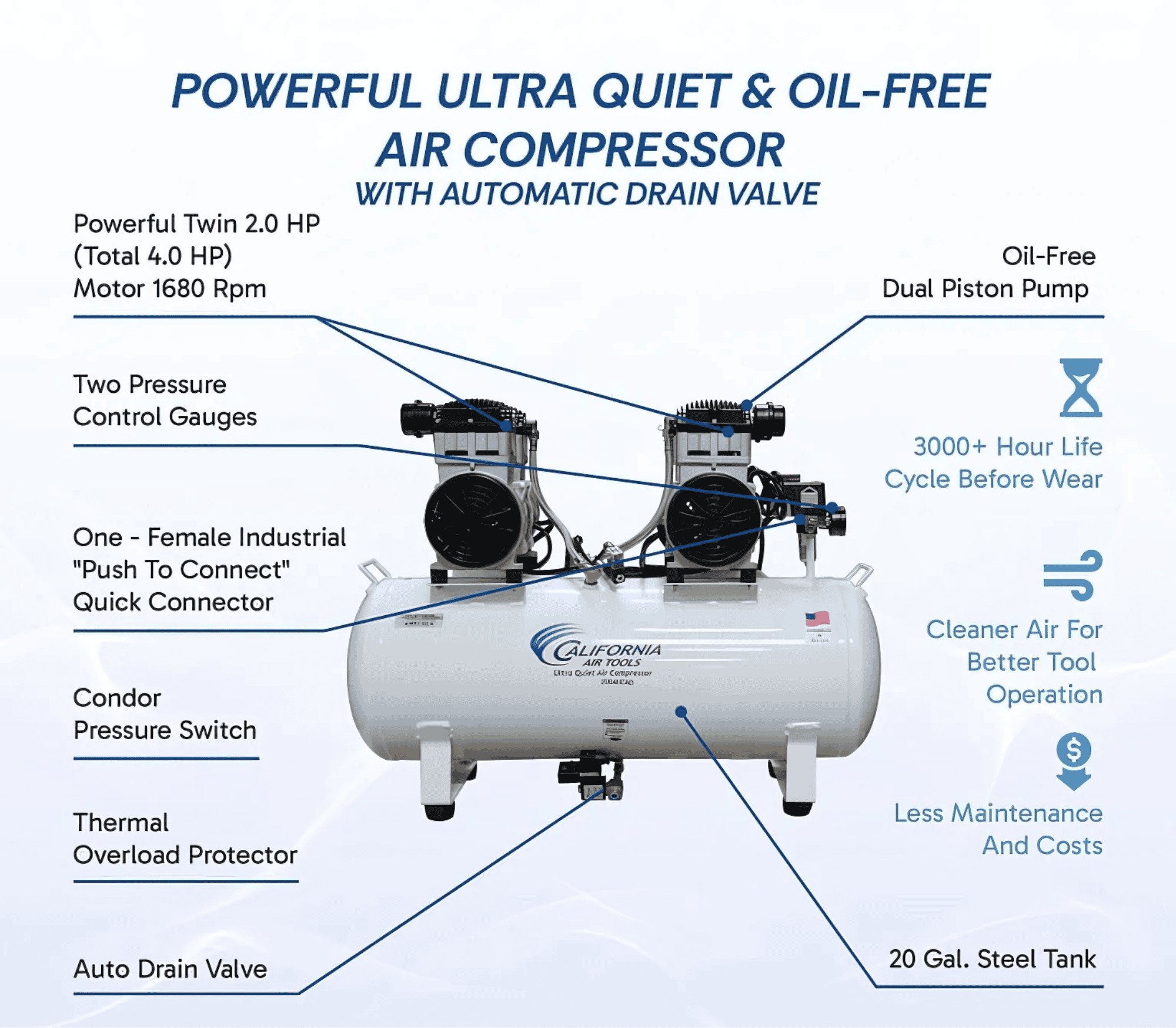

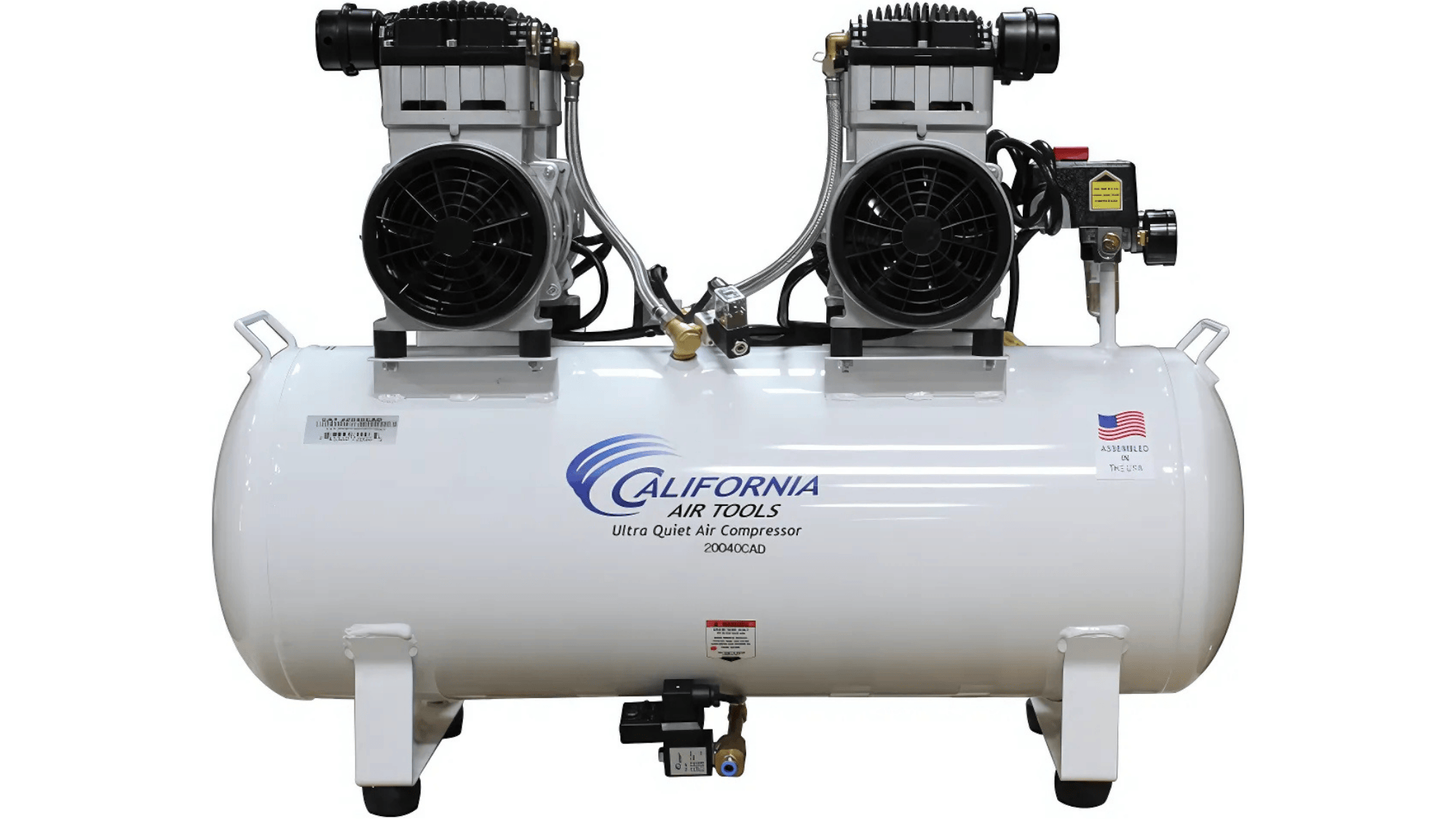

The CALIFORNIA Air TOOLS 20040CAD Ultra Quiet & Oil-Free Air Compressor, with Automatic Drain Valve, is designed to be one of the quietest 4.0 Hp Air Compressors in the industry having only 75 decibels of sound.
The Powerful Twin 2.0 HP (SP-9421-22060) motors operate at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040CAD Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 20 Gallon Steel Air Tank is just the right size for shop or garage. EZ-1-2321 Auto Drain Valve Factory Installed.
The CALIFORNIA Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your Air compressor Air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. (Factory Pre-Set)
Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!
FEATURES:
• Oil-Free Pump – Cleaner Air for better tool operation.

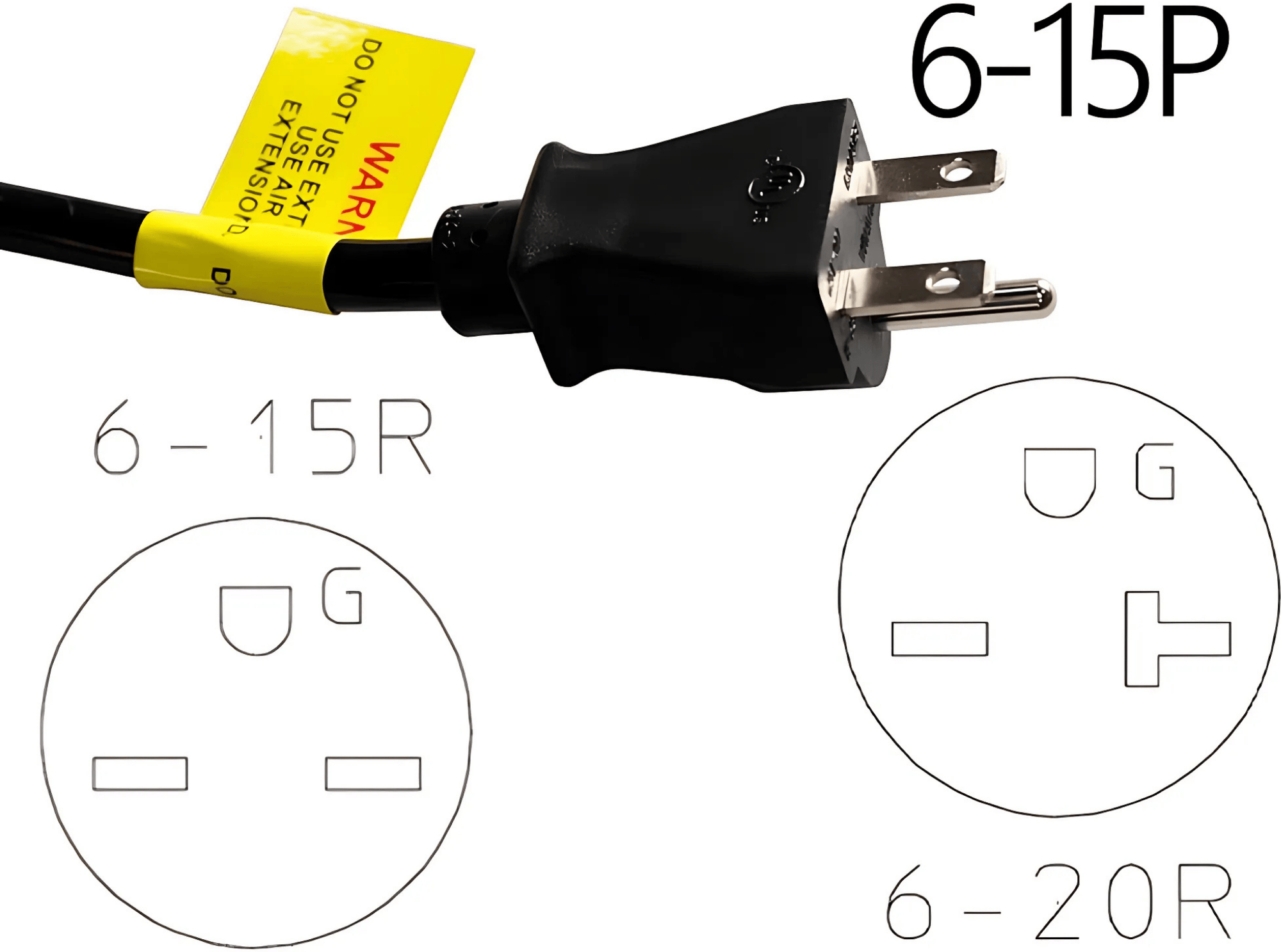

• Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
• 20 Gal. Steel AirTank - pounds and easy to move around.
• One - Female Industrial "Push to Connect" quick connector (1/4" NPT)
• Working Pressure 90-125 PSI (+/-5 PSI). Adjustable up to 105 PSI Kick-On; 130 PSI Kick-Off maximum.
• 220 Volt / 60 Hertz / Single Phase (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
• The CALIFORNIA Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your Air compressor Air tank.
• Ultra Quiet - Only 75 decibels
• Less maintenance and Costs.
• Two pressure control gauges
• Output Air Pressure Regulator (0-125 PSI)
• Condor Pressure Switch
• Easy Start Valves (2) - For Less Starting Amperage
• Thermal Overload Protector
• Low Amp Draw - 14 Amps
• Duty Cycle - 70/30*
• Time to fill tank from empty to full - 150 Seconds
• 148 lbs

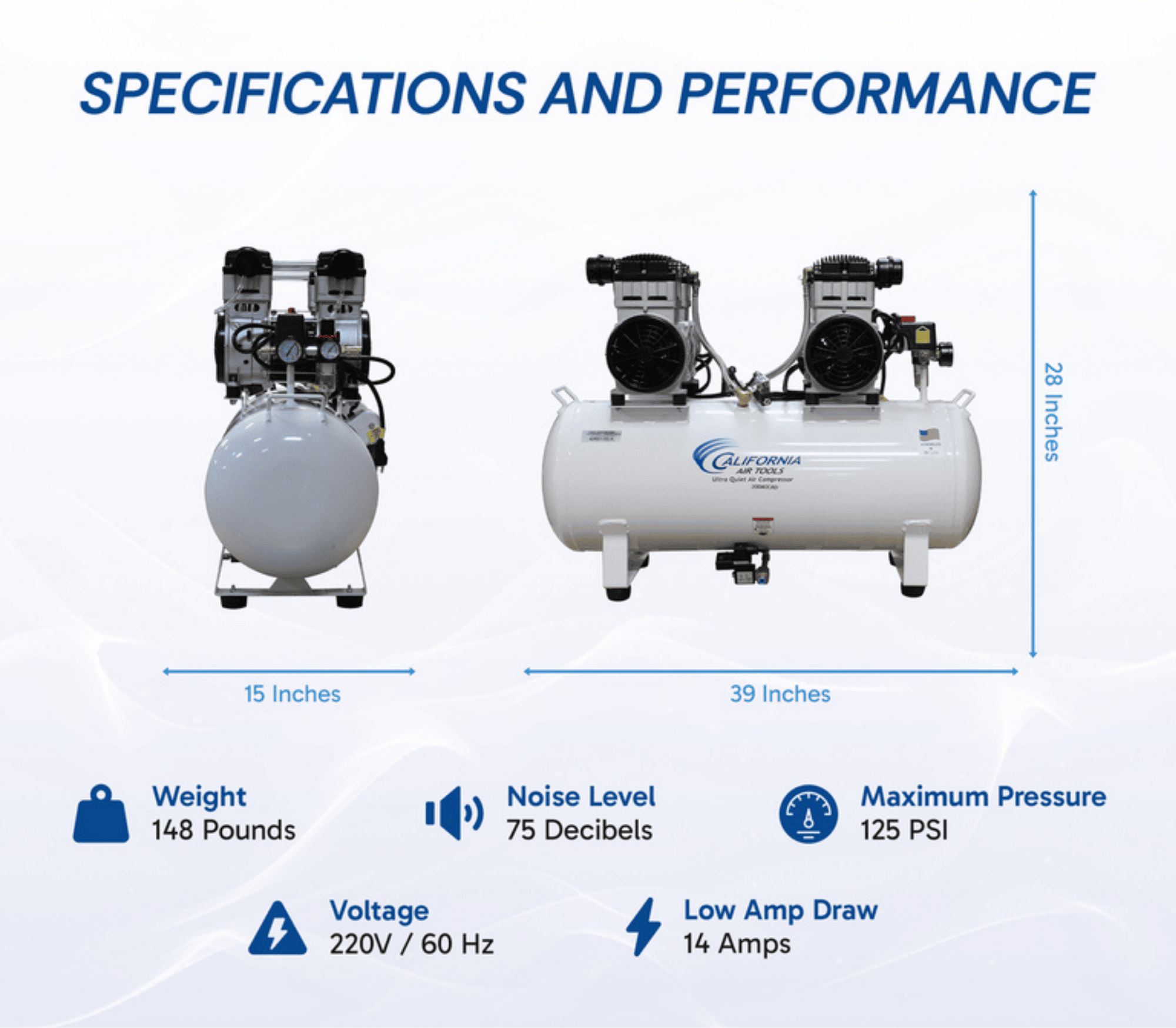

• L (39") x W (15") x H (28")
• Less heat which dissipates more efficiently
• EZ-1-2301 Auto Drain Valve Factoy Installed
• 1 Year Limited Warranty
• Comes complete (4) Air Filters
• Commercial Use: Refer to State & City Codes
• Non-ASME Air Tank
• Assembled in USA with Global Components
• Recovery time from 95 PSI to 125 PSI - 40 Seconds

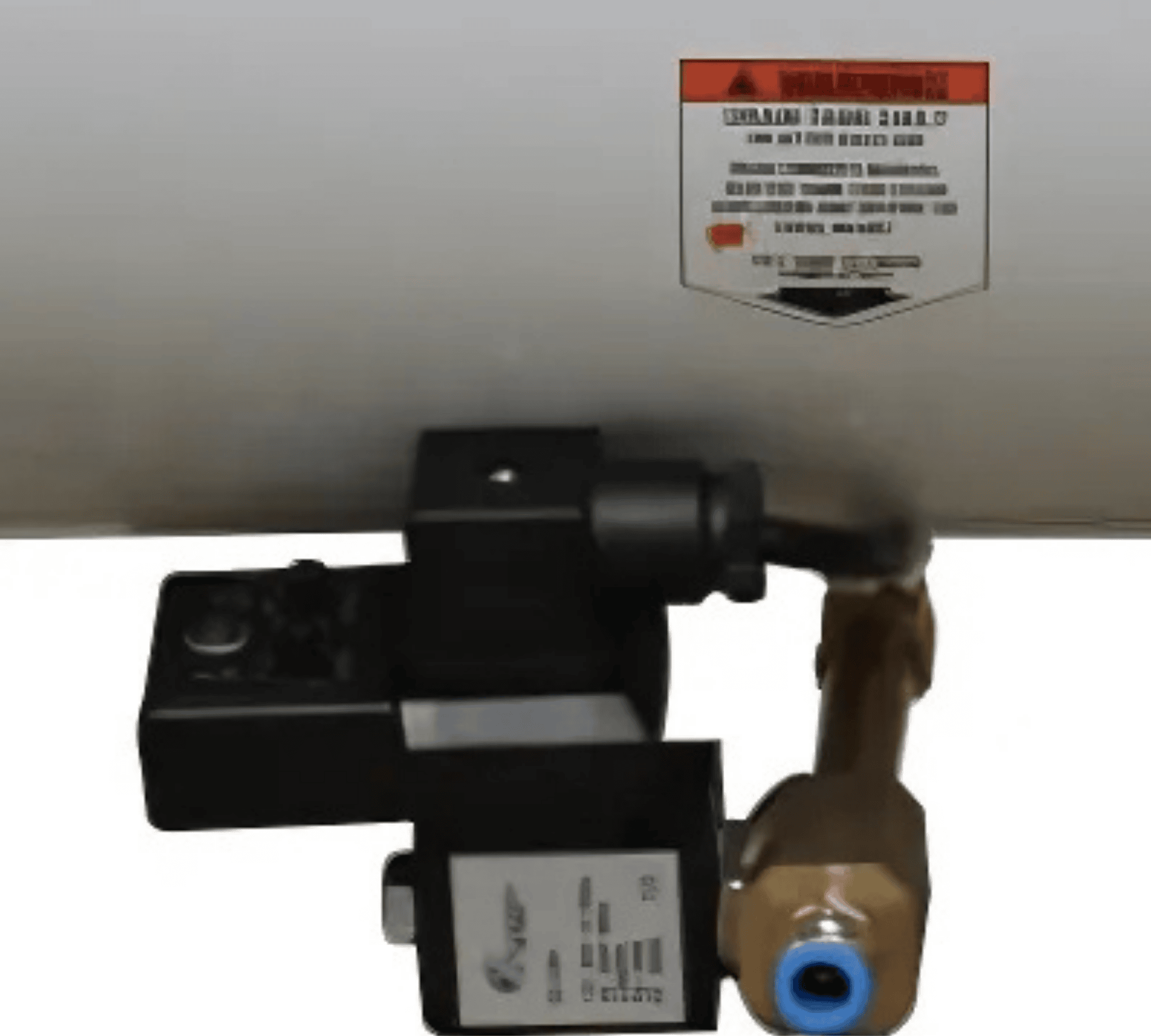

AUTOMATIC DRAIN VALVE FEATURE:

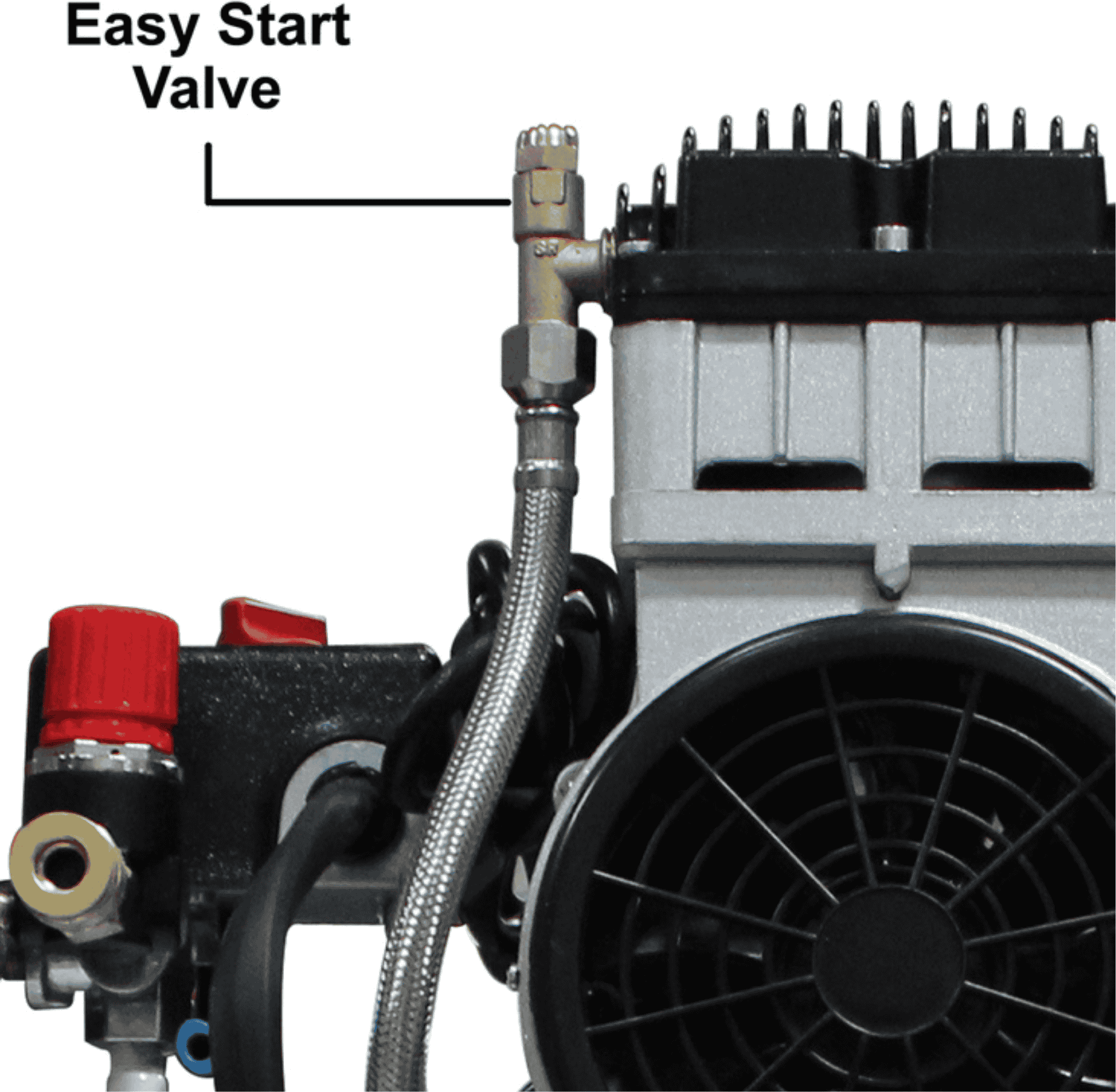

EASY START VALVE FEATURE:
VERSION EN ESPAÑOL
OPTIONAL

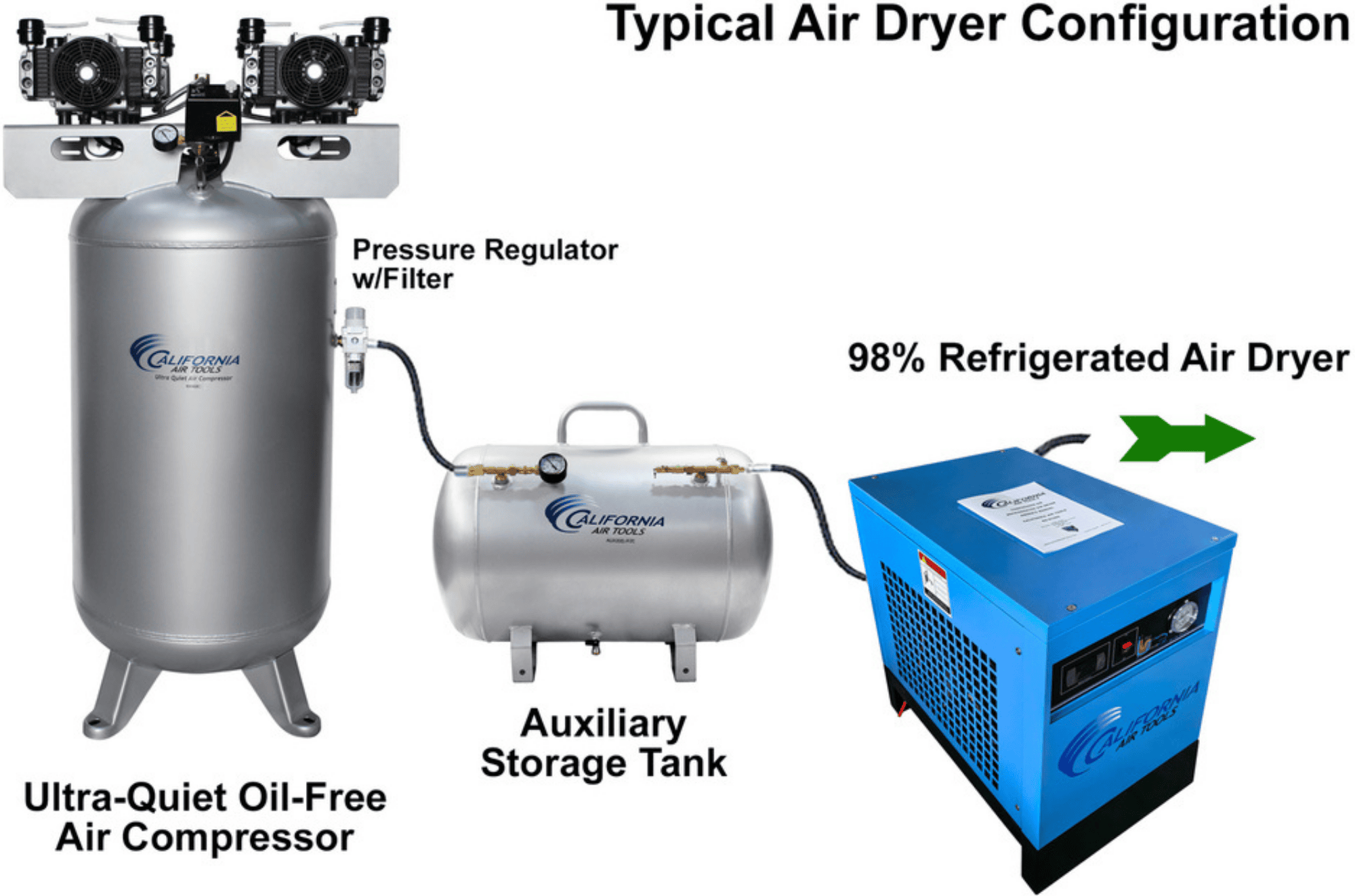

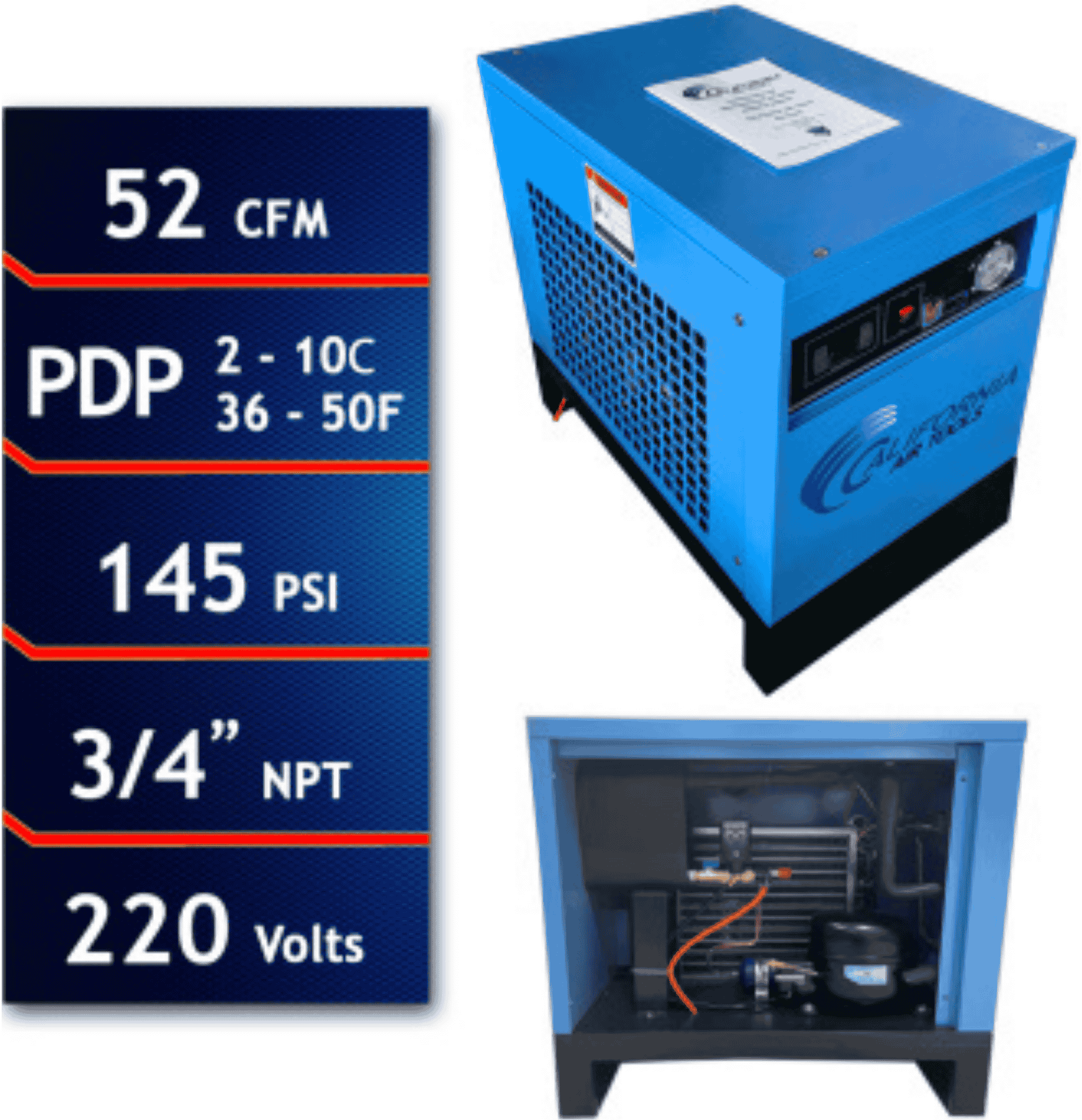

Optional -- RD-91503 High-Efficiency Non-Recycling 98% Refrigerated Air Dryer, 220v 60hz
ADD-ON OPTIONS:
• 16 Piece Air Hose & Air Tool Accessory Kit (CAT-376)
• CALIFORNIA Air Tools Hybrider Flex 1/4in 50 Foot Hybrid Air Hose
• 317 Water (moisture) & Oil Separator Air Filter 1/4 NPT

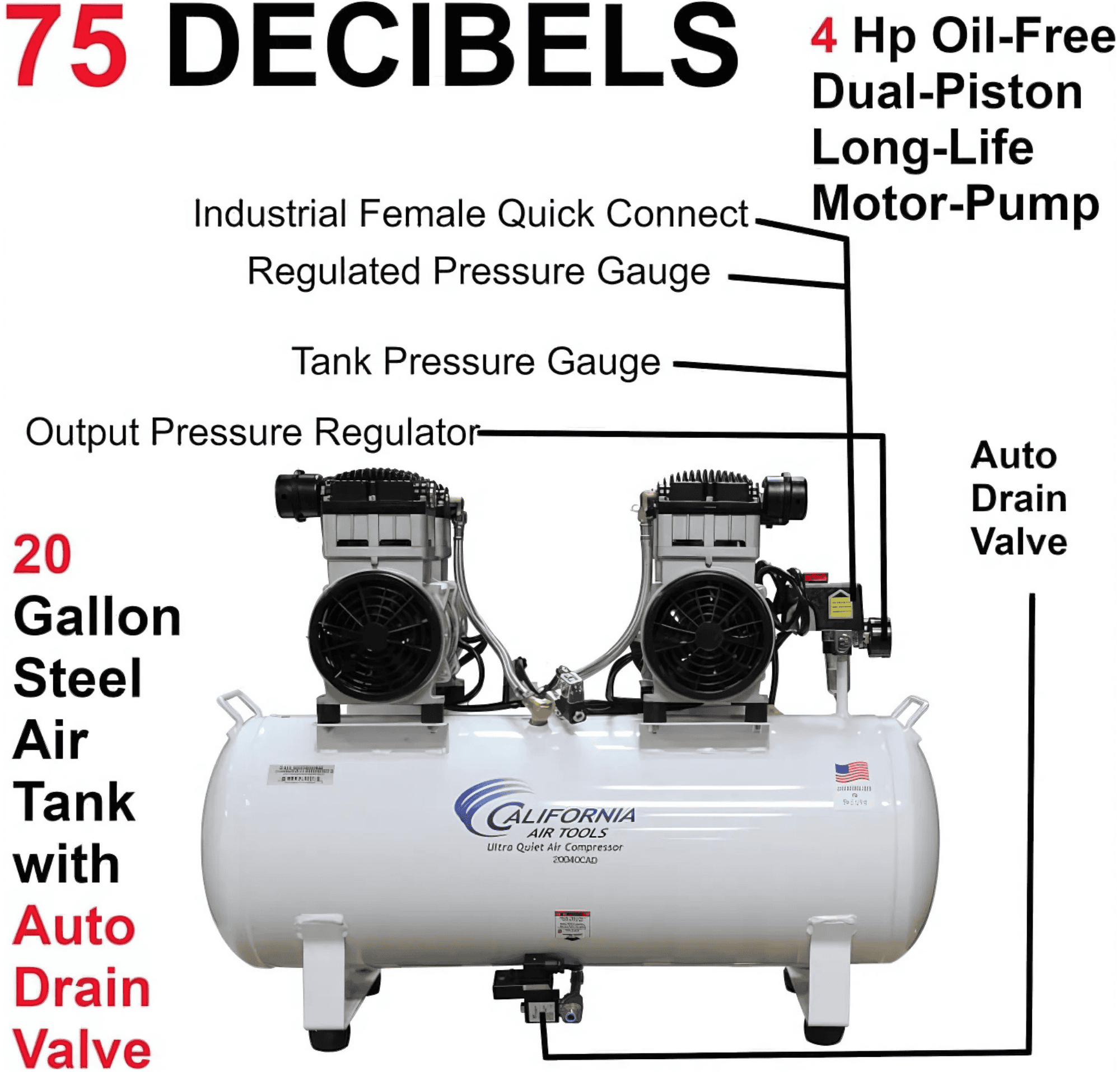

ULTRA QUIET - ONLY 75 DECIBELS

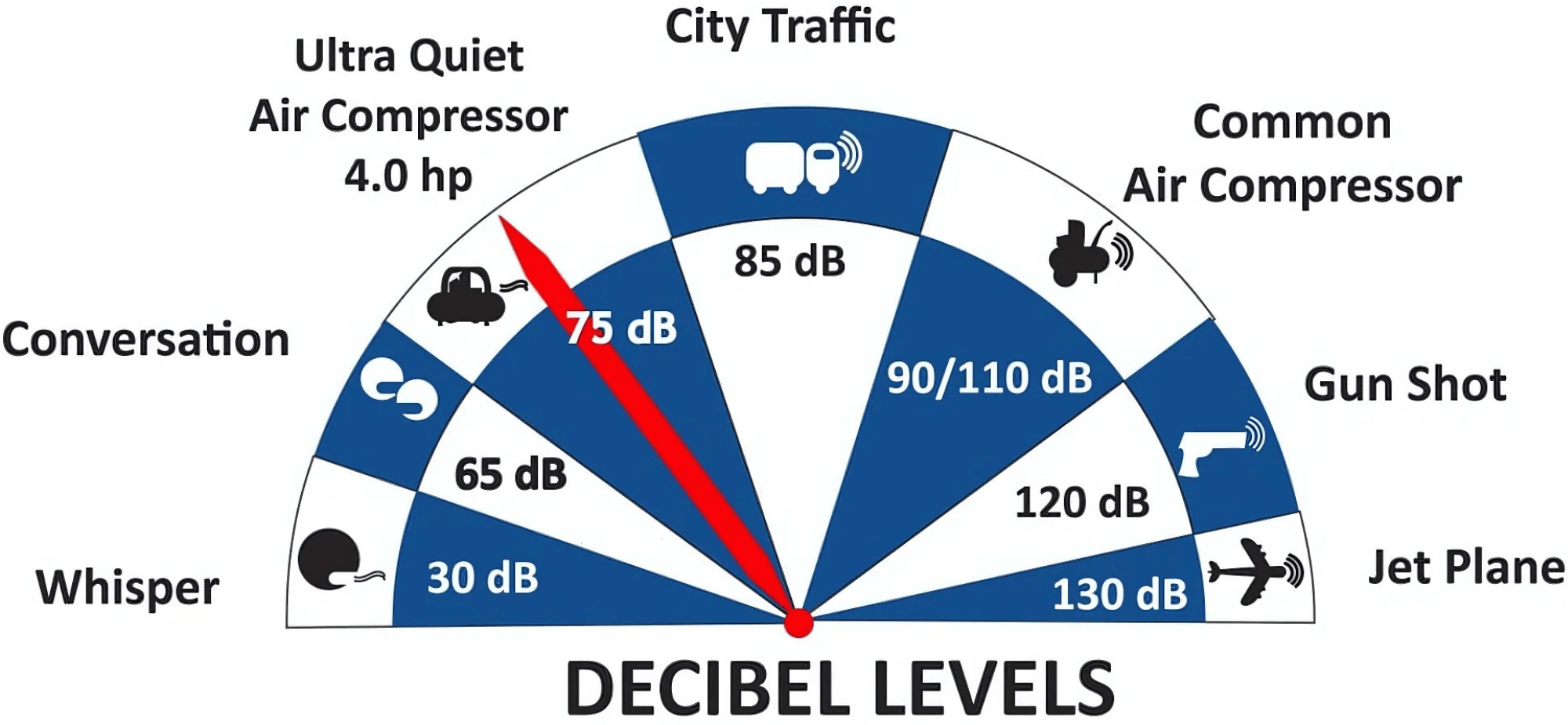

DECIBEL LEVELS
ADDITIONAL DETAILS
DETAILS: 75 DECIBELS
ADDITIONAL DETAILS

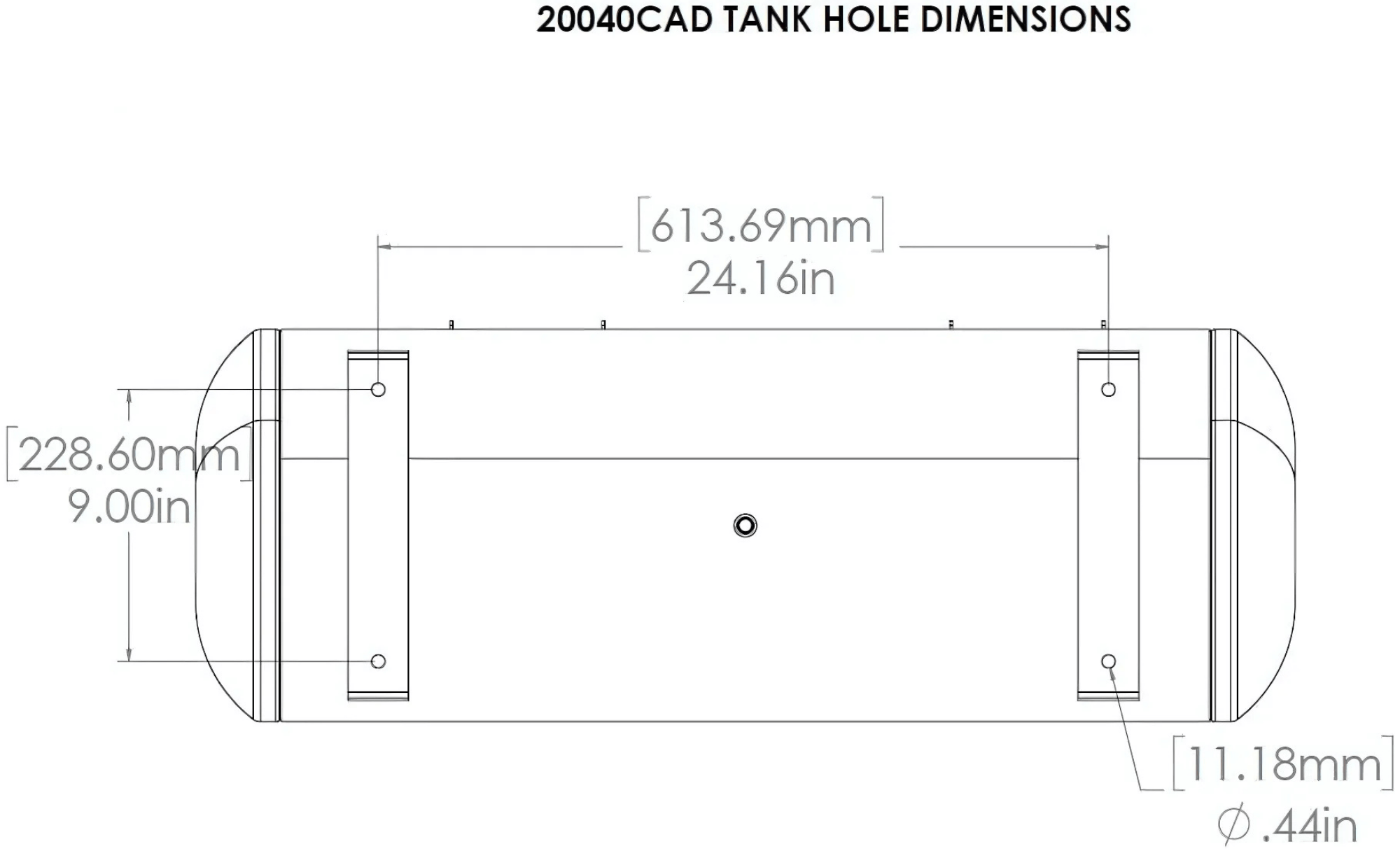

ADDITIONAL DETAILS & DIMENSIONS
DOWNLOAD FILES
QUICK START GUIDE
OWNER'S MANUAL
PRODUCT DATA SHEET
SUPPORT VIDEO
THIS ITEM WILL BE SHIPPED WOOD BOXED ( generally ) AND ON AN INDIVIDUAL PALET - SHIPPING COST WILL INCLUDE PALLET/ TRUCK / INSIDE DELIVERY & LOADING DOCK
