CALIFORNIA AIR TOOLS - 60040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor with 80% Air Drying System and Automatic Drain Valve - 220v # 60040DCAD
12018_f.jpg)
12017_f.jpg)
12016_f.jpg)
12015_f.jpg)
12014_f.jpg)
12013_f.jpg)
12012_f.jpg)
12011_f.jpg)
12010_f.jpg)
12009_f.jpg)
12008_f.jpg)
Earn up to 4,084 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
CALIFORNIA Air TOOLS
• 60040DCAD
DESCRIPTION

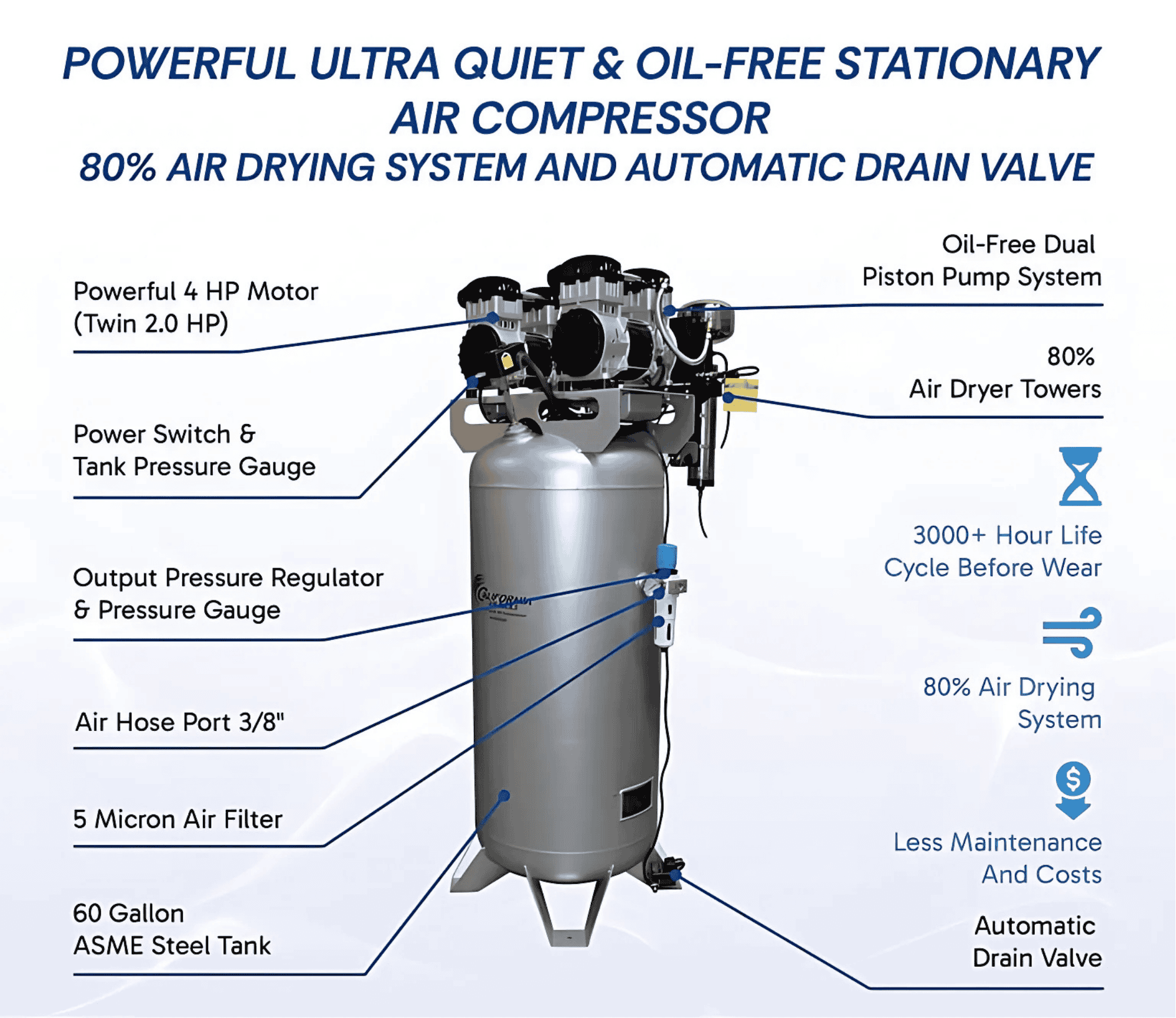

Powerful 4.0 Hp Ultra Quiet & Oil-Free 60 Gallon ASME. Air Compressor with 80% Air Drying System and Automatic Drain Valve.
60 Gallon ASME Certified Steel Air Tank with Automatic Drain Valve
• 75 dB Noise Level
• 4.0 HP (Rated/Running)
• 80% Air Drying System
• 12.80 CFM @ 40 PSI
• 10.60 CFM @ 90 PSI
• 220 Volts / 60 Hertz / Single Phase
CALIFORNIA Air TOOLS
The CALIFORNIA Air TOOLS 60040DCAD Ultra Quiet & Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 4.0 Hp Air Compressors in the industry having only 75 decibels of sound.
The Powerful Twin 2.0 HP motors operates at only 1680 RPM creating less noise, vibration and wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-60040DCAD Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 60 Gallon Steel ASME Air Tank is just the right size for shop or garage.
The 80% Air Dryer is specially designed to remove the 80% of the water vapor from the Air to protect sensitive tools and machinery. To dry the Air from the Air compressor an Aftercooler and 80% Air Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge Air from the Air compressor. The water vapor from the compressed Air is condensed into liquid form and pushed into the Air Dryer.
The CALIFORNIA Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your Air compressor Air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process.
Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!
FEATURES:
• Ultra Quiet - Only 75 decibels
• Oil-Free Pump – Cleaner Air for better tool operation.
• Less maintenance and Costs.
• Two pressure control gauges
• 5 Micron Air Filter & Regulator with a 3/8" Port
• Air Hose Port 3/8"
• Condor Pressure Switch
• Thermal Overload Protector
• 125 PSI Maximum Pressure
• 220 Volts / 60 Hertz / Single Phase - (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
• Low Amp Draw - 14 Amps
• Time to fill tank from empty to full - 6:30 Minutes
• Recovery time from 95 PSI to 125 PSI - 2:00 Minutes
• Duty Cycle - 70/30*
• Less heat which dissipates more efficiently
• 60 Gal. Steel ASME Air Tank

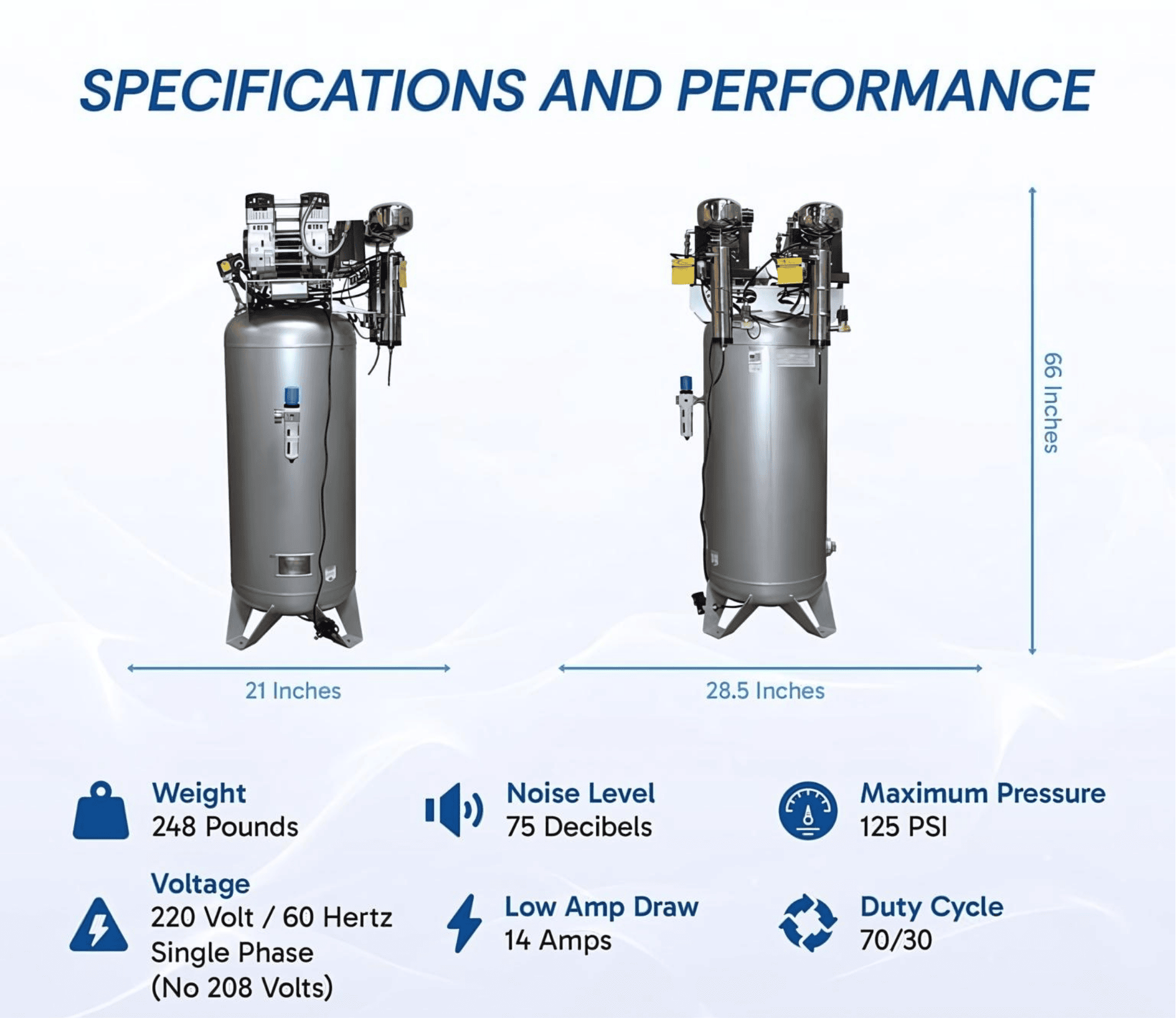

• L (25.5") x W/D (29") x H (66.5")
• 248 lbs
• Air Dryer - Includes Activated Alumina desiccant with a 4000 hour life.
• Activated Alumina is used in Air prepurification (due to it's high water and carbon dioxide adsorption capacity) and adsorption of sulphur compounds.
• Aftercooler (condenser)
• EZ-1-2321 Auto Drain Valve Factory Installed
• Comes complete (4) Air Filters

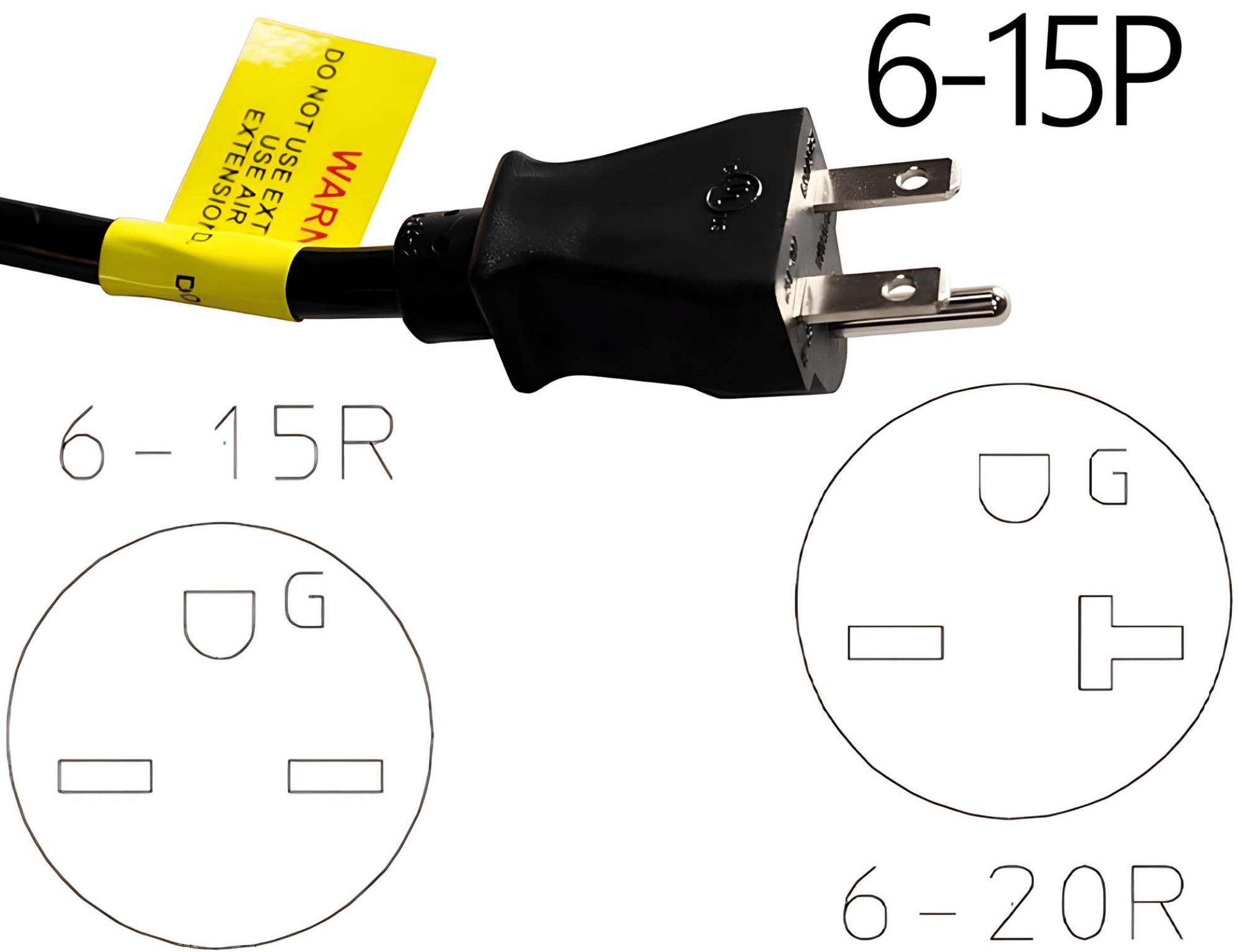

• Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
• ASME Certified for Commercial Use
• 1 Year Limited Warranty
• Commercial Use: Refer to State & City Codes
• Assembled in USA with global components
AUTOMATIC DRAIN VALVE FUNCTION:

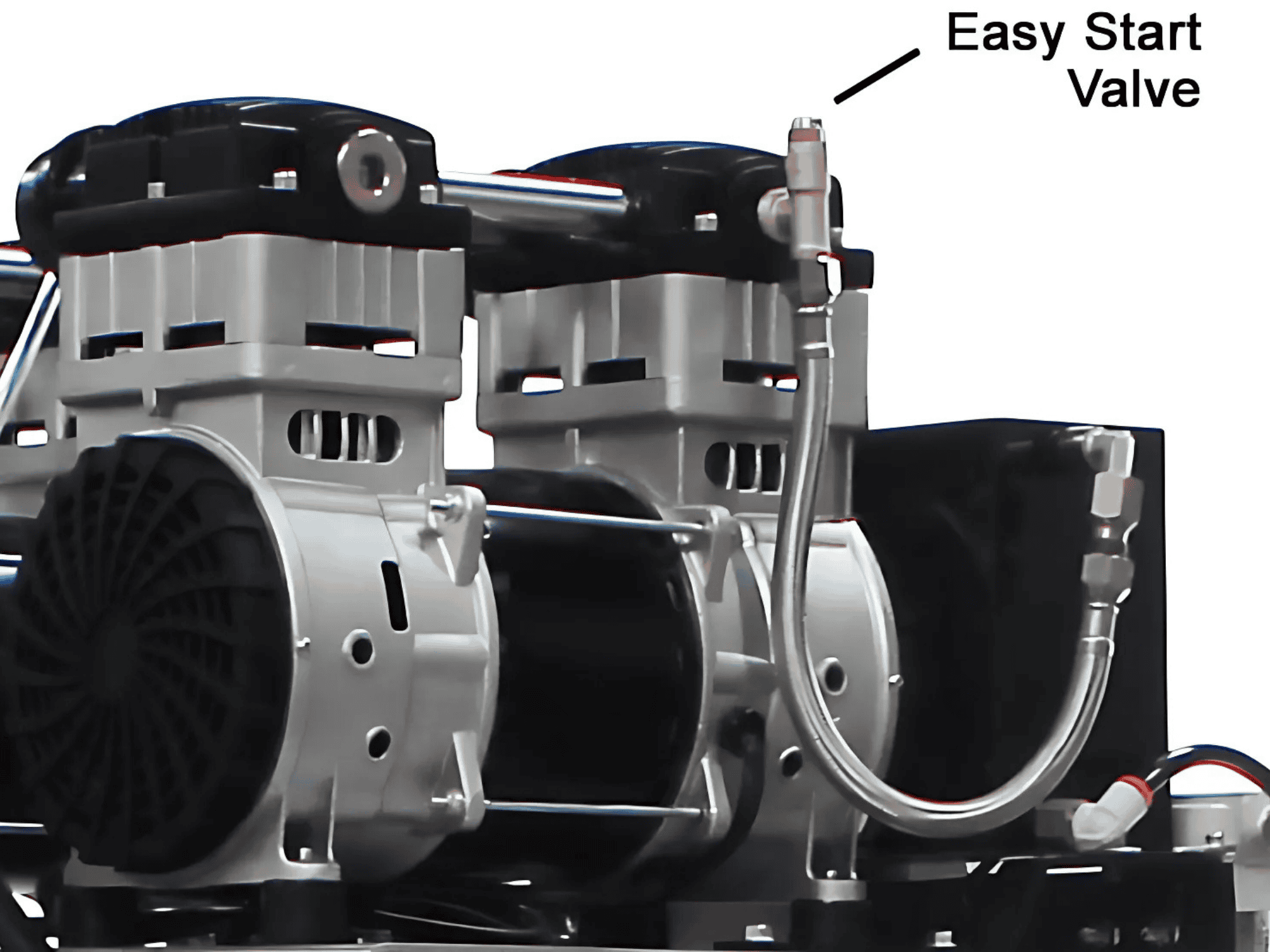

EASY START VALVE FEATURE:
The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of Air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
ULTRA QUIET - ONLY 75 DECIBELS

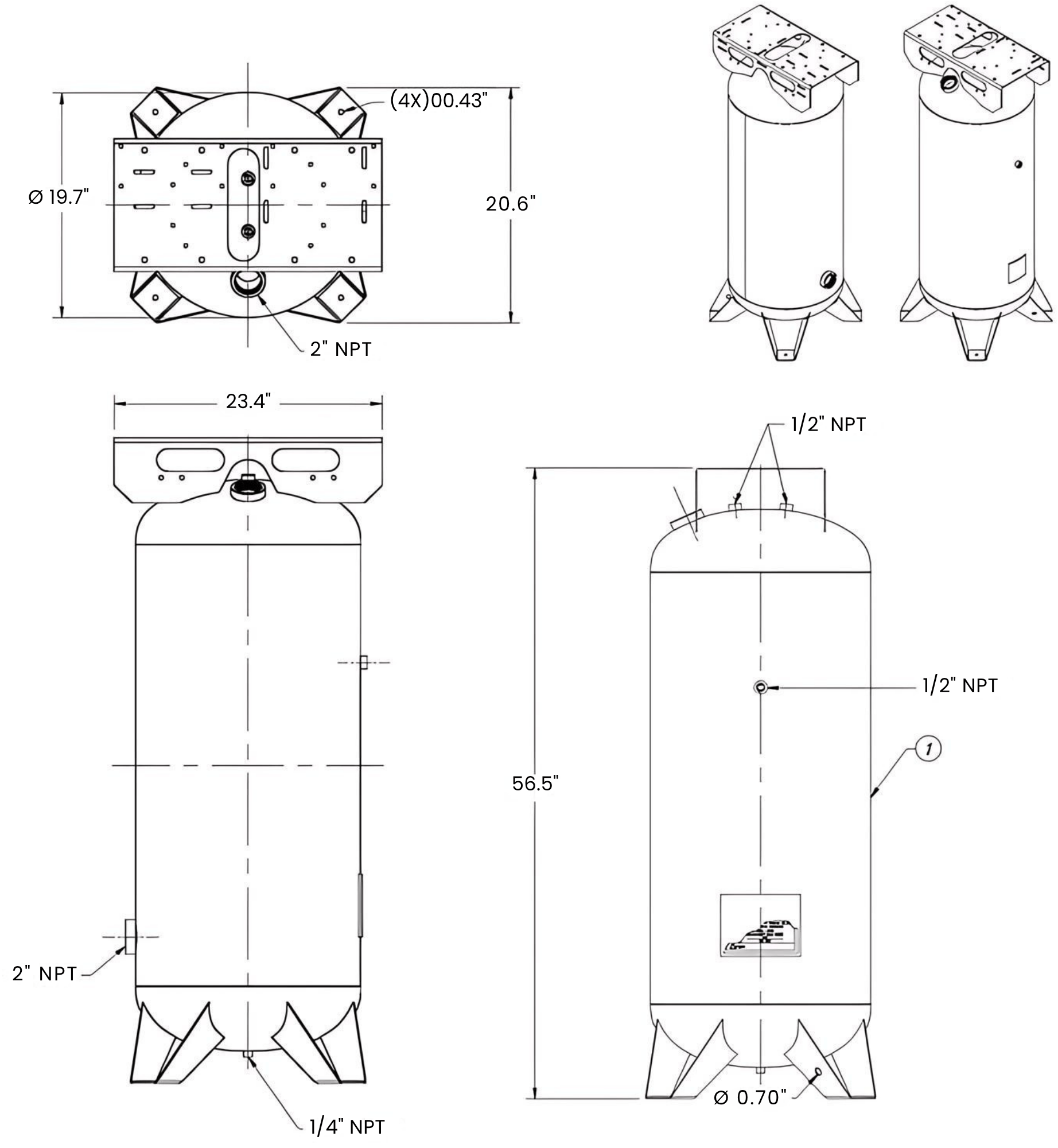

ADDITIONAL DETAILS & DIMENSIONS
ADD-ON OPTIONS:
DOWNLOAD FILES
QUICK START GUIDE
OWNER'S MANUAL
PRODUCT DATA SHEET
THIS ITEM WILL BE SHIPPED WOOD BOXED ( generally ) AND ON AN INDIVIDUAL PALET - SHIPPING COST WILL INCLUDE PALLET/ TRUCK / INSIDE DELIVERY & LOADING DOCK
