Description
CALIFORNIA Air TOOLS
• 20040DSPCADC
DESCRIPTION
Powerful 4.0 Hp Ultra Quiet & Oil-Free, 20 Gallon Air Compressor with 98% Air Drying System and Automatic Drain in a Soundproof Cabinet.
• ISO 8573 - Class 2.3.1 Compliant
• 65 dB Noise Level
• 4.0 HP (Rated/Running)
• 20 Gallon Steel Tank in a Soundproof Cabinet
• Air Dryer Cartridge System - Up to 98% Dry Air
• 12.80 CFM @ 40 PSI
• 10.60 CFM @ 90 PSI
• 220 Volts / 60 Hertz / Single Phase
CALIFORNIA Air TOOLS
The CALIFORNIA Air TOOLS 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in a Soundproof Cabinet is designed to be one of the quietest 4.0 Hp Air Compressors in the industry having only 65 decibels of sound.
The Powerful Twin 2.0 HP motors operates at only 1680 RPM creating less noise, vibration and wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040DSPCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.

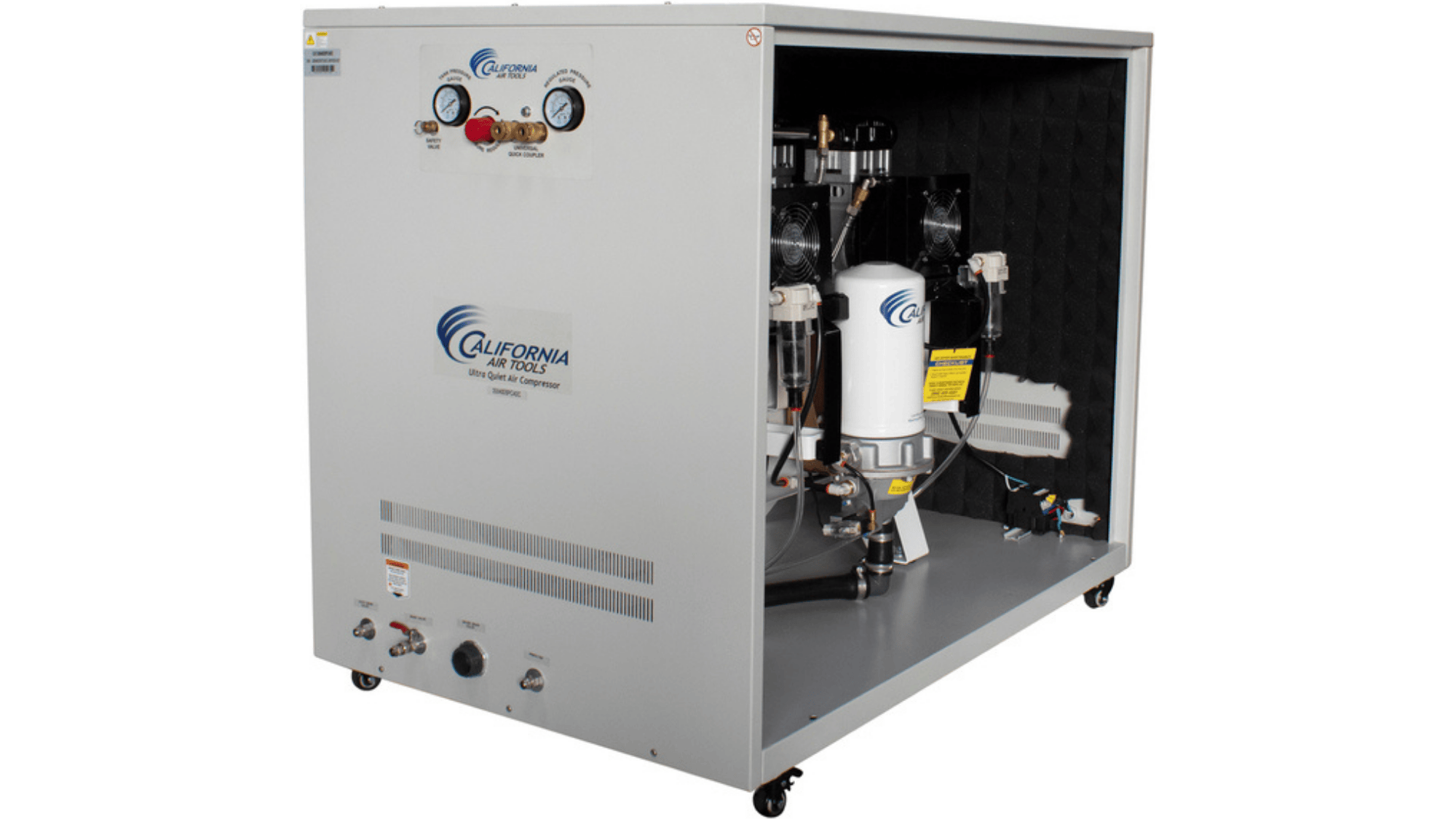

The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the Air. The sturdy steel soundproof cabinet has a large 20 gallon steel Air tank and caster wheels that makes it easy to move.
The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the Air compressor's noise and vibration. The two latching door handles allows for easy access to the Air compressor.
The four exhaust fans are designed to remove the Air from the cabinet for a cooler running Air compressor. The 98% Air Dryer is specially designed to remove up to 98% of the water vapor from the Air to protect sensitive tools and machinery.
PDP performance range (-20' F. to -51' F.)
Air Quality: ISO 8573 - Class 2.3.1
To dry the Air from the Air compressor an Aftercooler and 98% Air Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge Air from the Air compressor. The water vapor from the compressed Air is condensed into liquid form and pushed into the Air Dryer.
The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the Air. This cartridge dryer has a life of 2-years before replacement.
The CALIFORNIA Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your Air compressor Air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process.
Designed for the person looking for Power, 98% Dry Air with Low Dew Point Air Flow and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Surgical, Manufacturing Clean Rooms, Restaurant and General Engineering Applications.

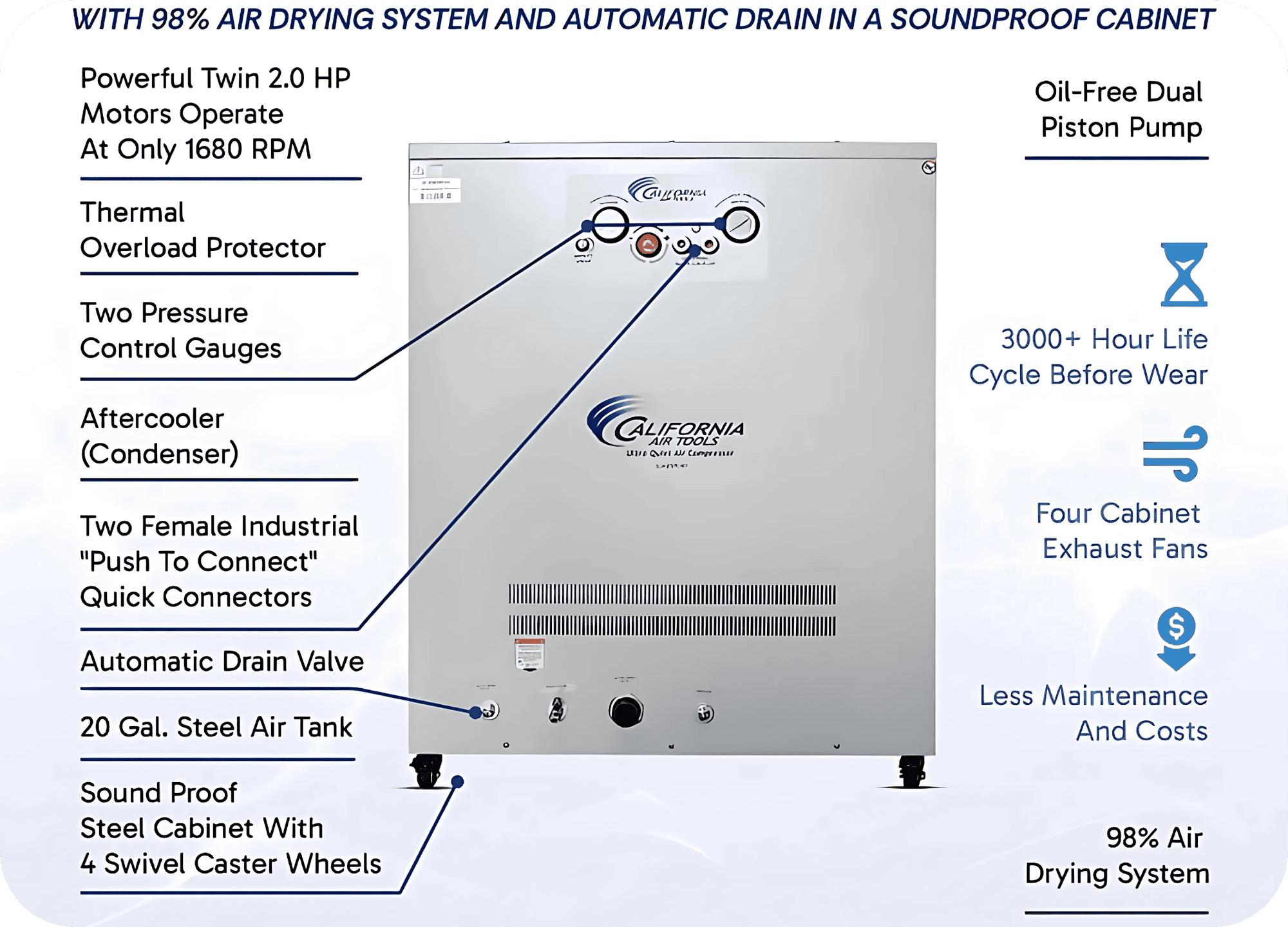

FEATURES:
• Ultra Quiet - Only 65 decibels
• Oil-Free Pump (Class 1) – Cleaner Air for better tool operation.
• Less maintenance and Costs.
• 0.01 Micron Prefilters (2 total)
• 5.0 Micron (Class 2) Air Filter Regulator
• Two pressure control gauges
• Two - Female industrial "Push to Connect" quick connectors
• Condor Pressure Switch
• Thermal Overload Protector
• 130 PSI Maximum Pressure
• 220 Volts / 60 Hertz / Single Phase - (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
• Low Amp Draw - 14 Amps
• Time to fill tank from empty to full - 150 Seconds
• Recovery time from 100 PSI to 130 PSI - 40 Seconds
• Duty Cycle - 70/30*
• 20 Gal. Steel AirTank

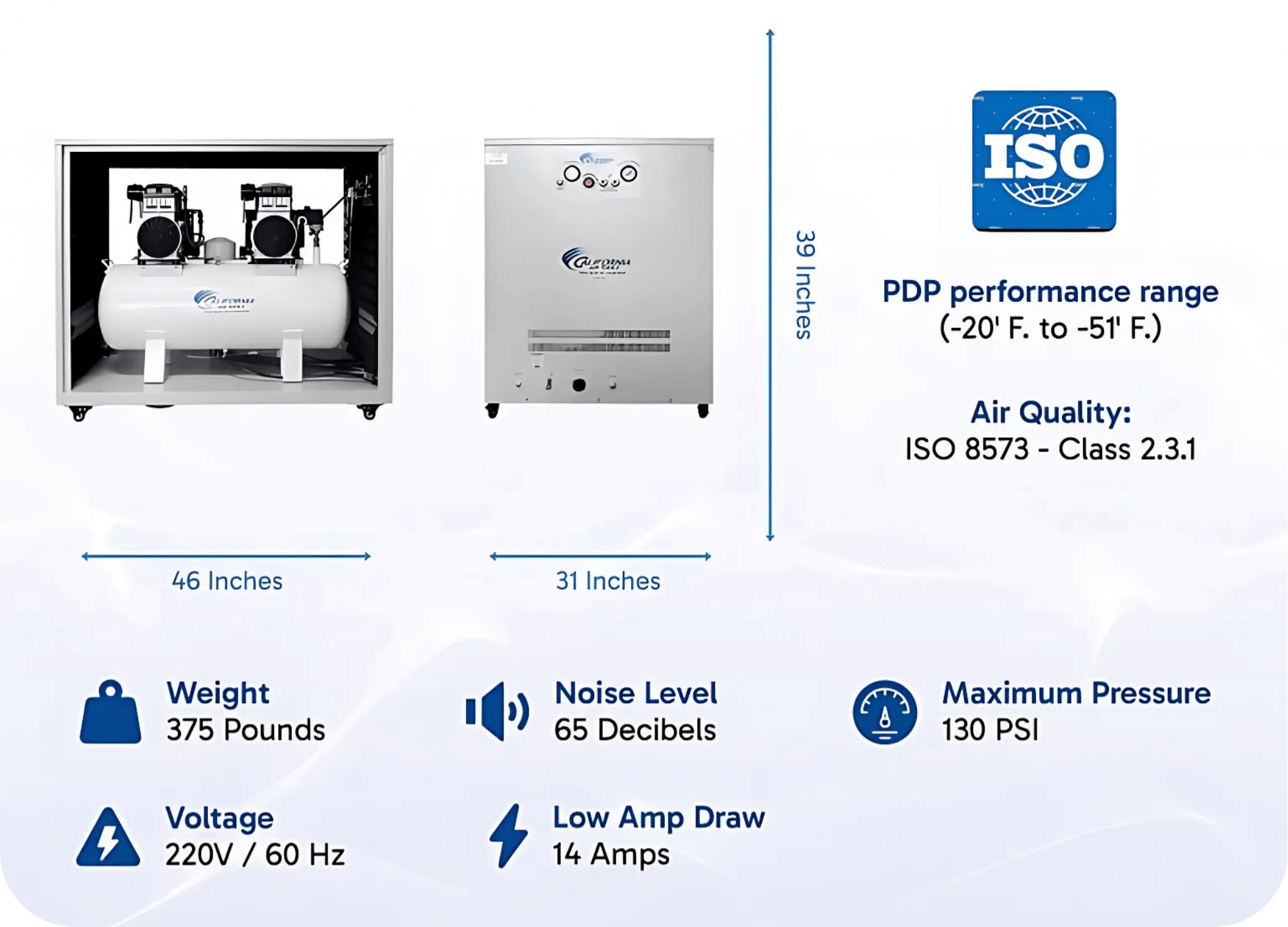

• L (31") x W/D (46") x H (39")
• 375 lbs
• Non-ASME Air Tank
• Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
• Easy to remove (spin off) and replace every 2 years
• Aftercooler (condenser)
• PDP performance range (-20' F. to -51' F.)
• Air Quality: ISO 8573 - Class 2.3.1
• 1 Year Limited Warranty
• Comes complete (4) Air Filters

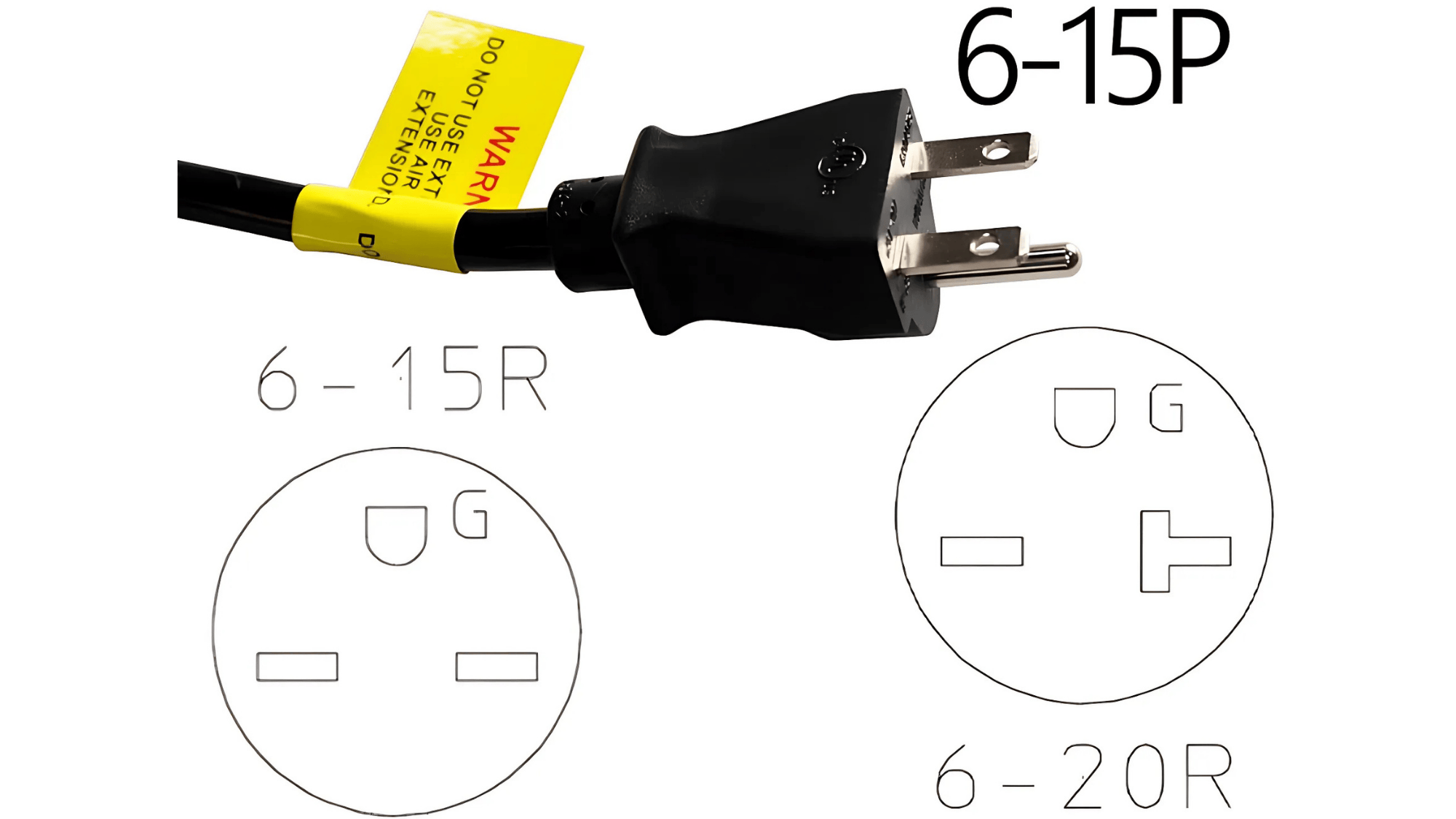

• Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
• EZ-1-2321 Auto Drain Valve Factory Installed
• Commercial Use: Refer to State & City Codes
• Assembled in USA with global components
20040DSPCADC QUICK LOOK:
DRY Air SYSTEM - WATER PURGING AND DRAINING
AUTOMATIC DRAIN VALVE FUNCTION:

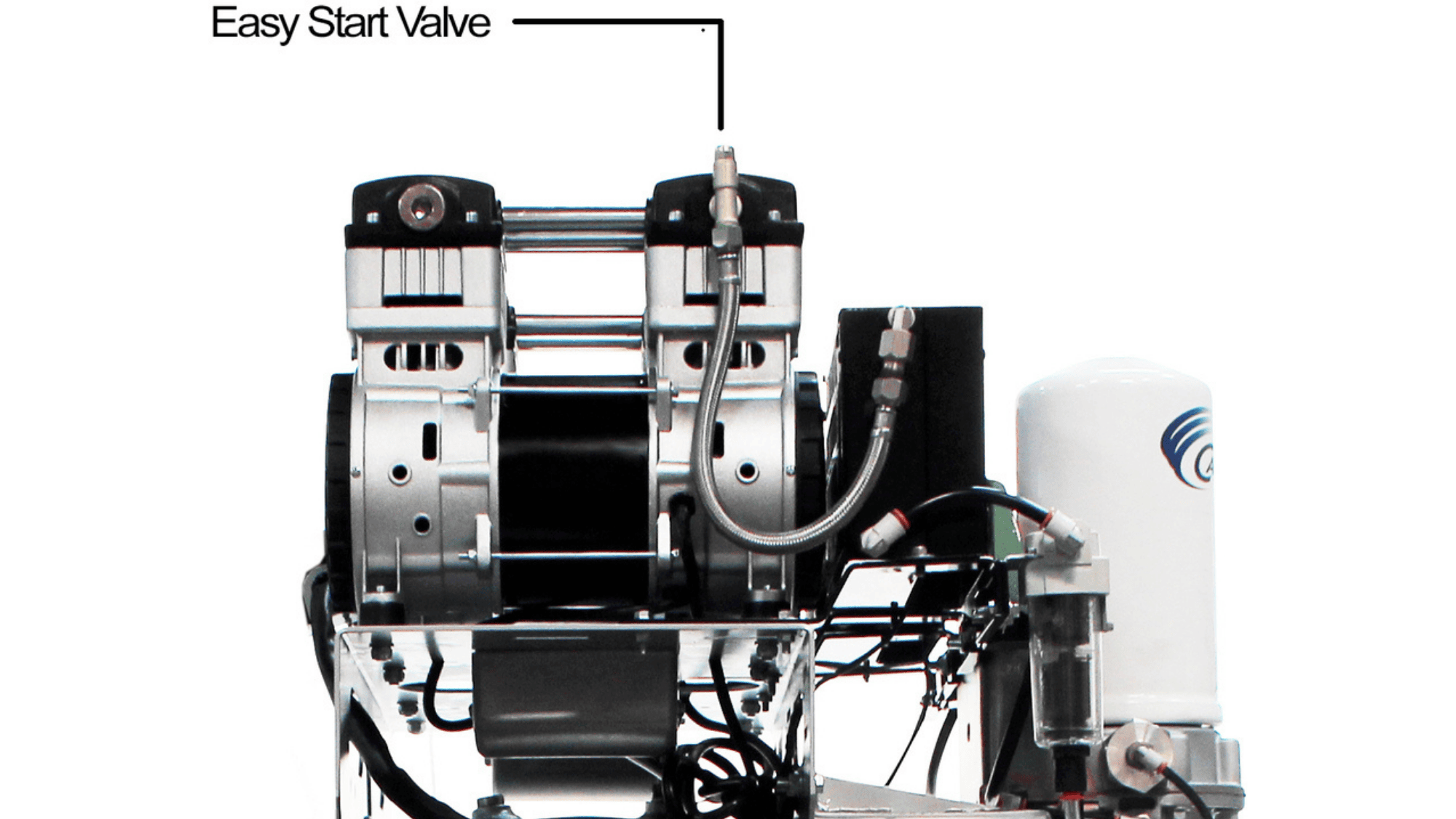

EASY START VALVE FEATURE:
The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of Air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
POWERFUL 4.0 HP ULTRA QUIET & OIL-FREE 20 GALLON Air COMPRESSOR
SPECIFICATIONS & PERFORMANCE
ADDITIONAL DETAILS
ADD-ON OPTIONS:
DOWNLOAD FILES
OWNER'S MANUAL
PRODUCT DATA SHEET
THIS ITEM WILL BE SHIPPED WOOD BOXED ( generally ) AND ON AN INDIVIDUAL PALET - SHIPPING COST WILL INCLUDE PALLET/ TRUCK / INSIDE DELIVERY & LOADING DOCK
