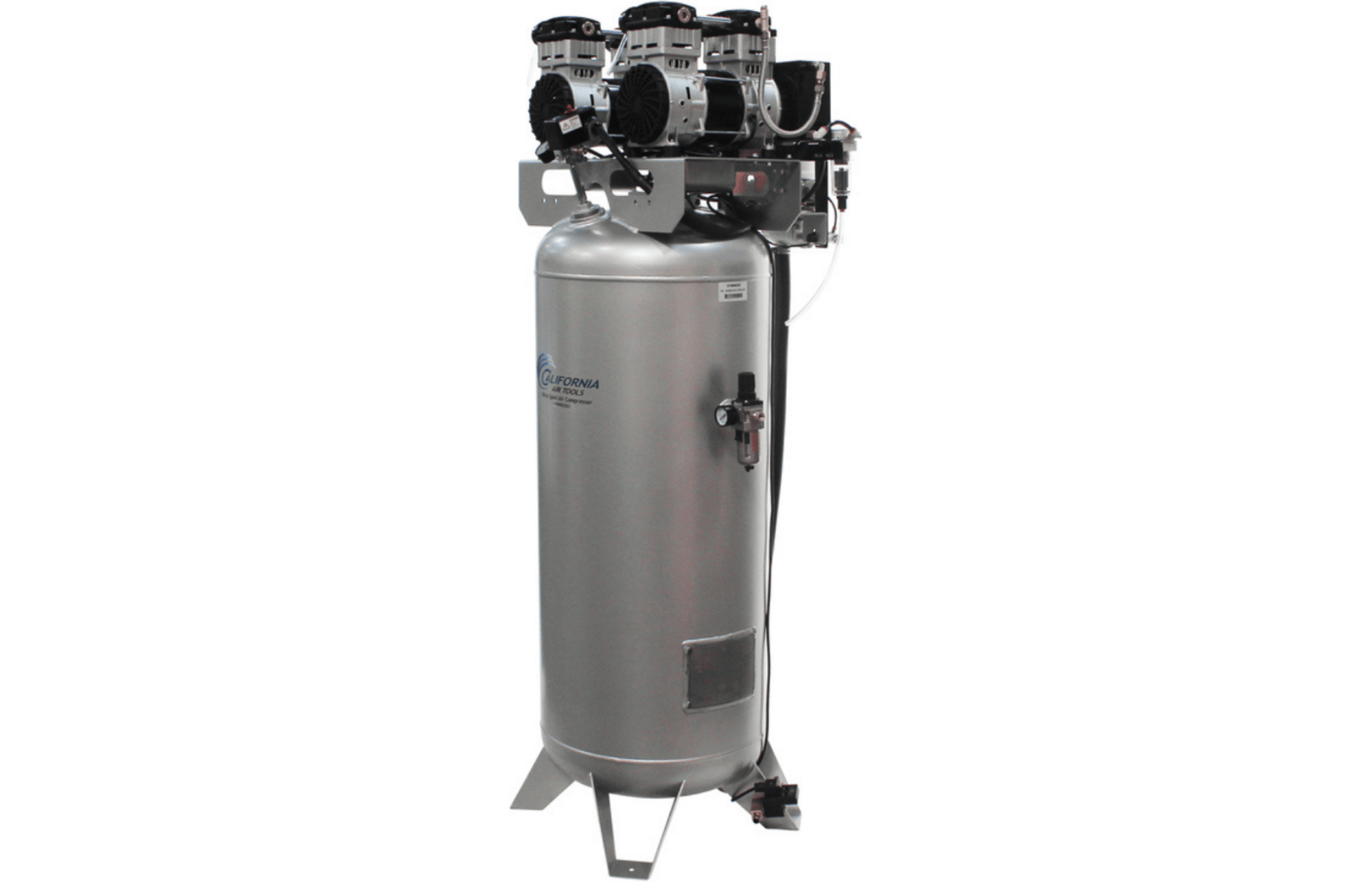

CALIFORNIA AIR TOOLS 60040DCADC Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor with Drying System and Automatic Drain Valve # 60040DCADC
11998_f.jpg)
11997_f.jpg)
11996_f.jpg)
11995_f.jpg)
11994_f.jpg)
11993_f.jpg)
11992_f.jpg)
11991_f.jpg)
11990_f.jpg)
11989_f.jpg)
11988_f.jpg)
11987_f.jpg)
11986_f.jpg)
Earn up to 4,706 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
CALIFORNIA Air TOOLS
• 60040DCADC
DESCRIPTION
Powerful 4.0 Hp Ultra Quiet, Ultra Dry & Oil-Free Air Compressor with 98% Drying System and Automatic Drain Valve
60 Gallon ASME Certified Steel Air Tank with Automatic Drain Valve
Air Dryer Cartridge System - Up to 98% Dry Air
• ISO 8573 - Class 2.3.1 Compliant
• 75 dB Noise Level
• 4.0 HP (Rated/Running)
• 12.80 CFM @ 40 PSI
• 10.60 CFM @ 90 PSI
• 220 Volts / 60 Hertz / Single Phase
CALIFORNIA Air TOOLS
The CALIFORNIA Air TOOLS 60040DCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System is designed to be one of the quietest 4.0 Hp Air Compressors in the industry having only 75 decibels of sound.
The Powerful Twin 2.0 HP motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.*
The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-60040DCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the Air. The large 60 Gallon ASME Certified Steel Air Tank is just the right size for shop or garage. Good for commercial use.
The 98% Air Dryer is specially designed to remove up to 98% of the water vapor from the Air to protect sensitive tools and machinery.
PDP performance range (-20' F. to -51' F.)
Air Quality: ISO 8573 - Class 2.3.1
To dry the Air from the Air compressor an Aftercooler and Dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge Air from the Air compressor. The water vapor from the compressed Air is condensed into liquid form and pushed into the Air Dryer.
The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the Air. This cartridge dryer has a life of 2-years before replacement. The CALIFORNIA Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your Air compressor Air tank.
The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for Power, 98% Dry Air with Low Dew Point Air Flow and Less Service with at Least 30% Less Noise! Ideal for Dental, Milling, Surgical, Manufacturing Clean Rooms, Restaurant and General Engineering Applications.
FEATURES:
• Ultra Quiet - Only 75 decibels
• Oil-Free Pump (Class 1) – Cleaner Air for better tool operation.
• Less maintenance and Costs.
• Two pressure control gauges
• 0.01 Micron Prefilters (2 total)
• 5.0 Micron (Class 2) Air Filter & Regulator with a 3/8" Port
• Air Hose Port 3/8"
• Condor Pressure Switch
• Thermal Overload Protector
• 125 PSI Maximum Pressure
• 220 Volts / 60 Hertz / Single Phase - (No 208 Volts - if necessary, obtain 208 to 220 voltage booster)
• Low Amp Draw - 14 Amps
• Time to fill tank from empty to full - 6:30 Minutes
• Recovery time from 95 PSI to 125 PSI - 2:00 Minutes
• Duty Cycle - 70/30*
• Less heat which dissipates more efficiently
• 60 Gallon ASME Steel Air Tank for Commercial use.
• L (25.5") x W/D (29") x H (66.5")
• 248 lbs
• Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
• Easy to remove (spin off) and replace every 2 years
• Aftercooler (condenser)
• PDP performance range (-20' F. to -51' F.)
• Air Quality: ISO 8573 - Class 2.3.1
• EZ-1-2321 Auto Drain Valve Factory Installed
• 1 Year Limited Warranty
• Comes complete (4) Air Filters

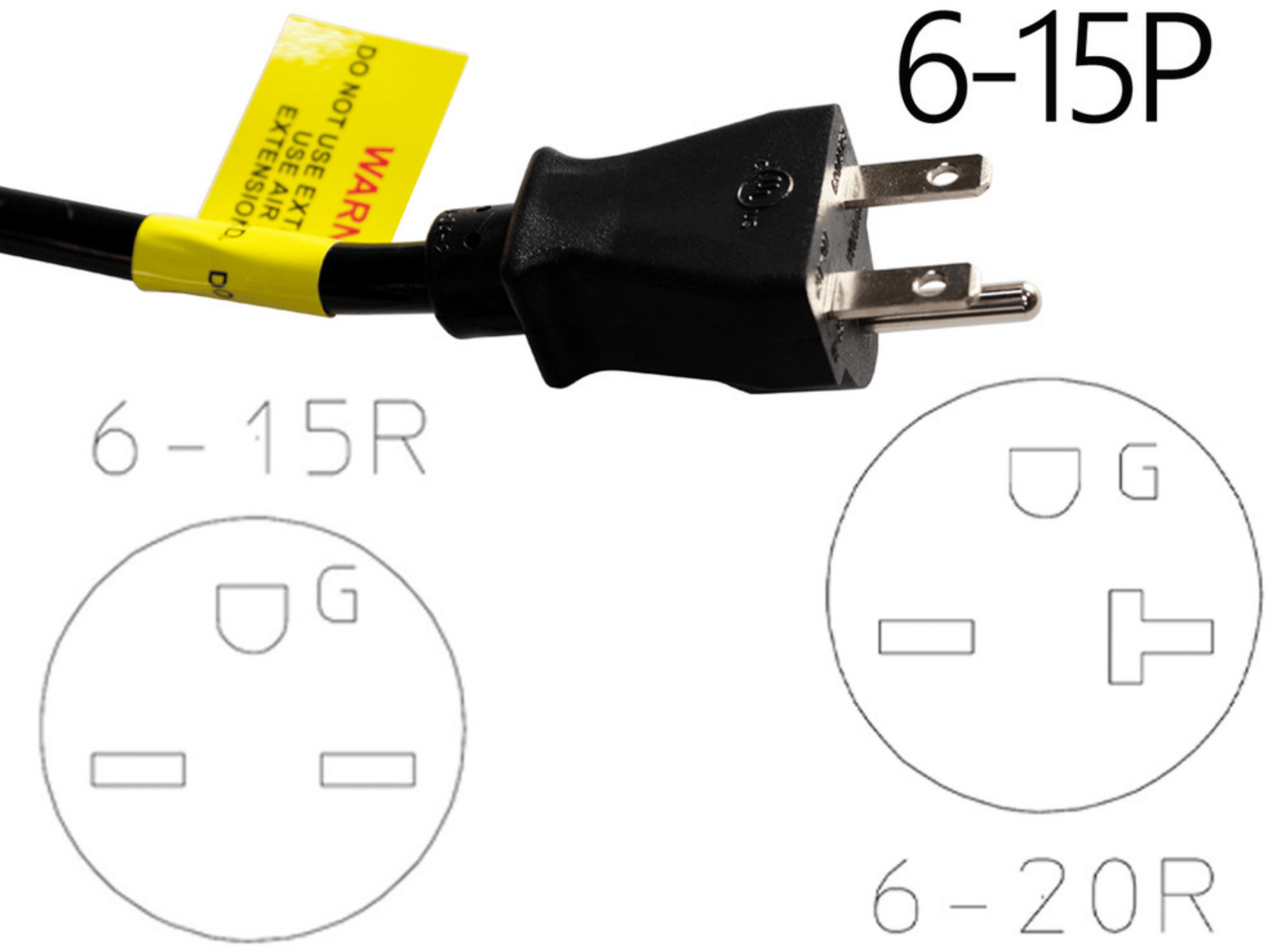

• Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
• Commercial Use: Refer to State & City Codes
• Assembled in USA with global components

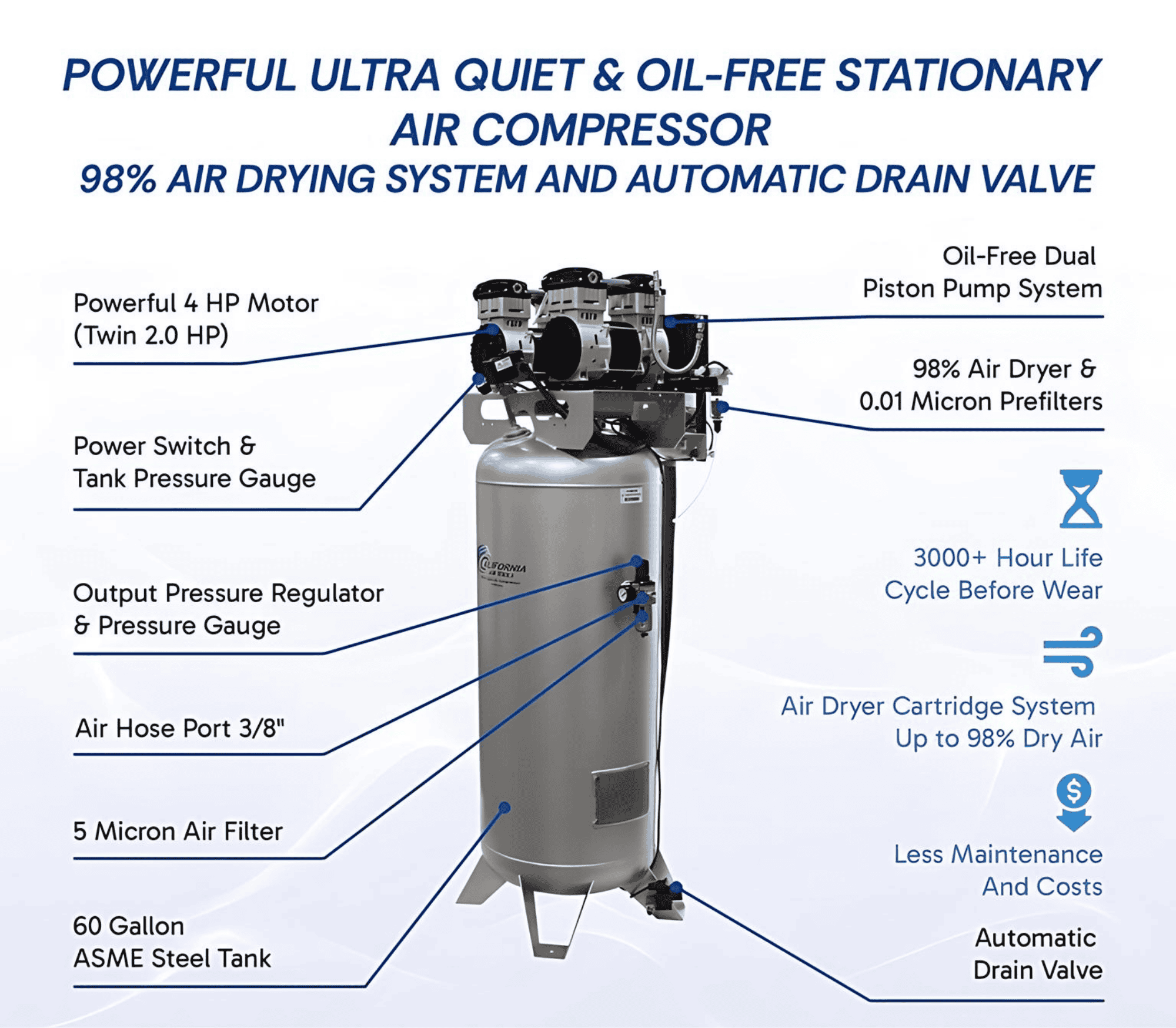

60040DCADC QUICK LOOK:
AUTOMATIC DRAIN VALVE FUNCTION:

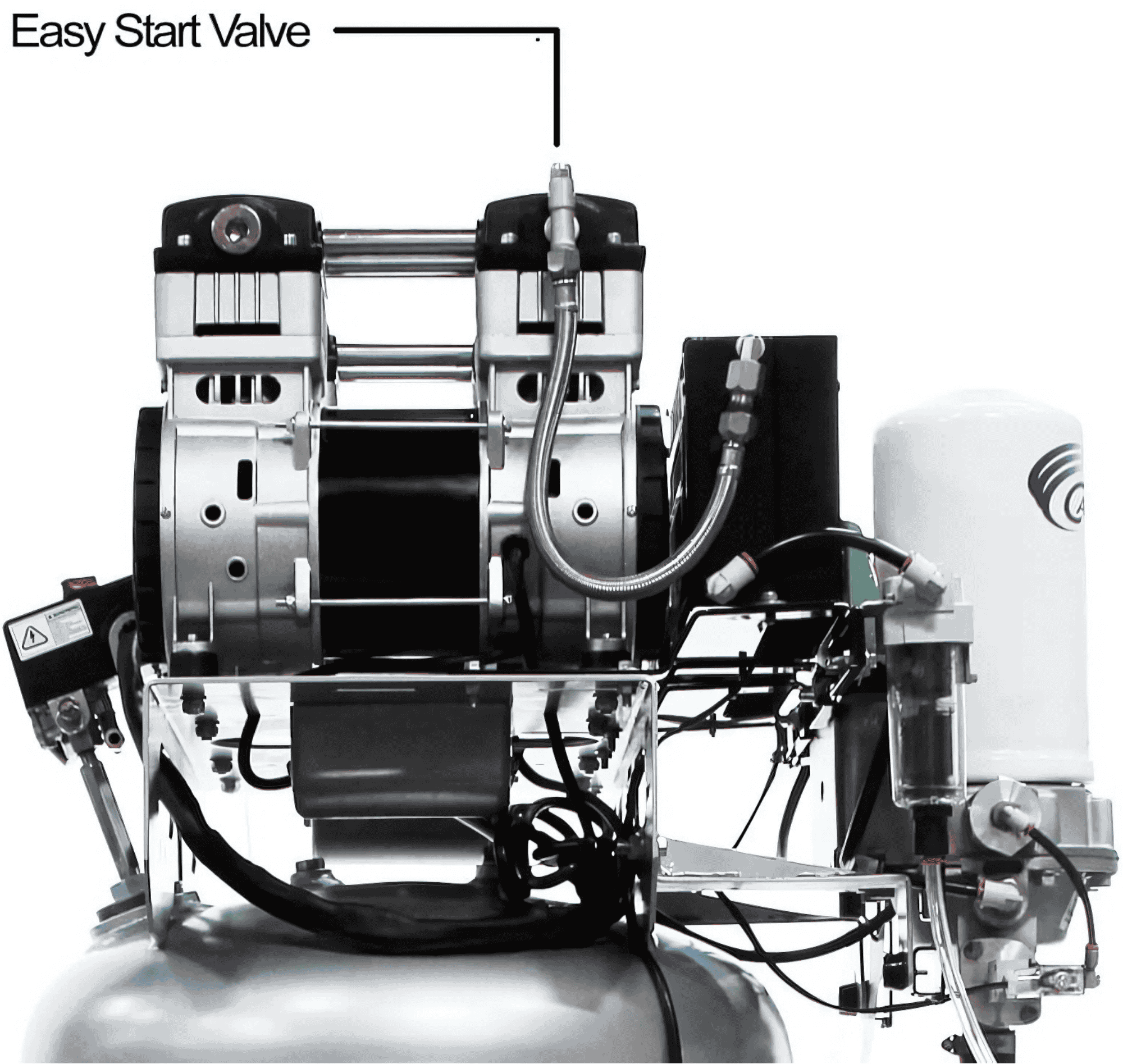

EASY START VALVE FEATURE:
The Easy Start Valve feature allows for a easier start up using less starting amps. The Easy Start Valve releases a small amount of Air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.
ULTRA QUIET - ONLY 75 DECIBELS

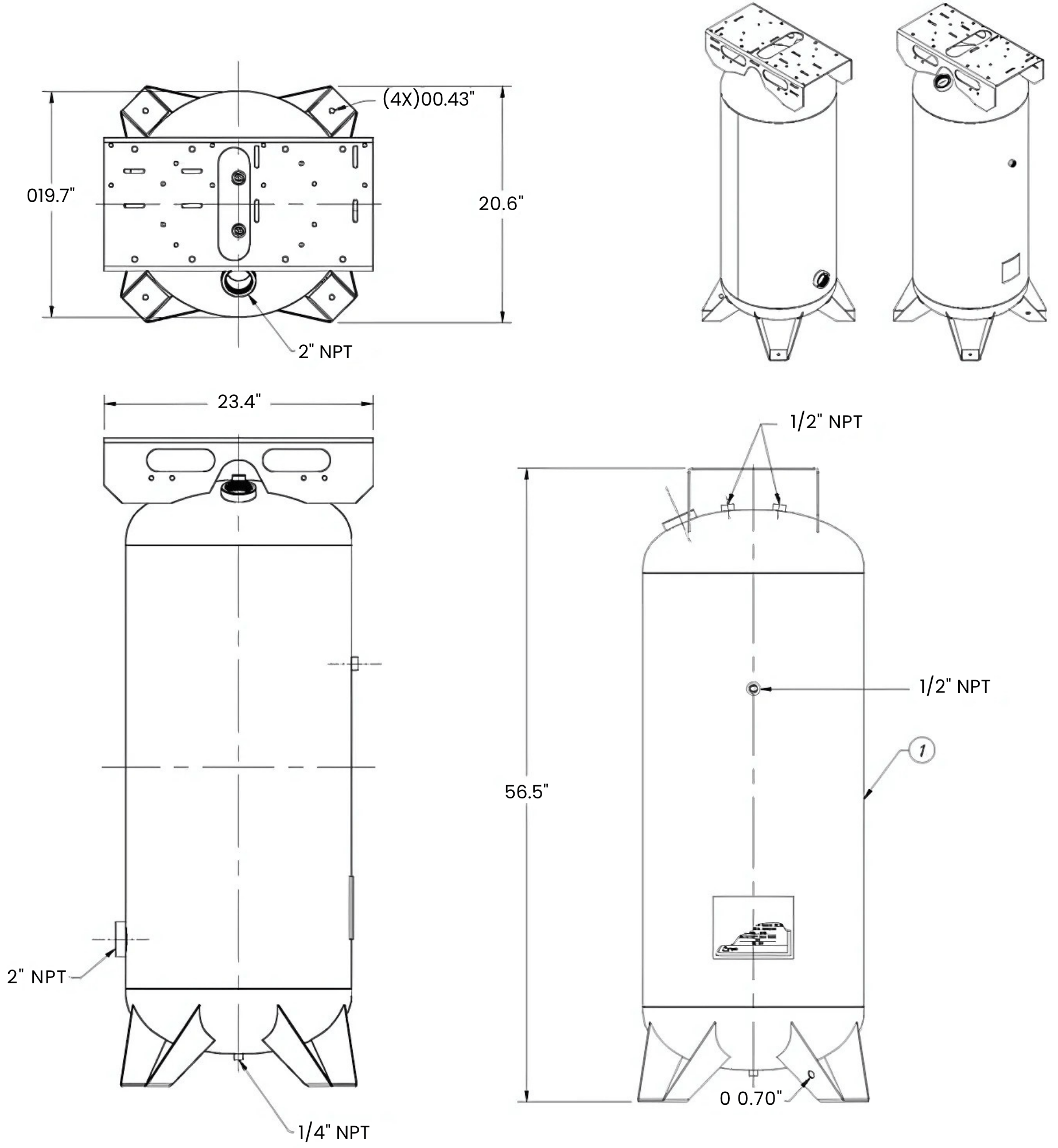

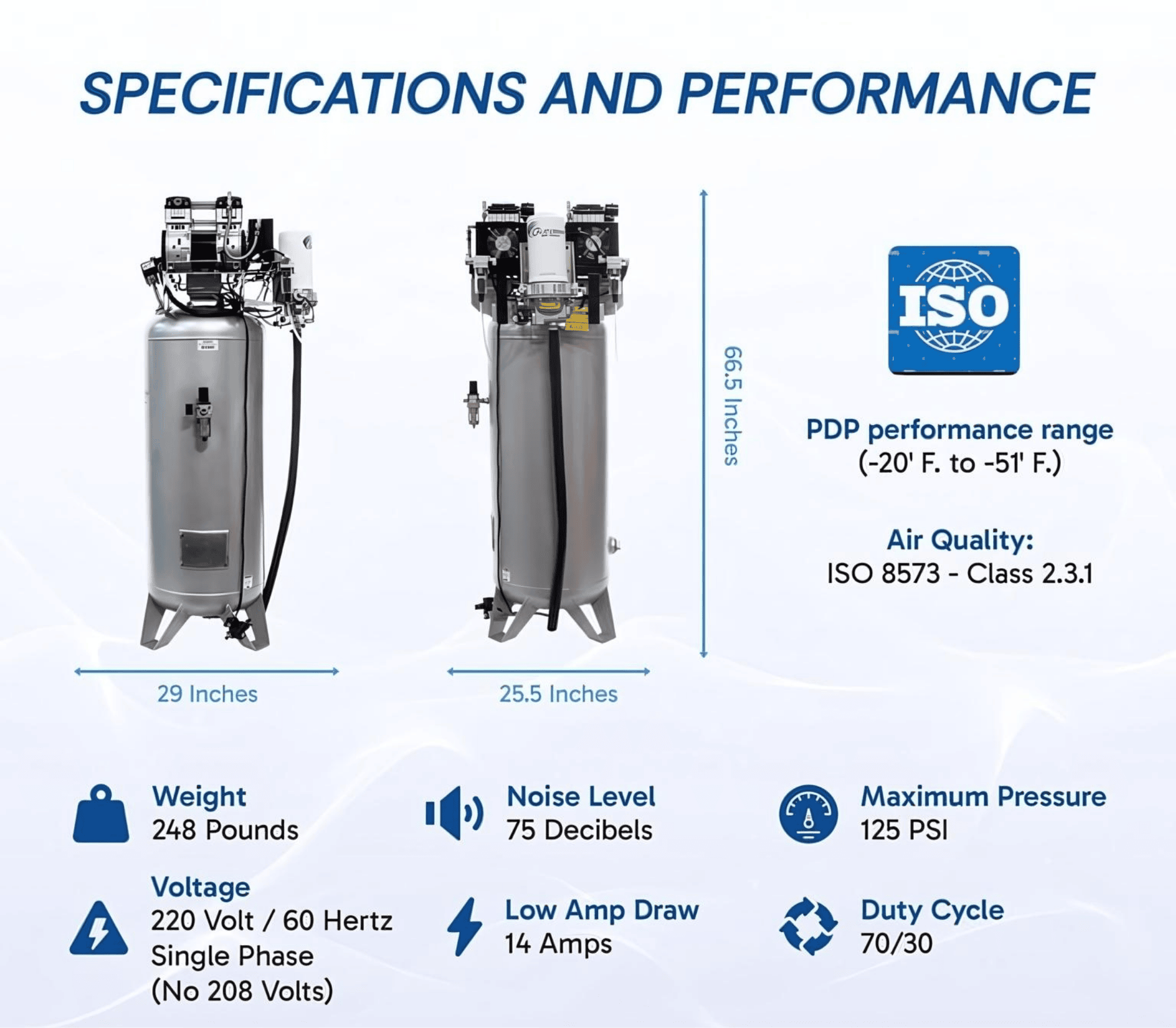

ADDITIONAL DETAILS & DIMENSIONS
ADD-ON OPTIONS:
DOWNLOAD FILES
OWNER'S MANUAL
PRODUCT DATA SHEET
THIS ITEM WILL BE SHIPPED WOOD BOXED ( generally ) AND ON AN INDIVIDUAL PALET - SHIPPING COST WILL INCLUDE PALLET/ TRUCK / INSIDE DELIVERY & LOADING DOCK
