RENFERT - TWISTER VENTURI Vacuum Mixer 220/240volts-Vacuum mixer-15 x 12 x 11in-Weight 12lb-#1827-0000 #18270000 )
9598_f.jpg)
9599_f.jpg)
Earn up to 1,350 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

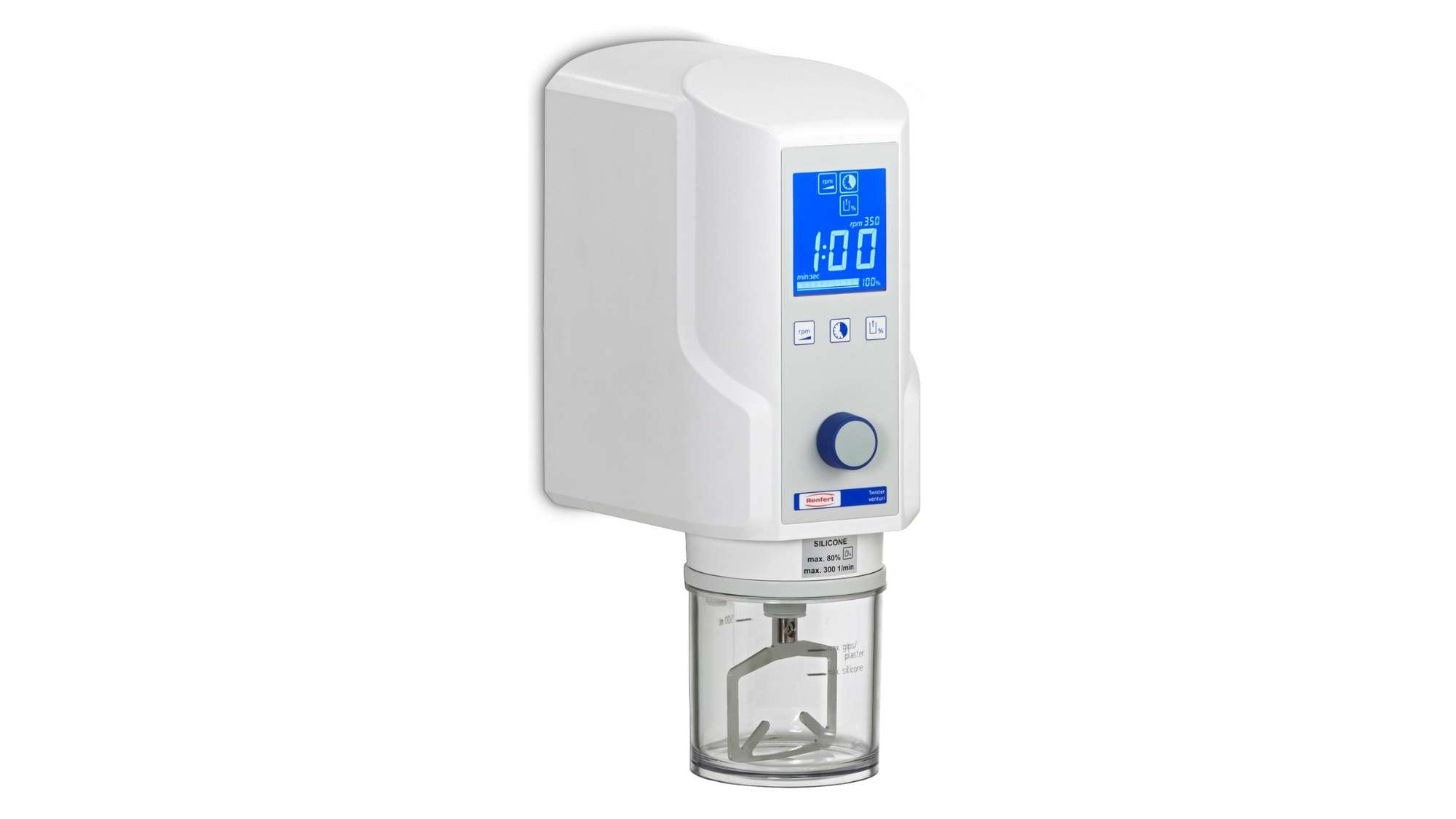

TWISTER VENTURI
vacuum MIXING unit
vacuum MIXING unit
High speed vacuum MIXING unit, VENTURI vacuum technology and base MIXING functions.
Advantages
▪️Reliable processing of large amounts due to high speed.
▪️Easy and fast entry of MIXING parameters using a large, highly luminous display.
▪️Reduction of bubbles thanks to two vacuum settings of 80% or 100%.
Details
▪️Can be used flexibly for alginate impression materials and all duplicating and model materials used in dental technology.
PRODUCT VARIANTS
TWISTER VENTURI, 220-240 V
Item number 18270000
Scope of delivery:
incl. 500 ml bowl and MIXING paddle
TECHNICAL DATA
Model
Item number
Permissible mains voltage
Permissible mains frequency
Connection pressure
Volume flow (max.)
Max. vacuum
Bowl pressure abs.
vacuum reduction
Rotational speed
vacuum build-up
TWISTER VENTURI, 220-240 V
18270000
100 - 240 V
50 - 60 Hz
4.5 - 6 bar -- 65 - 87 psi
28 l/min -- 0.99 cfm
-890 mbar -- -12.9 psi
80 mbar -- 1.16 psi
80 - 100 %
100 - 450 rpm
Compressed air
ACCESSORIES
MIXING bowl incl. paddle, 65 ml
Item number 18206500
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 65 ml
MIXING bowl incl. paddle, 200 ml
Item number 18200200
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 200 ml
MIXING bowl, 200 ml
Item number 18200220
Description:
Bowl made from high-strength polycarbonate. Marking indicates maximum filling capacity.
Scope of delivery:
1 piece
MIXING bowl incl. paddle, 500 ml
Item number 18200500
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 500 ml
MIXING bowl, 500 ml
Item number 18200520
Description:
Bowl made from high-strength polycarbonate. Marking indicates maximum filling capacity.
Scope of delivery:
1 piece
MIXING bowl incl. paddle, 700 ml
Item number 18200700
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 700 ml
MIXING bowl incl. paddle, 1.000 ml
Item number 18201001
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 1000 ml
Alginate MIXING bowl, incl. paddle, 500 ml
Item number 18230500
Description:
Specially designed for the requirements of alginates. Bubble-free material thanks to the specially contoured MIXING paddle for alginate material. The special surface coating ensures easy cleaning.
Scope of delivery:
1 piece incl. paddle, 500 ml
Alginate MIXING bowl, 500 ml
Item number 18230520
Scope of delivery:
1 piece
Alginate MIXING paddle, 500 ml
Item number 18230510
Scope of delivery:
1 piece
Stand
Item number 18210102
Description:
This stand has been specially designed for all TWISTER versions. Converts your TWISTER to a bench unit. Secure assembly in only a few steps. Flexibility and ergonomics.
Scope of delivery:
1 piece
MIXING spatula
Item number 18210200
Description:
The MIXING spatula for all bowls in the TWISTER range provides the optimum prespatulation tool, which is also used for scooping the mixed material completely out of the bowl. Rounded edges protect the bowl. Length and stability also enable MIXING of large quantities of material.
Scope of delivery:
1 piece
PU hose
Item number 900150864
Scope of delivery:
6 x 3.9 mm, blue, 5 M
SPARE PARTS
Position
1
2
3
5A
5B
5C
5D
5E
5F
5G
5H
5I
6
7
8
9
10
101
102
103
104
105
106
107
108
109
110
112
113
501
502
503A
503B
503C
503D
503E
504
506B
506C
507
Product name
Set of filters
Fuse set
Set of O-rings for 182x
Unit connector cable 230V
Unit connector cable 120V
Unit connector cable 230V UK
Power cord Argentine with cable-mount connector, straight
Unit connector cable 230V CH
Power cord Brazil with cable-mount connector, straight
Power cord ZA 5A with cable-mount connector, straight
Power cord Italy with cable-mount connector, straight
Unit connector cable 230V OZ lightgrey
Prot. rubber mat f. rear side of housing 2 pcs.
Cable safety catch for TWISTER
Inlet filter
Exhaust air filter
Wing mixer 65 ml
Frontfoil TWISTER VENTURI 1827
Printed circuit complete 1827
Geared motor
Set of joints TWISTER
Micro filter
Power supply
Mains switch
Repair Set TWISTER bottom
Air valve TWISTER VENTURI / TWISTER evolution VENTURI
VENTURI nozzle
Display TWISTER
Repair Set TWISTER bottom
TWISTER stand
MIXING spatula for TWISTER
MIXING bowl with paddle, 65 ml
MIXING bowl with paddle, 200 ml
MIXING bowl with paddle, 500 ml
MIXING bowl with paddle, 700 ml
MIXING bowl with paddle, 1000 ml
Alginate MIXING bowl incl. paddle, 500ml
MIXING bowl, 200 ml
MIXING bowl, 500 ml
PU-hose 6 x 3.9 mm, blue 5 M
Item number
900034675 *
900034715
900034155 *
900036121
900036122
900035938
900032769
900036070
900032767
900032771
900032768
900035840
900034137
900034700
900021389 *
900035700 *
900034203
900034679
900134673
900034674
900134162 *
900034719 *
900034690
900035989
900032559
900021586
900034273
900034823
900032559
18210102
18210200
18206500
18200200
18200500 *
18200700
18201001
18230500
18200220
18200520
900150864
DOWNLOADS
Catalogue
RENFERT_CATALOG_EN.PDF
PDF (29.53MB)
Manual / User guide
Master models | Manual | EN
PDF (4.56MB)
Manual / User guide
Model casting technique | Manual | EN
PDF (3.1MB)
Declaration of conformity
UKCA TWISTER
PDF (330KB)
Instruction manual
Alginate MIXING bowl 18230500
PDF (1.69MB)
Repair manual
TWISTER VENTURI / TWISTER evolution VENTURI 182xx000
PDF (30.67MB)
FAQ
TWISTER/ TWISTER VENTURI 182xx000
PDF (1.25MB)
Instruction manual
TWISTER VENTURI 1824x000
PDF (7.24MB)
Declaration of conformity
TWISTER / TWISTER VENTURI 182xx000
PDF (1.02MB)
Instruction manual
TWISTER / TWISTER VENTURI 182xx000
PDF (15.68MB)
Quick Start Guide
TWISTER / TWISTER VENTURI 182xx000
PDF (2.21MB)
