RENFERT - TWISTER EVOLUTION Mixer-vacuum mixer 110-220volts ( bi-Voltage ) #1828-1000 #18281000
9557_f.jpg)
9556_f.jpg)
9555_f.jpg)
9554_f.jpg)
Earn up to 1,765 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

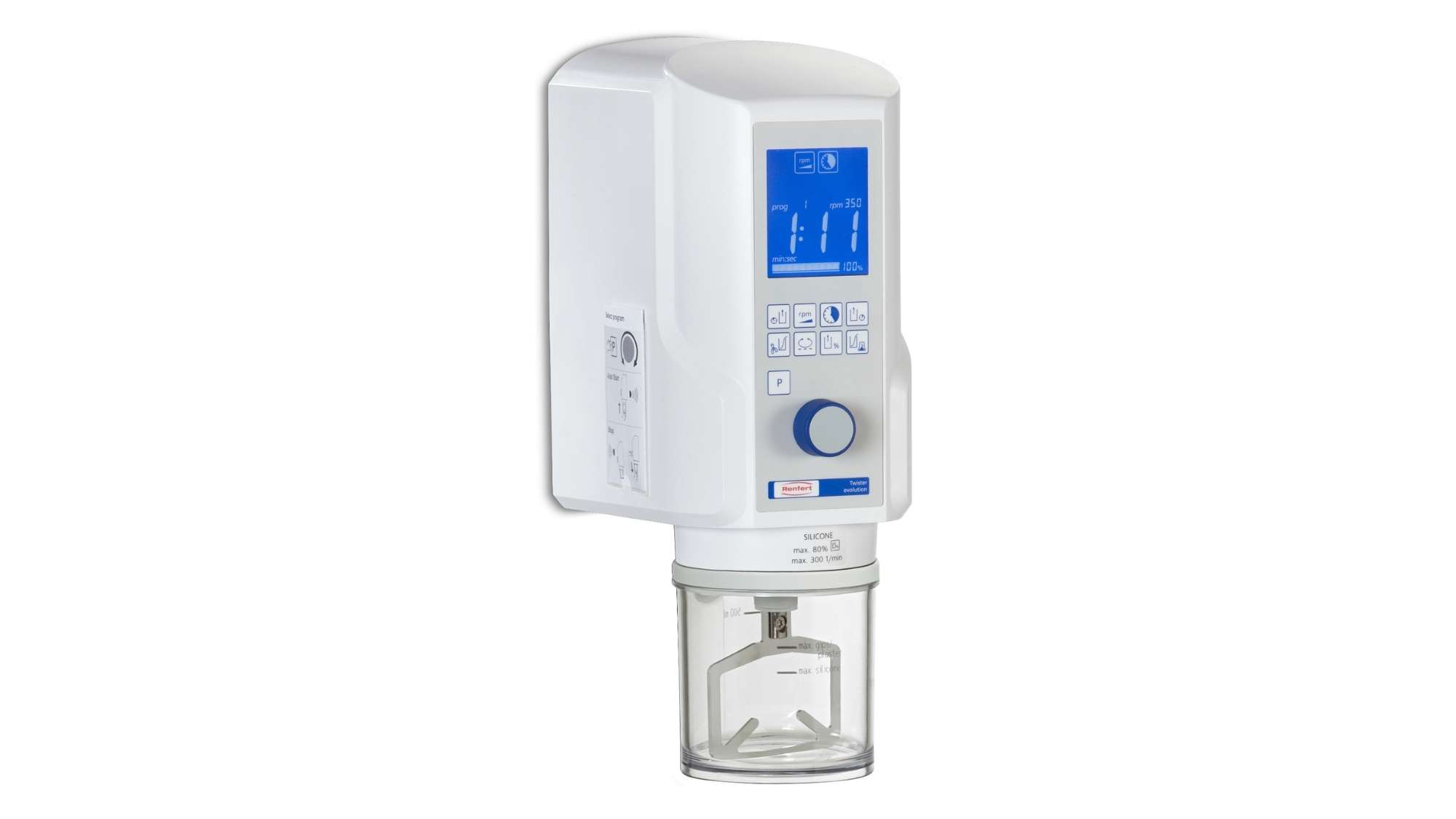

TWISTER EVOLUTION
Vacuum MIXING unit
Vacuum MIXING unit
High speed, Vacuum MIXING unit, diaphragm Pump for the Vacuum and eight programmable MIXING functions.
Advantages
▪️Reliable processing of large amounts due to high speed.
▪️Can be used flexibly for plaster and investment materials, duplicating materials and alginate impression materials.
▪️Reduction of bubbles thanks to a Vacuum that can be regulated in increments between 70% and 100%.
Details
▪️Programmable: TWISTER EVOLUTION has more than 100 custom programmable MIXING programs.
▪️Pre Vacuum: Undesired reaction gases from investments are extracted by the prevacuum function before the main MIXING time.
▪️Reverse rotation: Dry agglomerates are broken up by the change of the paddle direction to ensure better wetting of the powder.
▪️Post Vacuum: The post Vacuum of the TWISTER EVOLUTION reduces gas inclusions, which form later on the surface of the mixture.
▪️Main MIXING cycle: The powerful motors of the TWISTER EVOLUTION effortlessly maintain the set MIXING speed with any material, filling level and bowl size.
▪️Prespatulation: The prespatulation function guarantees consistent results, regardless of whether plaster or investment material is used. In addition, the MIXING time is reduced and inhalation of dangerous dust prevented.
PRODUCT VARIANTS
TWISTER EVOLUTION, 100-120 V
Item number 18281000
Scope of delivery:
incl. 500 ml bowl and MIXING paddle
TECHNICAL DATA
Model
Item number
Permissible mains voltage
Permissible mains frequency
Max. Vacuum
Bowl pressure abs.
Vacuum reduction
Rotational speed
Vacuum build-up
Programmable
TWISTER EVOLUTION, 100-120 V
18281000
100 - 240 V
50 - 60 Hz
-890 mbar -- -12.9 psi
80 mbar -- 1.16 psi
70 - 100 %
100 - 450 rpm
Membrane Pump
1
ACCESSORIES
MIXING bowl incl. paddle, 65 ml
Item number 18206500
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 65 ml
MIXING bowl incl. paddle, 200 ml
Item number 18200200
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 200 ml
MIXING bowl, 200 ml
Item number 18200220
Description:
Bowl made from high-strength polycarbonate. Marking indicates maximum filling capacity.
Scope of delivery:
1 piece
MIXING bowl incl. paddle, 500 ml
Item number 18200500
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 500 ml
MIXING bowl, 500 ml
Item number 18200520
Description:
Bowl made from high-strength polycarbonate. Marking indicates maximum filling capacity.
Scope of delivery:
1 piece
MIXING bowl incl. paddle, 700 ml
Item number 18200700
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 700 ml
MIXING bowl incl. paddle, 1.000 ml
Item number 18201001
Description:
Well-designed paddle geometry for optimal, thorough MIXING. Marking indicates maximum filling capacity. Reservoir protects against unintentional over filling. Bowl made from high-strength polycarbonate.
Scope of delivery:
1 piece incl. paddle, 1000 ml
Alginate MIXING bowl, incl. paddle, 500 ml
Item number 18230500
Description:
Specially designed for the requirements of alginates. Bubble-free material thanks to the specially contoured MIXING paddle for alginate material. The special surface coating ensures easy cleaning.
Scope of delivery:
1 piece incl. paddle, 500 ml
Alginate MIXING bowl, 500 ml
Item number 18230520
Scope of delivery:
1 piece
Alginate MIXING paddle, 500 ml
Item number 18230510
Scope of delivery:
1 piece
Stand
Item number 18210102
Description:
This stand has been specially designed for all TWISTER versions. Converts your TWISTER to a bench unit. Secure assembly in only a few steps. Flexibility and ergonomics.
Scope of delivery:
1 piece
MIXING spatula
Item number 18210200
Description:
The MIXING spatula for all bowls in the TWISTER range provides the optimum prespatulation tool, which is also used for scooping the mixed material completely out of the bowl. Rounded edges protect the bowl. Length and stability also enable MIXING of large quantities of material.
Scope of delivery:
1 piece
SPARE PARTS
Position
1
2
3
5A
5B
5C
5D
5E
5F
5G
5H
5I
6
7
9
101
102
103
104
105
106
107
108
109
110
501
502
503A
503B
503C
503D
503E
504
505B
505C
Product name
Set of filters
Fuse set
Set of O-rings for 182x
Unit connector cable 230V
Unit connector cable 120V
Unit connector cable 230V UK
Power cord Argentine with cable-mount connector, straight
Unit connector cable 230V CH
Power cord Brazil with cable-mount connector, straight
Power cord ZA 5A with cable-mount connector, straight
Power cord Italy with cable-mount connector, straight
Unit connector cable 230V OZ lightgrey
Prot. rubber mat f. rear side of housing 2 pcs.
Cable safety catch for TWISTER
Wing MIXER 65 ml
Frontfoil TWISTER EVOLUTION 1828
Printed circuit complete 1828
Geared motor
Set of joints TWISTER
Micro filter
Power supply
Mains switch
Air valve TWISTER / TWISTER EVOLUTION
Vacuum Pump
Display TWISTER
TWISTER stand
MIXING spatula for TWISTER
MIXING bowl with paddle, 65 ml
MIXING bowl with paddle, 200 ml
MIXING bowl with paddle, 500 ml
MIXING bowl with paddle, 700 ml
MIXING bowl with paddle, 1000 ml
Alginate MIXING bowl incl. paddle, 500m
MIXING bowl, 200 ml
MIXING bowl, 500 ml
Item number
900034675 *
900034715
900034155 *
900036121
900036122
900035938
900032769
900036070
900032767
900032771
900032768
900035840
900034137
900034700
900034203
900034677
900234673
900034746
900134162 *
900034719 *
900034690
900035989
900021585
900034689
900034823
18210102
18210200
18206500
18200200
18200500 *
18200700
18201001
18230500
18200220
18200520
DOWNLOADS
Catalogue
RENFERT_CATALOG_EN.PDF
PDF (29.53MB)
Safety data sheet
Wärmeleitpaste 31955 EN
PDF (613KB)
Manual / User guide
Master models | Manual | EN
PDF (4.56MB)
Manual / User guide
Model casting technique | Manual | EN
PDF (3.1MB)
Repair manual
TWISTER / TWISTER EVOLUTION 182xx0
PDF (23.25MB)
FAQ
TWISTER EVOLUTION / TWISTER EVOLUTION venturi 182xx000
PDF (1.16MB)
Declaration of conformity
UKCA TWISTER
PDF (330KB)
Instruction manual
TWISTER EVOLUTION pro 1825x000
PDF (6.38MB)
Instruction manual
TWISTER EVOLUTION 1822x000
PDF (7.19MB)
Instruction manual
Alginate MIXING bowl 18230500
PDF (1.69MB)
Declaration of conformity
TWISTER EVOLUTION / TWISTER EVOLUTION venturi 182xx000
PDF (1.22MB)
Instruction manual
TWISTER EVOLUTION / TWISTER EVOLUTION venturi 182xx000
PDF (16.44MB)
Quick Start Guide
216606_QRC TWISTER EVOLUTION / TWISTER EVOLUTION venturi 182xx000
PDF (997KB)
Quick Start Guide
TWISTER EVOLUTION 182xx000
PDF (2.45MB)
