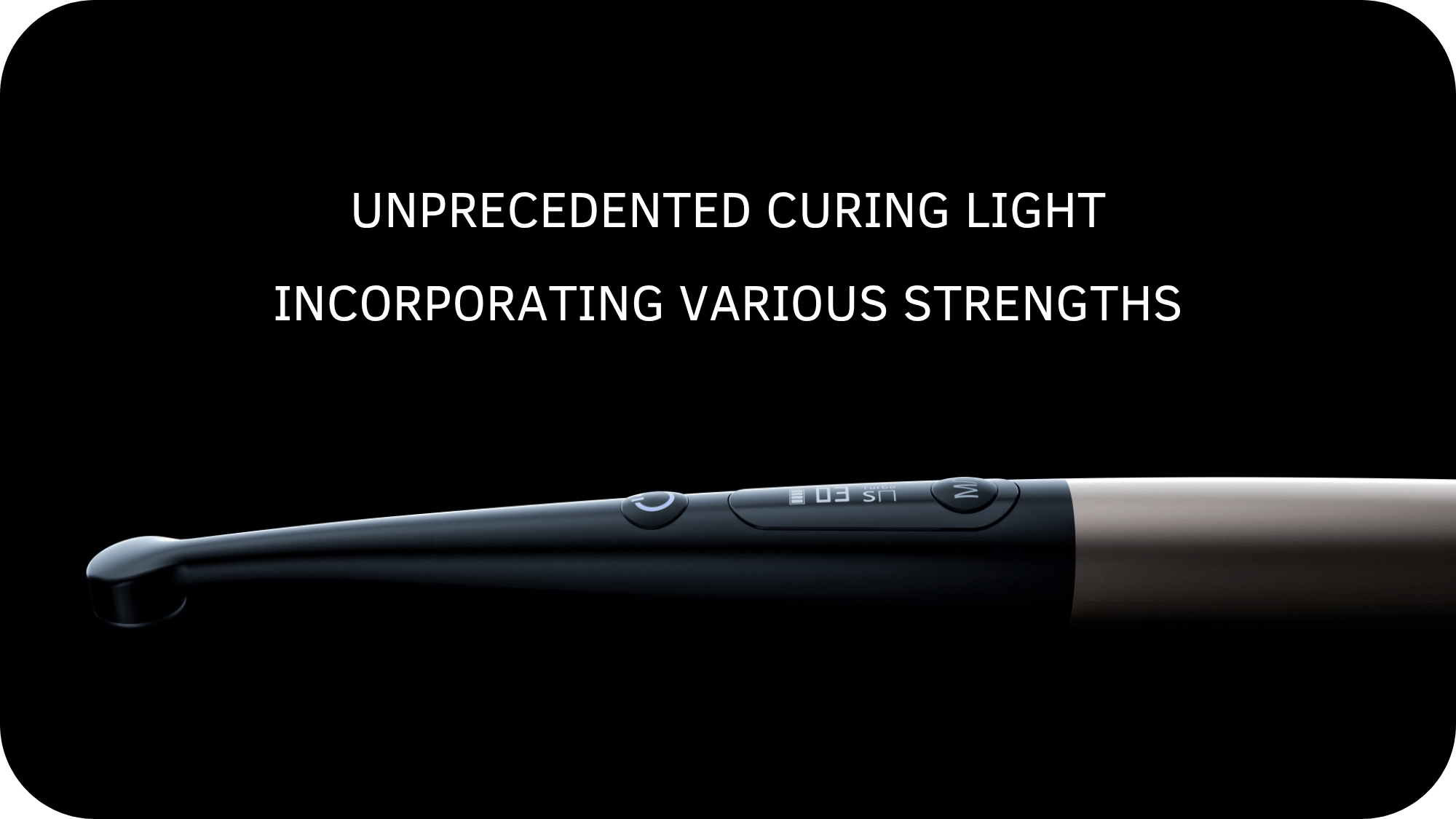

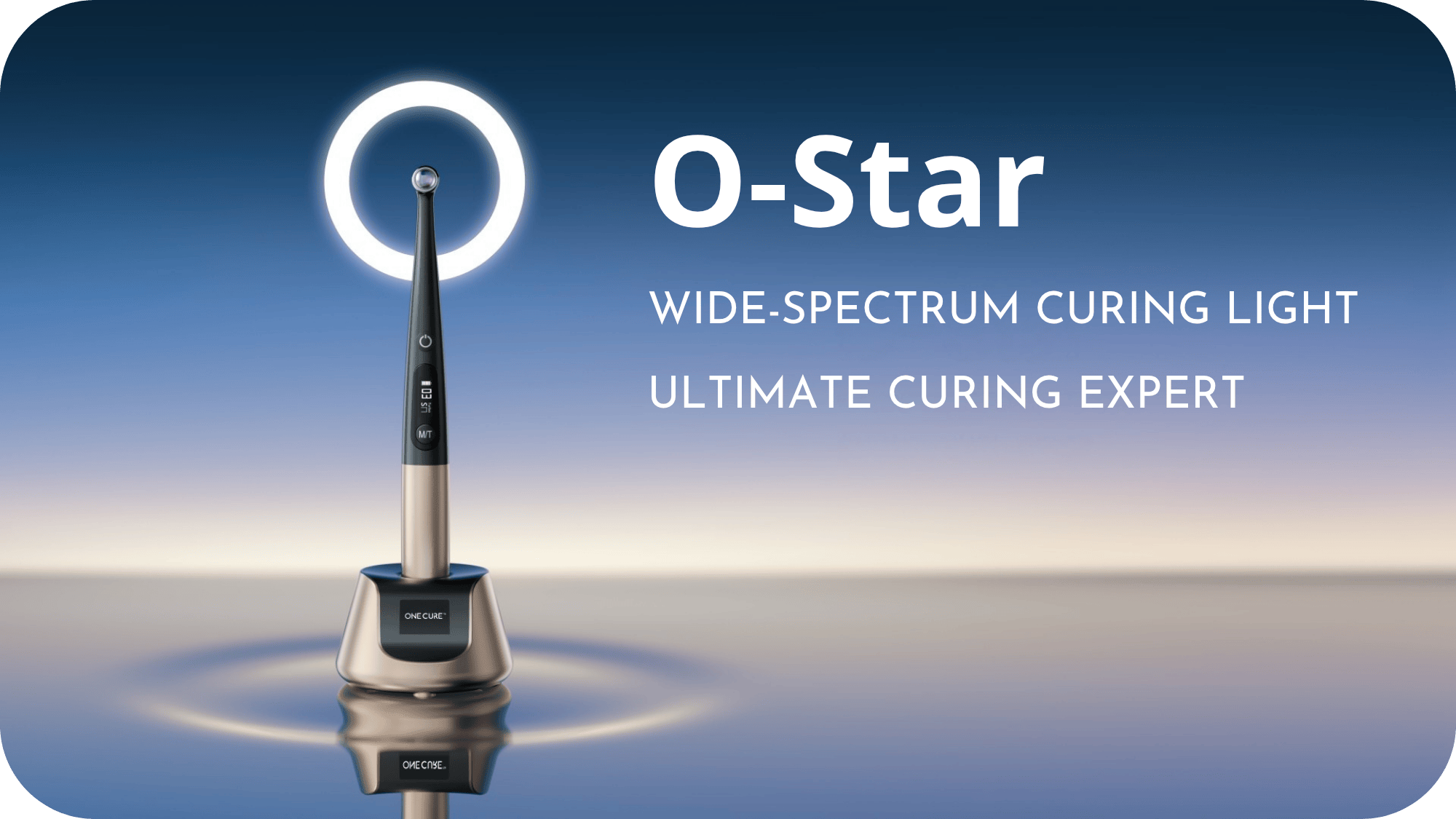

H1 - Curing Light - # O-STAR

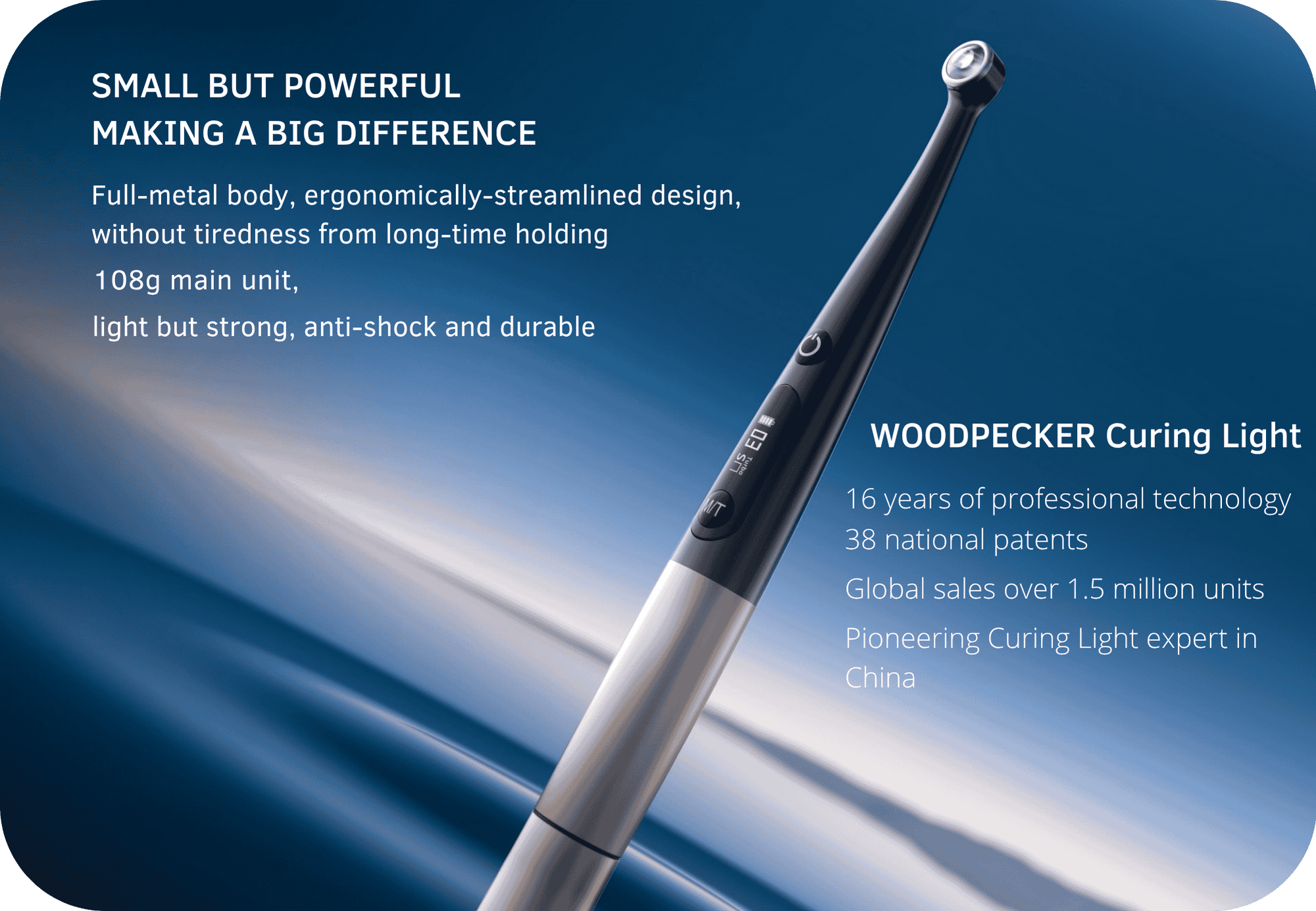

Smart but powerful making a big difference

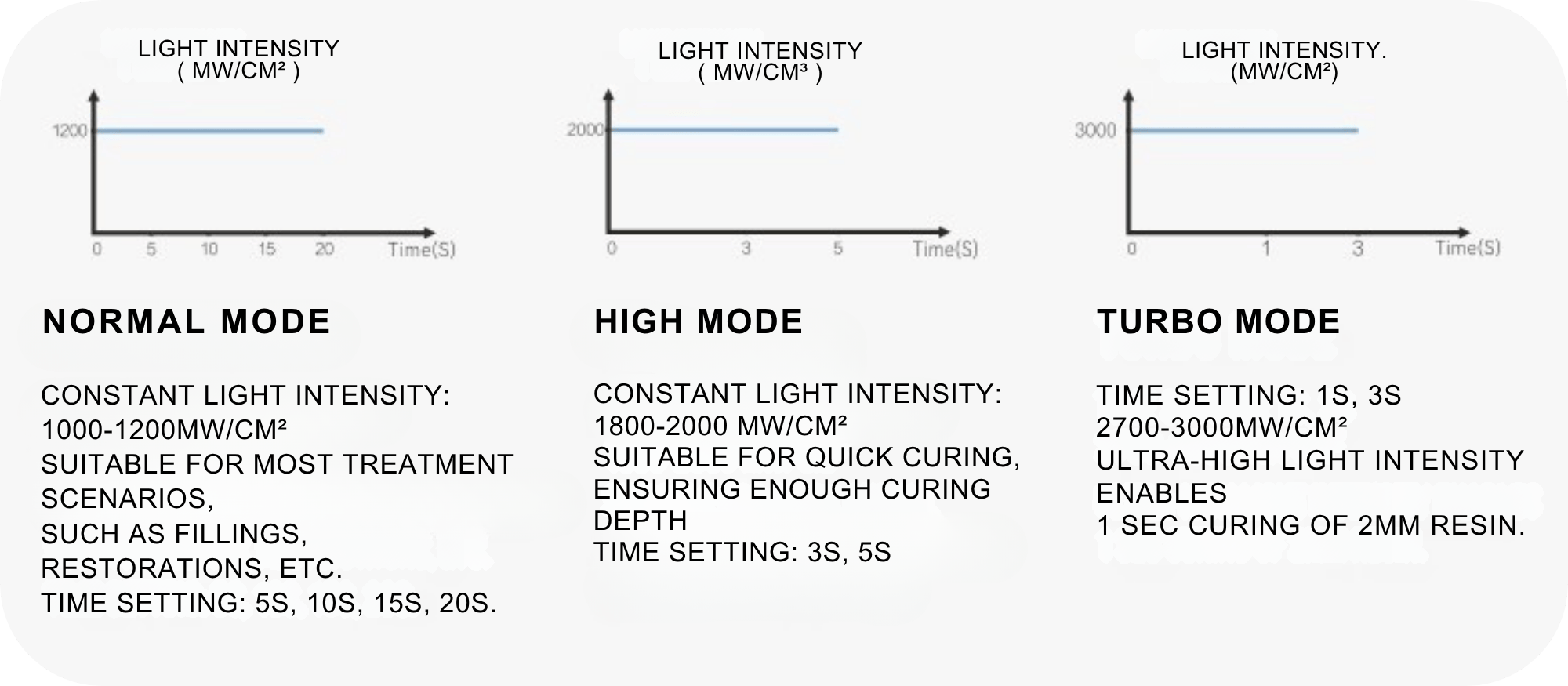

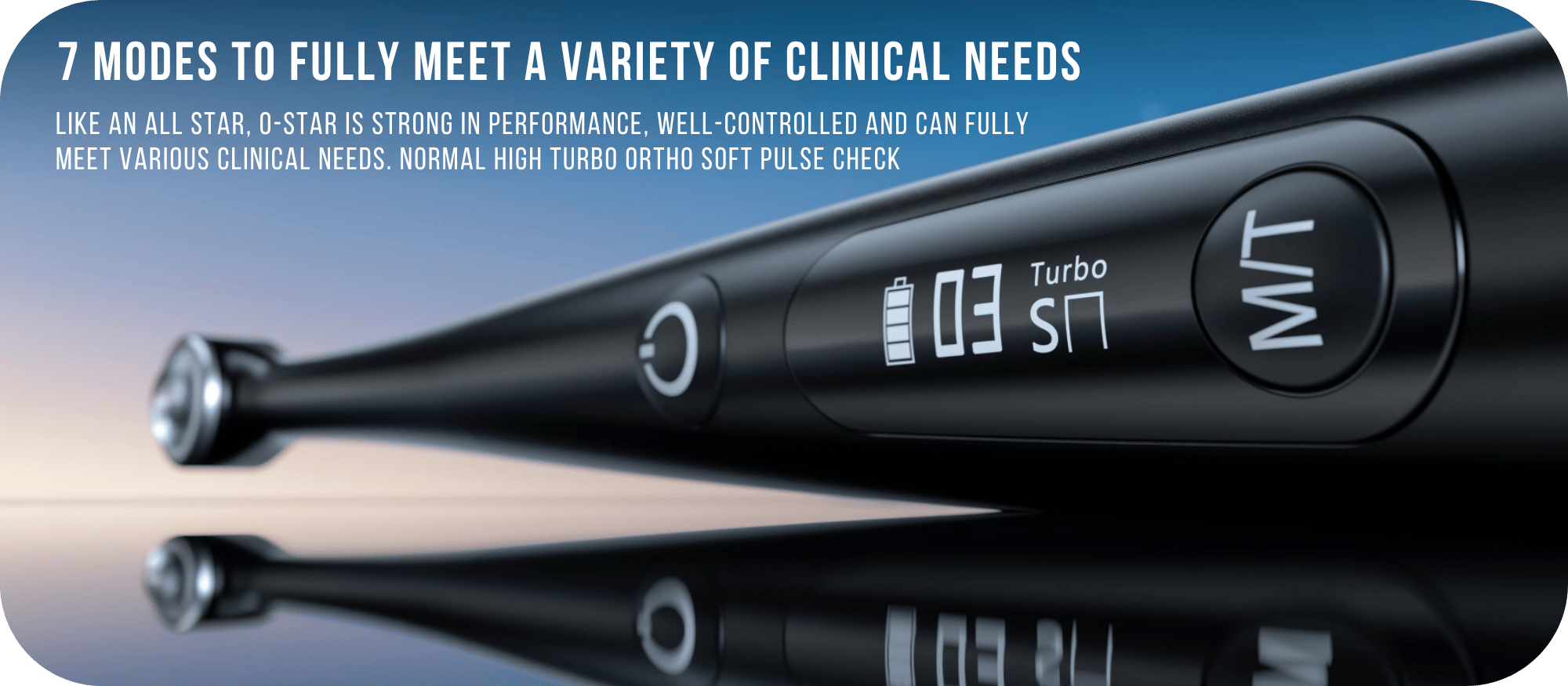

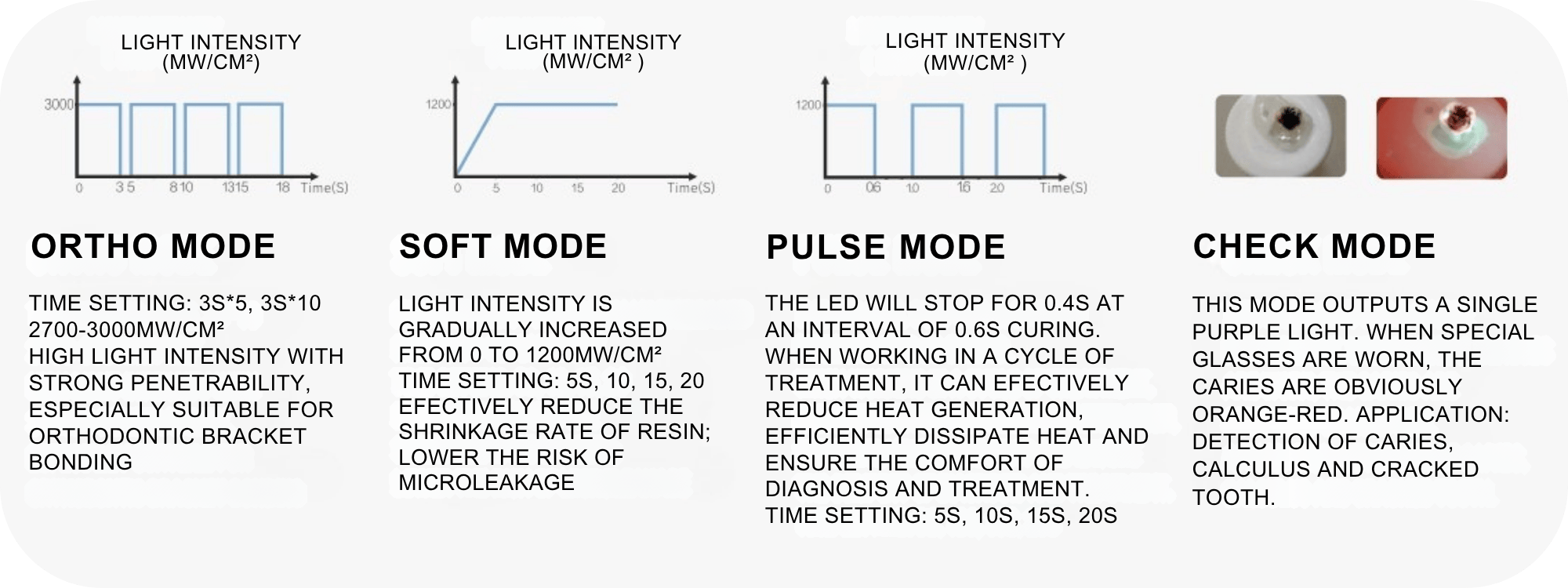

7 modes to fully meet a variety of clinical needs

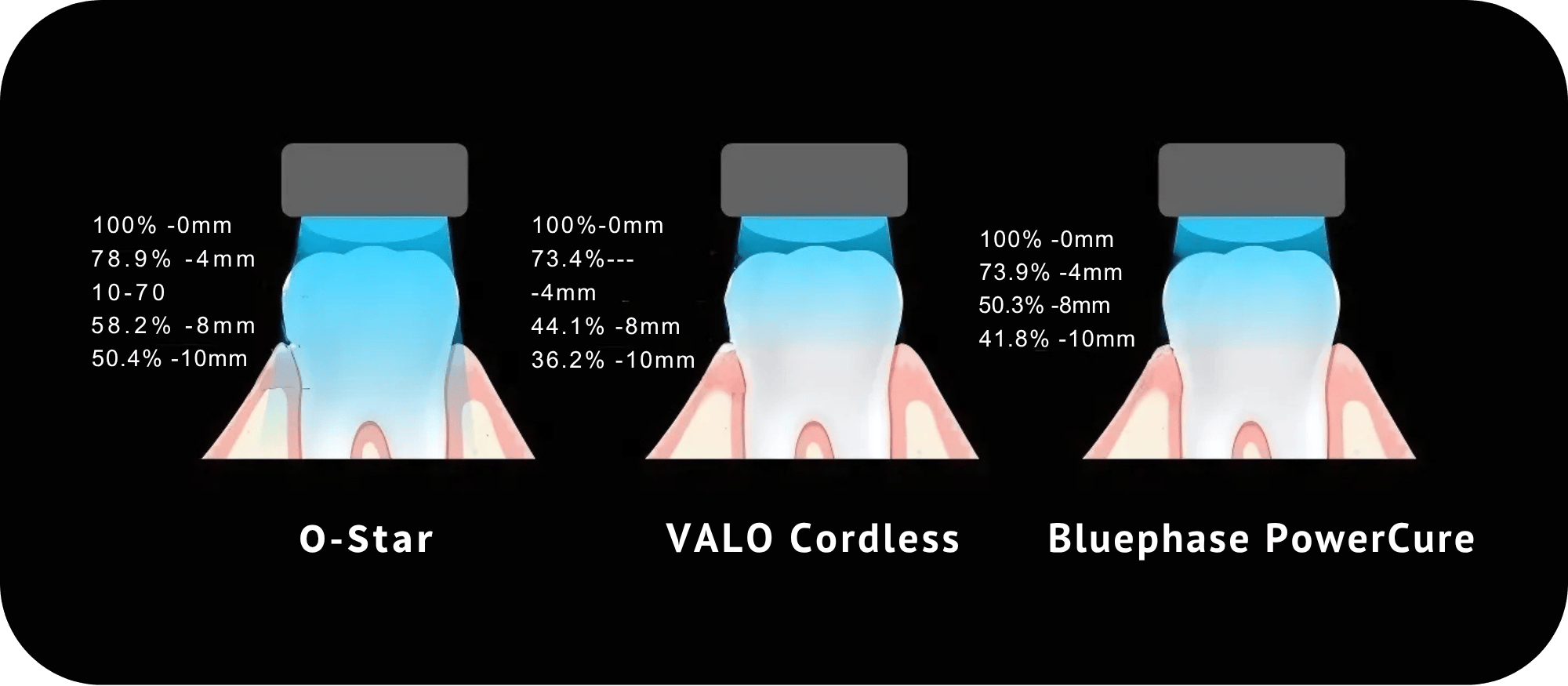

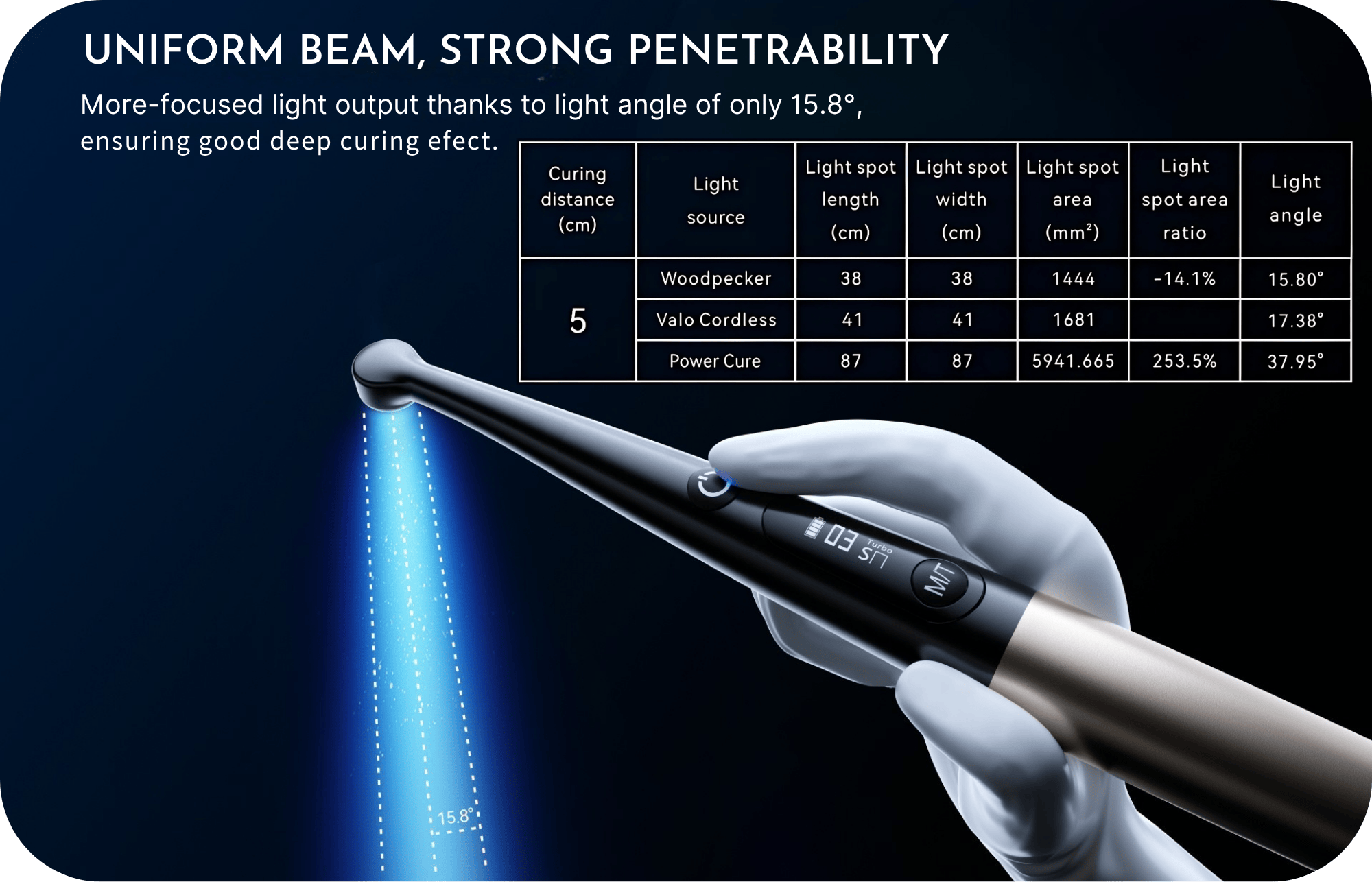

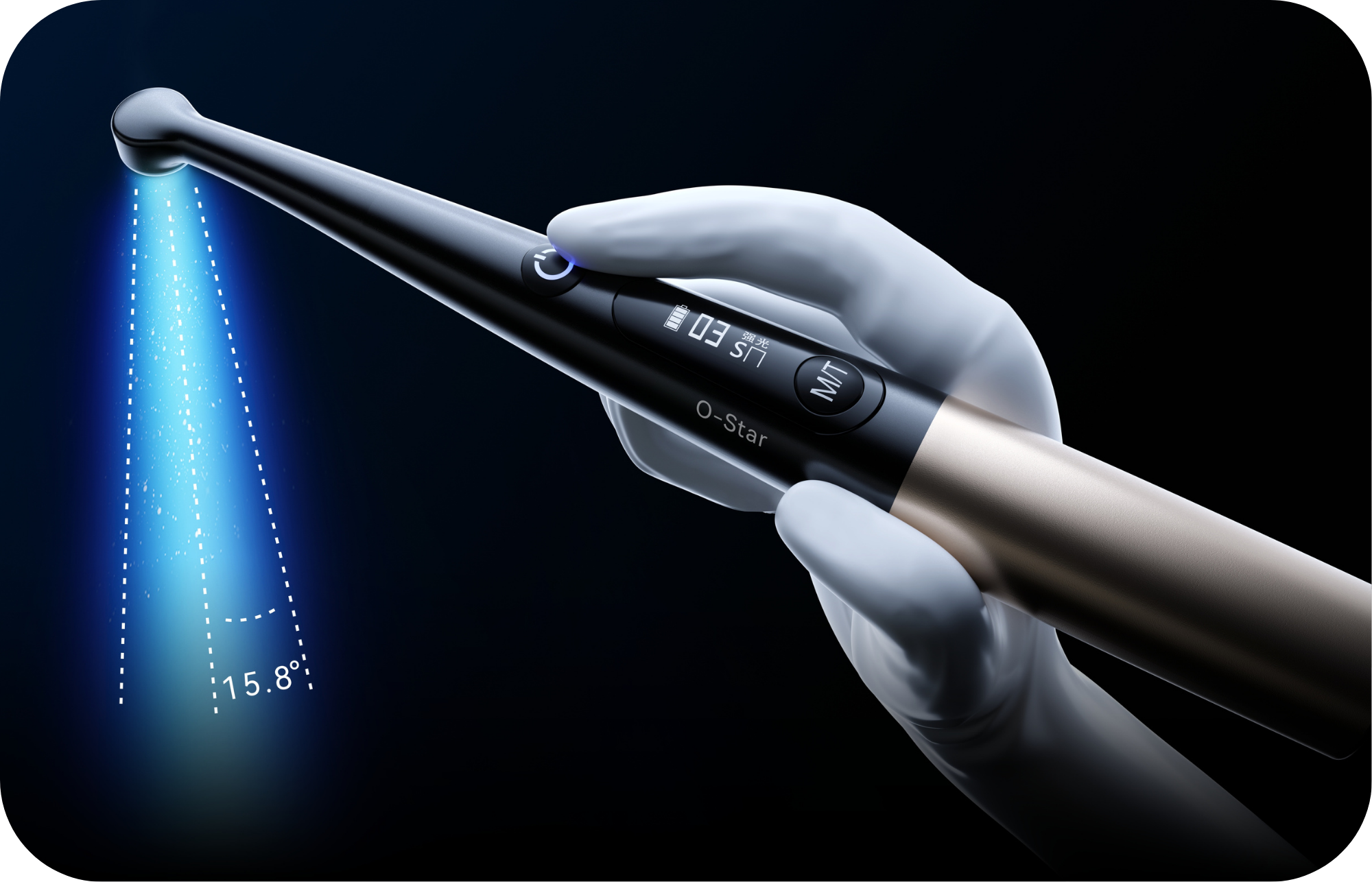

Uniform beam, strong penetrability

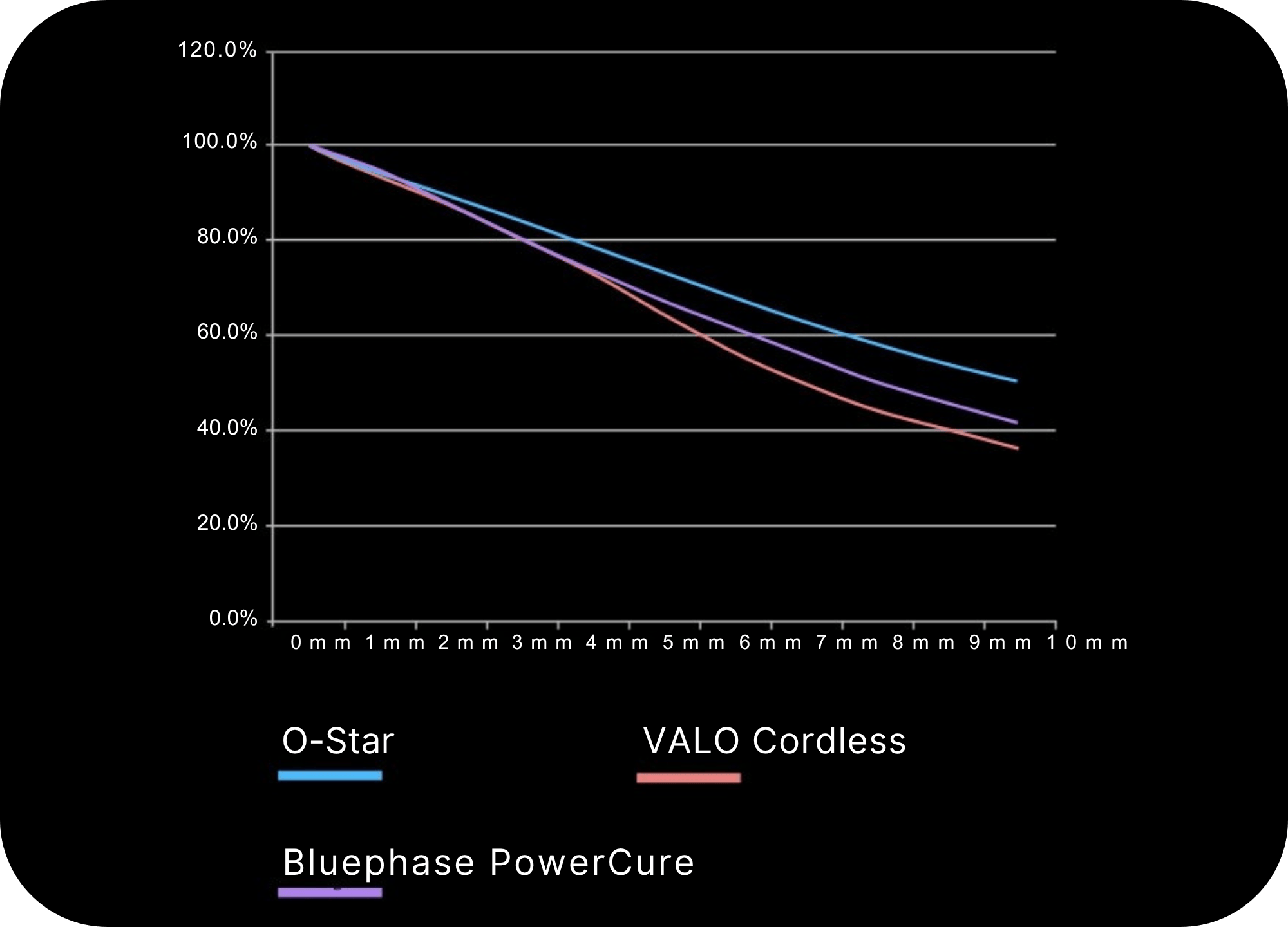

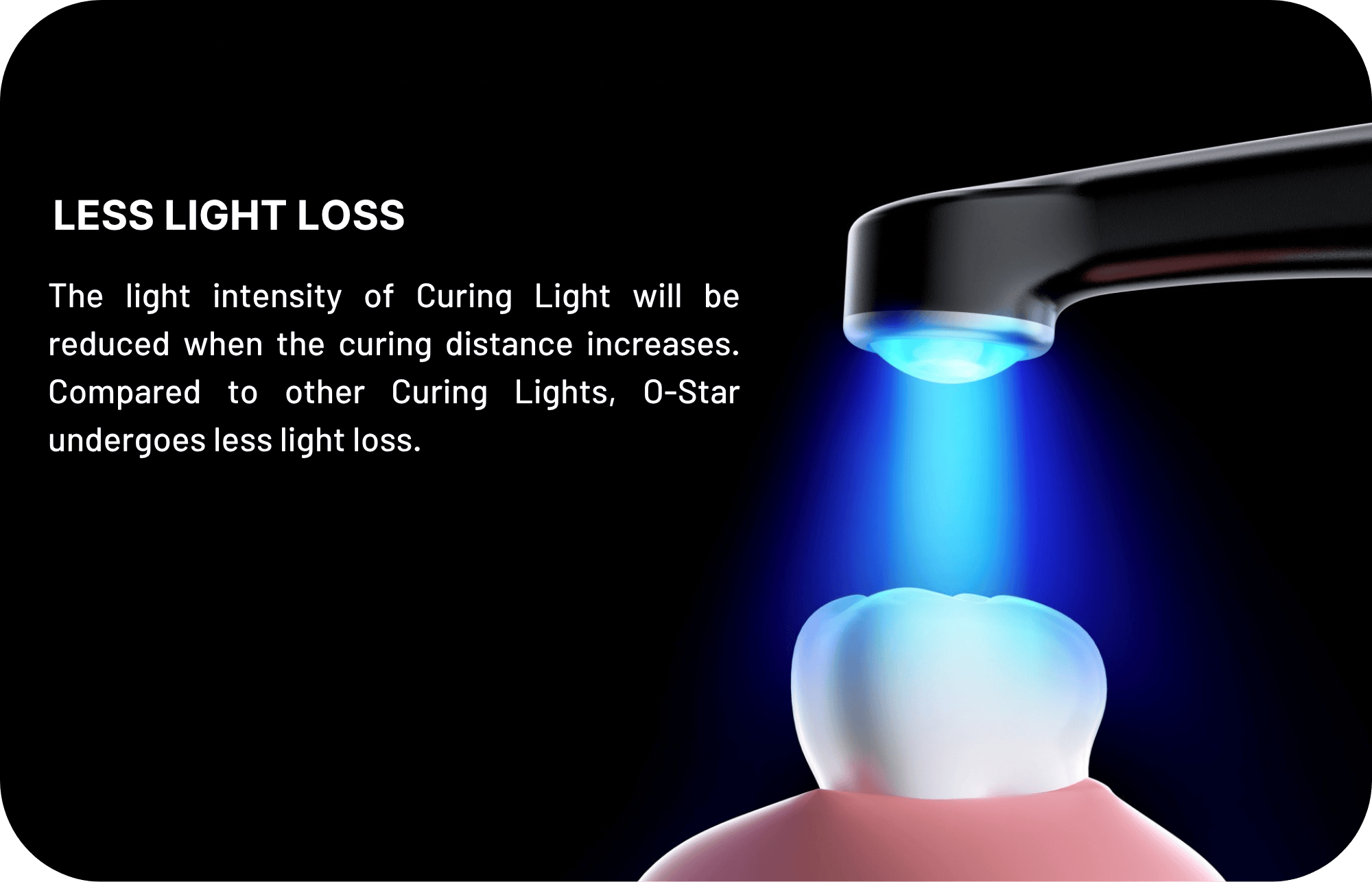

Less Light loss

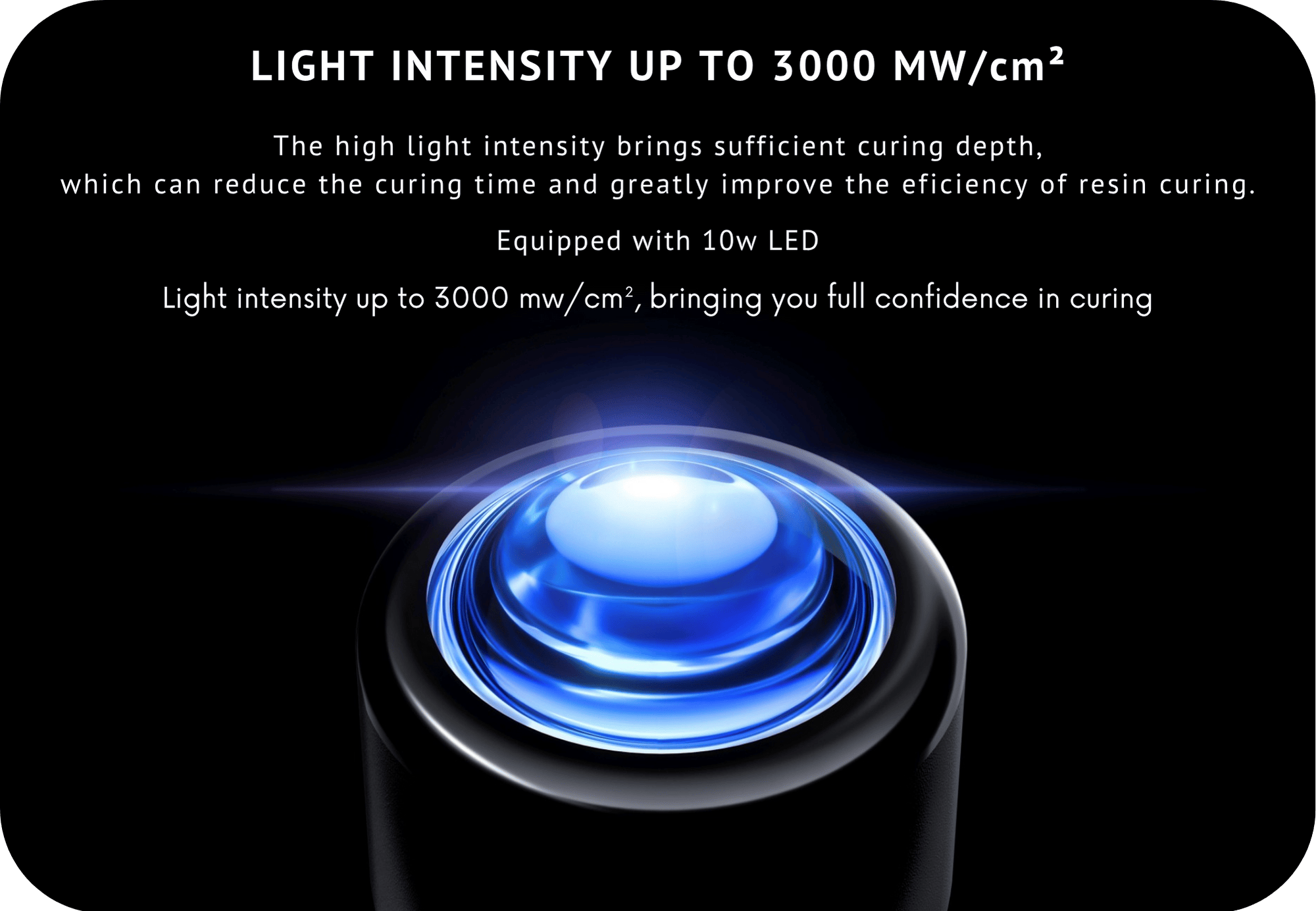

Light intensity up to 3000 mW/cm²

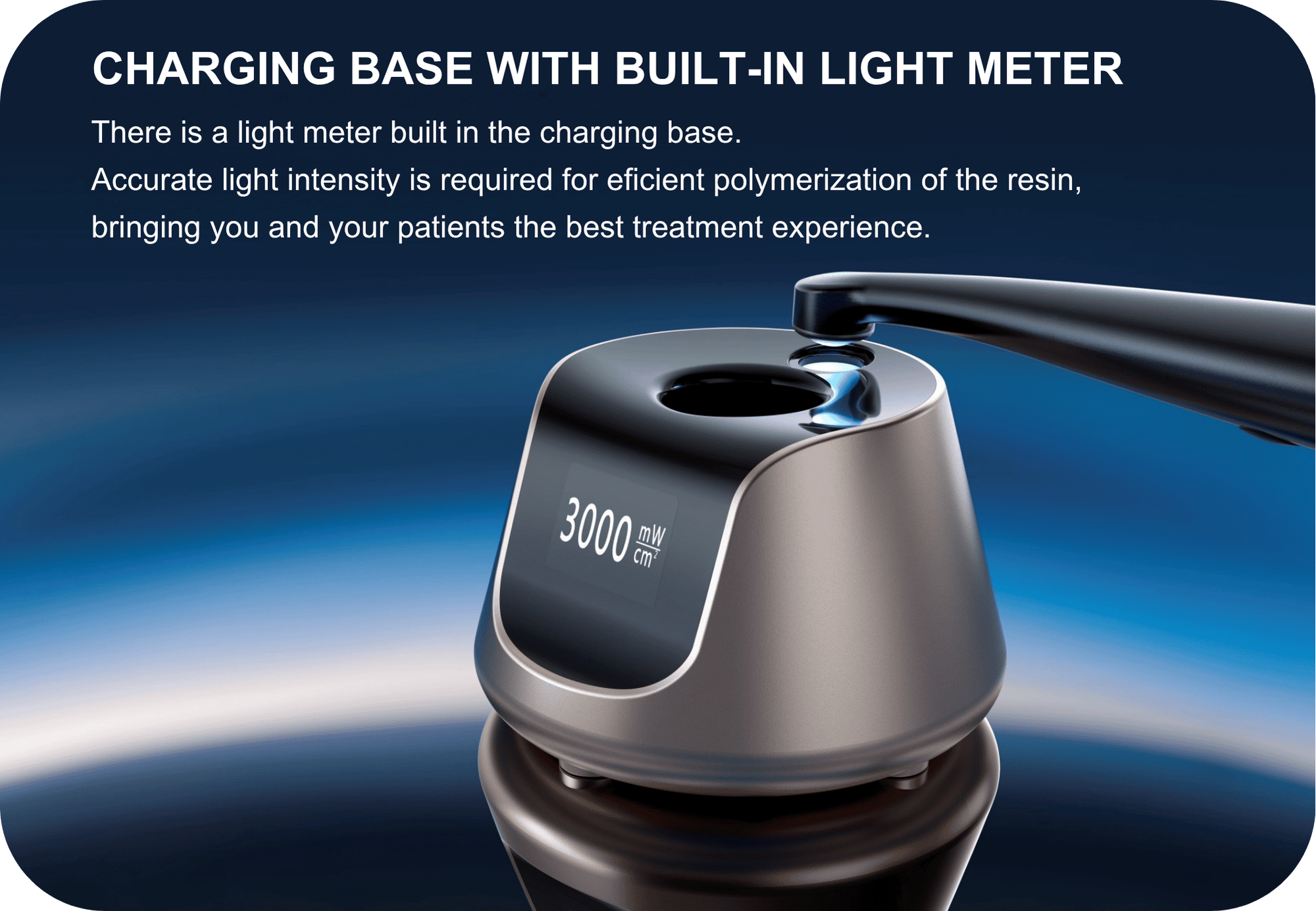

Charging base with

Basic Technical Specifications

• Size of main uint: 23mm×23mm×204mm
• Net weight of main unit: 108g
• Applied parts of the equipment: Top of main unit, Point cure lens
• Duty cycle of the equipment: 20 Sec on/20 Sec off

Adapter

• classified by power supply
• The power supply by the rechargeable battery
• Rechargeable Lithium battery:
• Battery model:18500, Battery capacity: 2000mAh
• Battery has over-voltage, over current and short circuit protection
• Adapter(charge) Input: 100-240V~ 50/60Hz 0.4A Max.
• Output: 5.0V 1A
• The adapter must be complies with IEC 60601-1 and IEC 60601-1-2

Light source

• 10W high power

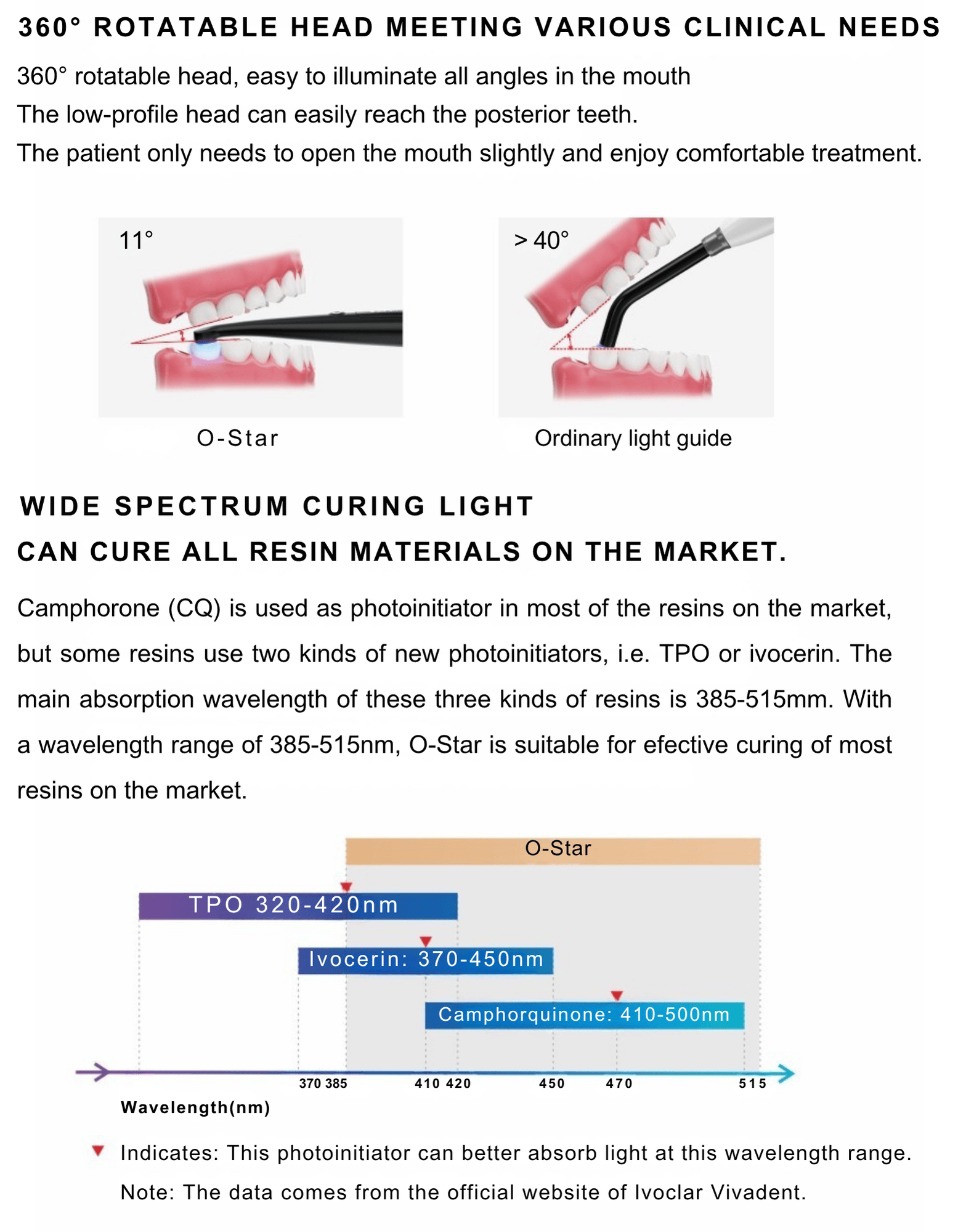

• Wave length: 385nm~515nm
• Class: class 2 AEL: 3.9×10-3J
