Description
DE
PRAG

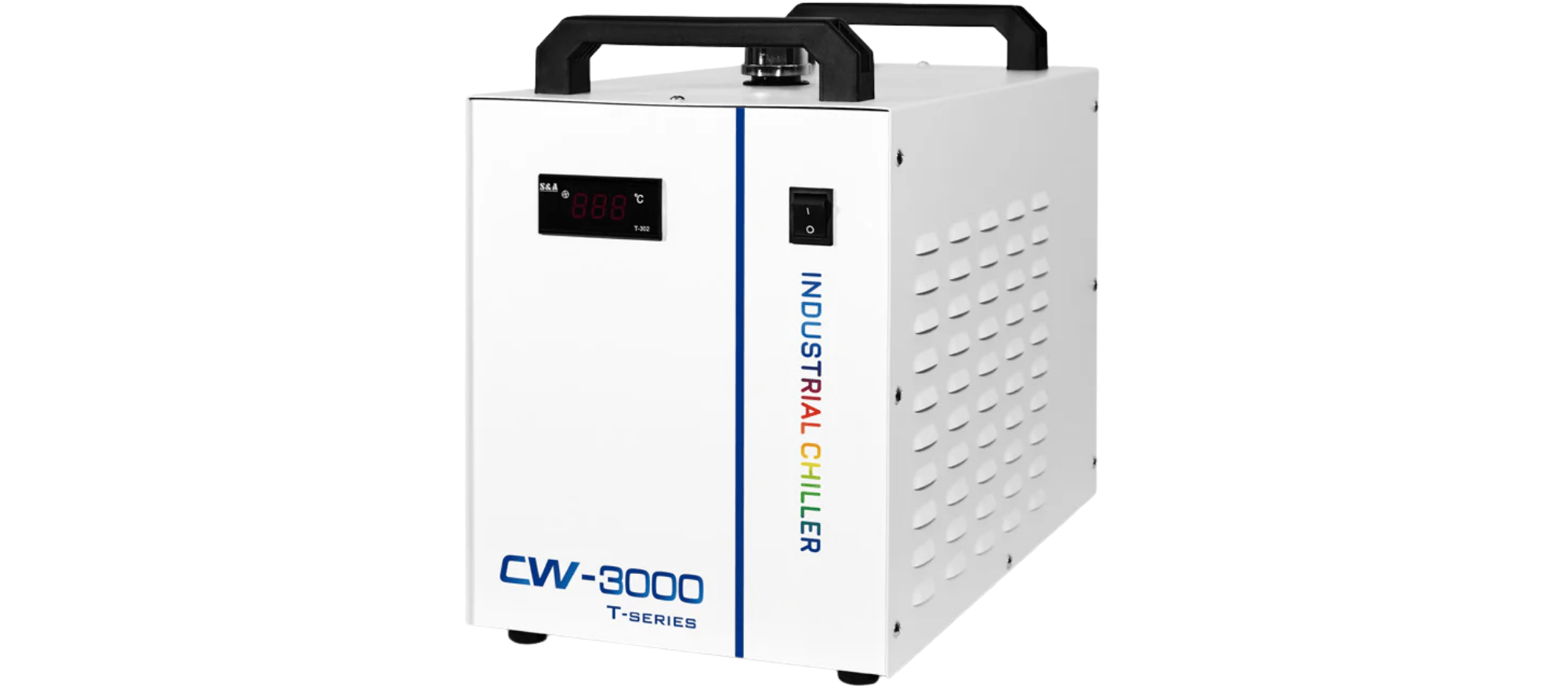

CW-3000TK • Water-Cooling Machine
PRODUCT DESCRIPTION
DEPRAG Water circulation cooling equipment
CW-3000 Series is a professional Water Cooler designed with an international and advanced thermolysis cooling system, making it suitable for small machinery that requires Water-cooled cooling devices.
Remarks: The CW-3000 air cooled Water chiller is equipped with high-speed fans that quickly take away heat through Water recirculation. However, the Water temperature is dependent on the ambient temperature and cannot be manually adjusted.
It is designed for cooling the one CO2 glass laser tube under 80W of the laser engraving and cutting machine. (Its emitting rate is lower than 60%, you can choose CW5000 Water Chiller if you want the emitting rate higher than 60 %.)

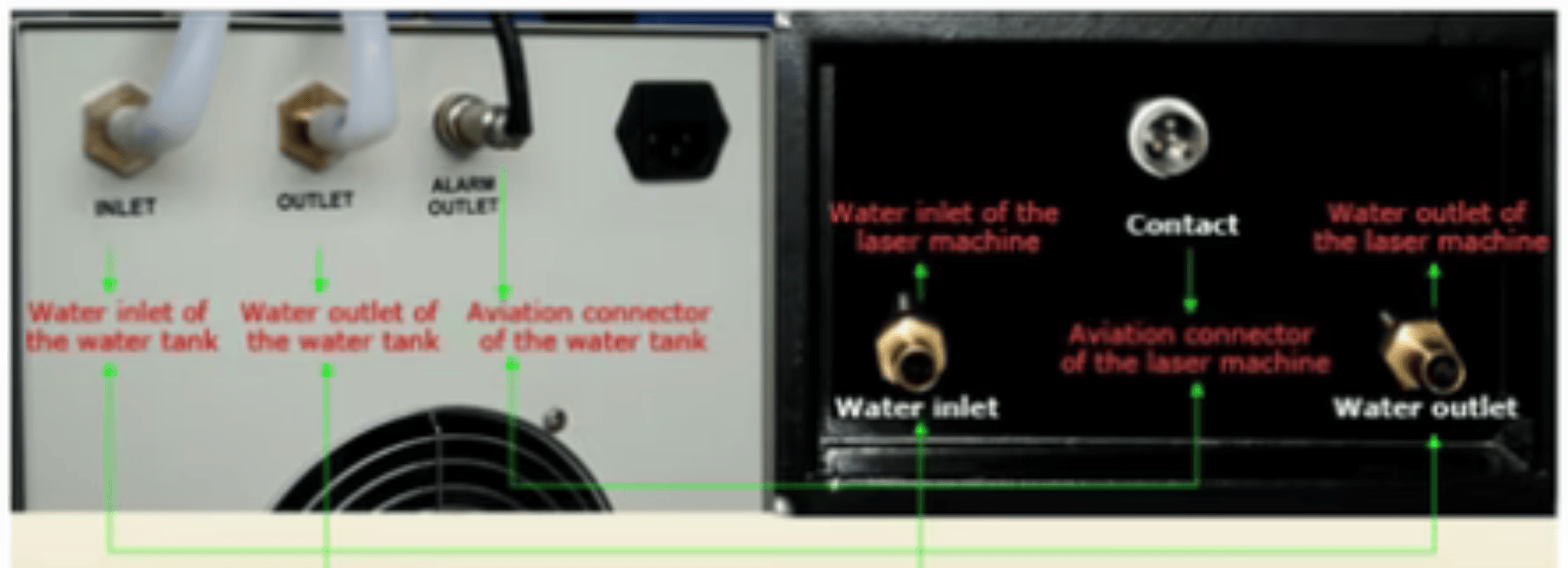

Connection diagram between Water chiller and laser machine
Water outlet of the Water tank connects to Water inlet of the laser machine while Water inlet of the Water tank connects to Water outlet of the laser machine.Aviation connector of the Water tank connects to the aviation connector of the laser machine.
KEY FEATURES
• Specific disconnection alarm securing protection.
• High cost performance, low failure rate.
• Radiating Capacity is 50W / °C.
• Forces circulation, 9L cooling tank capacity.
• It can extend the using life of laser tube and ensure the engraving effect better.
• Comprehensive reference to the international radiator - type cooling system.
• Small thermolysis Water Cooler.
• With completed Water flow and over high temperature alarm functions.
• Professional forced air - cooled radiator.
• CW-3000 Laser Water Chiller is suitable for small Water cooling device.
• Provide stable working conditions for laser devices.
• High heat dissipating capacity and not easy to be blocked.

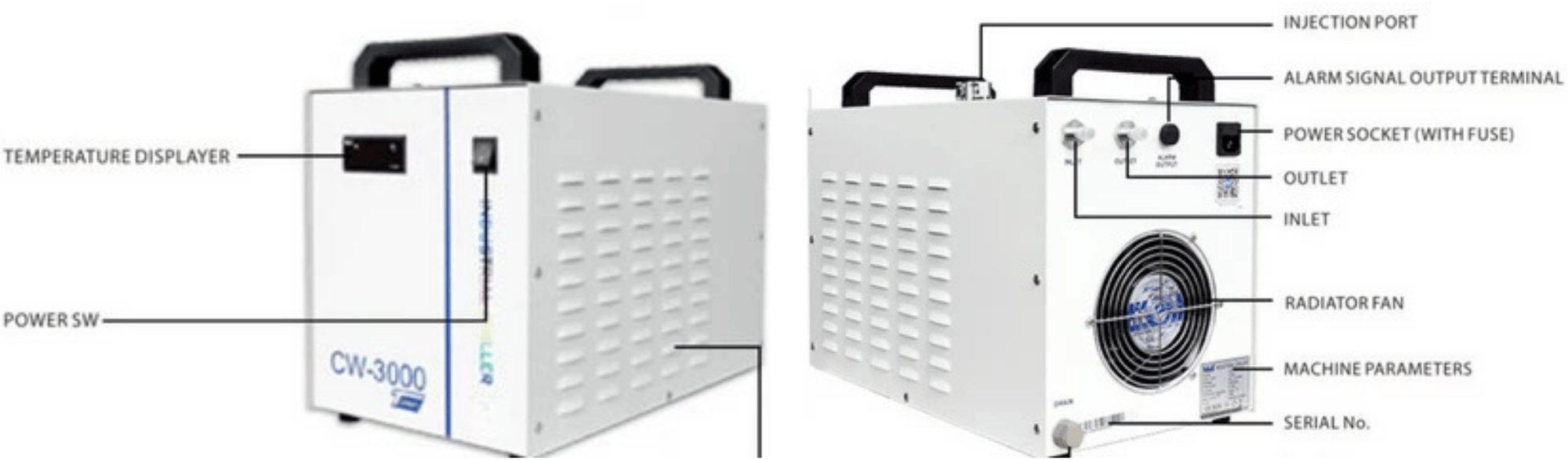

CONTOUR AND PARTS INTRODUCTION
Independent production of sheet metal and heat exchanger . 9L cooling tank, fast cooling.
Adopt IPG fiber laser for welding and cutting sheet metal, adopt minimize risks of Water and refrigerant leakage and improve quality
Digital temperature display
The digital temperature display is able to indicate Water temperature and alarm codes.
FLOW ALARM AND OUTPUT PORTS
In order to guarantee the equipment will not be damaged while cooling Water circulation is out of control, CW-3000series Water Cooler possess a low flow alarm protection.

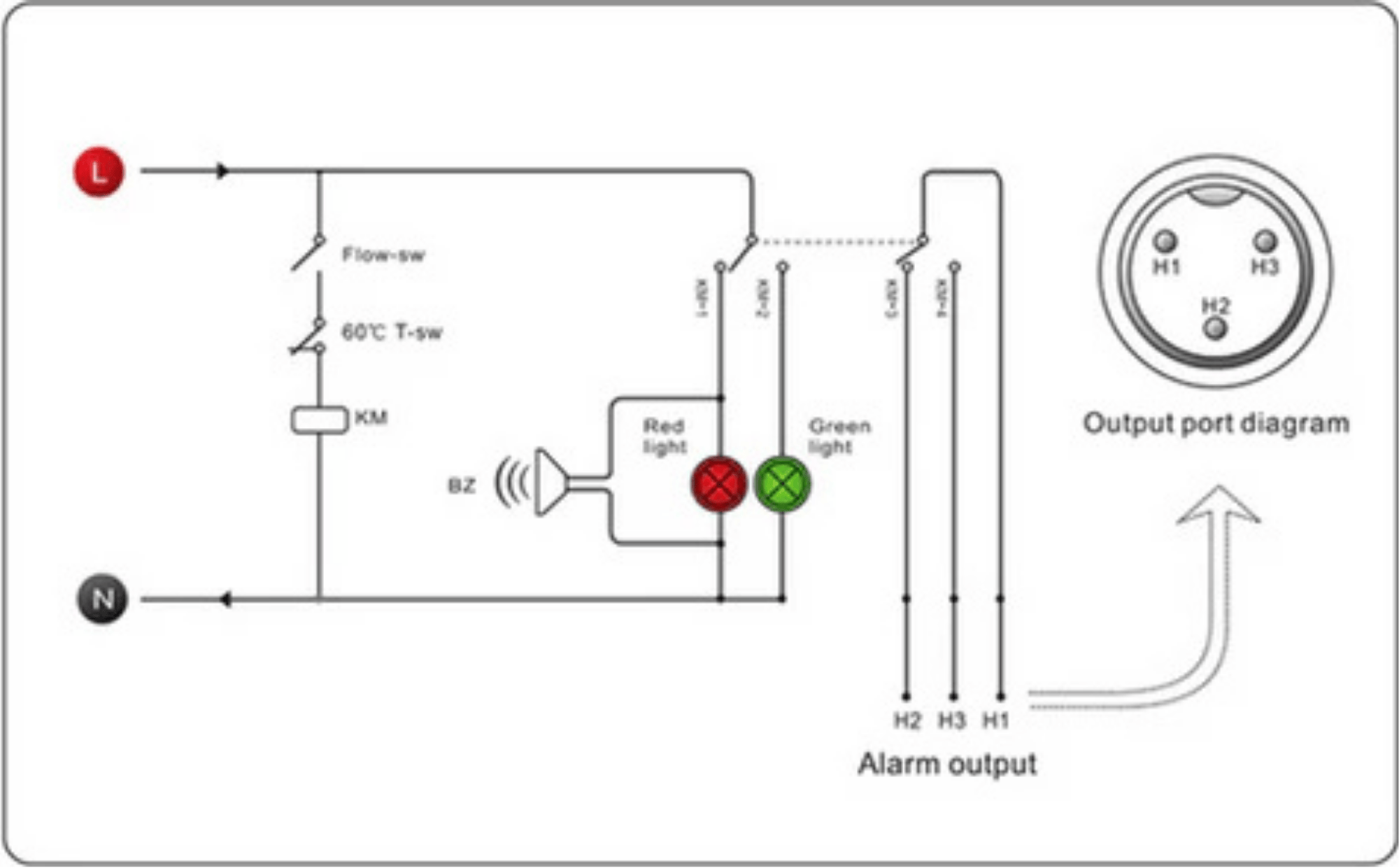

(1) Flow alarm output ports and the wiring diagram
(2) ALARM DESCRIPTION

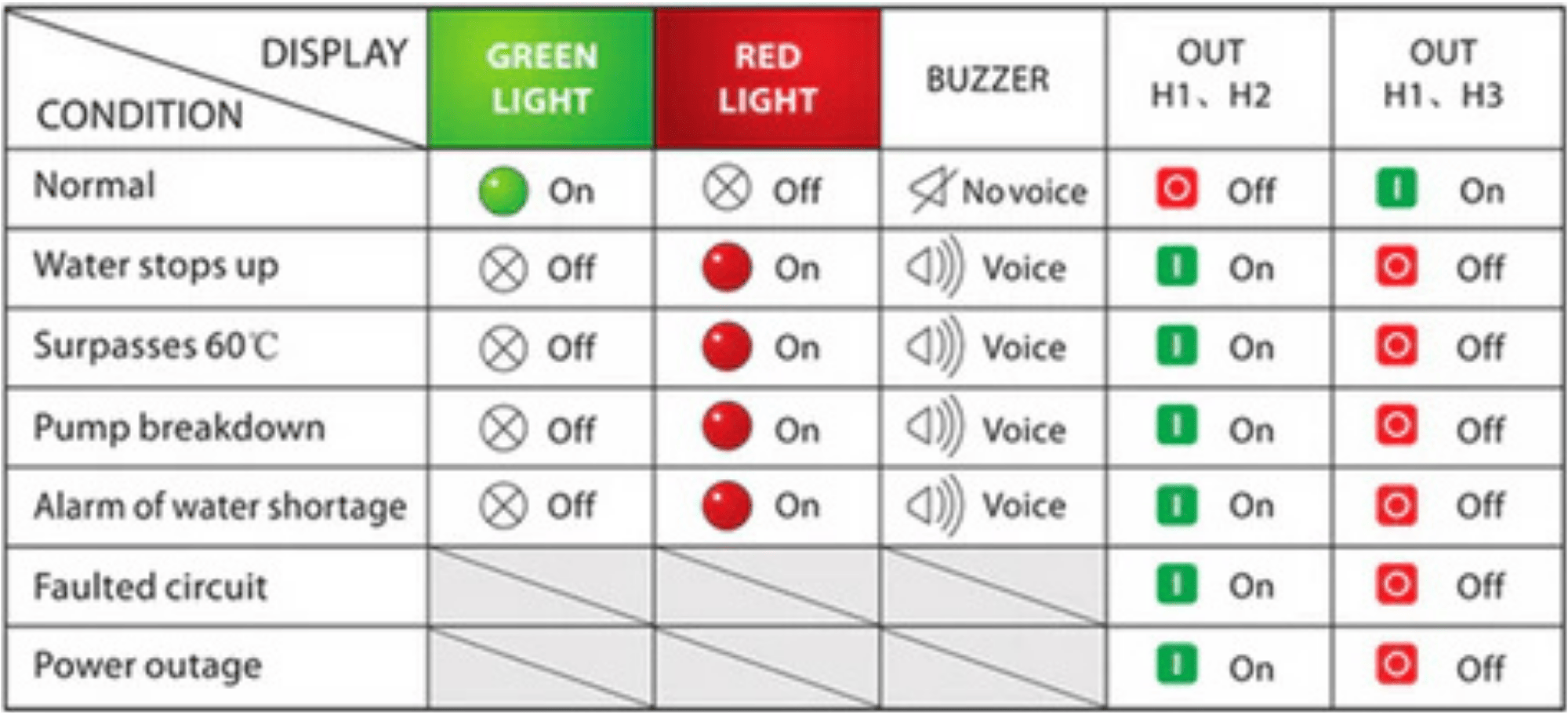

Causes of the cooling Water circulation alarm and the working condition table
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.
MAINTENANCE
1. To ensure good heat dissipating, please open the lid to clean thedirt after the Cooler used in long-term.
2. Users in cold area should use noncorrosive antifreeze fluid.

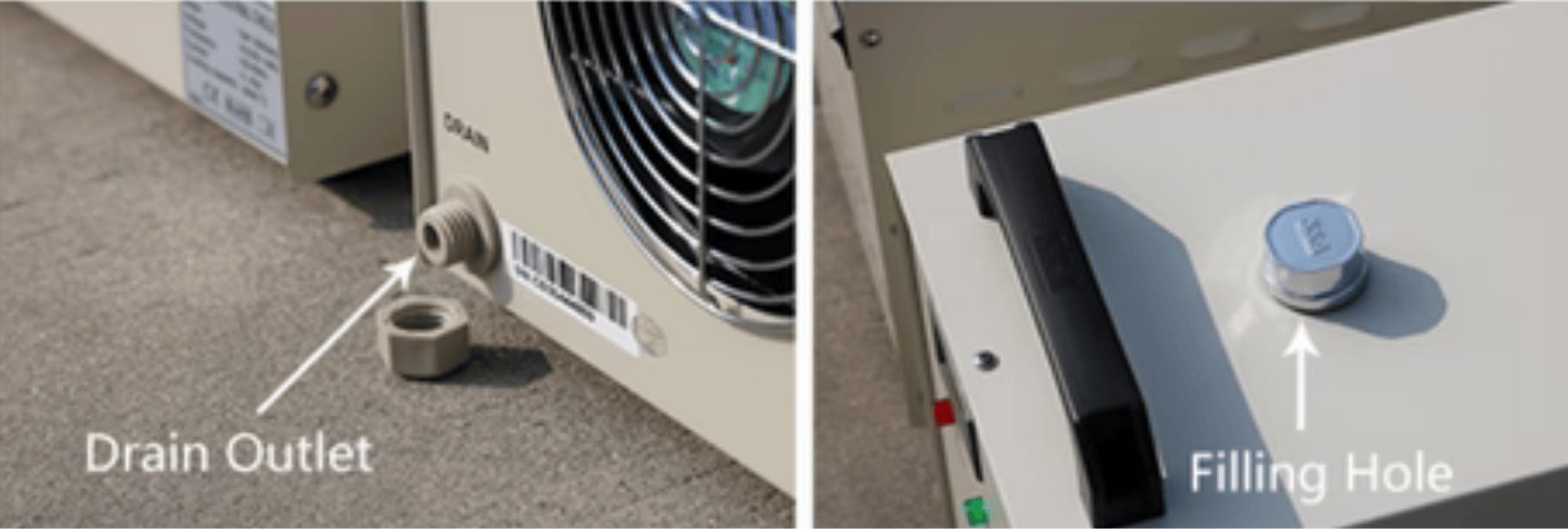

Water Tank Water Exchange Method and Frequency
To exchange the Water in the tank, drain the waste Water out of the tank using the drain outlet, and refill the tank with clean Water through the filling hole.
The frequency of Water exchange is crucial for maintaining the quality of the circulating Water and maximizing the service life of the laser tube. It is recommended to exchange the purified Water once a month and the running Water twice a month. It is also advised to use purified Water for optimal performance.
INSTRUCTIONS
Installation
Cautions & Troubleshooting
TECHNICAL PARAMETER
Parameter
MODEL
Voltage
Frequency
Current
Machine Power
Radiating Capacity
Max.lift
Max.flow
N.W.
G.W.
Protection
Tank capacity
Inlet and outlet
Dimension
Package dimension
CW-3000TK
AC 1P 220V
50/60Hz
0.5A
0.11kW
50W/°C
70M
2L/min
12Kgs
14.5Kgs
Flow alarm
8.5L
8mm fast connector
49×27×38cm (L×W×H)
59×39×48cm (L×W×H)
Note : the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
