Description

DE PRAG

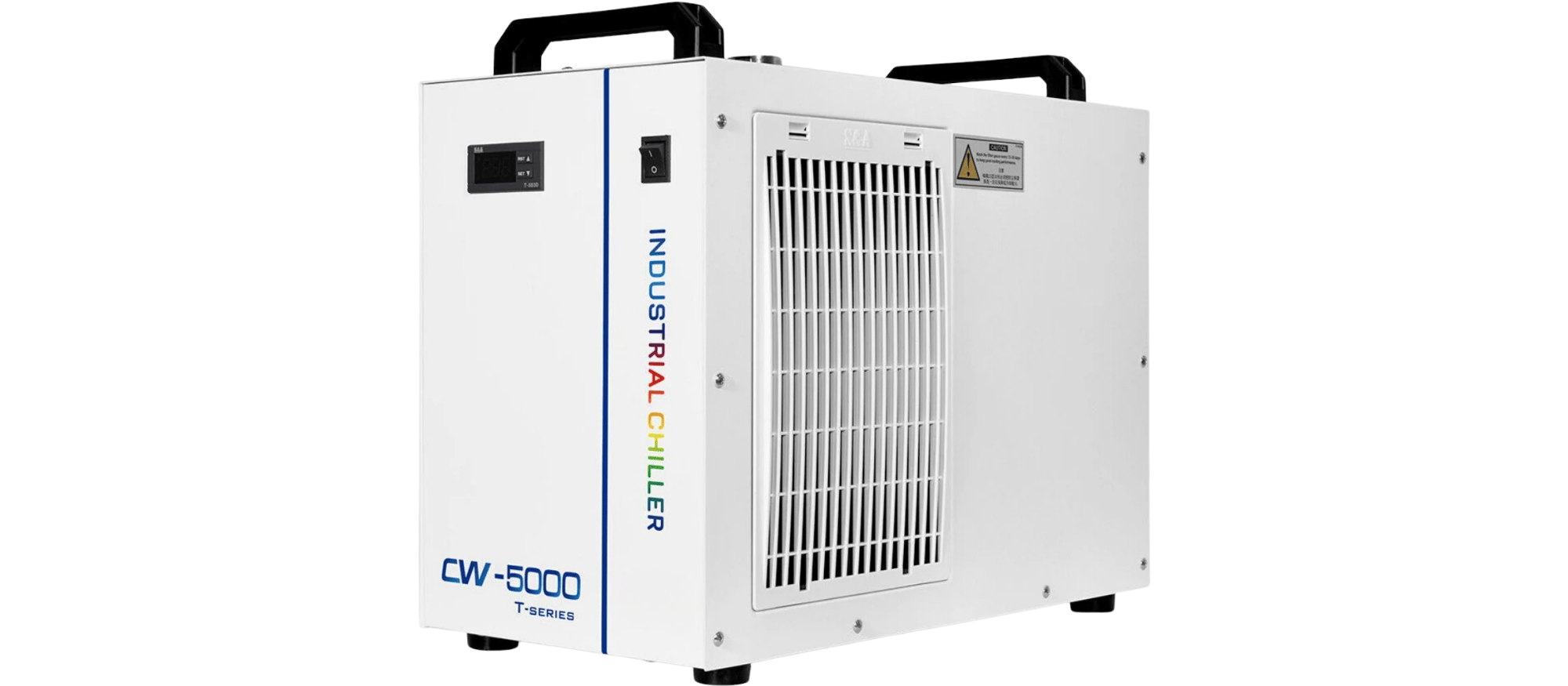

CW-5000TK • Water-Cooling Machine

PRODUCT DESCRIPTION

The Industrial Water chiller unit CW-5000 has a small size, but its cooling performance is excellent. It features a cooling capacity of 800W and temperature stability of +0.5°C. In addition, the Water chiller CW-5000 is charged with environmentally friendly refrigerant R-134a to protect the environment.

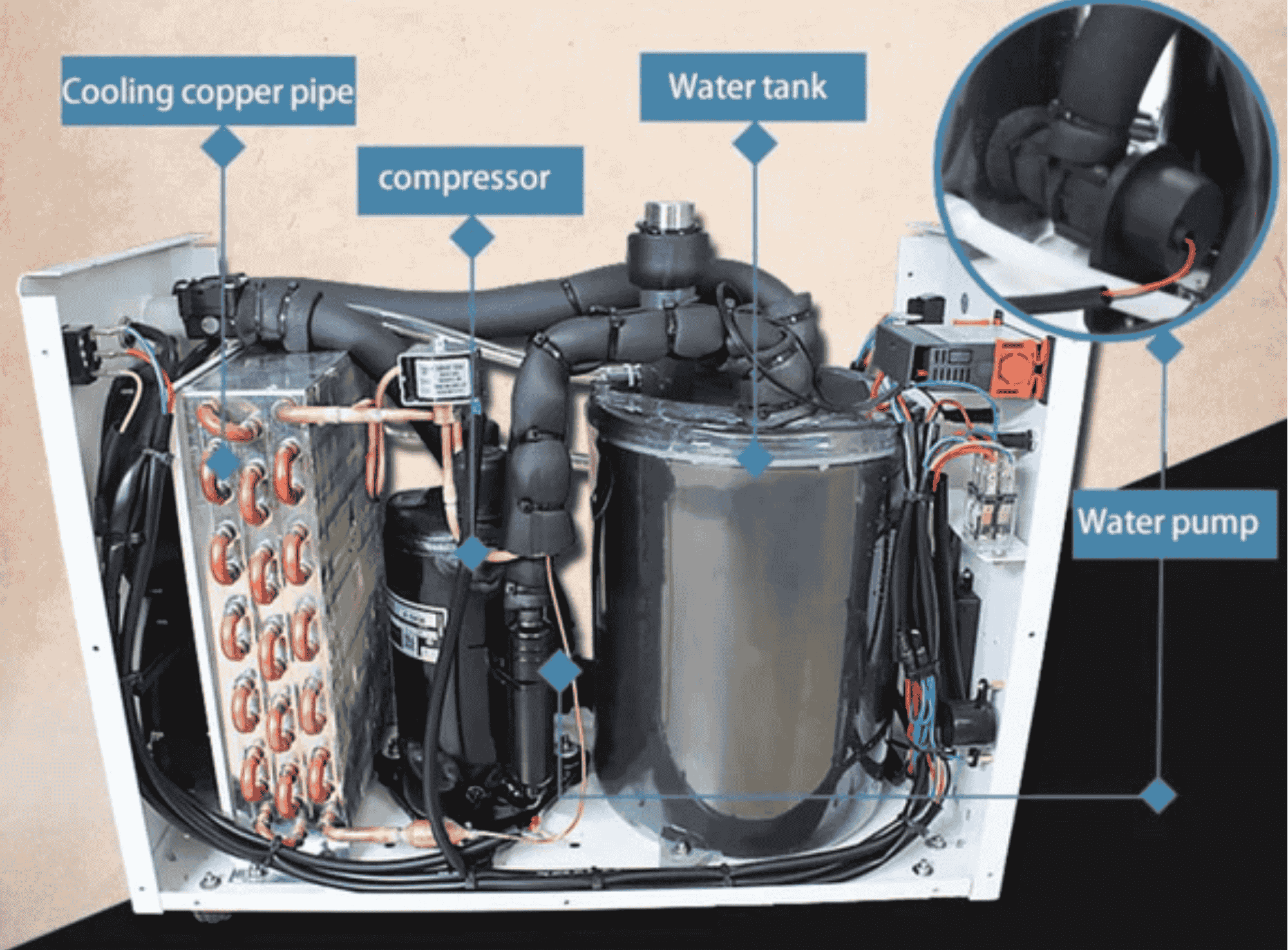

To guarantee product quality, the Water chiller CW-5000 has to go through a series of strict simulated laboratory tests, and the core components such as the evaporator, condenser, and sheet metals are independently developed.

ADVANTAGE

• Powerful Cooling Performance

• Precise Temperature Control

• Alarms and Protection Function

• Constant temperature and intelligent temperature two temperature control modes

KEY FEATURES

(Powerful Cooling) Genuine S&A CW-5000 Water chiller uses standard R134a refrigerant with 300g charged to keep the laser cutting and engraving machine up to 80W-100W well and cool during use; Its 2.64gpm flow rate and 1.1hp compressor cools up to 3868 Btu per hour

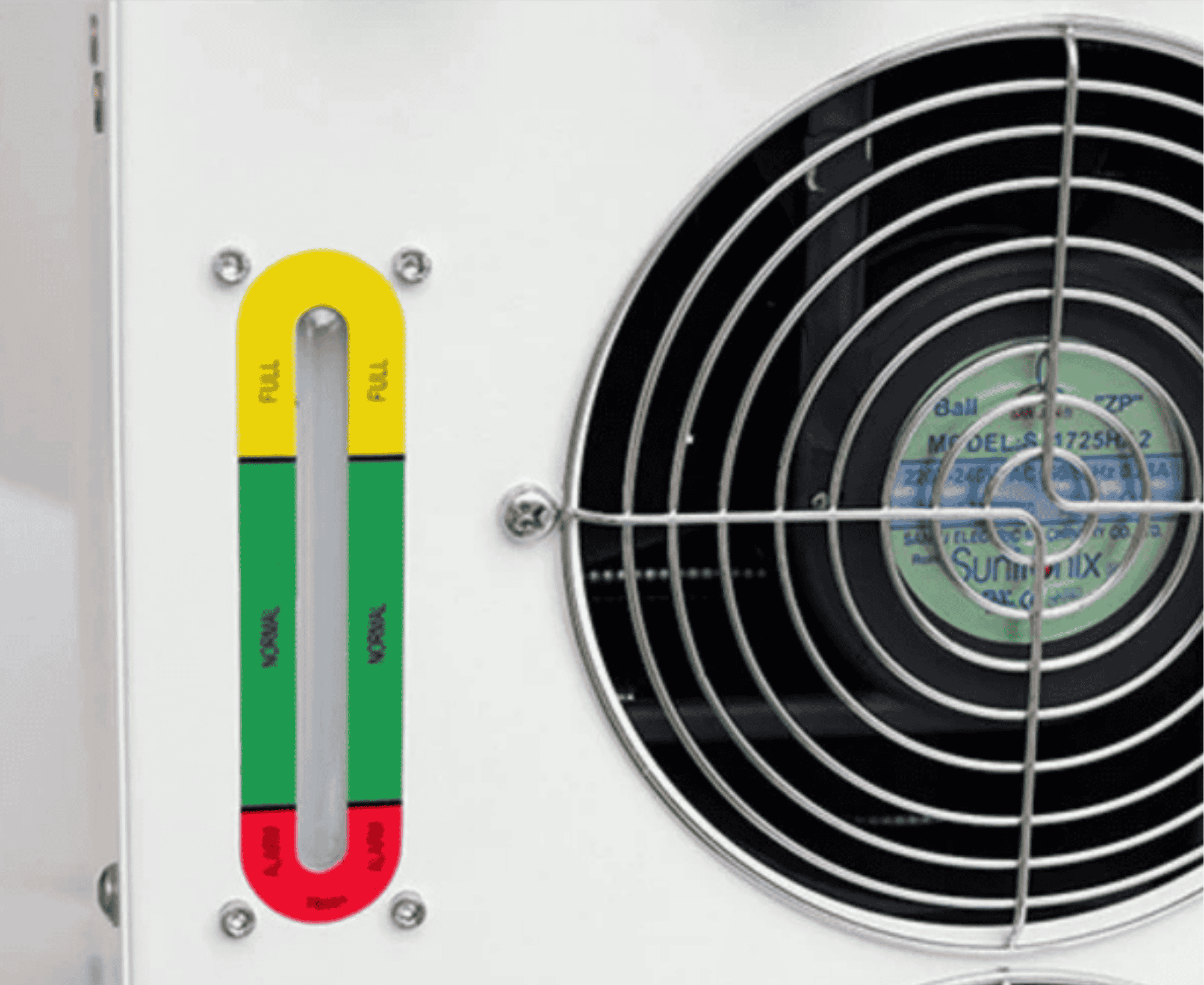

(Large Capacity Water Tank) 1.85 gallon (7L) Water tank features a closed design to reduce Water evaporation and provide long service between fills; Precision scale shows Water level; Easy to observe and know when Water filling is needed.

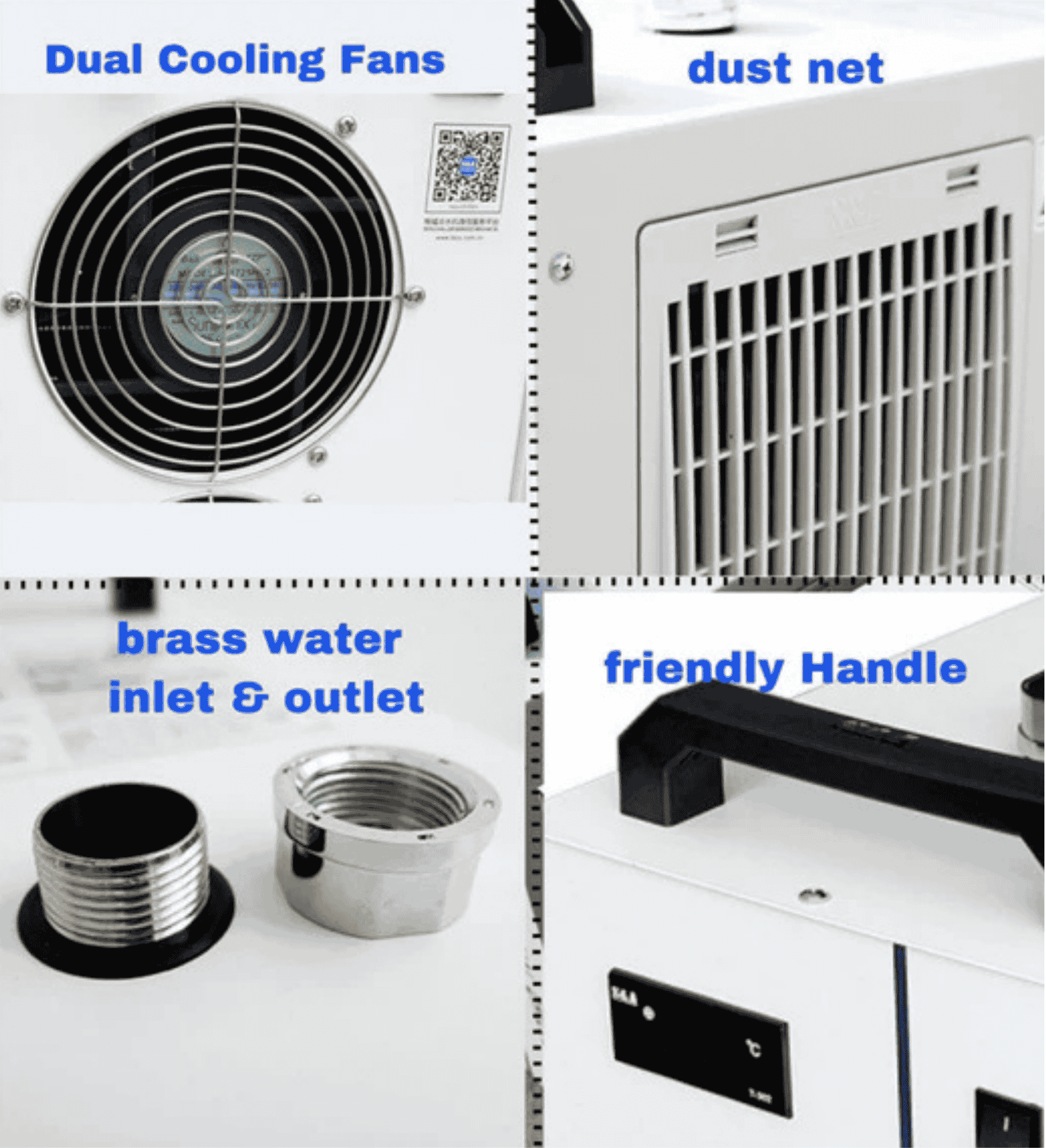

(High Quality Materials) Water inlet and outlet ports made from precision-engineered brass, it has long-term corrosion resistance; Friendly handle and customized dust-proof net; Dual cooling fans, high heat dissipating capacity.

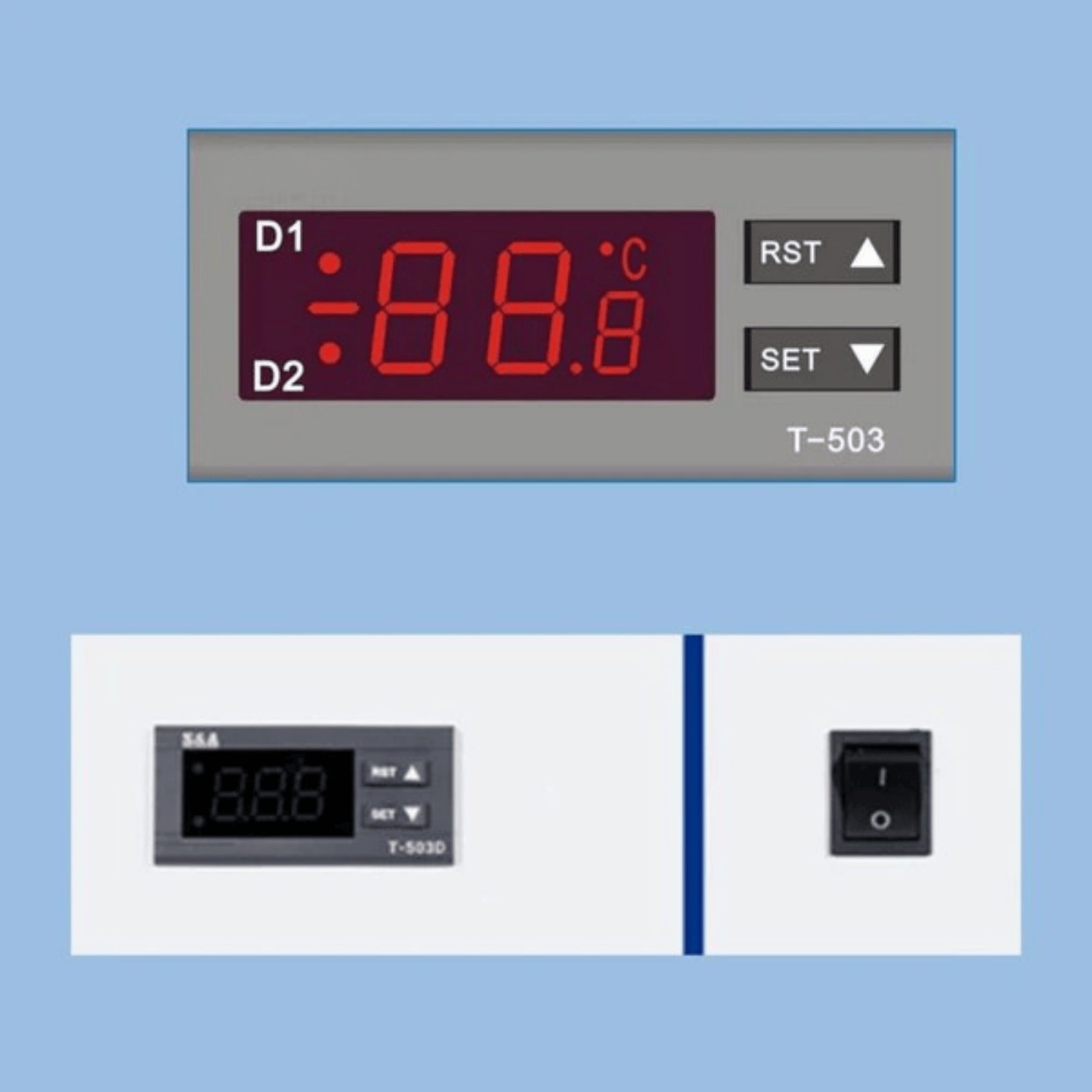

(Precise Temperature Control) S&A industrial Water coolers have dual mode temperature control (automatic and intelligent), They can keep the temperature constant within 0.3°C; Constant & Intelligent temperature mode; Automatically adjusts the temperature according to the indoor environment temperature; Manually set the temperature between 5-40 degree.

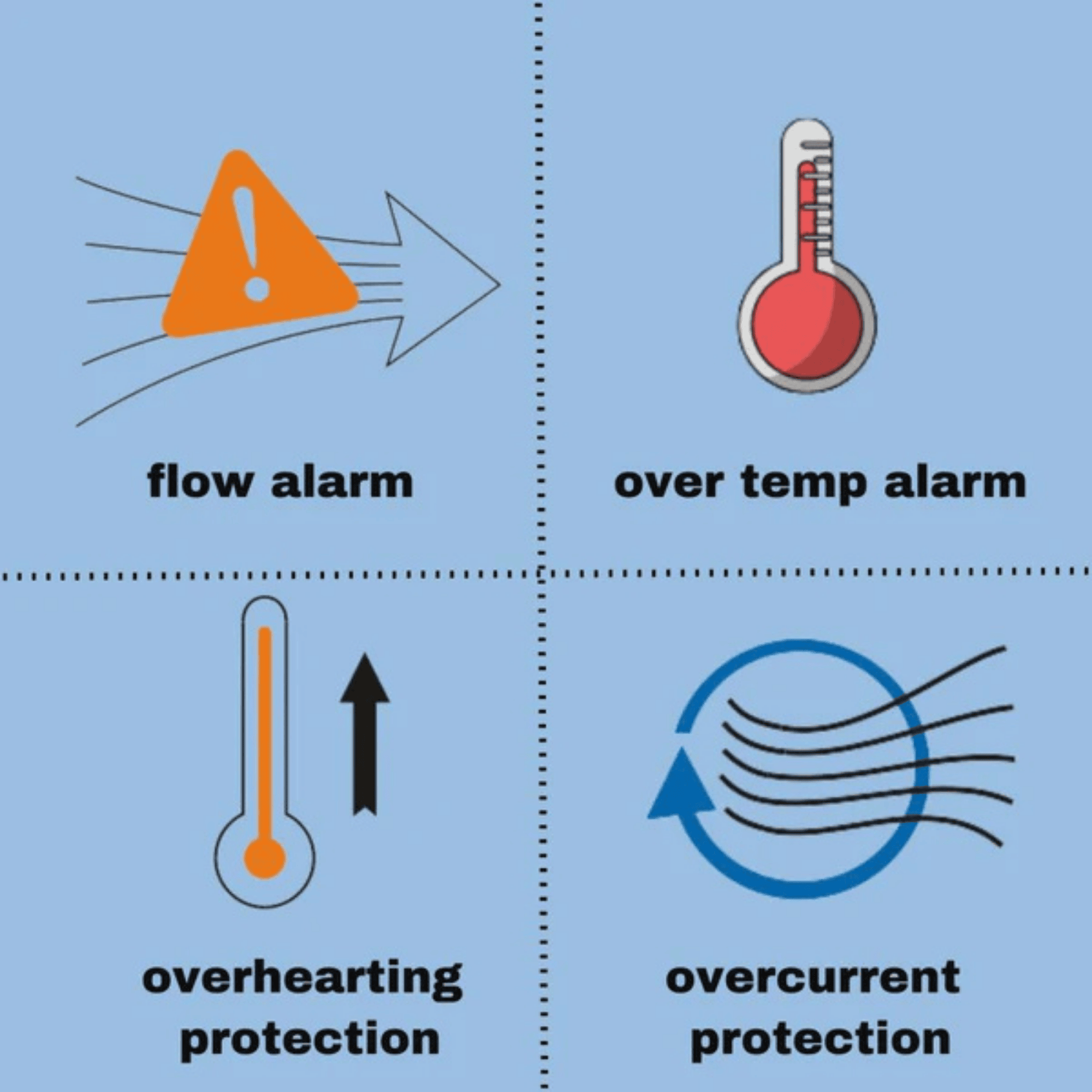

(Operational Safety) Our Water coolers have multiple protection and alarm functions, automatic alarm prompt in case of abnormal flow; if the working Water temperature is too high, it will give an automatic alarm; Compressor overcurrent protection: protect refrigeration stability.

(2 years warranty period) Two-year warranty and lifetime professional tech support. Free spare parts and free replacement devices based on actual faults during the maintenance period.

INSTALLATION AND USE

The following are the installation and use conditions of our Water chillers for your reference.

Our Water chiller is used for cooling Water. If it is other liquids, please make sure there is no corrosion for the Water chiller.

When using our Water chiller, the Water inlet of the Water chiller needs to connect with the Water outlet of your equipment, and the equipment Water inlet connects with the Water outlet of our Water chiller. It is the closed loop

It is required to meet

1. The Water flow is uniform

2. There is no impurity in the circulating Water.

PACKAGING

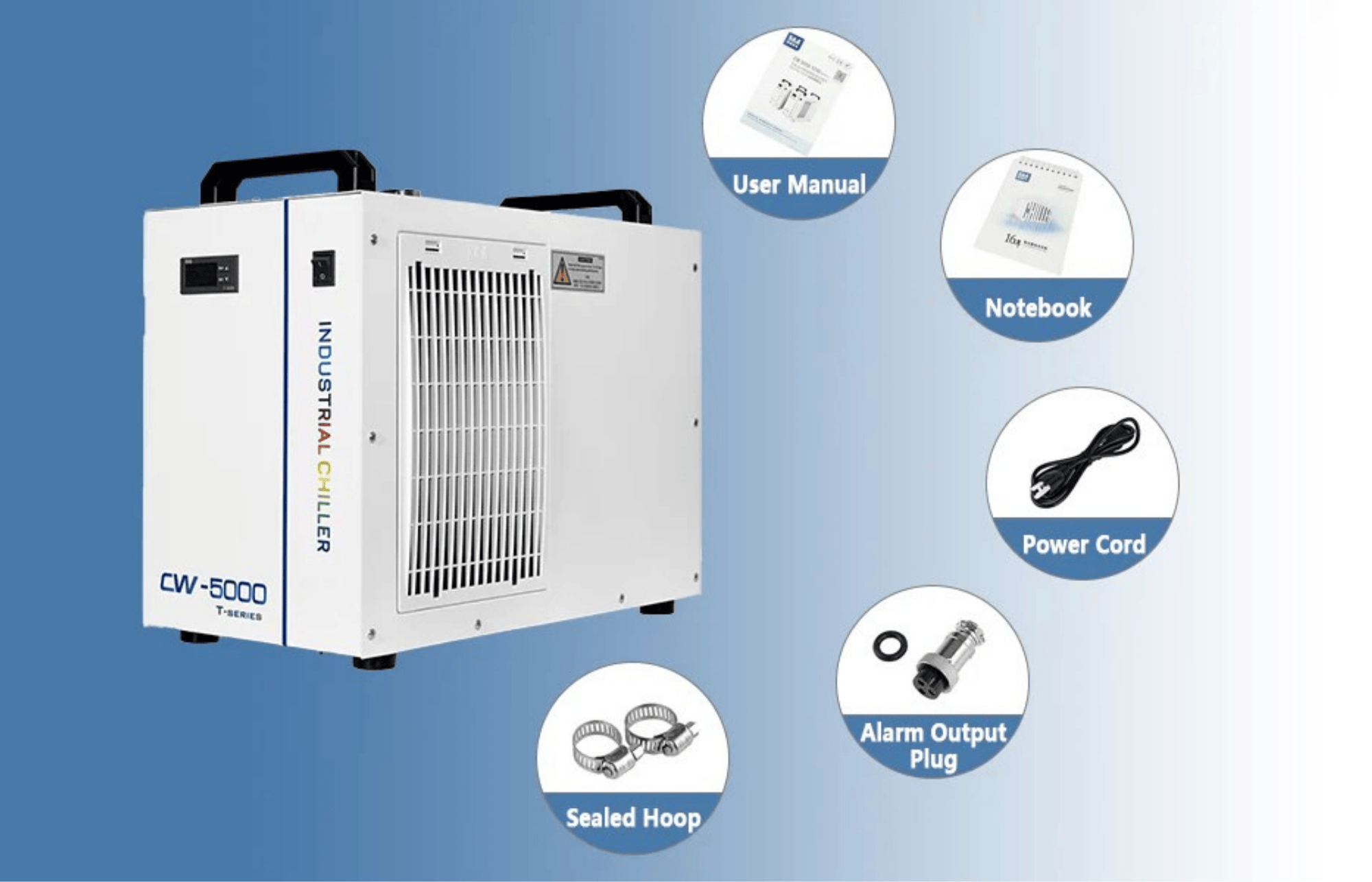

Packaging list

• 1X Machine

• 1X User Manual

• 1X Notebook

• 1X Power Cord

• 1X Alarm Output Plug

• 1X Sealed Hoop

MAINTENANCE

Cleaning and Antifreeze

1. To ensure good heat dissipation, please open the lid to clean the dirt after the Cooler is used in the long term.

2. Ethanol can be used as a short-term antifreeze, but it is corrosive and needs to be emptied within a week.

Users in cold areas should use noncorrosive special antifreeze.

It is recommended to choose CLARIANT (Clariant) brand, there are two types of antifreeze suitable for laser systems:

1) Antifrogen-N glycol-Water type (industrial products, toxic to human body)

2) Antifrogen-L propylene glycol-Water type (food grade, harmless to human body)

Water Tank Water Exchange Method and Frequency

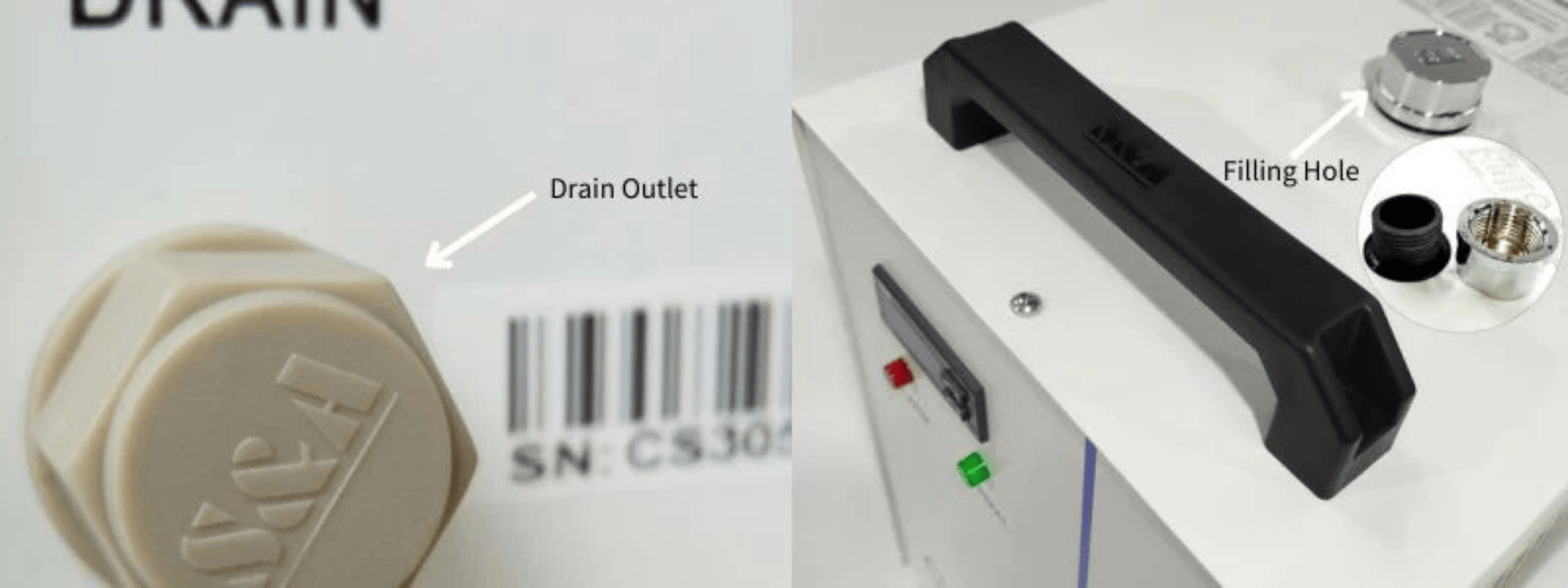

1. To exchange the Water in the tank, drain the waste Water out of the tank using the drain outlet, and refill the tank with clean Water through the filling hole.

2. The frequency of Water exchange is crucial for maintaining the quality of the circulating Water and maximizing the service life of the laser tube. It is recommended to exchange the purified Water once a month and the running Water twice a month. It is also advised to use purified Water for optimal performance.

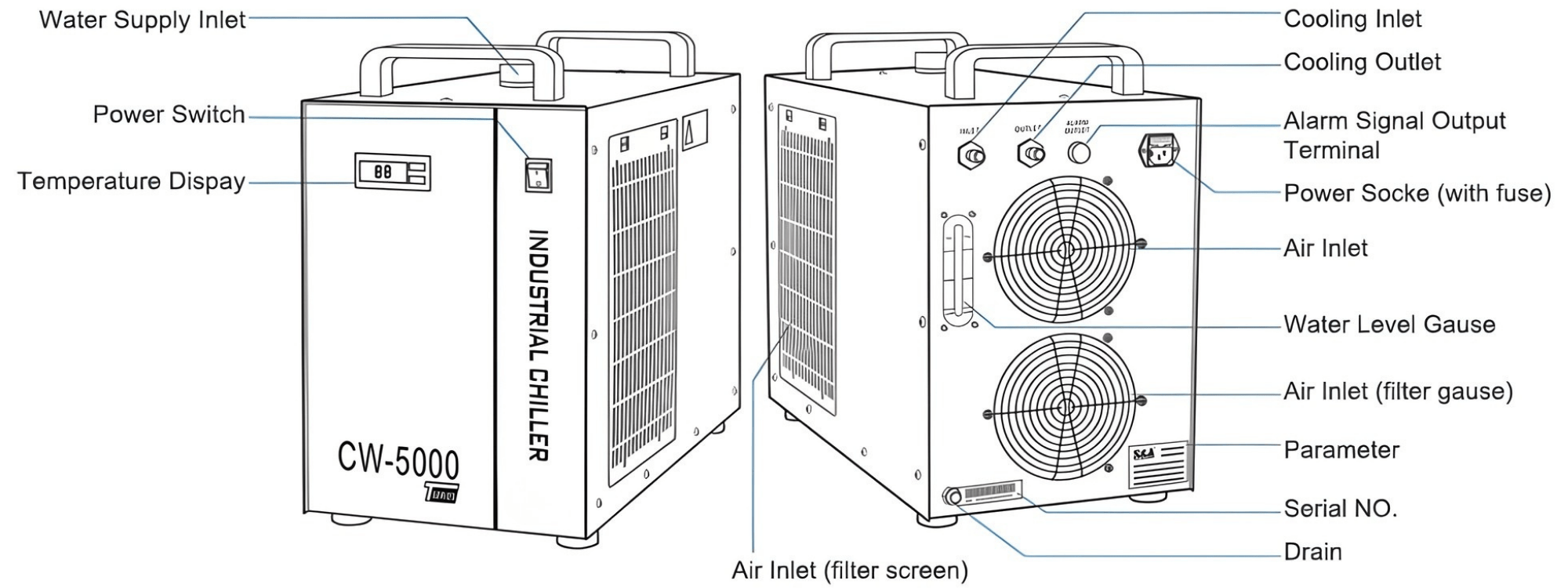

PARAMETER AND STRUCTURE

Main Parameter

Machine power

Tank capacity

Cooling capacity

Refrigerant charge

Max.flow

0.5KW

7L

1.08KW,3868Btu/h

300g

16L/min

Parameter

MODEL

Voltage

Frequency

Current

Max.power consumption

Compressor power

Nominal cooling capacity

Pump power

Max.pump pressure

Max.pump flow

Refrigeran

Precision

Reducer

Tank capacity

Inlet and outlet

Package dimension

N.W

G.W

Dimension

Package dimension

CW-5000TK

AC 1P 220~240V

50/60Hz

0.6~2.9A

0.5/0.51kW

0.37/0.39kW - 0.5/0.53HP

(2559Btu/h) (0.75kW) (644Kcal/h)

0.09kw

25M

15L/min

R-134a

±0.3°C

Capillary

6L

10mm 10mm Fast connector

59×39×48cm (L×W×H)

24Kg

27Kg

58×29X47cm(LXwXH)

65×36×51cm(LXWXH)

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.
