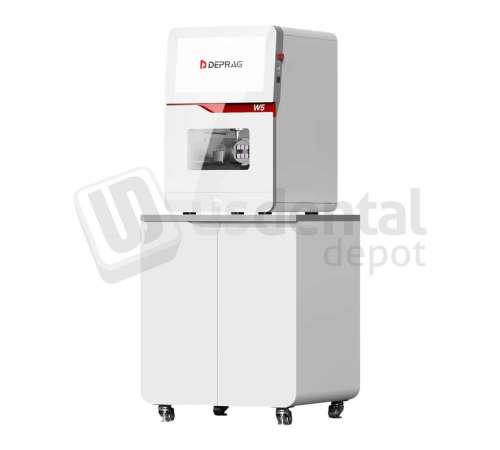

DEPRAG - W5 DRY and WET Dental Milling unit Set - Water Cooling System - Tank - Cabinet - # DEP-0006
17193_f.jpg)
Earn up to 24,767 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
HIGHLIGHTS
Effortless Milling

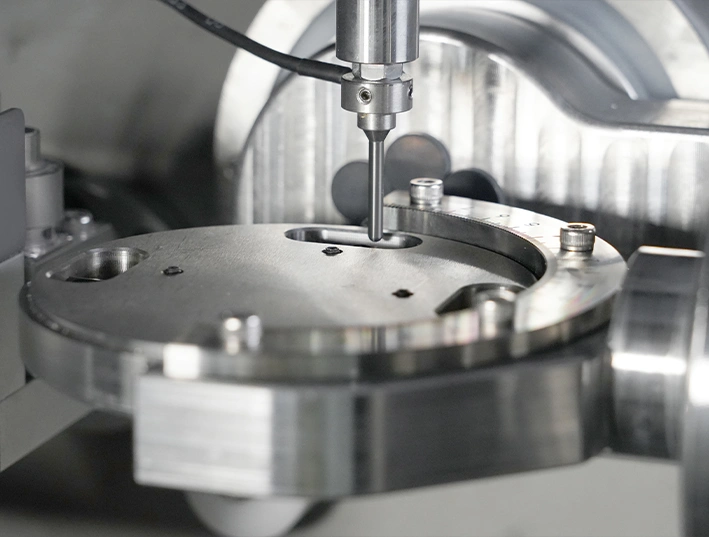

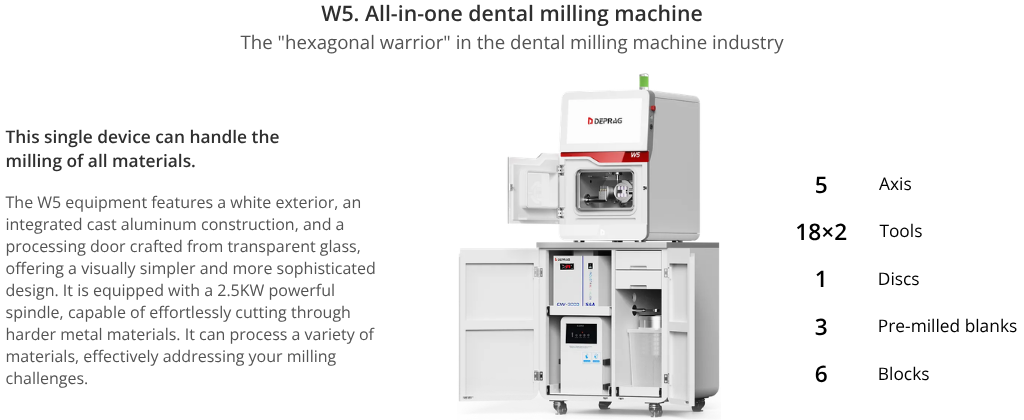

The W5 uses a 2.5KW power spindle, the higher the power, the stronger the power, and the metal Milling can be easily completed. The 62mm large spindle allows the W5 to work stably in high-intensity metal Milling. The W5 Milling machine meets the processing needs of all materials in the processing plant, and the Milling products are of high precision, which is the only choice for laboratories and processing plants.
Ultra-long service life

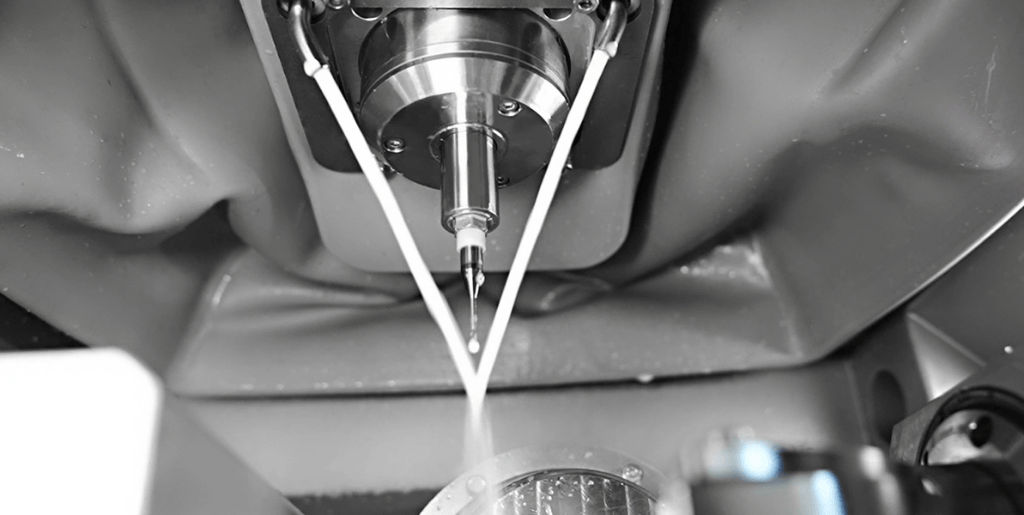

The Water-cooled large spindle in the W5 configuration is the highest level of configuration on the Milling machine market today, and the service life of the large diameter spindle is longer than that of the small diameter spindle at the same working intensity. At the same time, the Cooling effect of Water Cooling technology is more stable than that of air Cooling, and the Cooling effect is better, which reduces the loss of the spindle to a certain extent and extends the service life.
Ultra-high precision grinding

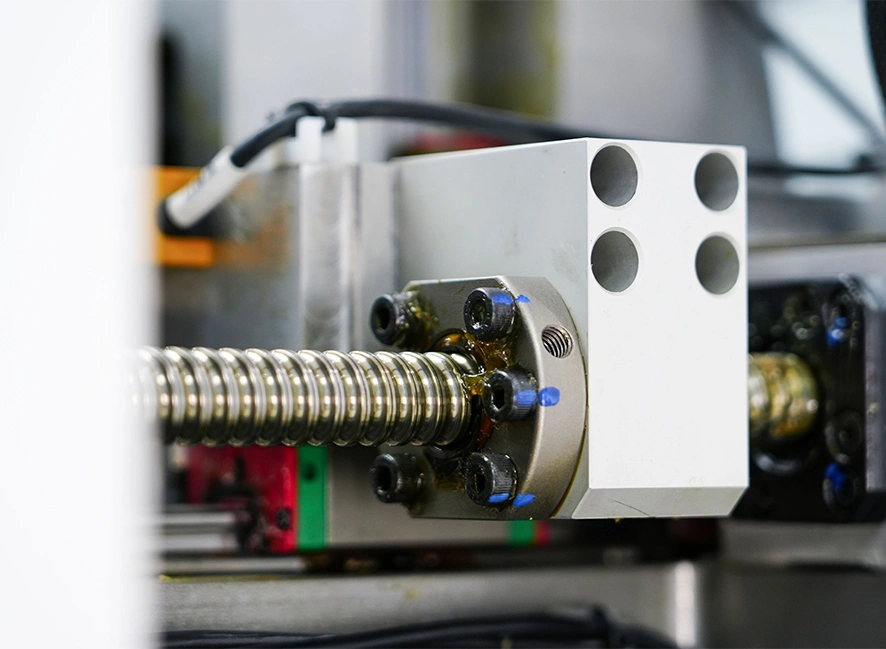

W5 utilizes precision ball screws, ensuring the highest level of precision and stability for the Milling machine. With five-axis linkage, it achieves an excellent Milling effect, enabling 90° vertical processing and a 1:1 replica design that restores the natural texture of teeth without the need for secondary grinding.
At the same time, the servo motor of the INOVANCE provides great guarantee for the precision and stability of Milling.
Humanized configuration

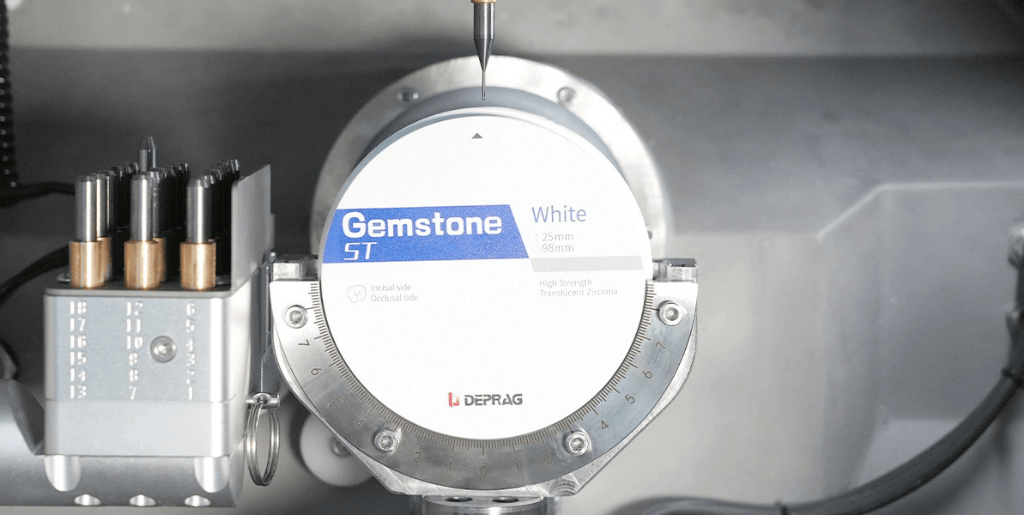

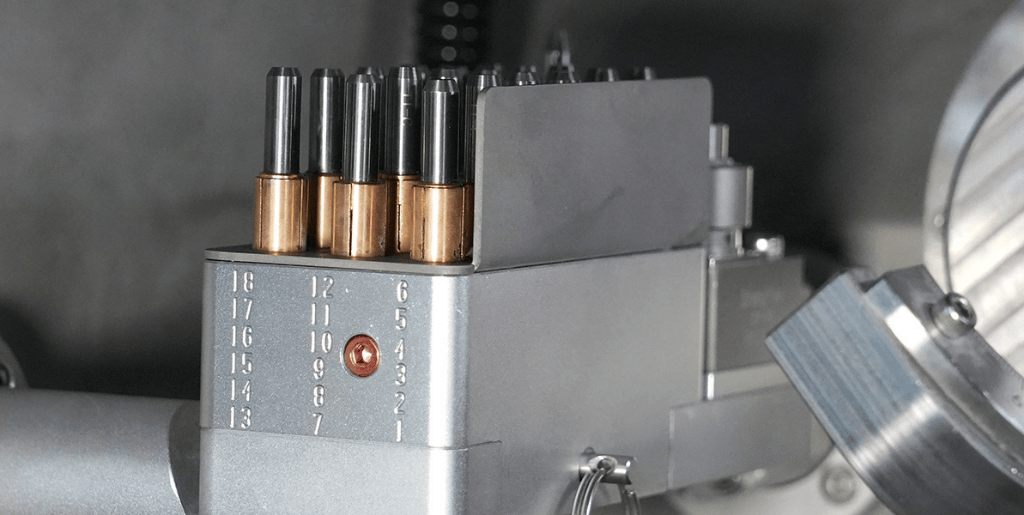

To process a variety of materials, the equipment features a tool magazine capable of storing 18 tools, The newly upgraded dual tool magazine design not only expands the tool capacity, but also improves the accuracy and efficiency of tool changing.. All Dental materials can be processed without the need to change the needle. The 3-minute automatic calibration function not only saves time but also ensures the equipment remains in optimal working condition at all times.
FEATURES
HIGH PRECISION
• High-quality spindle, 62mm large diameter, 2.5kW high power.
• Precision ball screw.
• 90° vertical processing
HIGH-SPEED MACHINING

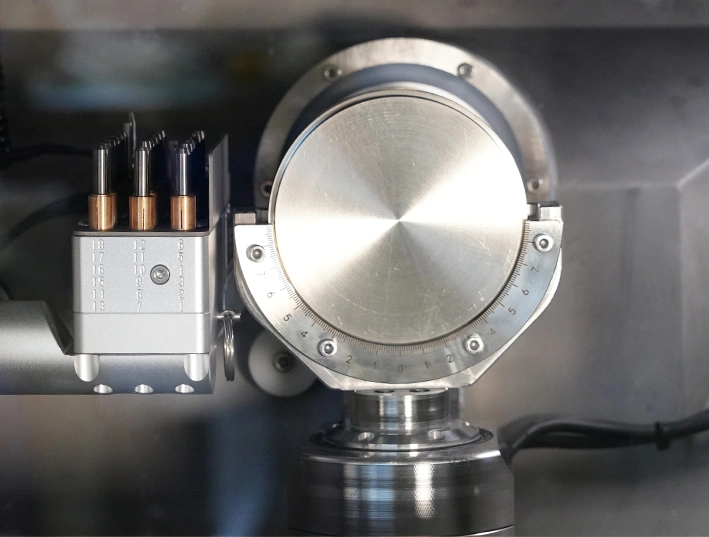

• 18-tool tool magazine, dual DRY/WET tool magazine design.
• Automatic tool changer
• C-type clamp
100% INDEPENDENCE
• Can process a variety of Dental materials
• Including metal materials.
• Supports all common scanners and CAD software.
ULTRA-HIGH CONVENIENCE
• Automatic calibration
• Automatic tool life monitoring function
• Remote control

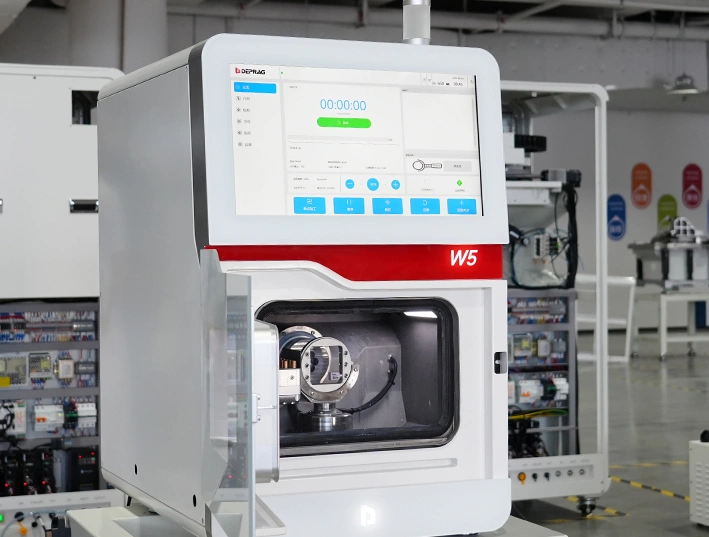

• Simple operation interface, suitable for novices

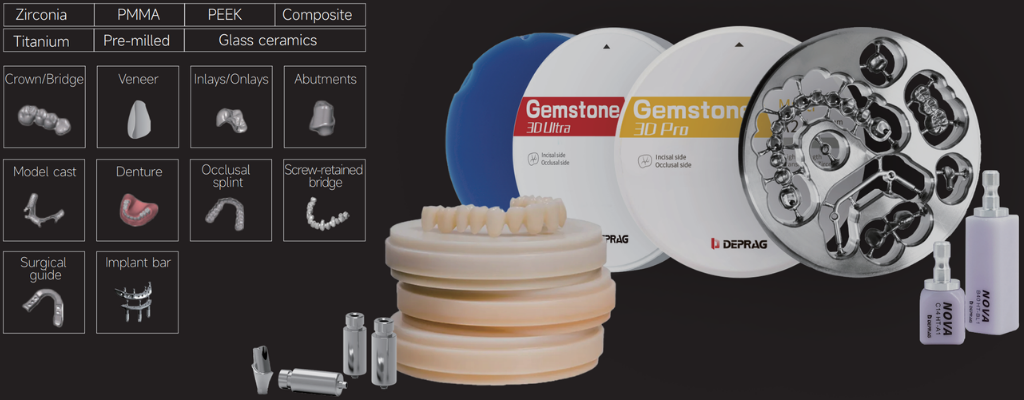

VARIOUS MATERIALS and INDICATIONS
MACHINABLE MATERIALS

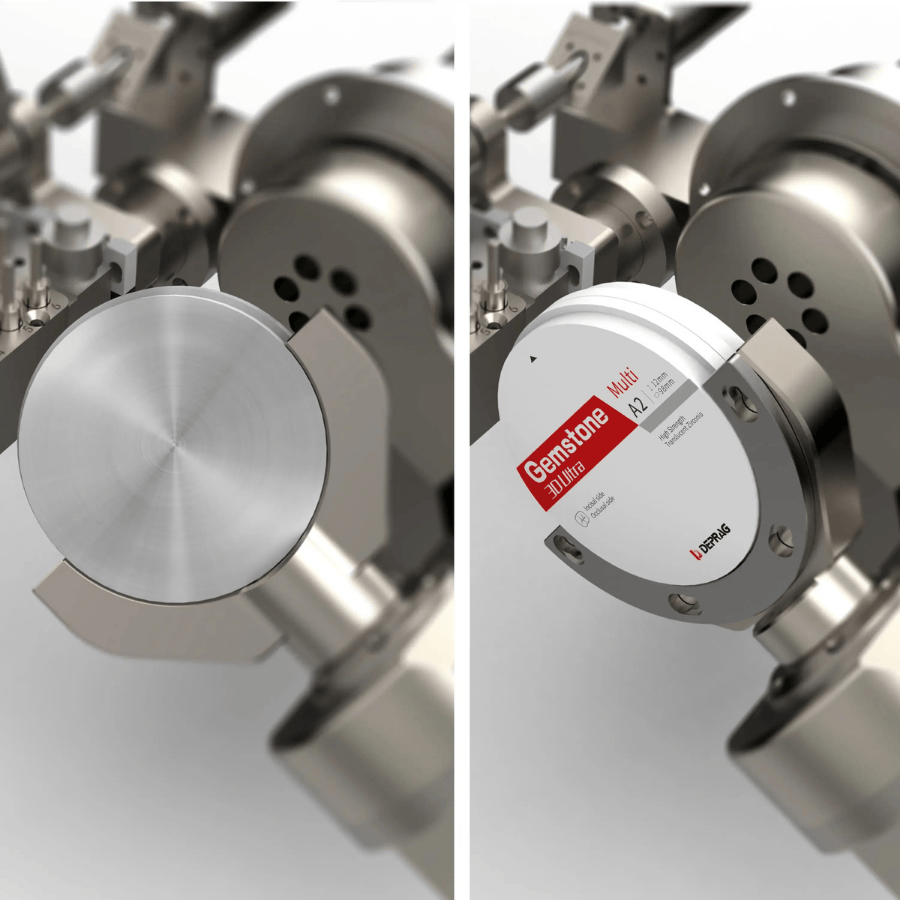

Titanium disc
Zirconia
Pre-milled blank
PMMA
Glass ceramic
PEEK
Composites
Wax
APPLICATIONS
Crown/bridge
Model plate
Screw-retained bridge
Inlay/onlay
Surgical guide

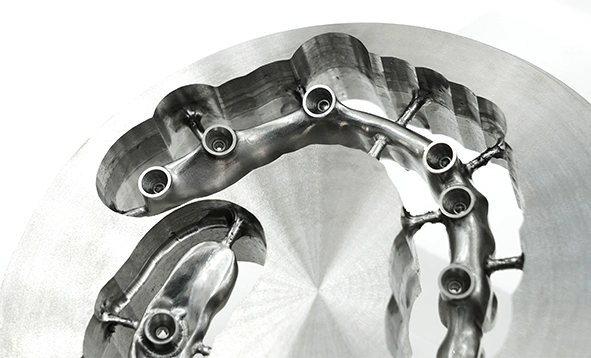

Implant bar
Abutment
Model cast
Protrusion splint
Veneer
Occlusal splint
Secondary crown
Denture
Model tooth die
Telescopic crown
TECHNICAL PARAMETERS
01 GENERAL
Processing mode :
Millable material :
Applications :
Power :

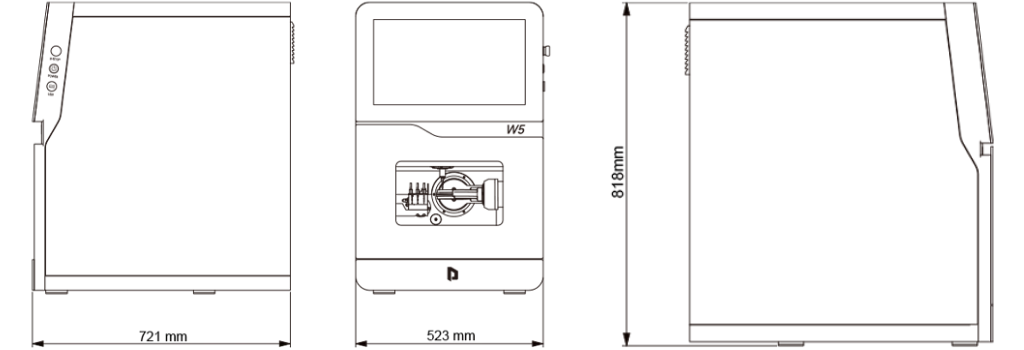

Dimension :
Weight :
Air supply pressure :
Air flow :
Water Tank capacity :
DRY & WET
Crown, Bridge, Veneer, Inlay, Onlay, Abutment, Denture, Screw-retained bridge, Model cast, Occlusal splint, Surgical guide, lmplant bar
Zirconia, Glass ceramics, Plastics | Wax, PEEK, Composite,
Titanium, Pre-milled blanks
Titanium, Pre-milled blanks
220V / 3.2kW
523x718 x 820mm
130kg
> 0.5MPa
> 90L/min
10L
02 STRUCTURE PARAMETERS
Basic construction :
Number of axes :
Rotary axis A-axis :
Rotary axis B-axis :
Tool :
Aluminium
5
360°
+30°~-90°
18×2
03 SPINDLE
Speed :
Power :
Collet :
Cooling method :
60,000 rpm
2.5kW
φ6mm
Water Cooling
04 OTHERS
All models :
North America model :
Clamps :
CE
FCC

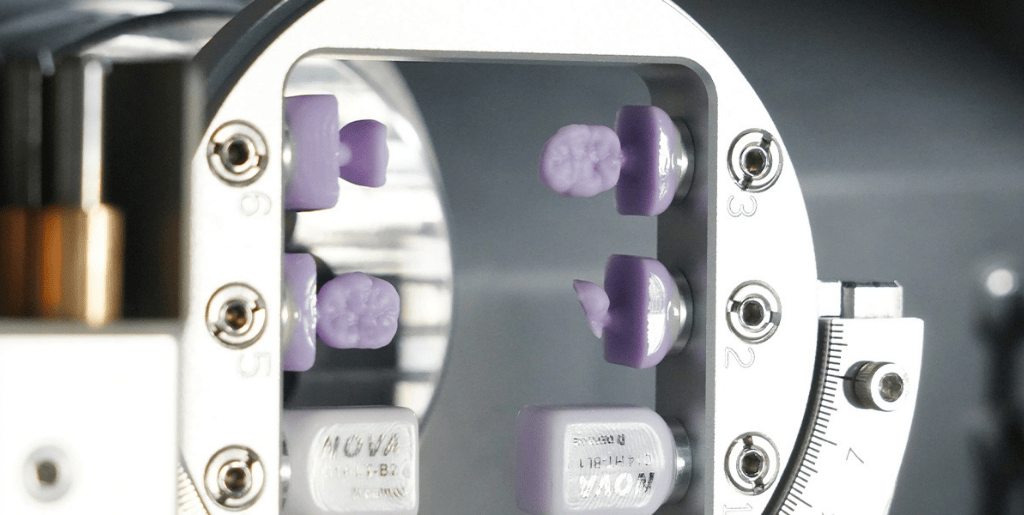

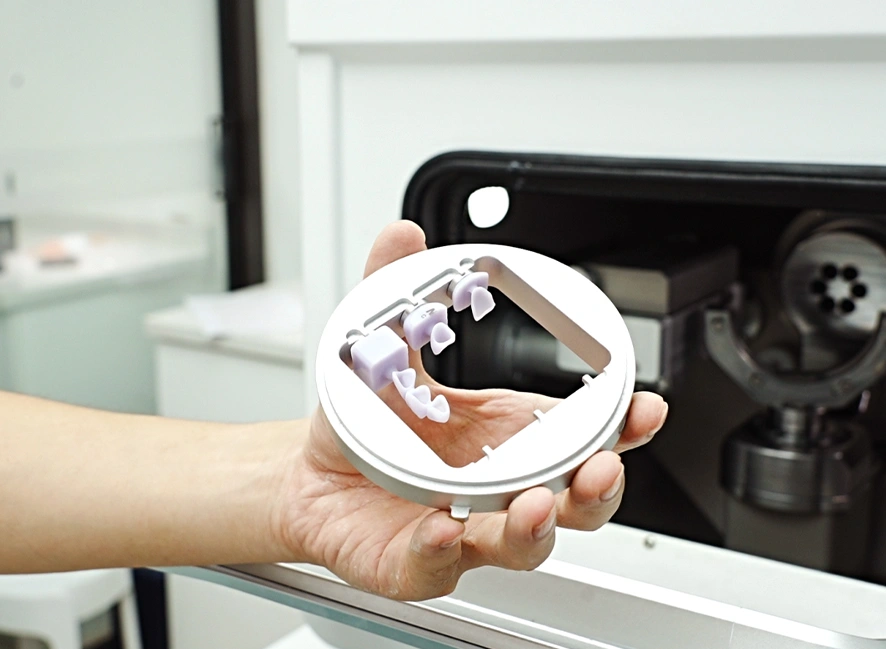

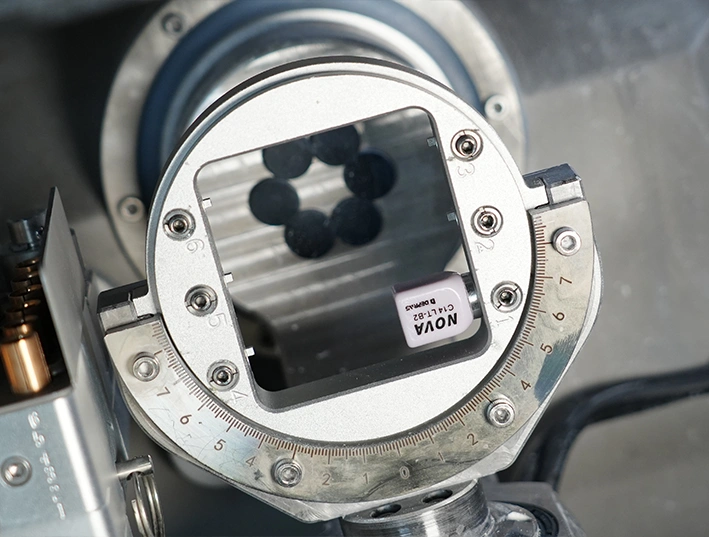

Half-open blank holder(C-CLAMP)/Pre-mill Abutment holder/Block holder
