XPECT - Handheld Dental Digital Portable X-Ray XVbeam2000
12968_f.jpg)
12967_f.jpg)
12966_f.jpg)
12965_f.jpg)
12964_f.jpg)
Earn up to 2,396 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
XVbeam 2000
Handheld Dental Digital Portable X-Ray
DESCRIPTION
STABLE POWER ALLOWS FOR CLEAR IMAGES
The voltage and current of 65Kv and 2.6mA generate more power to penetrate the teeth and obtain clear images. The focal spot size of 0.4mm significantly focuses more X-Rays on the target teeth and produces a higher quality image on film or sensor.

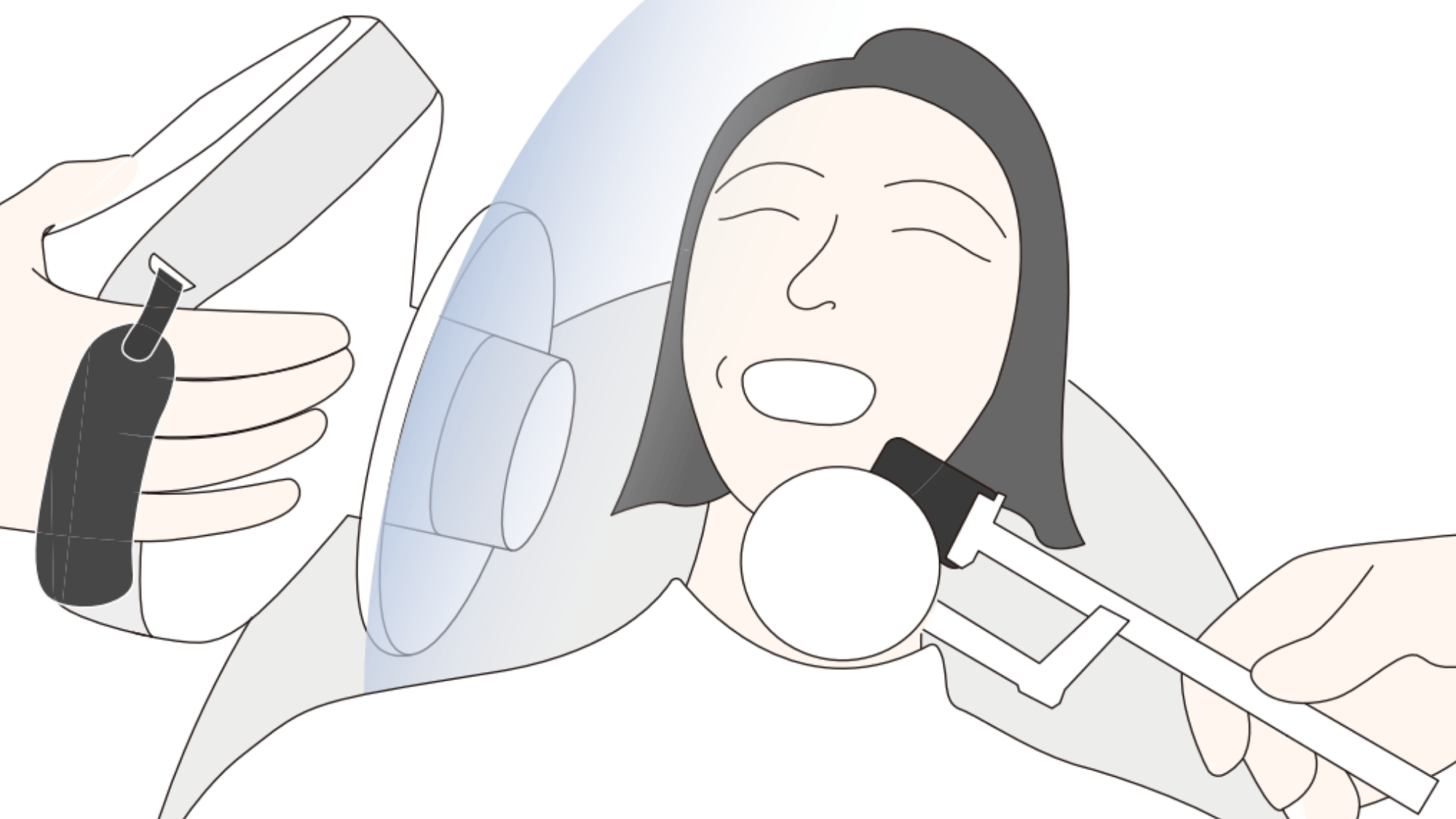

DUAL-PROTECTION DESIGN REDUCES USER EXPOSURE TO RADIATION
The safety of users is our priority. The XVbeam1000 features a dual-protection design. Disperse radiation occurs when the beam interacts with the patient's surface, causing radiation residuals to scatter. The backscatter shield significantly minimizes the operator's radiation dose. External Backscatter Shielding The internal radiation shielding is optimally constructed to shield the operator from radiation leakage.
ERGONOMIC DESIGN ENABLES ALWAYS-READY EXPOSURES
300+ exposures on a full charge: The XVbeam1000 supports up to 300+ exposures* on a single charge of its built-in battery
Docking station: The XVbeam2000 is outfitted with an innovative docking station that enables its use whenever exposure is required. By returning the device to its docking station after each usage, it will be automatically recharged.
Secure strap: The XVbeam2000's strap design is more secure for users with smaller hands.
Preset exposure dose: In addition, operators can quickly capture an image by applying a preset dose to the patient and teeth.

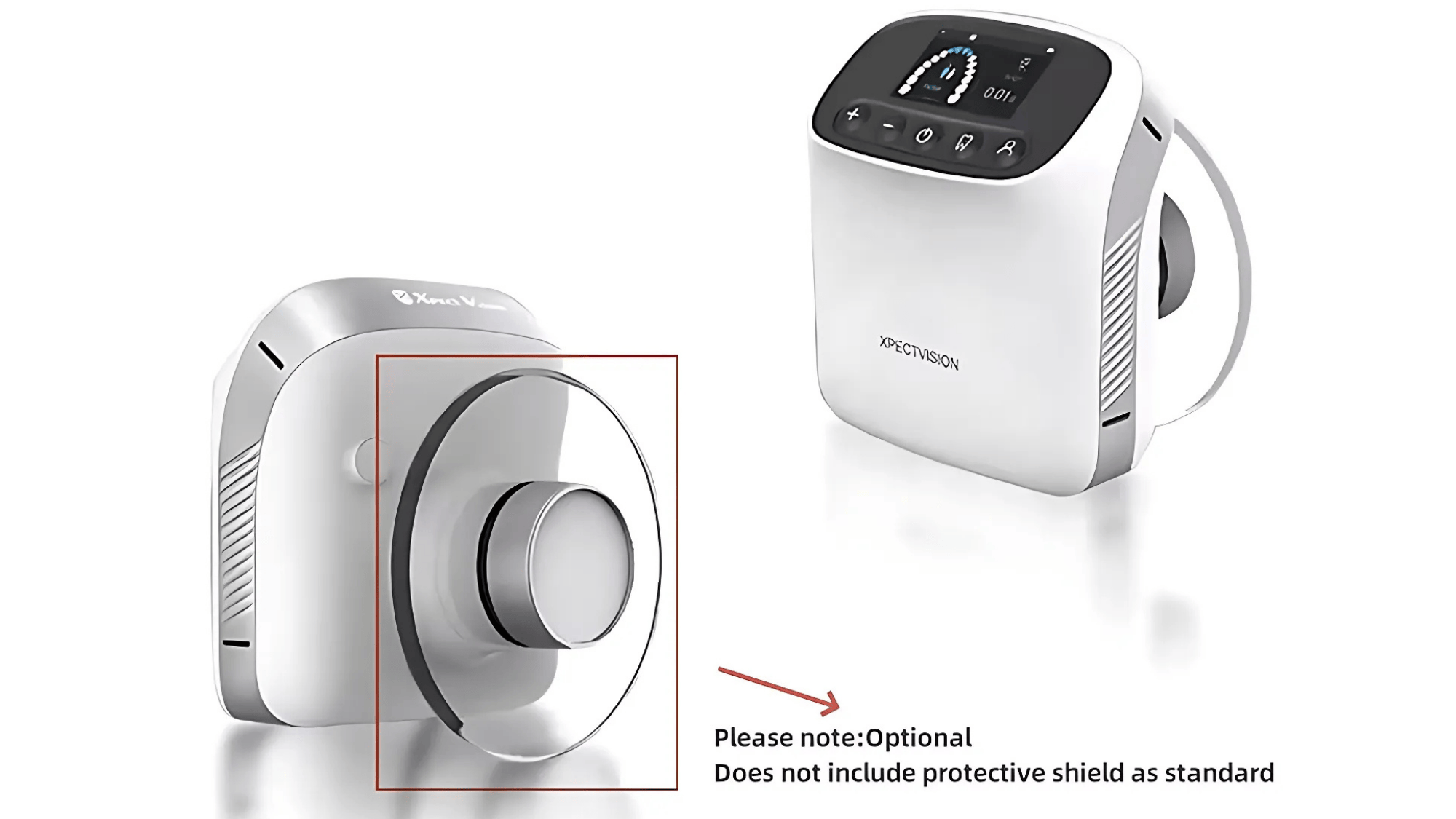

OPTIONAL:
HANDHELD DENTAL X-RAY SYSTEM

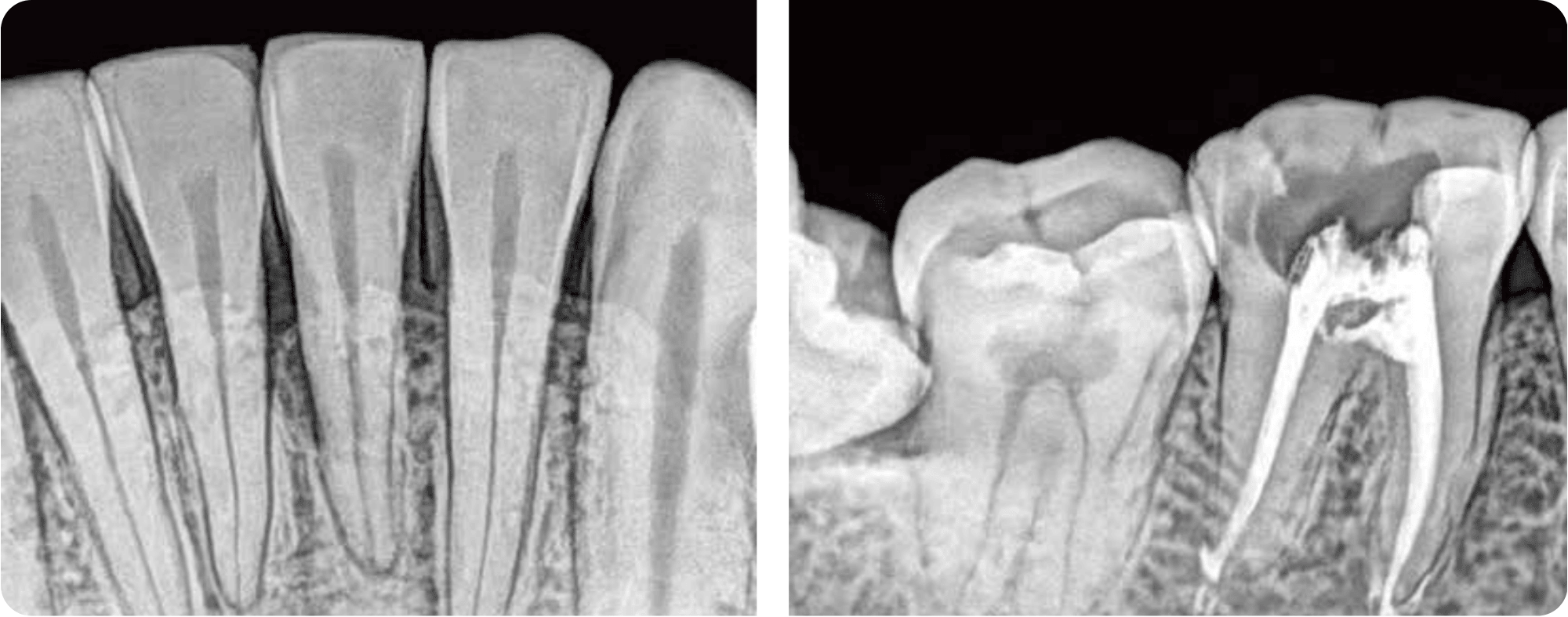

STABLE POWER ALLOWS FOR CLEAR IMAGES
The voltage and current of 65Kv and 2.6mA generate more power to penetrate the teeth and obtain clear images.
The focal spot size of 0.4mm significantly focuses more X-Rays on the target teeth and produces a higher quality image on film or sensor.

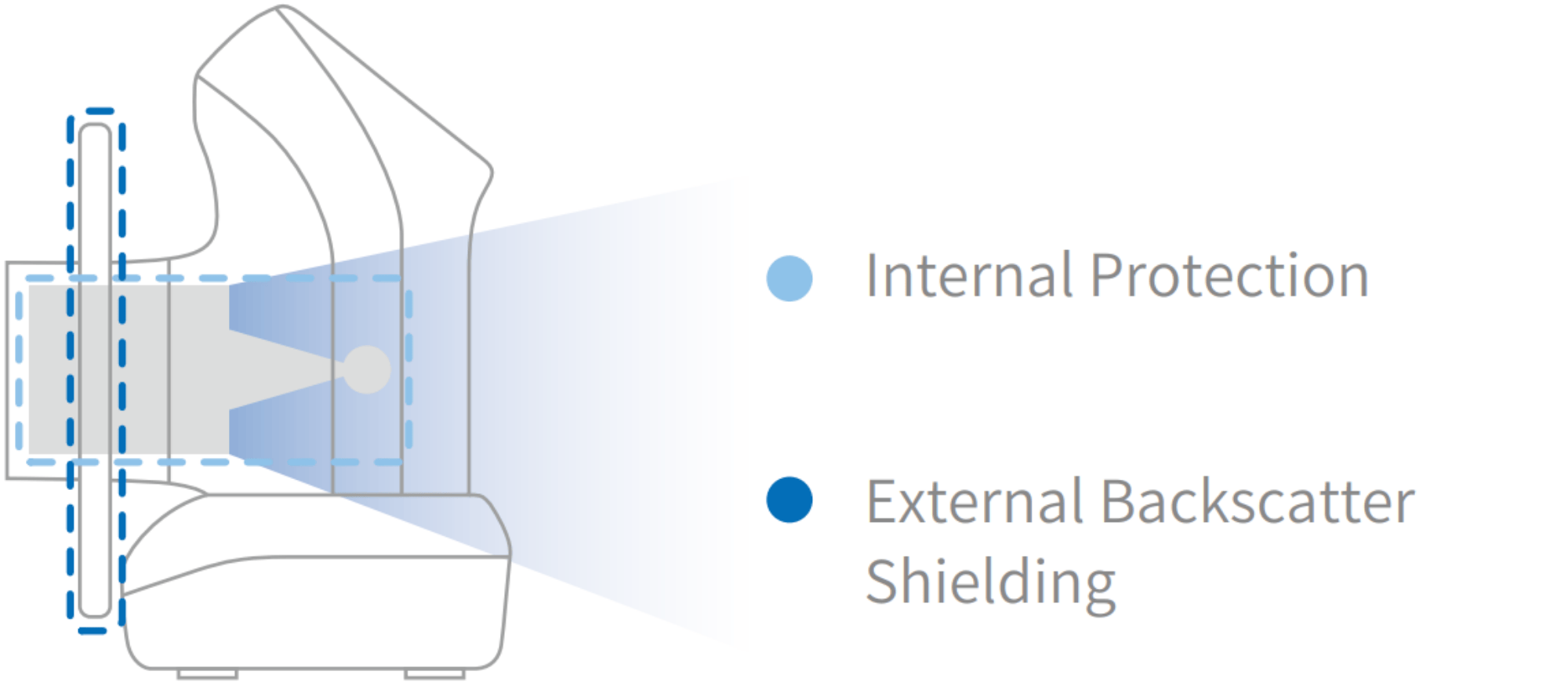

DUAL-PROTECTION DESIGN REDUCES USER EXPOSURE TO RADIATION
The safety of users is our priority. The XVbeam2000 features a dual-protection design.
EXTERNAL BACKSCATTER SHIELDING
The safety of users is our priority. The XVbeam2000 features a dual-protection design.
INTERNAL PROTECTION
The internal radiation shielding is optimally constructed to shield the operator from radiation leakage.

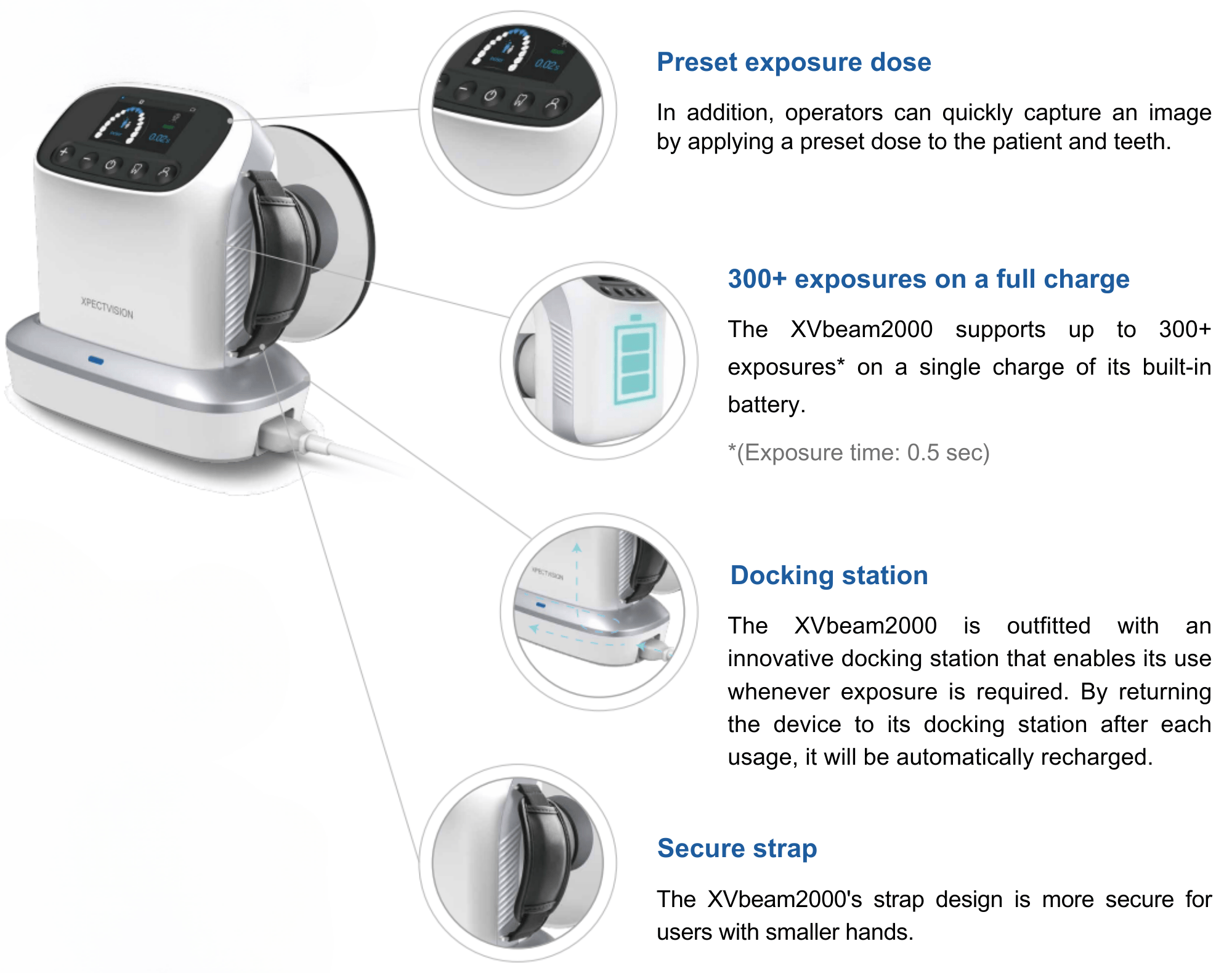

ERGONOMIC DESIGN ENABLES ALWAYS-READY EXPOSURES
SPECIFICATION
TECHNICAL SPECIFICATION
Focal Spot
Tube Voltage (kV)
Tube Current (mA)
Exposure Time Range
Inherent filtration
Additional Filtration
Source to Skin Distance
X-ray Field
Power Input
Weight
0.4 mm
65 kV
2.6 mA
0.01~2 sec
0.8 mmAl
1.0 mmAl
200 mm
φ60 mm
22.2 V
2.1KG

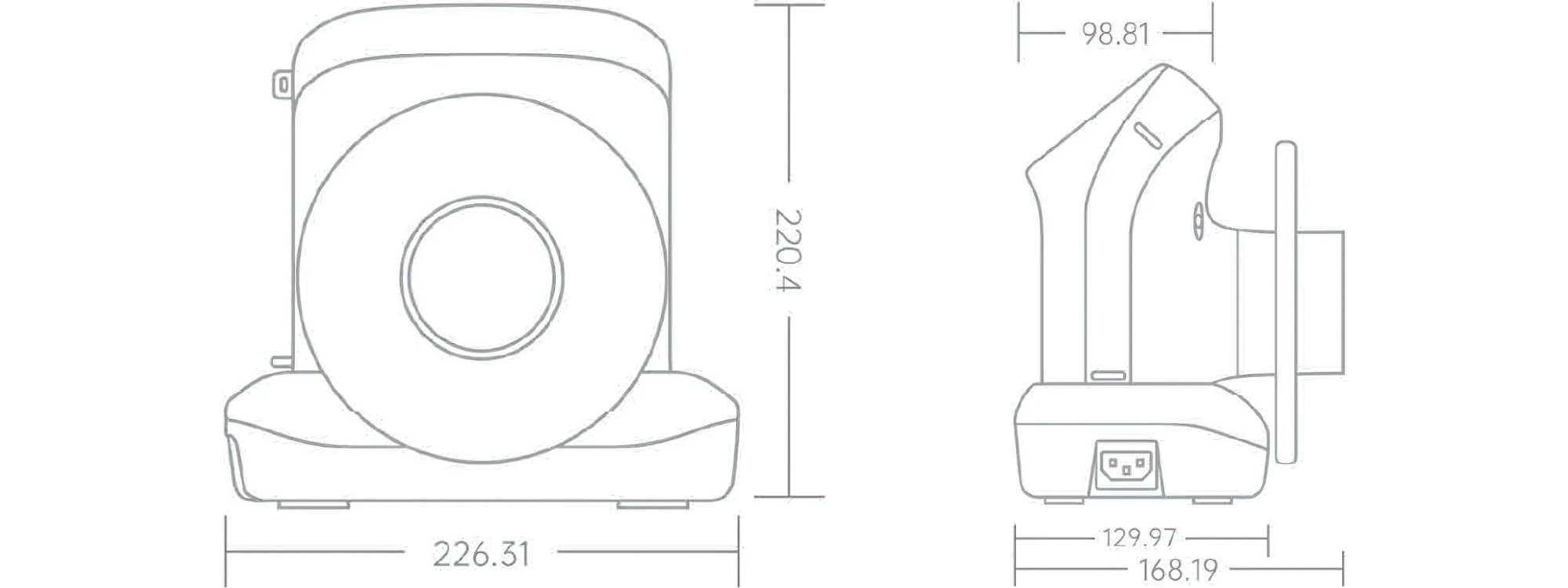

DIMENSION (UNIT: MM)
XVbeam 2000 - VIDEO
