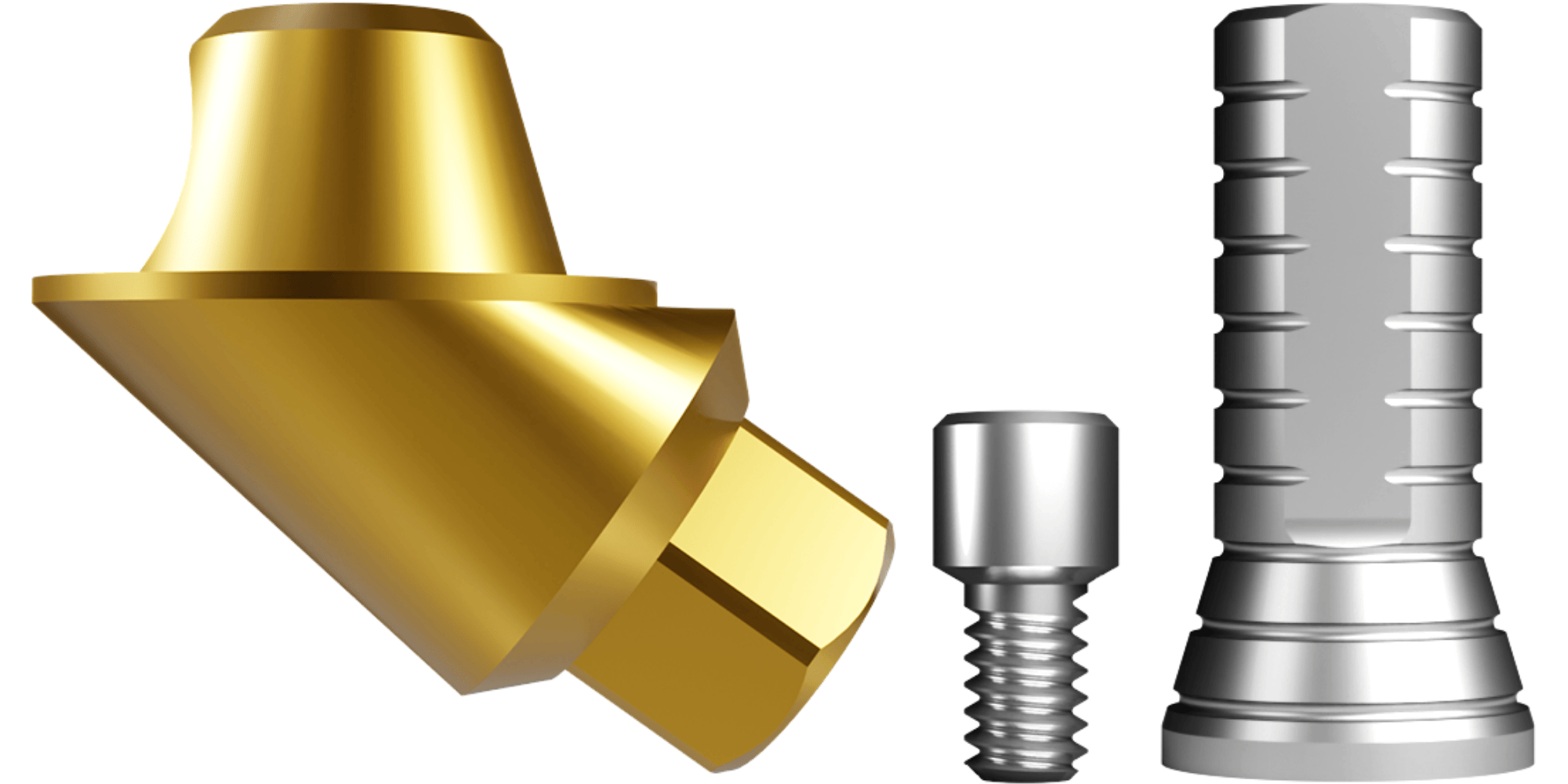

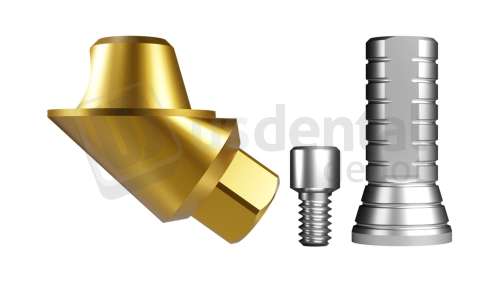

XGATE - Angulated MUA + Screw + Sleeve+ Sleeve Screw 60 - # BIO-MU09 - BIO-MU60H1
Earn up to 60 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
Angulated MUA + Screw + Sleeve+ Sle
XGATE DENTAL · INTERNAL HEX · ANGLED MUA
Angled Multi-Unit Abutment kit for full-arch implant prosthetics.
About this component
An angled Multi-Unit Abutment (MUA) kit including the abutment body, fixation Screw, Sleeve, and Sleeve Screw — everything needed to set up a Screw-retained full-arch prosthesis on a tilted distal implant. The angled MUA is the workhorse of All-on-X protocols, allowing the distal implants to be placed at a steep mesial angle (avoiding the maxillary sinus or mandibular nerve) while keeping the prosthetic emergence aligned with the occlusal plane. Grade-5 Titanium (Ti-6Al-4V-ELI). Compatible with Internal Hex 2.42mm implants from ZIMMER, MIS, AB Dental, Adin, Alpha Bio, Cortex, Implant Direct (Legacy), BioHorizons, and most other Israeli Internal Hex systems.
Clinical applications
- All-on-4 and All-on-X full-arch protocols
- Tilted-implant strategies in atrophic posterior maxilla
- Screw-retained implant-supported prostheses
- Angled emergence for full-arch hybrids
- Provisional and definitive Screw-retained restorations
Specifications
| Brand | XGATE Dental |
|---|---|
| Connection system | Internal Hex 2.42mm |
| Platform | INTHex 3.5mm |
| Diameter | 3.5mm |
| Style | Angled MUA |
| Angulation | 60 degrees |
| Material | Titanium Ti-6Al-4V-ELI (Grade 5) |
| Manufacturer SKU | BIO-MU09-BIOMU60-SE |
| Compatibility | ZIMMER · MIS · AB · Adin · Alpha Bio · Cortex · Implant Direct (Legacy) · BioHorizons · Israeli Internal Hex |
| Package | 1pk |
