Description

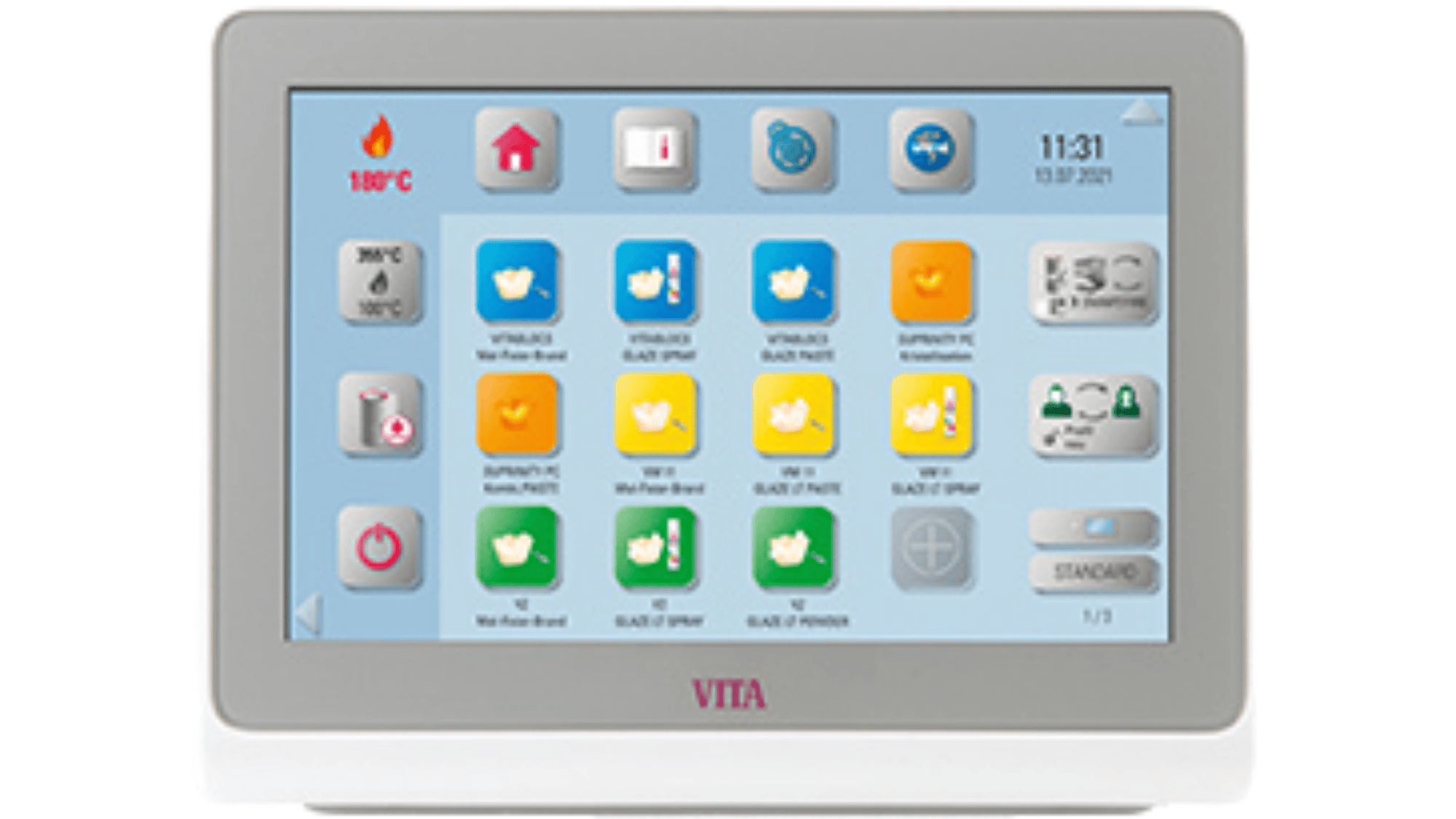

VITA vPad Excellence

Say hello to the future.

Prod. no. DVPADEXV1

DESCRIPTION

Control unit for:

• VITA VACUMAT 6000 M

• VITA VACUMAT 6100 M

• VITA VACUMAT 6000 MP

• VITA ZYRCOMAT 6000 MS

• VITA ZYRCOMAT 6100 MS

• VITA SMART.FIRE

• VITA SMART.FIRE ADVANCED

Hardware:

• Latest generation 10" touch display

• SD card reader for transferring photos

• Two USB ports for transferring data

• Individually adjustable stand for optimal work with the device

• 2 GB of storage for customer data (firing programs, photos, PDF files)

Software:

Operation of multiple furnaces

• Use a VITA vPad Excellence and the VITA SWITCHBOX to operate up to four furnaces

Guided initial setup

• When starting for the first time, you will be guided through the initial setup. Once complete, the VITA firing system is perfectly adapted to your needs (Product video see download area)

Profile management

• Creation of up to 12 customized users

• Every user can be assigned a name, icon and color

Customizable desktops

• Creation of up to 50 customized desktops per user with firing programs, photos and PDFs

• Every desktop can be assigned a name and a color

Firing programs

• Pre-installed firing programs for VITA materials and the most common CAD/CAM materials

• Integrated working instructions for all VITA materials

• Create new firing programs or modify existing firing programs

Digital assistance function

• If necessary, you can use the step-by-step instructions integrated in the software

• This supports you with features such as video and photo tutorials

Saves all firing data for quality assurance

• The temperature gradient in the firing chamber is logged every time firing is carried out

• Logged data can be exported to a USB flash drive or forwarded online directly to the VITA service team

WiFi-enabled

• Online update: Device software and pre-installed firing programs are always up to date

• With an active WiFi connection, logged data can be forwarded online at the touch of a button directly to the VITA service team for analysis

• Web browser

VITA Furnace App (available for free from the Google Play Store)

• Optimized time management, thanks to notification on a mobile device when firing is complete

• Overview of time remaining until firing is complete

• Transfer of images from a mobile device to the vPad

Data transfer

• Profiles, firing programs and device data can be transferred to other VITA vPad comfort/Excellence units or to a PC

• Backup function for complete backup of all vPad data

Integrated photo and PDF viewer

• View patient photos or PDF documents conveniently and directly on your vPad

Screensaver

• Your custom images can be used as a template for the integrated screensaver

Screensaver

• Menu navigation in 19 languages (German, English, French, Italian, Spanish, Bulgarian, Serbian, Croatian, Czech, Hungarian, Polish, Dutch, Finnish, Danish, Swedish, Russian, Turkish, Portuguese, Japanese)

ARTICLE No.

VITA vPad Excellence

Prod. no.

DVPADEXV1

Description

VITA vPad Excellence * Accessories: 1 connecting cable 1 Operating manual

TECHNICAL DATA AND ACCESSORIES

Technical functions

• Many service and control programs, e.g. automatic temperature adjustment before every start of the program, temperature sensor and vacuum control, fast cooling, night mode, power failure protection, display of operating hours for device and firing muffle, automatic cleaning

• Function monitoring incl. logging of lift runs, pre-vacuum and main vacuum, temperature and time flows

• Storage, backup and write protection of the individual user accounts and programs

• Software update and data transfer to other vPad control units and to a PC via USB stick

• Error monitoring with error display

• Freely selectable lift positions for pre-drying, cooling and for fast cooling to standby temperature

• Language selection

Technical data

Width

Depth

Height

Weight

Casing

Classification

260 mm

150 mm

200 mm

1,6 kg

plastic

Protection class 1

• Temperature for operation: 10 C to 35 C

• Humidity for operation: max. 80% RH

• Application area: approved for indoor operation only

Accessories (can be purchased separately):

For the operation of 2 or more VITA VACUMAT 6000 M, VITA ZYRCOMAT 6000 MS, VITA ZYRCOMAT 6100 MS and VITA VACUMAT 6000 MP with one VITA vPad Excellence a switchbox (Art. no. D65000) is required.
