Description

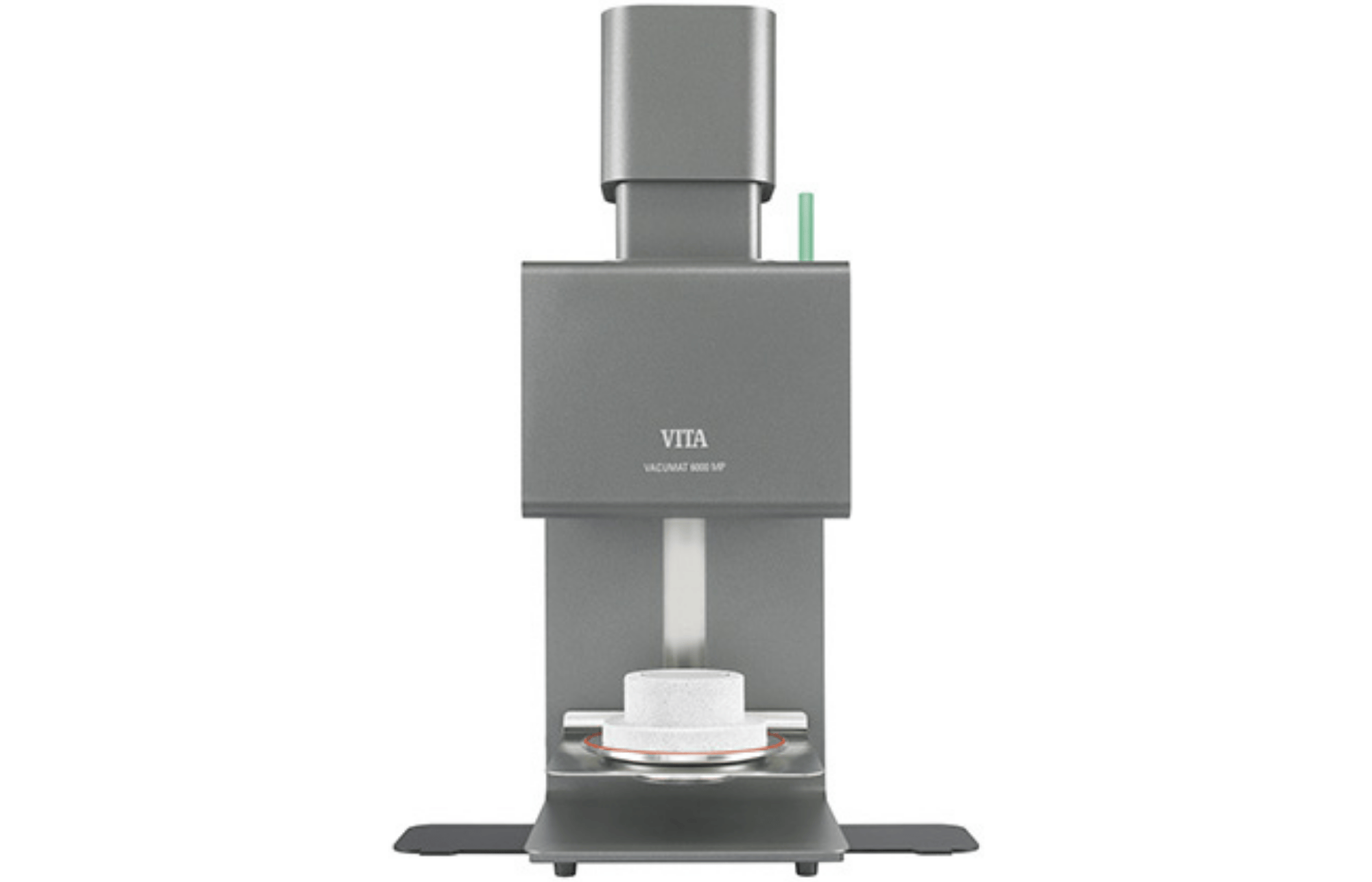

VITA Vacumat® 6000 MP
DV6000MP110
DESCRIPTION
Reliable firing and pressing for all commercially-available materials.
VITA Vacumat 6000 MP is built to guarantee safe and reliable pressing results. This combipress unit combines all the advantages of a modern firing and press Furnace with a compact design that sets new standards. VITA Vacumat 6000 MP features all the programs and functions of VITA Vacumat 6000 M.
It can also be used to press all commercially-available press ceramics, and is suitable for a wide variety of muffle systems. The automatic detection of the number of pellets that have been used prevents any pressing errors or damage to the firing muffle as a result of an insufficient load (VITA PressControl).
• A firing muffle with maximum durability ("Made in Germany") and reliable electronics for consistently excellent firing results
• Automatic prevention of condensation in the firing chamber (VITA AntiCon)
• Automatic temperature adjustment to +/-1 °C every time a program is started (VITA AutoAdjust)
• An automatic cleaning function (VITA SpecialClean)
• VITA CPress ceramic press technology developed by VITA that offers fault-free operation
• Automatic press path monitoring as well as automatic detection by VITA PressControl of the pressing pellets used
• Controlled fast cooling and energy-saving night mode
• Archiving and management of process data with the VITA Firing Data System (FDS)
• Operate up to four furnaces using just a single VITA vPad control unit
• Use the VITA MultiPump to supply up to four furnaces with just a single vacuum pump – a simply unique system, patented by VITA
In order to operate the Furnace, you will need the VITA vPad comfort or VITA vPad excellence control unit.
TECHNICAL DATA AND ACCESSORIES
Technical functions
• Service and monitoring programs, e.g. automatic temperature adjustment before every start of the program, temperature and vacuum control, counter for operating hours of firing muffles
• Power failure protection
• Adjustable vacuum values, adjustable pre vacuum and main vacuum
• Lift monitor, adjustable lift speed
• Freely adjustable lift positions for pre-drying and slow cooling
• Fast cooling to standby temperature
Technical Data
Width
Depth
Height
Weight
Casing
Chamber diameter
Chamber height
Firing temperature
Power supply
Power consumption
Classification
230 mm
325 mm
630 mm
18,7 kg (painted)
painted anthracite finish
90 mm
55 mm
max. 1200°C
100/110V 50/60Hz -- 230V 50/60Hz
max. 1.5 kW
Protection class 1
Accessories (can be purchased separately):
• VITA vPad excellence / VITA vPad comfort
• for the simultaneous operatoin with one control unit VITA vPad (as from the 2nd Furnace),
• 1 switchbox (Art. no. D65000) is required.
• The switchbox is suitable for the simultaneous operation of up to 4 firing units.
• Vacuum pump or Vacuum pump II
• Colored side panel in six shades for the individualisation of the the VITA Vacumat 6000 MP
• VITA MultiPump to supply up to four furnaces with just a single vacuum pump
• Number set (No. 1-4)
DOWNLOAD'S
Product info
Instructions for use
User manuals
Brochures
Software and Software updates
VITA vPad comfort / VITA vPad clinical up to serial number 2420155635, VITA vPad excellence up to serial number 2320152049, VITA Vacumat 6000 M, VITA Vacumat 6000 MP, VITA ZYRCOMAT 6000 MS
for vPad comfort / excellence Software-Version 150228, VITA Vacumat 6000 M, VITA Vacumat 6000 MP, VITA ZYRCOMAT 6000 MS
VITA Vacumat 6000 M, VITA Vacumat 6000 MP, VITA ZYRCOMAT 6000 MS, VITA ZYRCOMAT 6100 MS
VITA Vacumat 6000 M, VITA Vacumat 6000 MP, VITA ZYRCOMAT 6000 MS, VITA ZYRCOMAT 6100 MS
VITA vPad excellence from 2820180275, VITA Vacumat 6000 M, VITA Vacumat 6000 MP, VITA ZYRCOMAT 6000 MS, VITA ZYRCOMAT 6100 MS
VITA vPad comfort from 3020180051, VITA vPad excellence from 2820170050 to 2820180274, VITA Vacumat 6000 M, VITA Vacumat 6000 MP, VITA ZYRCOMAT 6000 MS, VITA ZYRCOMAT 6100 MS
FDS program (Firing Data System) - PC software for firing data management and archiving. With operating instructions
