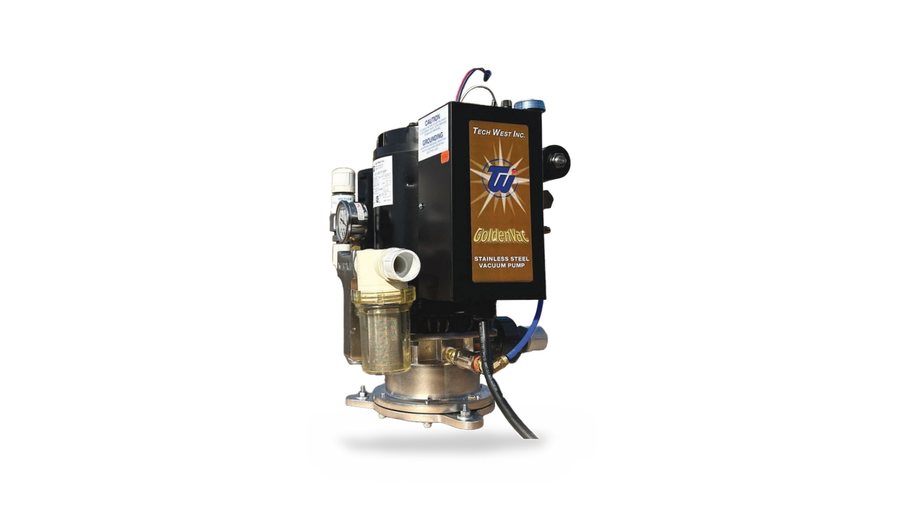

GOLDENVAC 3 Chairs Stainless Steel,1 X 1 HP, 115/230 Volt, With Recycler

The Tech West GOLDENVAC Stainless Steel Liquid Ring Vacuum Pump (Model VPLG3SSR) is the dental industry's gold standard for clean, dependable, high-flow chairside suction. Engineered around an investment-cast stainless steel impeller and silicon bronze pump housing, this 1 HP single-head system delivers reliable performance for up to 3 simultaneous operatories — quietly, efficiently, and for the long haul. The integrated water recycler is the practical answer to rising water and sewage costs — it captures, treats, and reuses the seal water, dramatically reducing fresh-water draw versus a non-recycling installation.

Specifications

Highlights

• Investment-cast stainless steel impeller in a redesigned profile that delivers approximately 20% more Vacuum performance than legacy liquid-ring designs.
• Silicon bronze pump housing with a stainless steel wear ring — engineered to resist abrasion from air-borne particulates, ceramic dust, and hard-water deposits.
• Thermally protected, capacitor-start / capacitor-run motor minimizes amperage draw at start-up and during continuous operation.
• Compact wall-mountable footprint (18" x 13" x 13") — fits inside a small mechanical room without sacrificing serviceability.
• Whisper-class 70 dB(A) sound rating — quiet enough for installations adjacent to operatories.
• 115/230 volt single-phase — works with most U.S. dental electrical builds without 3-phase service.
• FDA-recognized device, manufactured in the USA by Tech West Inc.
