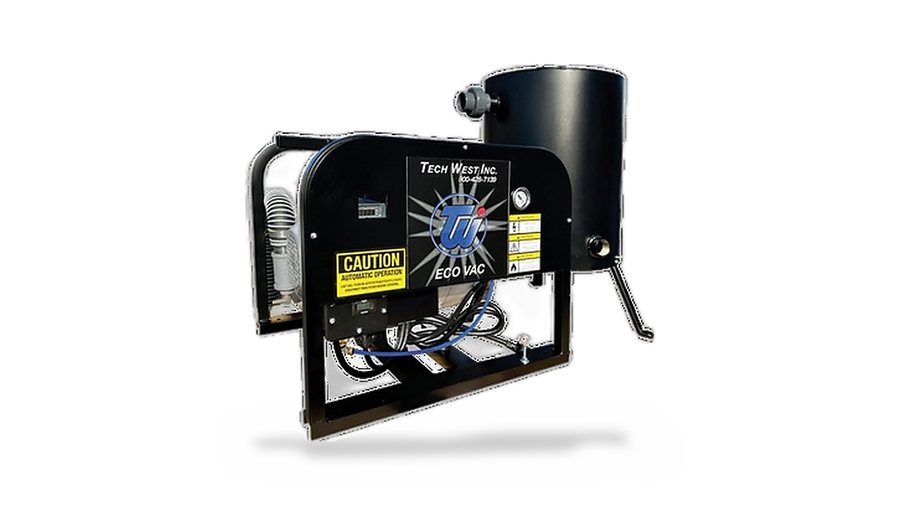

ECO-VAC 10-14 Chairs 2 X 2 HP, 208/230 Volt, VFD Driven, 30 Gal Tank

The Tech West EcoVac Dry Vacuum System (Model VPD10D2) is the modern, oil-free, water-free answer to dental suction. A 2 x 2 HP (4 HP total) turbine system with a Variable Frequency Drive (VFD) controller delivers 90 CFM @ 8 HG of suction across 10-14 operatories — using up to 50% less electricity than a traditional liquid-ring pump, and zero process water. No traps to clean. No oil to change. Truly a maintenance-free Vacuum.

Specifications

Highlights

• EcoVac Dry Vacuum System — VPD10D2
• Variable Frequency Drive (VFD) controller — when no suction is being drawn the motor runs at one-third speed, then ramps automatically as operatories engage. The single largest contributor to the EcoVac's energy savings.
• Dry turbine design — no seal water required, no water/sewage cost, no water-recycling hardware to maintain.
• 90 CFM @ 8 HG peak flow at 8 inHg working Vacuum — sized for 10-14 simultaneous operatories.
• Integrated 30 gallon reservoir tank stabilizes Vacuum at the chairs.
• Zero process oil — no oil mist into the equipment room, no environmental disposal.
• Optional integrated amalgam separator for ISO 11143 / EPA Dental Office Category compliance.
