CALIFORNIA AIR TOOLS REfrigerated air dryer 220V - #RD-91503
12331_f.jpg)
12330_f.jpg)
12329_f.jpg)
12328_f.jpg)
12327_f.jpg)
Earn up to 868 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

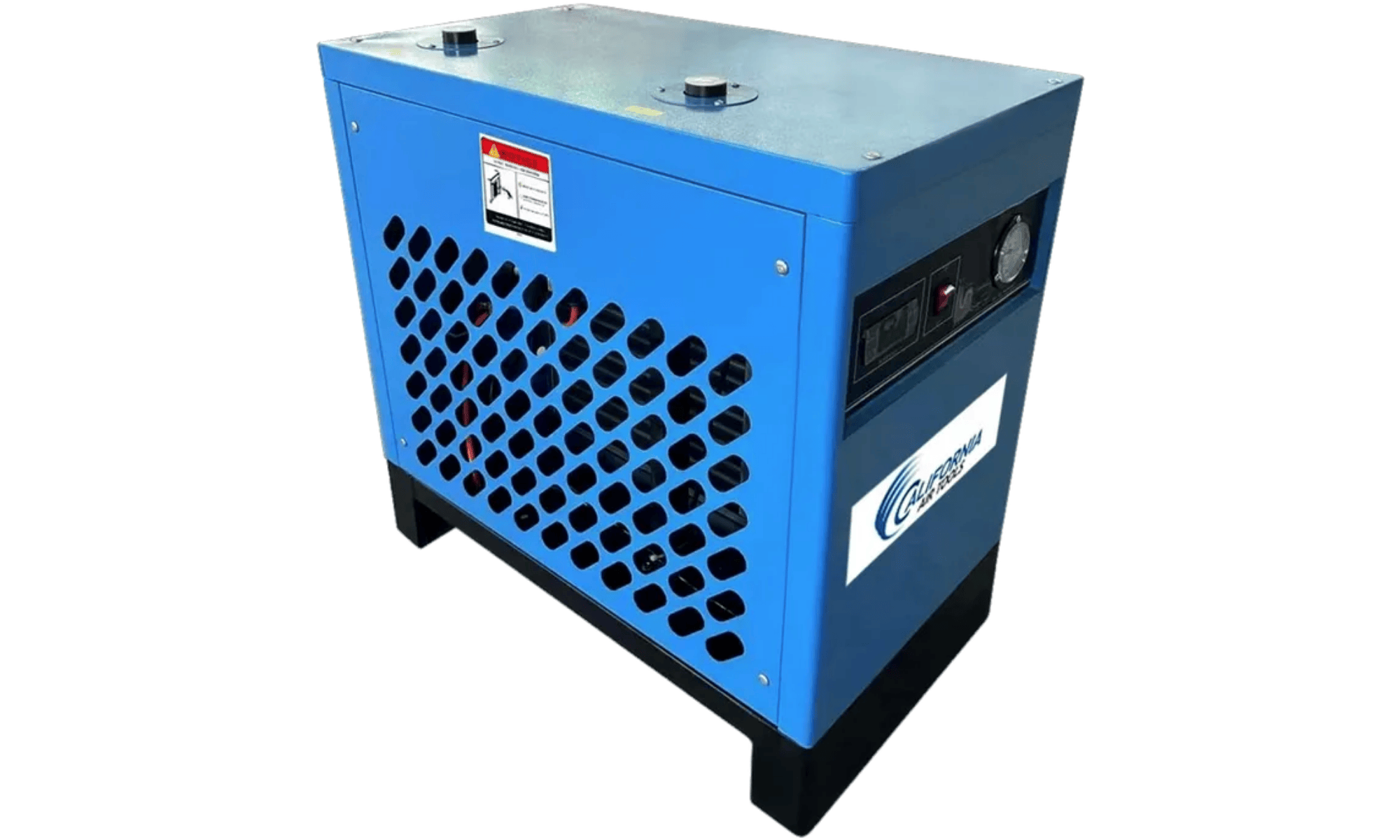

REFRIGERATED Air DRYER 220V
• RD-91503
DESCRIPTION
CALIFORNIA Air TOOLS RD-91503 High-Efficiency Non-Recycling Refrigerated 98% Air DRYER, 220v 60hz (BRAND NEW)
• 52 CFM
• 29 - 145 PSI
• 220v 60hz 1-Phase
• Working temperature: -5 to +60̊ C or 23̊ F to 140̊ F
• Pressure Dew Point: 2-10C (ISO 8573 Class 4 Dry Air)
---
CALIFORNIA Air TOOLS
The CALIFORNIA Air Tools RD-91503 refrigerated Air DRYER (220v 60hz) typically removes around 98% of moisture from compressed Air, achieving a Pressure Dew Point (PDP) between 2 - 10℃ (35.6 to 50 Fahrenheit), making it suitable for most general industrial applications where a high level of dryness is needed but not an extremely low dew point.*
Refrigerated Air Dryers support Dental Office/Lab/Milling, Medical, Biotech, Laser, Plasma cutting, Printing, Manufacturing, Woodworking and any other tooling/application which requires 98% Dry Air with a Pressure Due Point (PDP) as low as 2C (35.6F).
FEATURES:
• Max Inlet Temperature: 176F
• Max Ambient Temperature: 104F
• Capacity: 52.97 CFM
• Working Pressure: 29-145 PSI

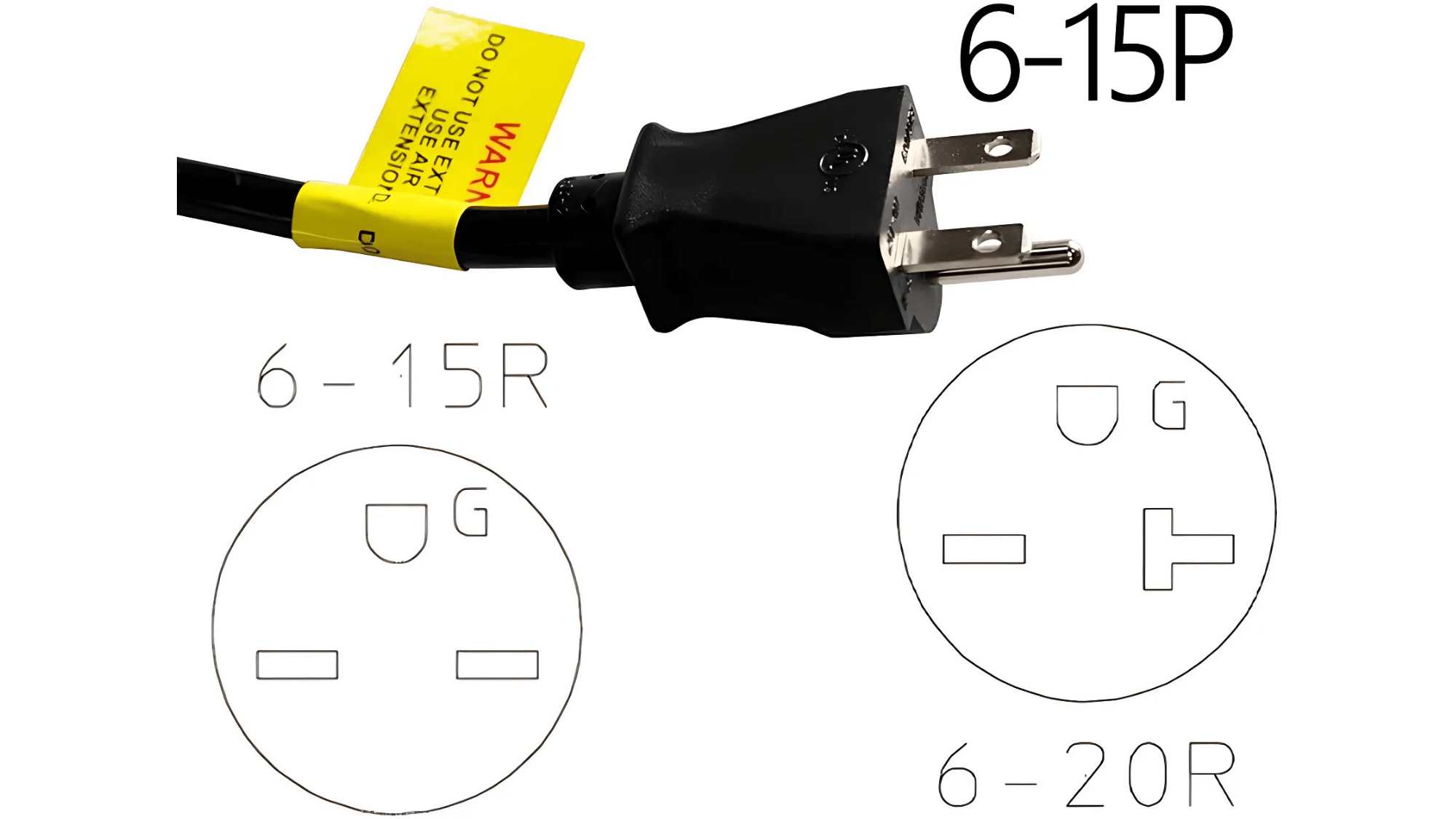

• Power Supply: 220v, 60hz, 1 phase
• Power: 0.5kw
• AMP Rate: 1.5A
• Weight: 88 lbs
• Dimensions (L*W*H): 26.18 x 16.92 x 25.98
• Inlet and Outlet size: 3/4" Male NPT
• Dew Point: 2-10C (35.6-50F)
• Refrigerant: R134A
INSTALLATION TIPS:
Connect the CALIFORNIA Air Tools RD-91503 refrigerated Air DRYER to the output of the Air Compressor, then connect to final tooling/application.
If Air Compressor does not have an output filter (5 um filtering minimum) to prevent ingestion of contaminants into the RD-91502 dryer, then it is suggested to install a filter (or regulator with filter) between Air compressor and RD-91503 Dryer.
To help reduce observed/temporary Air pressure losses at output of RD-91503 Dryer, it is suggested to add an Auxiliary Air Tank between Air Compressor and RD-91503 Dryer (i.e. provides stable Air buffering).
Add-On Options:
• AUX20S Auxiliary Air Tank
• 120 PSI Pressure Regulator Assembly
Limitations: The RD-91503 is not ISO 8573 compliant. Not suitable for applications requiring extremely low pressure dew points (i.e. ISO 8573 2.3.1 class, PDP -29F to -50F). If ISO 8573 class compliant clean/dry Air is required below 2C (36F), then CALIFORNIA Air Tools offers 10, 20 and 60 Gallon Air compressor models which achieve a Pressure Dew Point (PDP) average of -40F (-40℃)

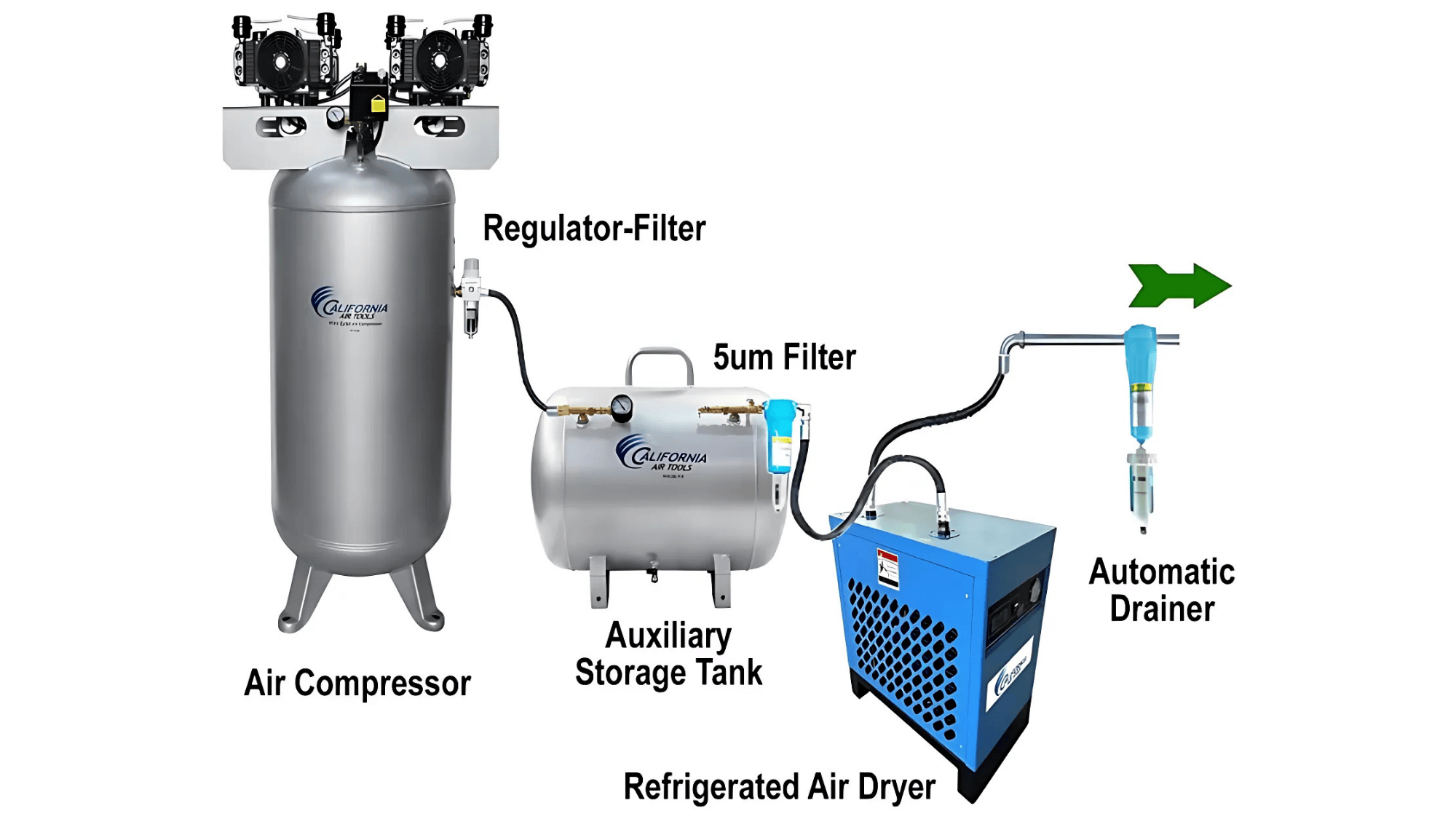

TYPICAL CONFIGURATION (EXAMPLE)
DRYER CONNECTIONS:
SPECIFICATION
DOWNLOAD FILES
OWNER'S MANUAL
>
RD-91503
THIS ITEM WILL BE SHIPPED WOOD BOXED ( generally ) AND ON AN INDIVIDUAL PALET - SHIPPING COST WILL INCLUDE PALLET/ TRUCK / INSIDE DELIVERY & LOADING DOCK
