DEPRAG - P7 Porcelain | Infiltration & Glazing oven - W/Vacuum pump - 220v - #P7
Earn up to 4,158 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
DE
PRAG

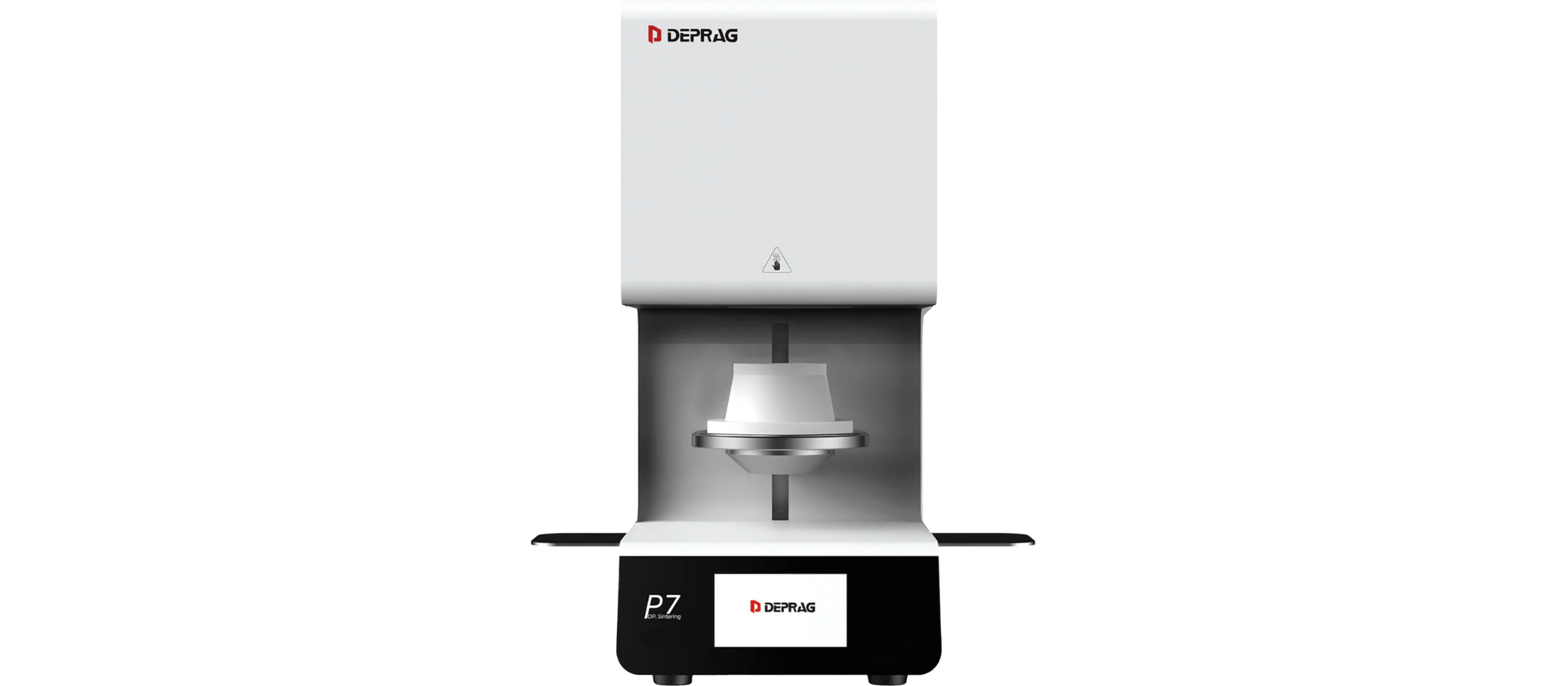

P7 Porcelain FURNACE
PRODUCT DESCRIPTION
The P7 furnace addresses common sintering challenges caused by inaccurate temperature control in traditional Porcelain furnaces. Equipped with a high-precision PID temperature controller and advanced two-dimensional temperature calibration, the P7 ensures consistent and accurate temperature management throughout the sintering process.
Using high-quality Kanthal heating wire, the P7 delivers stable sintering results. Operating under a vacuum negative pressure of 98kPa, it significantly reduces bubbles, cracks, and oxidation reactions — ensuring superior material integrity.
With smart features and an intuitive interface, the P7 is not only powerful but also user-friendly, offering a more efficient and comfortable experience for professionals.
TECHNICAL INFORMATION
• Dimensions (W x D x H): 410 mm x 280 mm x 597 mm
• Weight: approx. 30 kg
• Voltage: 220 V/110V | 50-60 Hz
• Temperature Accuracy: ±1 ℃
• Max. sintering temperature: 1000 ℃
• Number of programs: 100
• Max. output: 1500W
• Heating Rate: ≤140 ℃/min
• Max. Vacuum -98kPa
• Combustion chamber: Φ120*70 mm
• Accessories: Vacuum pump *1, Sinter base *1, Honeycomb plate *1, Nails bag *1, Fuse *2
• Tool Kit *1, Instruction manual *1
• Double sealed vacuum technology, maximum -98kPa
• High Quality Heating Wire (shougang)
• Circular heating, Uniform temperature sintering
• Maximum temperature of 1000 ℃, heating rate ≤ 140 ℃/min
• PID temperature control system, temperature accuracy ± 1 ℃
• 100 editable programs
• Power on self-test, vacuum detection
• Fault reminder, cleaning function
• Intelligent UI, easy to operate
• Continuous heating, temperature calibration
• Integrated body, hidden tray
• Full screen glass, 7-inch color smart screen
• No vibration motor, smooth lifting.
• Modular assembly, easy maintenance.
