Description

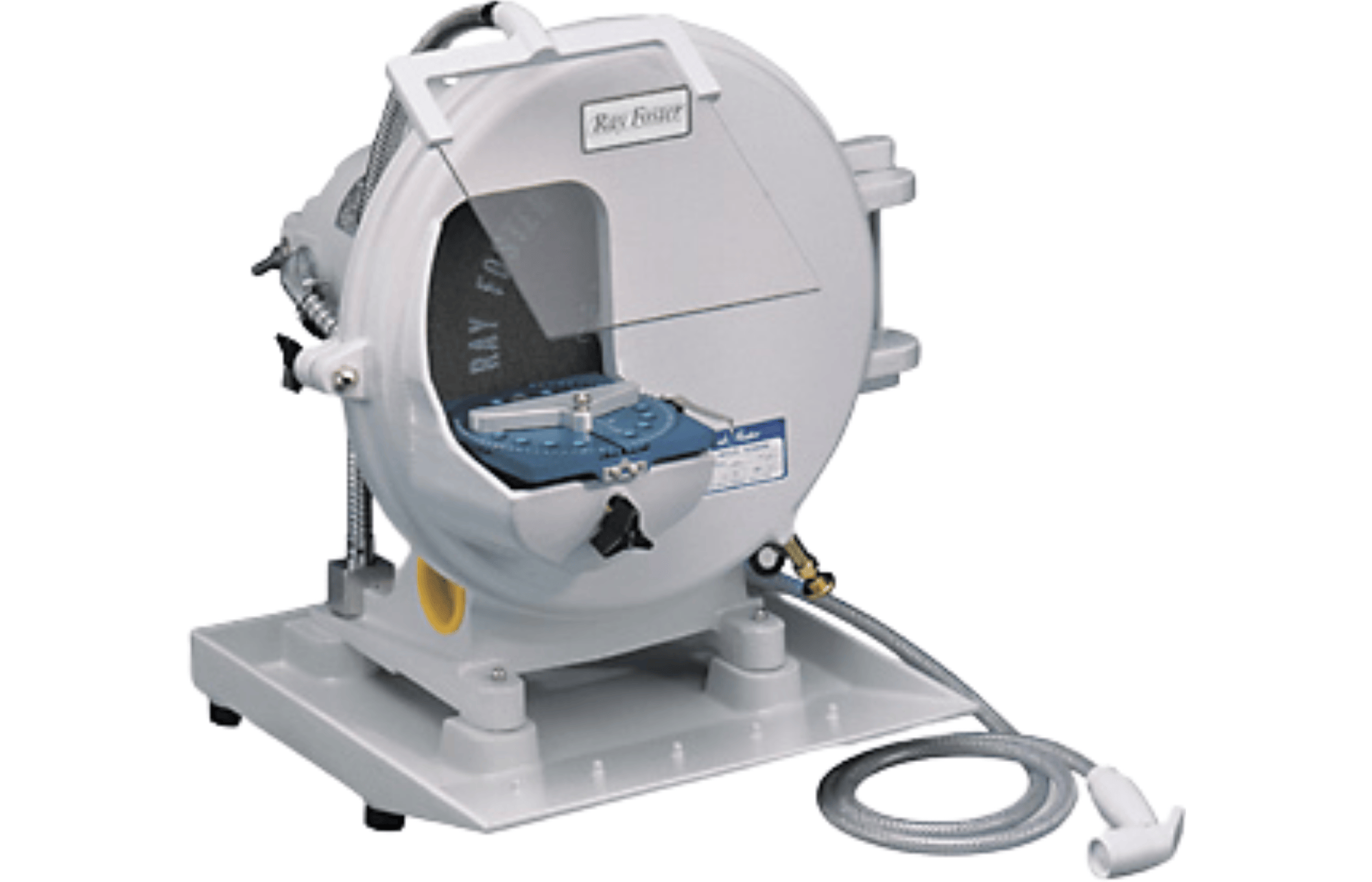

RAY FOSTER - MT15 Orthodontic 12" Model Trimmer with ½ HP Motor - 220v
Orthodontic Mod Trim
# 112772 - Mfg # MT15A-2

Feature:
* The Orthodontic Angulating Work Table, made from hardened anodized aluminum for a long, accurate work life, is calibrated for precise positioning and trimming of models.
* Accessories supplied with the Orthodontic Model Trimmer include Vertisquare, Angle Guide and 70 mm adjustment gauge.

Description:
* Rigid cutting surface gives a flat, smooth finish.
* Simplified mechanics (no pulleys or belts) results in a smooth running, quiet machine.
* Power output connection for automatic on/off of dust collector.
* Uses fast cutting 10"diameter PSA abrasive discs.
* Heavy-duty. Capacitor-start, 1/3 HP motor.
* Adjustable work table.
* Six foot vacuum hose and four additional abrasive discs included
* Proven RAY FOSTER quality and durability.

Specifications:
* 1/2 HP motor, with 1.25 service factor producing .625 HP actual power.
* 12" dia., 1/4" thick grinding wheel.
* 5-1/4" wide, 5" high cutting surface.
* 17" high, 17" wide, 16" deep.
* 115 volt, 60 Hz standard.
* 230 volt 50/60 Hz optional for export.
* Net weight 41 lbs, shipping weight 49 lbs.
* Quantity: 1pk.

Optional: (not included)
* M005 Splash shield.
* M006 Sediment tray.
* M007 Water spray attachment.

Order your FOSTER Dry Model Trimmer with the RAY FOSTER Cyclone Dust Collector for a complete dry Model trimming system.
