NEXTDENT - ORTHO FLEX (for Splints and Retainers) - # NDOF01000
14613_f.jpg)
Earn up to 598 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

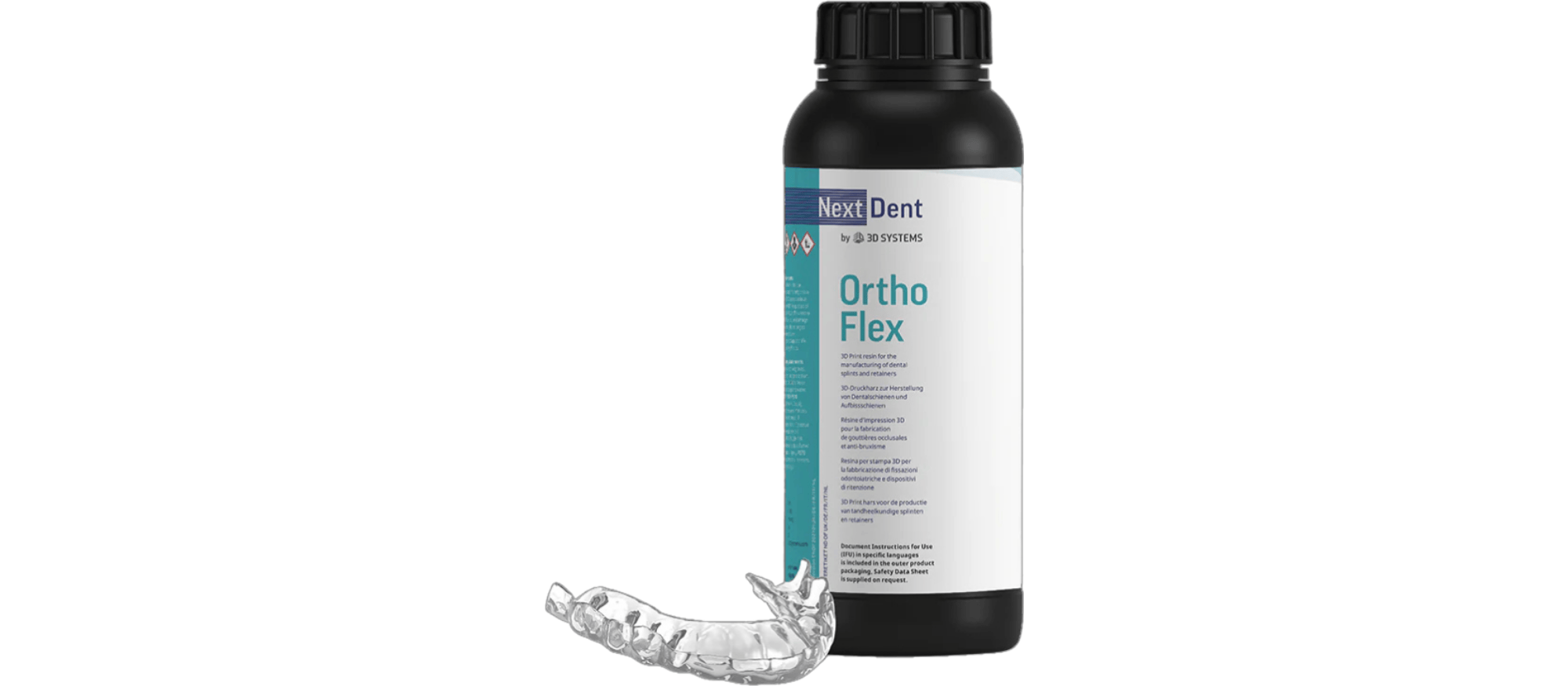

NEXTDENT ORTHO FLEX
PRODUCT DESCRIPTION
Transparent 3D print material for Splints and Retainers
NEXTDENT ORTHO Flex is a clear biocompatible material (EU Class IIa, US 510(k) clearance) developed for 3D printed Dental Splints and Retainers. The balance of optical appearance and mechanical properties, combined with excellent print quality and long-term stability makes this material the perfect solution for in-house production of Dental Splints and Retainers.
This material is characterised by a clear and transparent look. NEXTDENT ORTHO Flex offers high break resistance, perfect accuracy and a high degree of flexibility.
Download the Instruction for Use. For the US, please download the Instruction for Use here. For this resin, NEXTDENT has validated the following 3D printers. For specific questions, please contact your authorized NEXTDENT reseller or NEXTDENT.
The material is available in 1 Kg containers.
SPECIFICATIONS
Property
Flexural Strength
Flexural Modulus
Water sorption
Water solubility
Charpy Impact Strength
Max. Stress intensity factory
Total Fracture work
Free Monomer Extraction
Cytotoxity
Irritation
Sensitization
Genotoxicity
Systemic Toxicity
Leachable chemical characterization & safety toxicity assessment
Standard
ASTM D790
ASTM D790
ISO 20795-2
ISO 20795-2
ISO 179:2010
ISO 20795-2
ISO 20795-2:2013
ISO 20795-2
ISO 10993-5
ISO 10993-10
ISO 10993-10
ISO 10993-3
ISO 10993-11
ISO 10993-17&18
Passing Criteria
≥ 50 Mpa
≥ 1500 Mpa
≤ 32.0 µg/mm3
≤ 5.0 µg/mm3
≥ 10 kJ/mm2
≤ 1.1 MPa/m2
≥ 250 J/m2
<2.2 %
Non-cytotoxic
Not induce any erythema or edema reactions
Not a sensitizer
Non-mutagenic
Not cause systemic toxicity
No toxicological concern
Result
67 Mpa
1721 Mpa
15 µg/mm3
3 µg/mm3
15 kJ/mm2
1.5 MPa/m2
425 J/m2
Pass
Pass
Pass
Pass
Pass
Pass
