CALIFORNIA TOOLS - 20040DCAD Powerful 4.0 HP Ultra Quiet & Oil-Free Air Compressor + Air Drying System 80% + Automatic Drain #20040DCAD
12101_f.jpg)
12100_f.jpg)
12099_f.jpg)
12098_f.jpg)
12097_f.jpg)
12096_f.jpg)
Earn up to 3,153 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
CALIFORNIA Air TOOLS
• 20040DCAD
DESCRIPTION
Powerful 4.0 Hp Ultra Quiet & Oil-Free 20-Gallon. Air Compressor with 80% Air Drying System and Auto Drain (BRAND NEW)
• 4.0 HP (Rated/Running)
• 20 Gallon Steel Tank
• 220 Volts / 60 Hertz / Single Phase
• 12.80 CFM @ 40 PSI
• 10.60 CFM @ 90 PSI
- - -
CALIFORNIA Air TOOLS
The CALIFORNIA Air TOOLS 20040DCAD Ultra Quiet & Oil-Free 20 Gallon Air Compressor with Air Drying System and Automatic Drain Valve is designed to be one of the quietest 4.0 Hp Air Compressors in the industry having only 75 decibels of sound.
The Powerful (2) 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040DCAD Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours, compared to other comparable Air Compressors with life cycles of 1500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump). The large 20 Gallon Steel Air Tank is just the right size for shop or garage.
The 80% Air Dryer is specially designed to remove the 80% of the water vapor from the Air to protect sensitive tools and machinery. To dry the Air from the Air compressor an Aftercooler and Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge Air from the Air compressor. The water vapor from the compressed Air is condensed into liquid form and pushed into the Air Dryer.
Designed for the person looking for Power, Dry Air, Air Flow and Less Service with at Least 30% Less Noise!

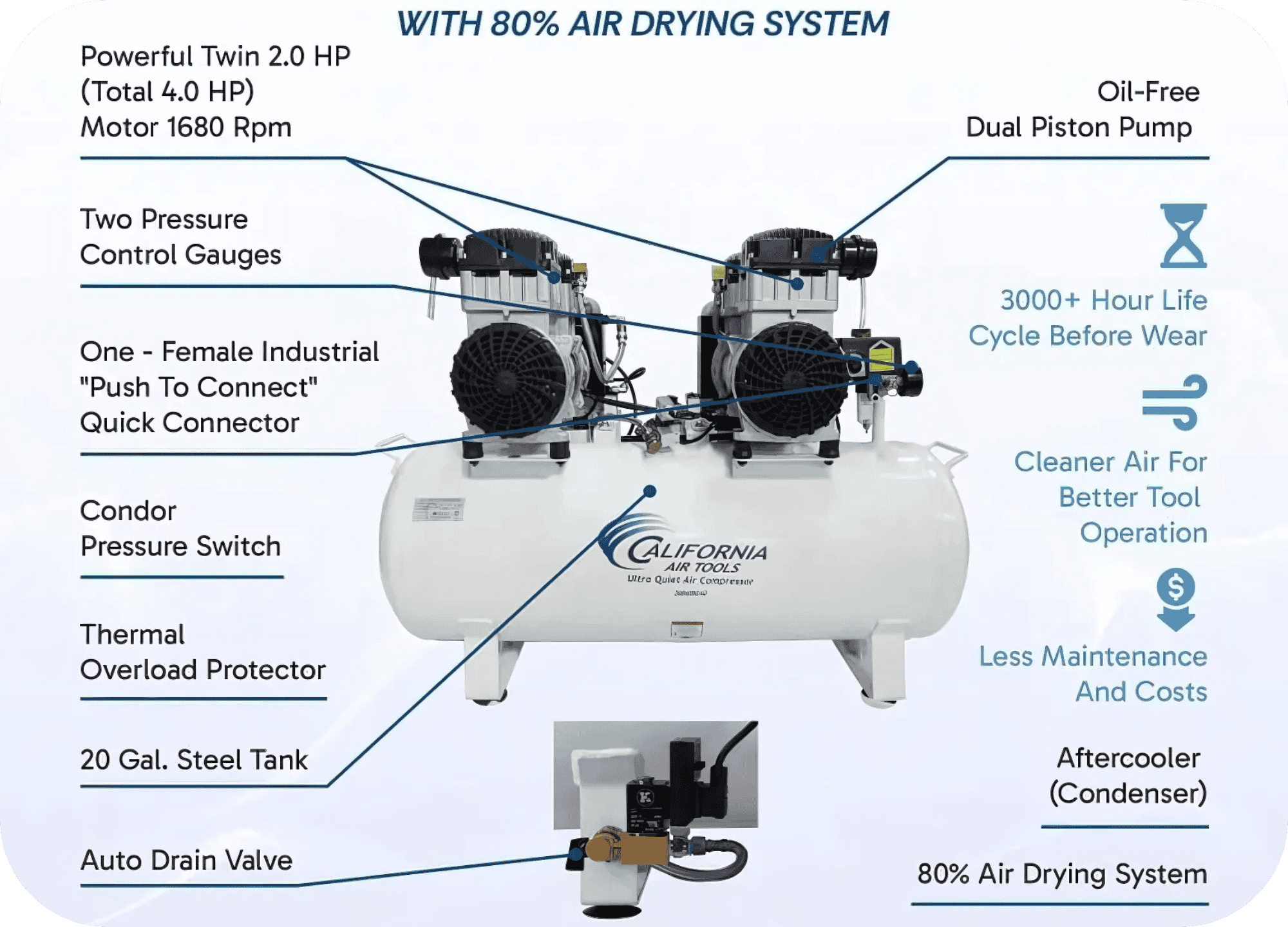

FEATURES:
• Ultra Quiet - Only 75 decibels
• Oil-Free Pump – Cleaner Air for better tool operation.
• Less maintenance and Costs.
• Two pressure control gauges
• One - Female industrial "Push to Connect" quick connector (1/4" NPT)
• Condor Pressure Switch
• Thermal Overload Protector
• 125 PSI Maximum Pressure
• 220 Volts / 60 Hertz / Single Phase - (No 208 Volts)
• Low Amp Draw - 14 Amps
• Time to fill tank from empty to full - 150 Seconds
• Recovery time from 95 PSI to 125 PSI - 40 Seconds
• Duty Cycle - 70/30
• Maximum continuous running 30-60 min. (Depending PSI & CFM)
• Less heat which dissipates more efficiently
• 20 Gal. Steel Air Tank
• L (39") x W (25") x H (28")
• 175 lbs
• 80% Air Dryer - Includes Activated Alumina desiccant with a 4000 hour life.
• Aftercooler (condenser)
• Automatic Drain Valve
• 1 Year Limited Warranty
• Comes complete (4) Air Filters

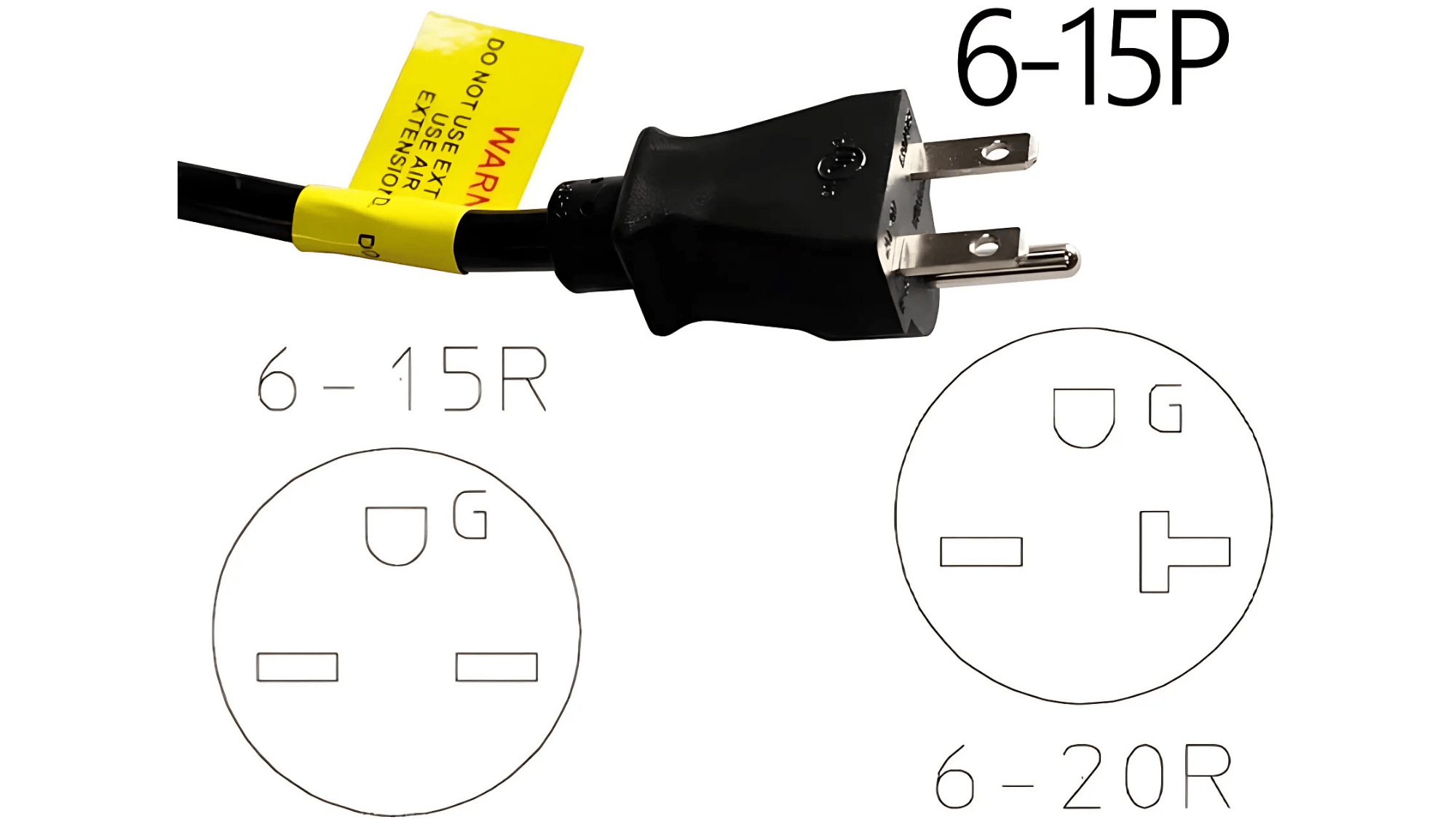

• Plug Type: Nema 6-15P (fits Nema 6-15R or 6-20R receptacle)
• Commercial Use: Refer to State & City Codes
• Non-ASME Air Tank
• Assembled in USA with global components
• Activated Alumina is used in Air prepurification (due to it's high water and carbon dioxide adsorption capacity) and adsorption of sulphur compounds.

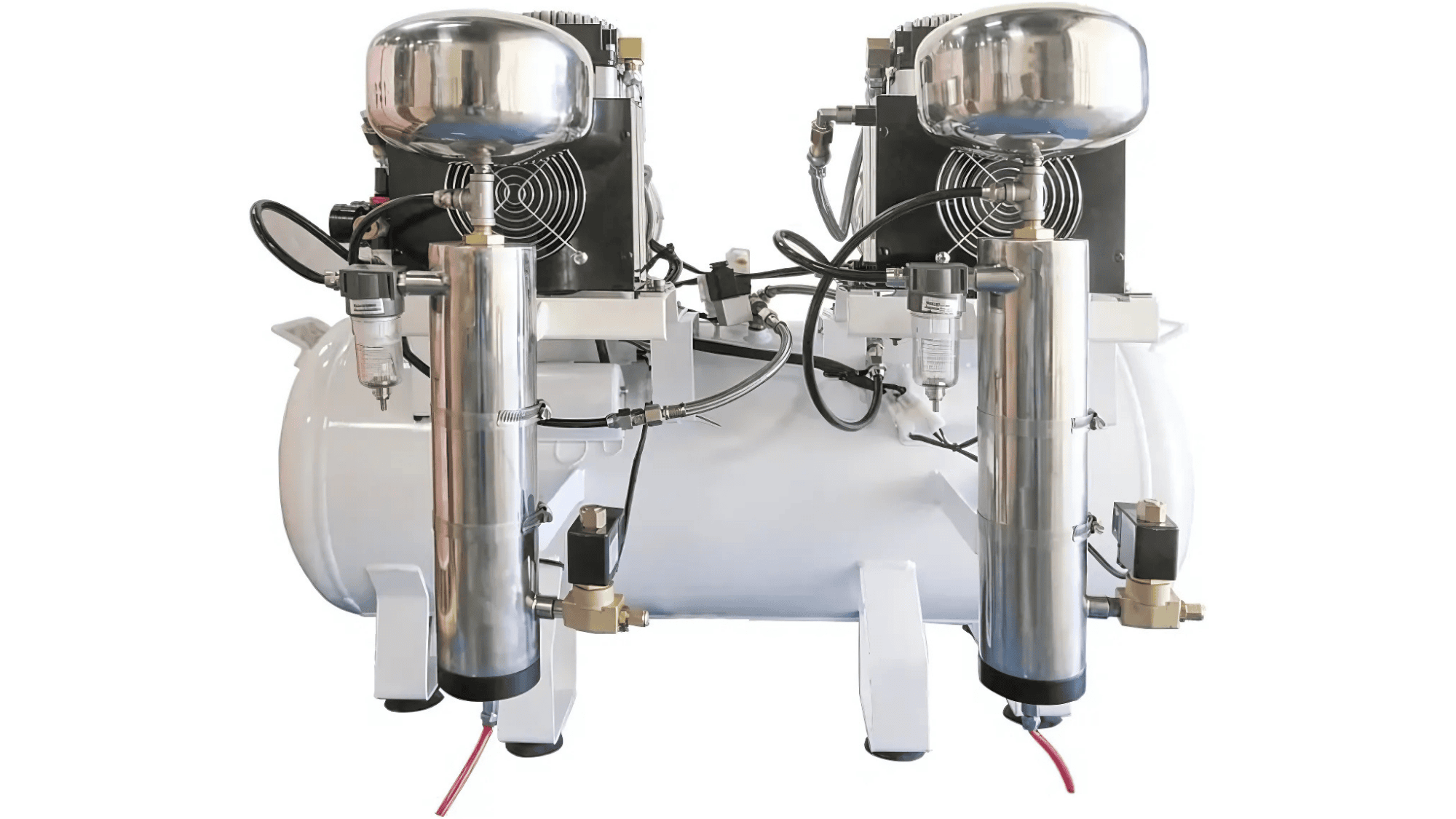

Air COMPRESSOR 80% DRYER FUNCTION
DRY Air SYSTEM - WATER PURGING AND DRAINING
AUTOMATIC DRAIN VALVE FUNCTION:
EZ-1 Auto Drain Valve Factory Installed. The CALIFORNIA Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your Air compressor Air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process.
POWERFUL ULTRA QUIET & OIL-FREE Air COMPRESSOR

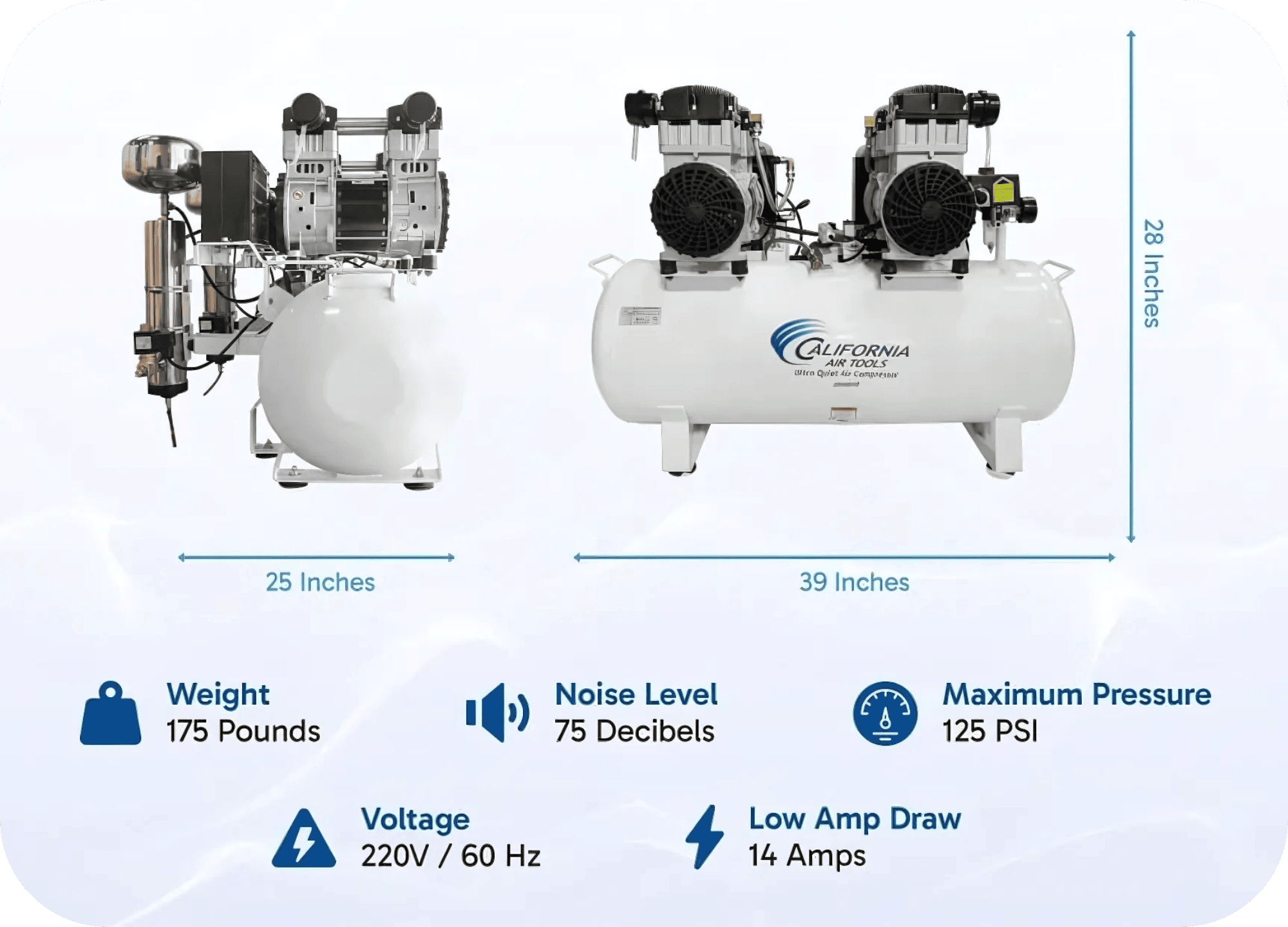

SPECIFICATIONS & PERFORMANCE
ADDITIONAL DETAILS
CALIFORNIA Air TOOLS - ADD-ON OPTIONS:
Optional PTFE Black Hose Tubing, 8 mm (10 feet) to connect to Automatic Drain Valve, Air Dryer Valve or Condensate port - CLICK HERE
NOTE: To efficiently operate (1) each Dental Milling Machine continuously a 2.0 or 4.0 HP model is typically required, depending on operating CFM (L/MIN) and average run time. CLICK HERE for more information.
NOTE 2: May not be suitable for applications requiring extremely low pressure dew points (PDP) below 2C or 36F. If ISO compliance is required (i. e. ISO 8573 2.3.1 with PDP performance of -29F to -50F) then a desiccant-based Air dryer system will be required. CALIFORNIA Air Tools offers 6 Ultra-Dry Air compressor models which achieve a PDP average of -40F (-40℃) and outputs 98% ultra dry/clean Air with 0.01 um particulate filtering -- CLICK HERE
PERIODIC MAINTENANCE REQUIREMENTS:
Replace the 80% Air Dryer Desiccant beads/Activated Alumina every 4000 operating hours (~2 years on average). CLICK HERE
Replace 2 Hp Air filters (2 are attached to motor-pump) every 2 years or every year if compressor is exposed to a dirty or dusty environment. Part Number 90260
PERIODIC MAINTENANCE REQUIREMENTS:
DOWNLOAD FILES
THIS ITEM WILL BE SHIPPED WOOD BOXED ( generally ) AND ON AN INDIVIDUAL PALET - SHIPPING COST WILL INCLUDE PALLET/ TRUCK / INSIDE DELIVERY & LOADING DOCK
