KEYSTONE - KeyModel Ultra Sand 4kg - # 4240012 ( KeyPrint ) ( Keyprint )
Earn up to 344 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

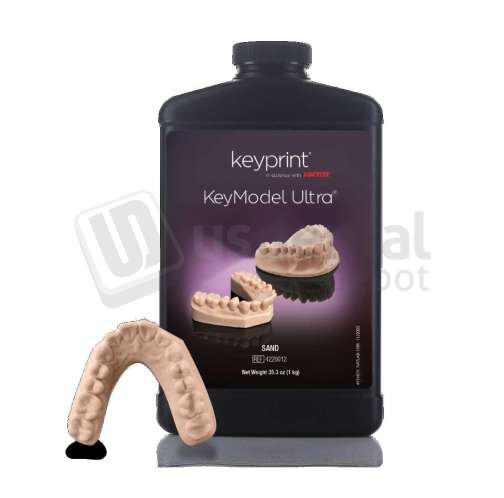

KeyModel Ultra Sand
Overview
KeyModel Ultra is the next-generation dental and orthodontic model resin from Keystone's Henkel collaboration — engineered for speed, accuracy, and the thermoforming workflow that drives modern aligner production. Sand is the warm-neutral shade option, joining Ivory and Light Grey in the Ultra family, all running on the same Henkel-developed chemistry.
The point of this resin is throughput. KeyModel Ultra is formulated for rapid printing and fast post-cure, with reduced peel forces during print to increase accuracy. The integrated quick-release agent means thermoformed aligners and devices come off the model cleanly — no release spray, no sticking, no torn aligners. This is the model resin built for high-volume aligner labs.
Why Labs Specify It
Ivory, Light Grey, and Sand — same chemistry, three visual preferences.
Optimized flow at 25°C for smooth layer formation and short build times.
Open-DLP / mSLA / LCD compatible across the major printer ecosystem.
Integrated quick-release for thermoforming — no spray, no setup.
Engineered Features
- Henkel Collaboration ChemistryCo-developed with Henkel's adhesives R&D team — the company's first push into dental 3D printing materials science. Different chemistry envelope than the original KeyModel.
- Integrated Quick-Release AgentThermoformed aligners and devices release cleanly from the model surface without external release spray. Faster aligner production, less rework.
- Reduced Peel Force = Higher AccuracyLower peel force during print means less mechanical stress on the layer being cured — tighter dimensional accuracy on critical occlusal anatomy.
- Carve-Resistant Without ChippingAdjustable when needed — a model trim or margin adjustment doesn't crack the print like brittle alternatives.
- Ultra-Fast Print and CureFormulated for rapid printing AND fast post-cure — both halves of the throughput equation.
Why It Sells
- Aligner thermoforming, no sprayThe integrated release agent is the headline feature.
- Made by Henkel + KeystoneTwo of the biggest names in adhesives and dental, one resin.
- Sand shade is warm-neutralReads as natural-tooth context for case photography.
- Carve-able after printLast-minute adjustment without a reprint.
- Pairs with KeyMask gingival maskFull digital model + simulated gum tissue.
Clinical Applications
Volume aligner production — the integrated release is built for this.
Working models with detailed margins and contacts.
Lab analog models for implant prosthetic planning.
Diagnostic models, retention records, case presentation.
Treatment planning, mock-ups, patient education.
General-purpose dental laboratory models.
What Makes It Different
The original KeyModel was good. KeyModel Ultra was built specifically for the aligner thermoforming workflow that defines modern orthodontics. The integrated quick-release agent eliminates the spray-bottle step that was the biggest non-printing time sink in the model-then-form cycle — no over-spray, no inconsistent release, no torn aligners on removal.
The Henkel collaboration matters too: Henkel runs the second-largest adhesives R&D operation in the world. Their photopolymer expertise is why this resin prints faster, post-cures faster, and stays carve-able where ordinary model resins crack.
Where It Sits in the Market
Generic Ortho Model Resin
- Requires release spray
- Variable peel force
- Brittle when carved
- Single beige shade
- Slow post-cure cycle
Original KeyModel
- Solid baseline detail
- Two shades available
- Standard print speed
- Print 50µm layers
- No integrated release
KeyModel Ultra Sand
- Henkel collaboration chemistry
- Integrated quick-release agent
- Reduced peel force = accuracy
- Carve-resistant, no chipping
- Sand / Ivory / Light Grey shades
Available Shades
SKU & Pack Sizes
Technical Specifications
| Material Class | Light-curing methacrylate-based photopolymer model resin |
| Indication | Dental and orthodontic models — aligner thermoforming, study, crown & bridge, implant |
| Co-Developer | Henkel Adhesive Technologies |
| Viscosity at 25°C | 500-600 cP |
| Color (this SKU) | Sand — warm-neutral |
| Color Family Options | Ivory (4220009), Light Grey (4220010), Sand (4220012) |
| Print Layer Thickness | 50 / 100 / 200 µm supported |
| Printer Type | DLP / mSLA / select LCD monochrome |
| Printer Wavelength | 385-405 nm |
| Integrated Release | Yes — no thermoforming release spray required |
| Carve / Trim | Carve-resistant without chipping |
| Post-Cure | Fast post-cure cycle (validated cure box) |
| Companion Resin | KeyMask gingival mask resin |
| CAD Software | 3Shape, Exocad, Dentalwings, Blueskybio — open ecosystem |
| Manufacturer | Keystone Industries (with Henkel) |
| Shelf Life | Per TDS, cool dry storage |
| Country of Origin | United States (Gibbstown, NJ) |
Validated Printer Compatibility
- Carbon – M2, M3, L1 (KeySplint Soft Clear, KeySplint Hard, KeyDenture, KeyGuard)
- Asiga – MAX, MAX UV, PRO 4K, PRO 4K85
- Phrozen – Sonic Mini 4K/8K, Sonic Mighty 4K/8K, Sonic XL 4K
- Elegoo – Mars 3, Mars 3 Pro, Saturn series
- LuxCreo – iLux Pro Dental
- Shining 3D – AccuFab D1s, AccuFab L4D
- SISMA – Everes UNO, Everes Ultra
- Zortrax – Inkspire 2
- NextDent / 3D Systems – 5100 (validated for KeyModel Ultra)
Always verify the latest validated-printer list at the manufacturer's site before printing — Keystone updates validations regularly.
Downloads & Resources
- KeyModel Ultra Product PageWEB
- Press Release: KeyModel Ultra LaunchWEB
- Henkel Press Release on KeyModel UltraWEB
- All-Language SDS PortalWEB
- KeyPrint FAQWEB
- KeyPrint Resin Family OverviewWEB
Videos & Tutorials
Stock the KeyModel Ultra Sand Bottle Your Lab Will Burn Through
Same-day shipping from Florida. Volume pricing for 4+ bottles. Ask about distributor terms.
Add To CartCall A SpecialistWorks With: Carbon M-Series & L1 · Asiga MAX/PRO 4K · Phrozen Sonic family · Elegoo Mars/Saturn · LuxCreo iLux Pro Dental · Shining 3D AccuFab · SISMA Everes · Zortrax Inkspire 2 · NextDent 5100. Always verify the latest validated-printer list at keystoneindustries.com before production printing.
