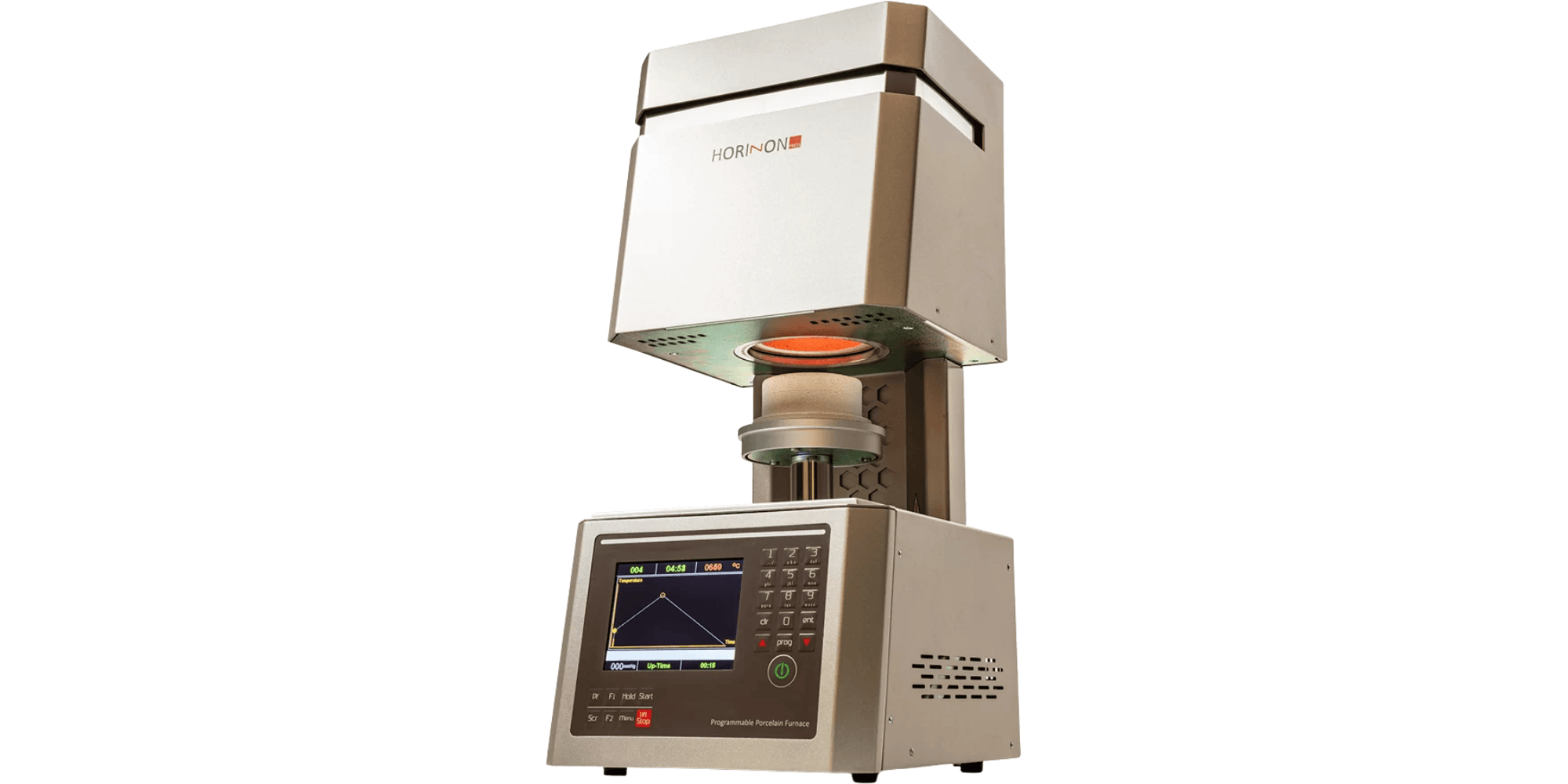

SHENPAZ HORIZON / HORIZON PRESS Porcelain Furnace
14878_f.jpg)
Earn up to 7,951 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
SHENPAZ
Horizon / Horizon Press
PRODUCT DESCRIPTION
All Horizon models are designed with a unique temperature control muffle that is highly accurate and guarantees quality firing every time.
SHENPAZ non-aggressive pressing technology is designed to obtain higher density and soften one-blow impact—especially successful when pressing zirconia and metal.
QUALITY RESTORATIONS
• PRECISE TEMPERATURE UNIFORMITY & CONTROL with firing temp. to 1180ºC (2156ºF) and accuracy of ± 1ºC
• FULLY ADAPTABLE PROGRAMMING handles all ceramics and pressable materials on the market today
• NON-AGGRESSIVE PNEUMATIC PRESSING SYSTEM prevents cracking and achieves greater density
TIME SAVING
FULL CUSTOMIZATION of cooling rate and hold time; pre-programmed tempering process adjusts for cooling rates of zirconia, metal and porcelain materials.
ENERGY EFFICIENT
ENERGY SAVING features:
• Firing chamber lined with superior insulation
• Chamber entrance tightly sealed to hold temp. ready for next cycle
• Single phase electrical supply for low wattage consumption.
FEATURES
• Intuitive full color digital display
• 200 firing and 50 pressing programs
• USB port for fast transfer of program data
• Acoustic signals that alert to furnace status
• Special e-base cylinder base adapted to IPS e-max® products
• Horizon standard firing furnace available with 200 programs
TECHNICAL DATA
Horizon Press
Max. Temperature:
Max. Firing temperature:
Temperature ramp *:
Programs:
Acoustic signal:
Weight (kg):
Width x height x depth (cm):
USB port:
Cylindrical combustion chamber:
Power supply:
1200 °C
1180 °C
1 to 120 °C
250
Check ( √ )
26 kg
28x63x30
Check ( √ )
Ø95 mm x 65 mm
115 V 50/60Hz, 15 Amp
230 V 50/60Hz, 8 Amp
3 years warranty
SPECIFICATIONS
Horizon Press
Dimensions:
Weight:
Display screen:
Firing chamber:
Firing table:
Temperature range:
Heat rate:
Material:
Horizon Press
Pressing:
Pressure:
30x28x63cm (12”x11”x25”) (WxHxD)
20 KG (44 lb)
5.7”
Ø 95mm x 65mm/h (Ø 3.7” x 2.6”mm/h)
Ø 90mm(Ø 3.5“)
from 100°C to 1180°C (212°F to 2156°F)
10-120°C (50-248°F)/min
Durable Kanthal* spiral material
4.2 bars
4.2 Bar Weight: 25.5 KG (56 lb)
