HEYGears - HT Resin Tank (A2D HD) - For A2D HD- 1 - # 11030800096
Earn up to 378 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

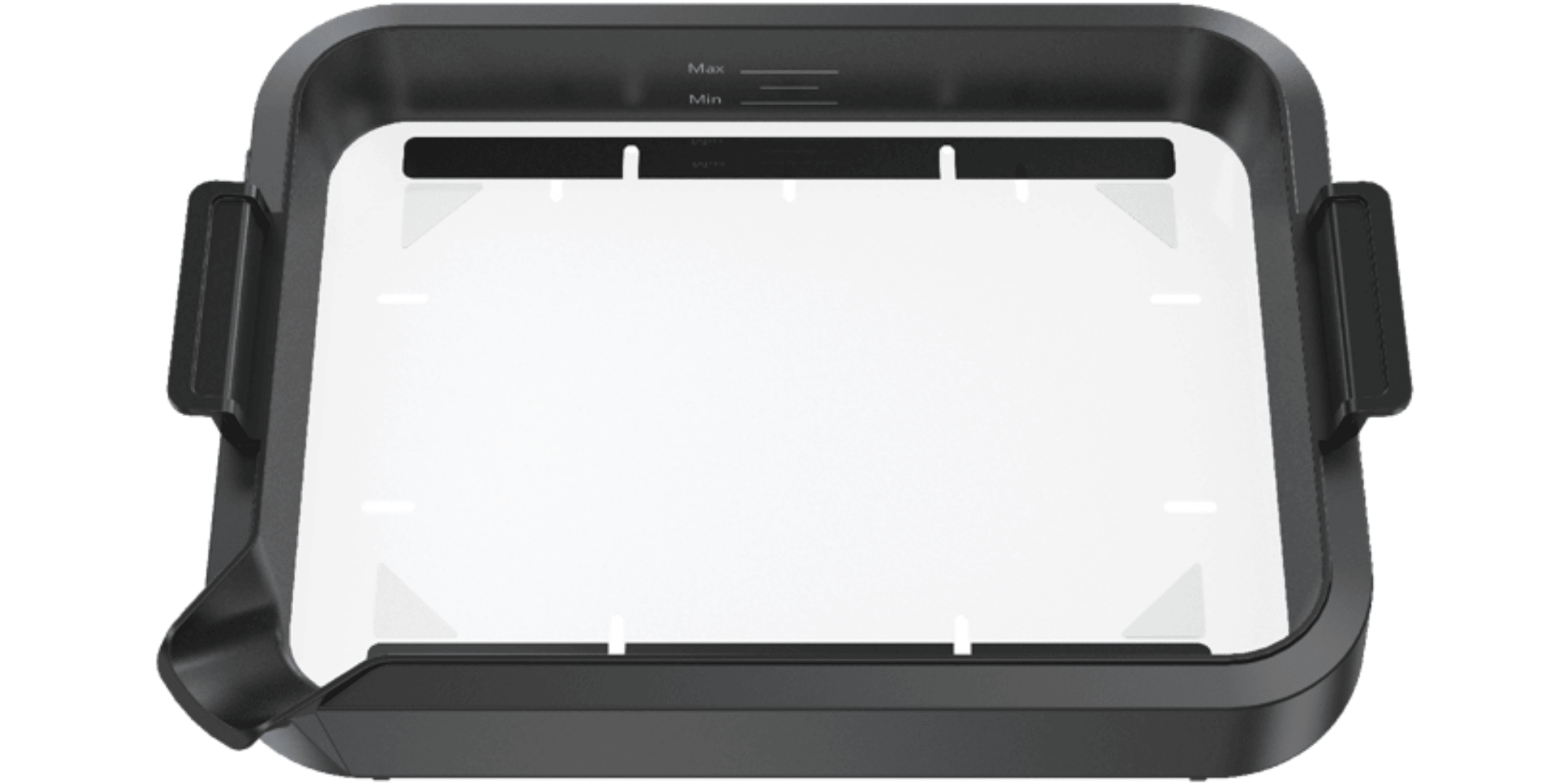

HT Resin Tank
• Compatibility: A2D HD
PRODUCT INFORMATION
Designed to enhance the dental 3D printing experience, the HT Resin Tank from HeyGears is much more than a simple Resin container: it is an advanced tool that optimizes every stage of the process, from surface finish to material consumption.
Thanks to its high-transparency material technology, the Tank enables smooth, clean surfaces with superior translucency, significantly reducing manual polishing time. In many applications, it is even possible to achieve finishes without post-polishing, speeding up the workflow and improving clinical or laboratory productivity.
When used together with the Pulse Module, the HT Resin Tank reduces peeling force by up to 90% compared to standard trays (like the F2-D from the A2D). This advancement not only makes part removal easier, but also simplifies post-processing and improves the durability of the printed material.
1. High - transparency material tray technology enables the surface of the finished product to be smooth and translucent, reduces the hand - polishing time, and in some applications, achieves a polishing - free effect.
2. When used in combination with the pulse module, it reduces the peeling force by 90% (compared with the F2 - D material tray of A2D), making the post - processing of the finished product simpler.
3. It has a low cost of use and supports self - film replacement.
SPECIFICATIONS
COMPARISON: HT Resin Tank VS. B2-D Resin Tank
Feature
Release Technology
Peel Force Reduction
Surface Finish
Post-Processing
Usage Cost
Compatibility
Recommended Use
HT Resin Tank
High Transparency and Low Peel Force Technology (90% reduction with Pulse Module)
Up to 90% with Pulse Module
Smooth and translucent surfaces; reduces manual polishing
No polishing effect in some applications
Low; manual film change allowed
HeyGears UltraCraft A2D HD + Pulse Module
Translucent dental models and parts with high aesthetic finish
Feature
Release Technology
Peel Force Reduction
Surface Finish
Post-Processing
Usage Cost
Compatibility
Recommended Use
B2-D Resin Tank
Low Peel Force Technology (80% reduction)
Up to 80% without the need For additional module
High layer-to-layer precision; ideal For complex structures
Facilitates support removal with intelligent solutions
Medium; does not allow user film change
HeyGears UltraCraft A2D HD
Complex structures requiring high precision and stability
In addition, as a heated Tank that reduces the viscosity of dental resins, it allows the material to flow more easily back into position, which not only improves print quality but also reduces material consumption and makes Tank cleaning much easier.
Designed For long-term and cost-effective use, the HT Resin Tank offers low operating costs and allows the user to replace the film themselves, ensuring simple and affordable maintenance without the need For specialized technical support.
Image 1: The UltraCraft ecosystem includes 1)
the 3D printer A2D HD,
2) the UltraCraft Wash unit, 3) the Pulse Release Module, and 4) the AirCure curing unit.
DOWNLOADS
