DEPRAG - D52 DRY Dental Milling Unit Set - # DEP-0001
14145_f.jpg)
14144_f.jpg)
14143_f.jpg)
14142_f.jpg)
14141_f.jpg)
Description

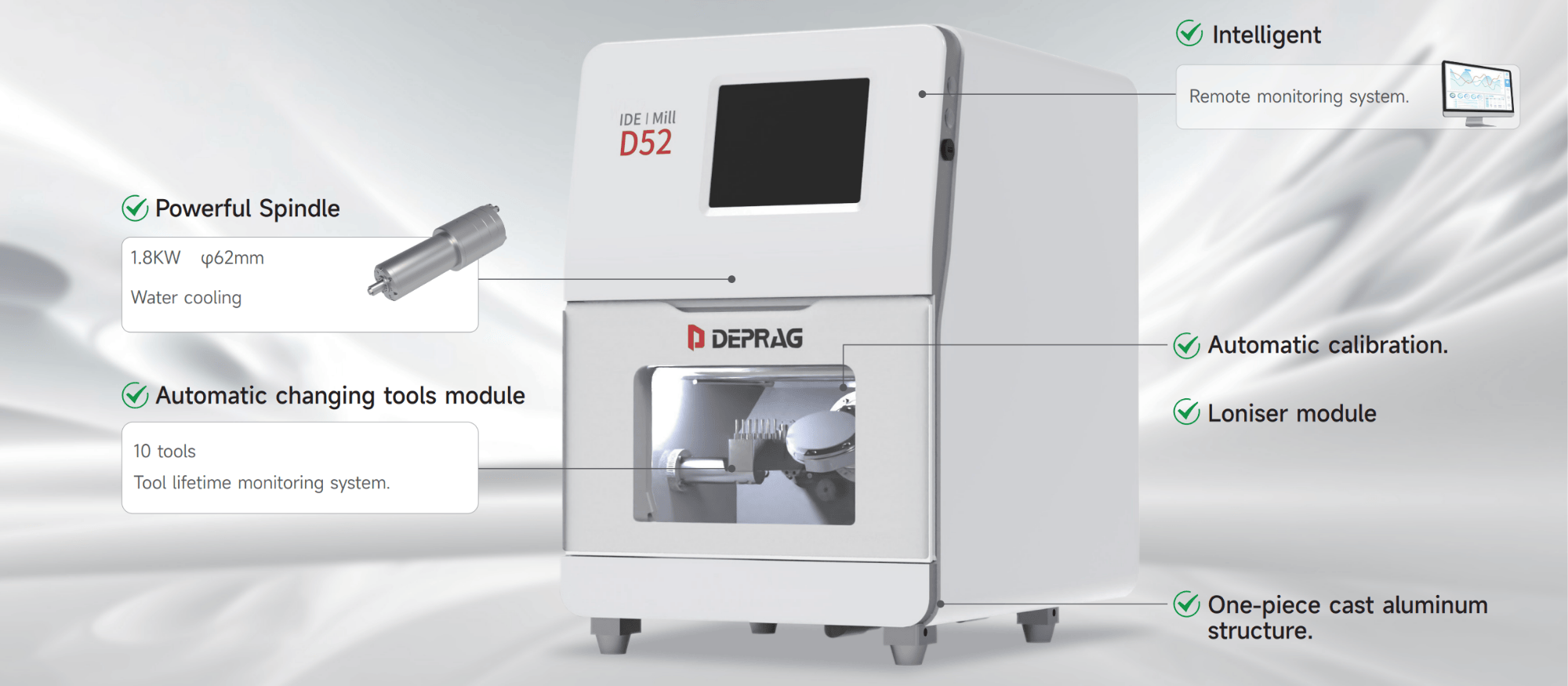

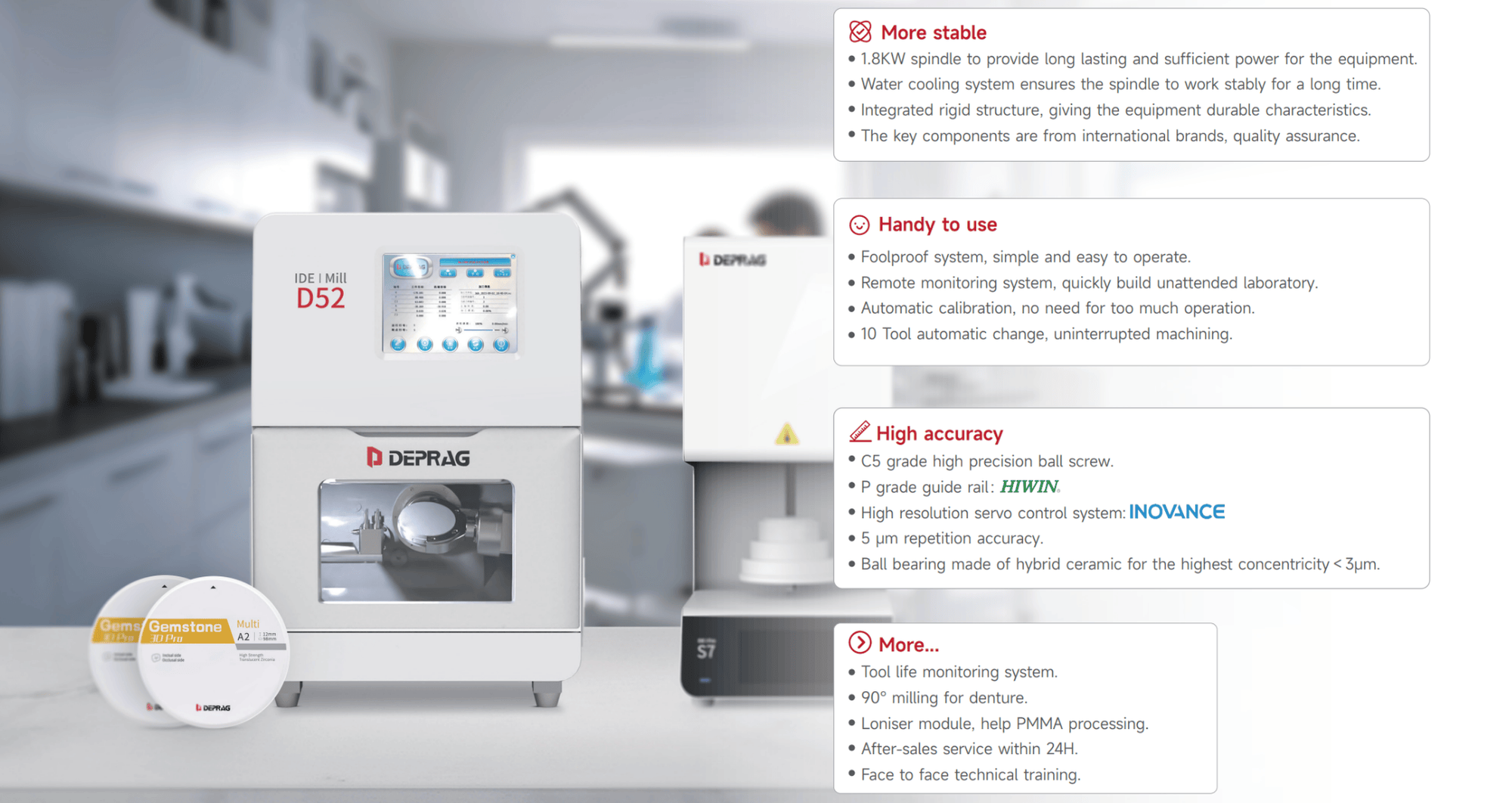

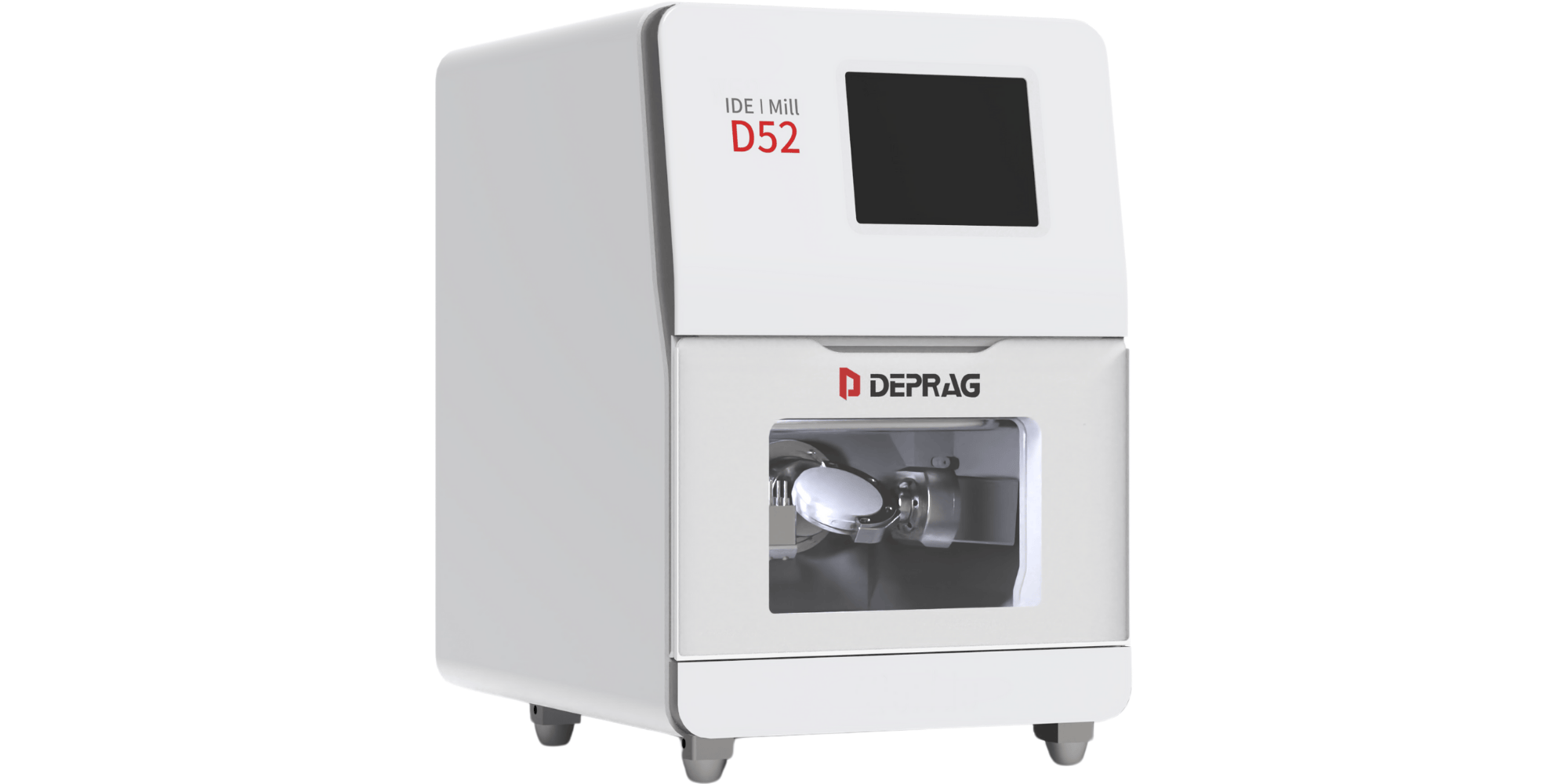

D52
The most economical 5-axis DRY Milling machine for lab
✅ Stable and high accuracy
✅ Low learning cost
Continuous Profit Generation: stable and high accuracy
The D52‘s current longest service record is 10 years, which is still a new record; stable and simple maintenance, NO additional costs; and the D52’s low cost of ownership does not bring additional incidental.
Low Cost of Ownership: 1 training , ready to go.

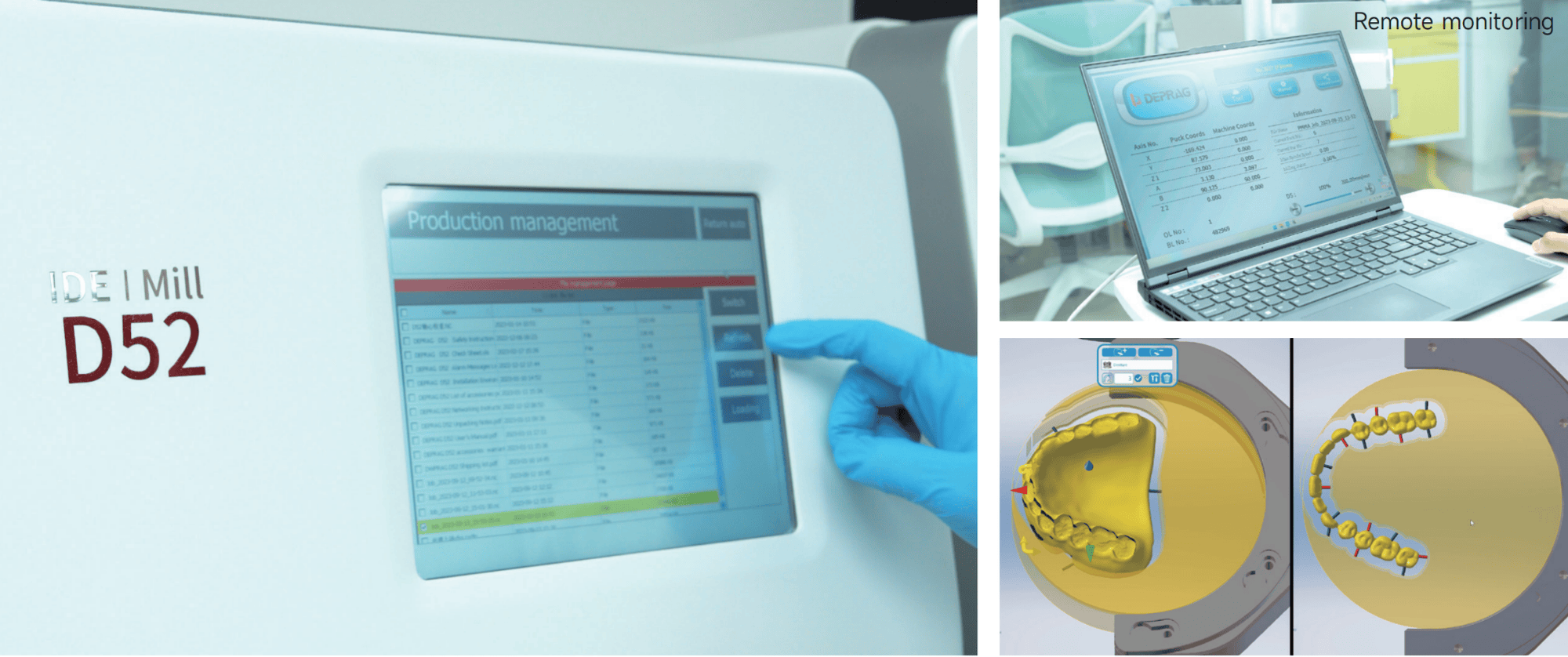

The D52 has Operator-Friendly Control and Software; and we has a strong service team that can guide you through the entire process of setup, nesting, and Milling. In addition to this, we will also cooperate with you on equipment at a low price.
MILLABLE MATERIAL

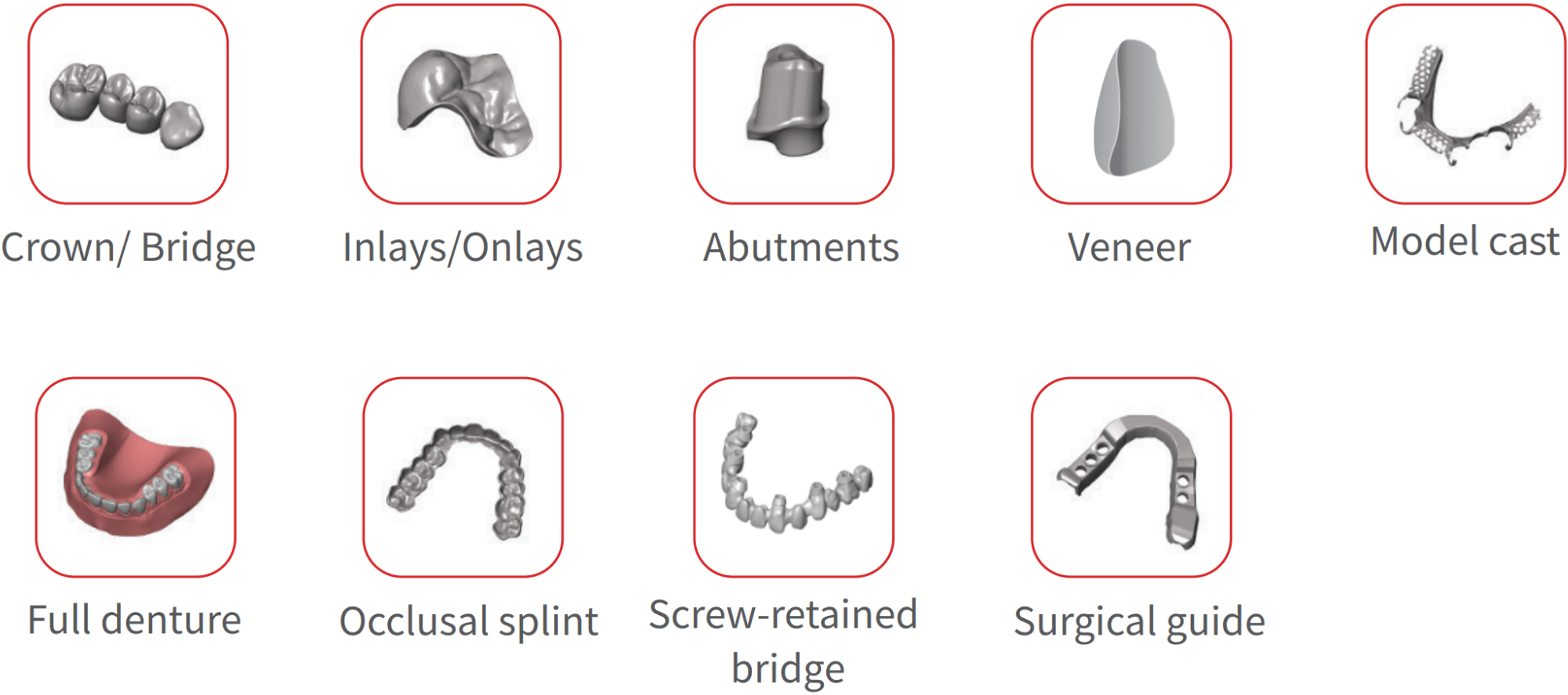

APPLICATIONS

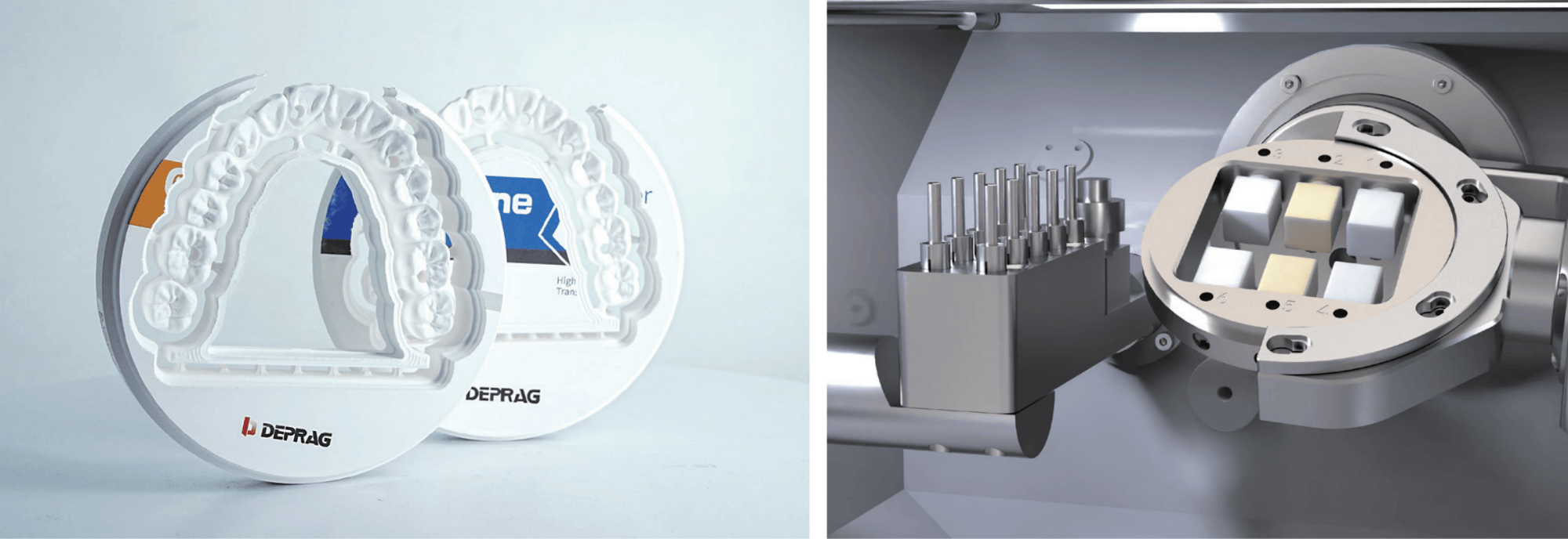

HOLDER TYPES

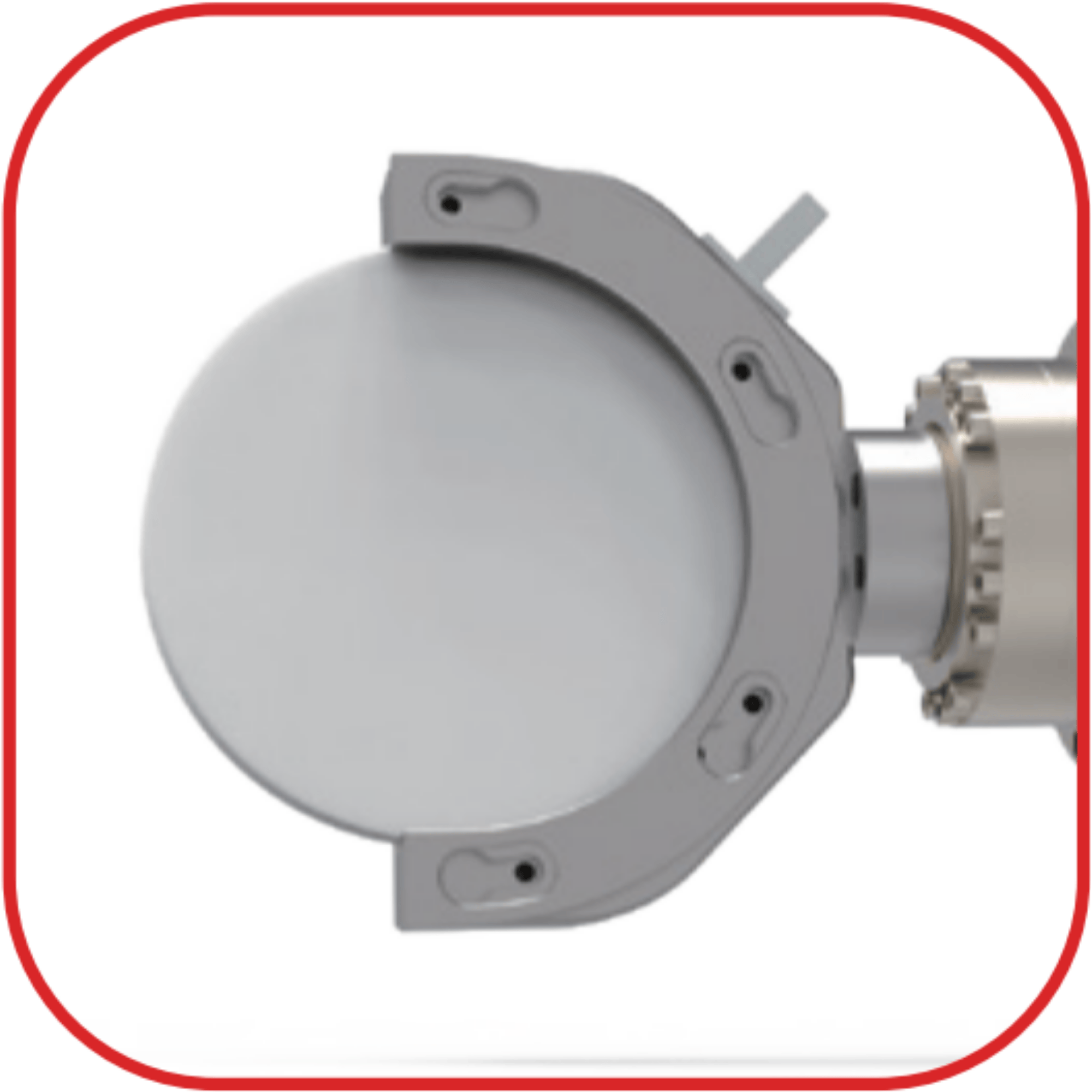

Half-open blank holder(C-CLAMP)
• Standard
• Suitable for processing φ98mm zirconia discs, resin discs, etc
• Enables 5-axis Milling up to 90 degrees axis adjustment
• Maximum material thickness 35mm
Block holder
• Standard
• 6 positions, suitable for zirconia and PMMA block
• 18 * 13 * 15/20 * 15 * 14/20 * 15 * 19/40 * 15 * 14/40 *15 *19/55 * 15.5 * 19 available

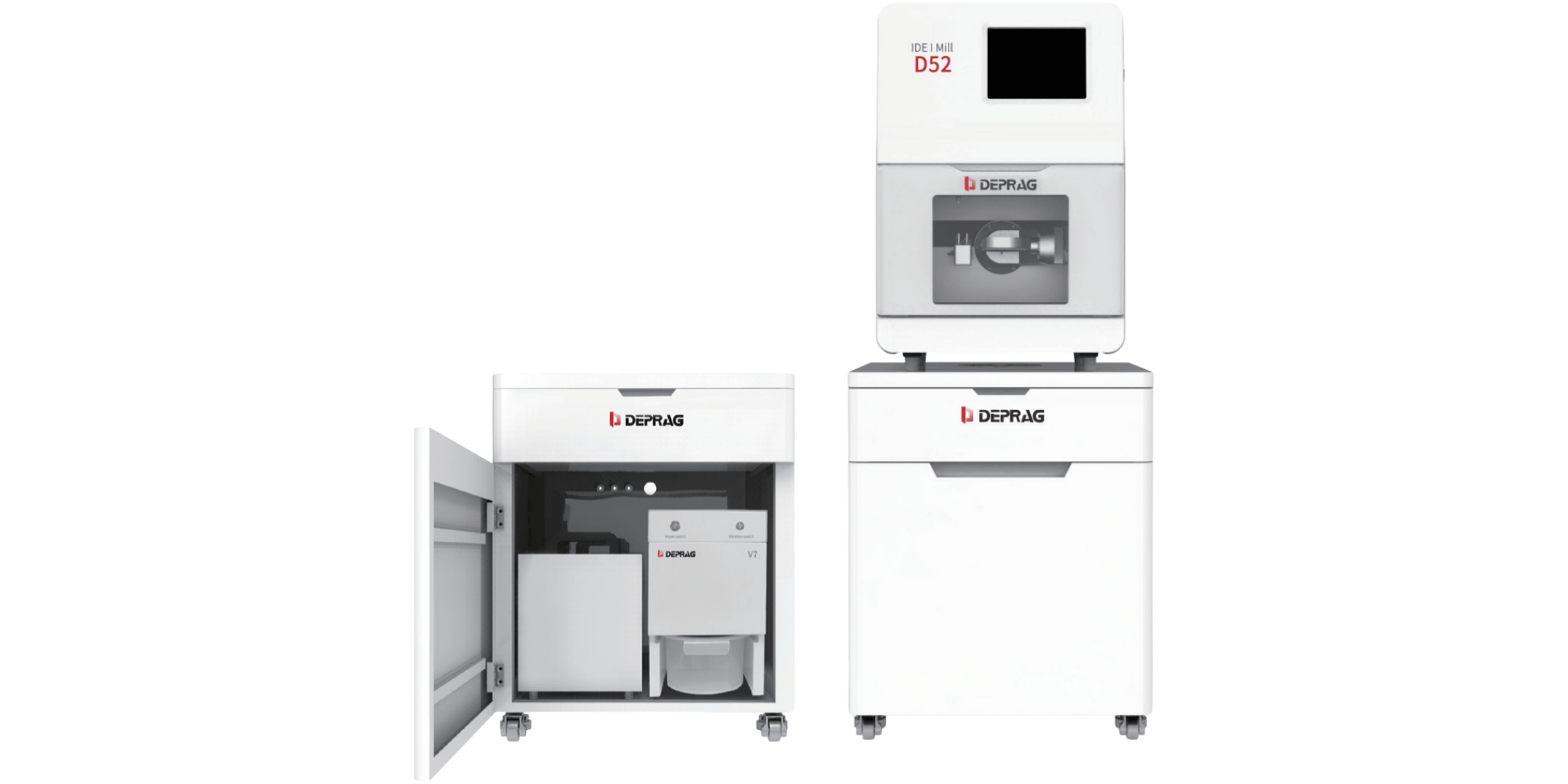

BASE CABINET (Optional)
PARAMETERS
Size
Weight
700*650*800mm
80kg

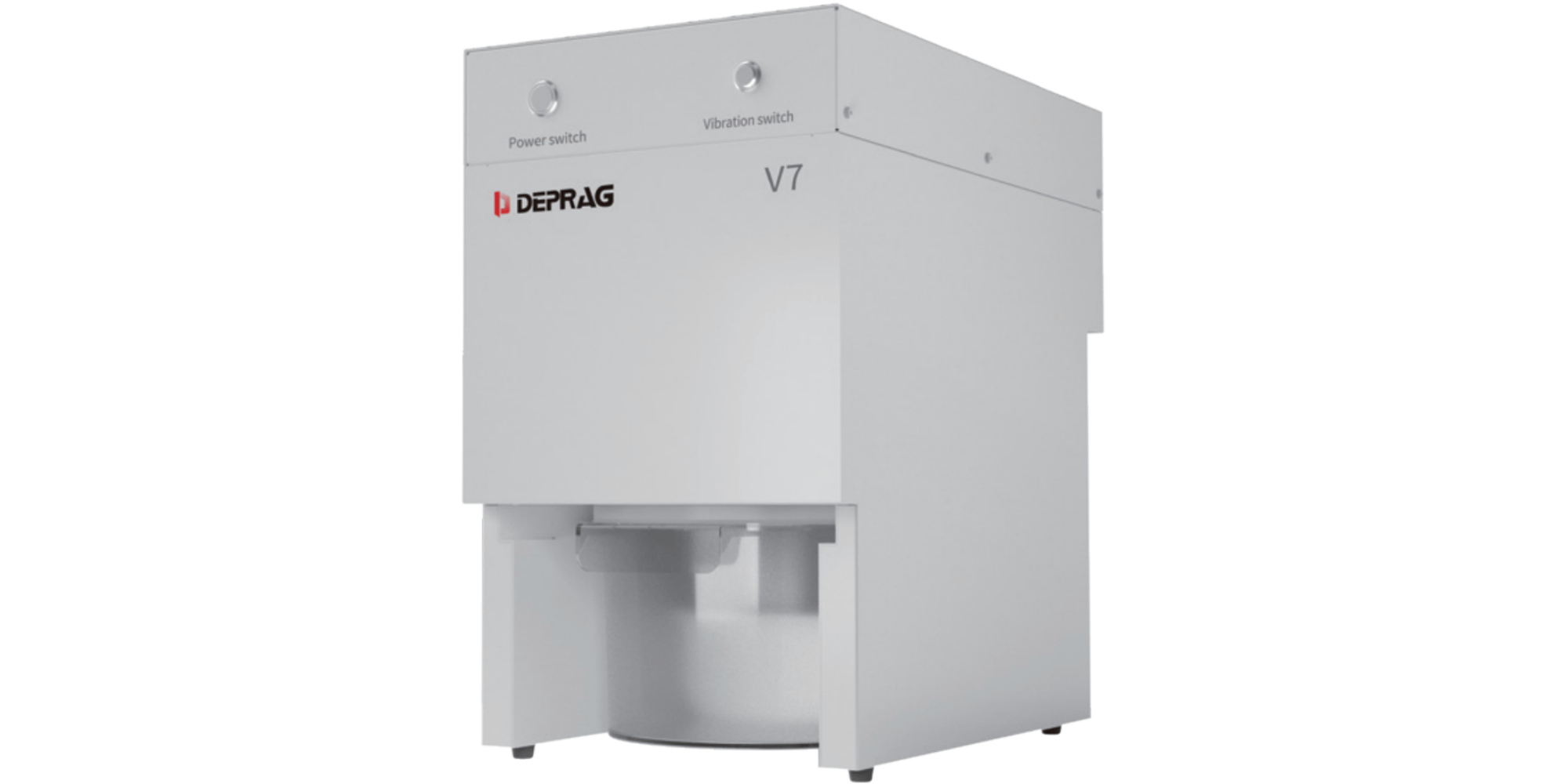

VACUUM CLEANER (Optional)
PARAMETERS
Power
Size
Capacity
360W(220V~50/60HZ)
260mmx420mmx450mm
3.6L

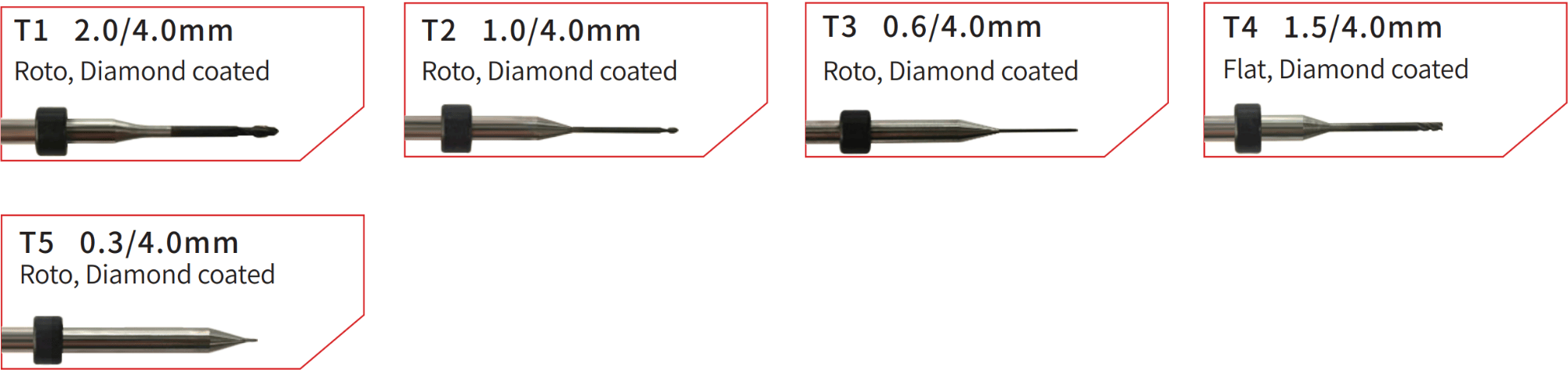

ZIRCONIA Milling BURS

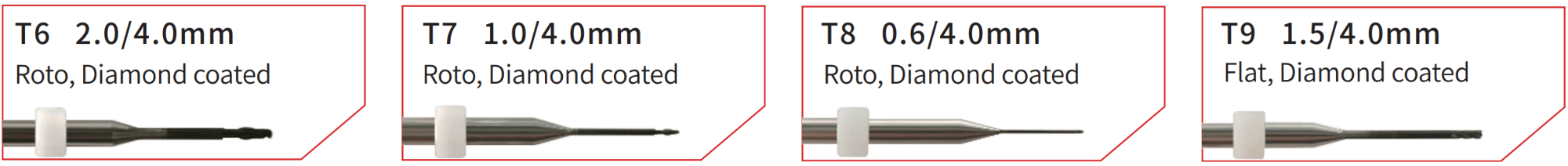

RESIN Milling BURS
GENERAL
Processing mode
Millable material
Applications
Power

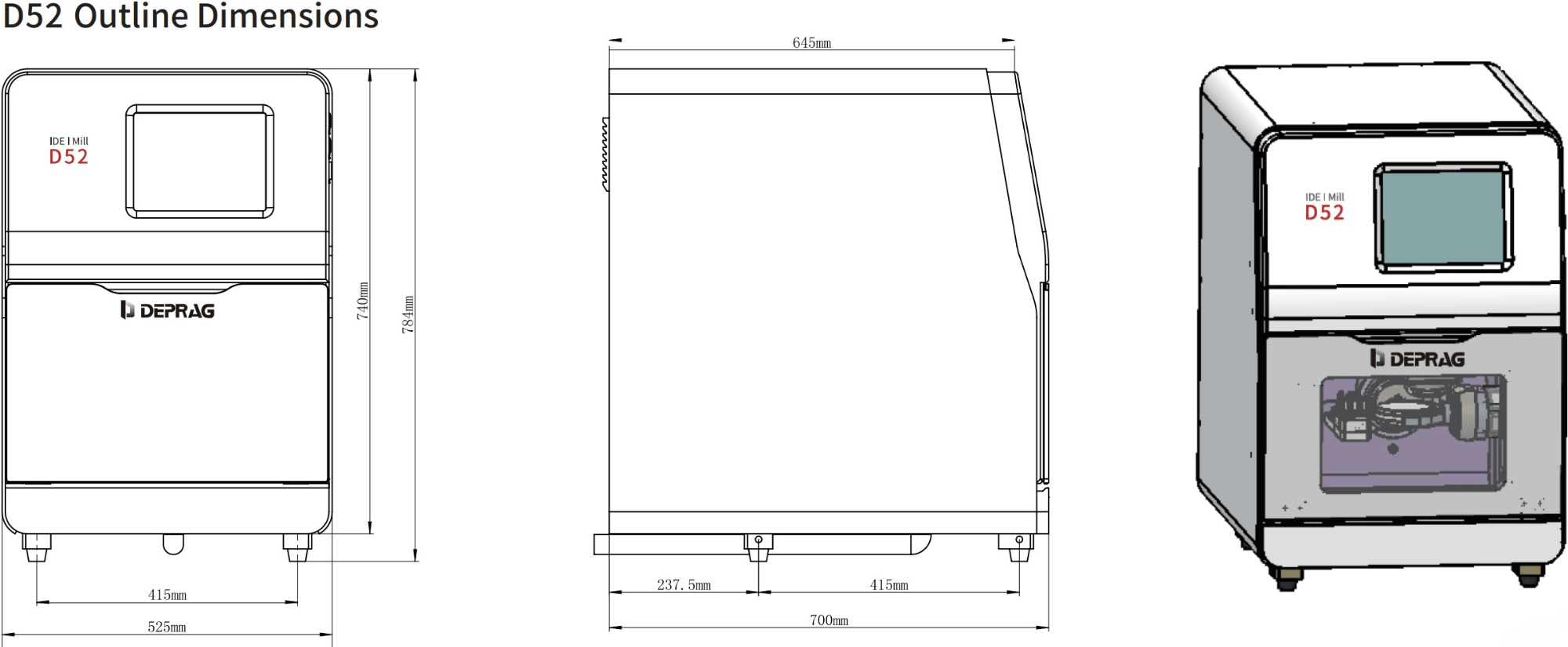

Dimension
Weight
Air supply pressure
Air flow
DRY
Zirconia, Wax, PMMA, Composite resin
Crown | Bridge, Veneer, Inlay | Onlay, Abutment, Denture, Screw-retained bridge, Model cast, Occlusal splint, Surgical guide
220V/2.5kW
525 × 700 × 784 mm
150 kg
>0.5 MPa
>90 L/min
STRUCTURE PARAMETERS
Basic construction
Number of axes
Rotary axis A-axis
Rotary axis B-axis
Tool
Aluminium
5
360°
+30°~-90°
10
SPINDLE
Speed
Power
Positioning/Repositioning accuracy
Collet
Cooling method
60,000 rpm
1.8kW
0.01/ 0.005 mm
Φ6 mm
Water cooling
APPROVALS
All models
North America model
CE
FCC
SCOPE OF DELIVERY
CAM Software
Clamps
Millbox / Hyperdent / WorkNC available
Half-open blank holder(C-CLAMP)
Block holder
