DEKEMA - AUSTROMAT 664i G2 Inverted - # 105549-02
Earn up to 14,607 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
DEKEMA · Zirconia Sintering Furnace

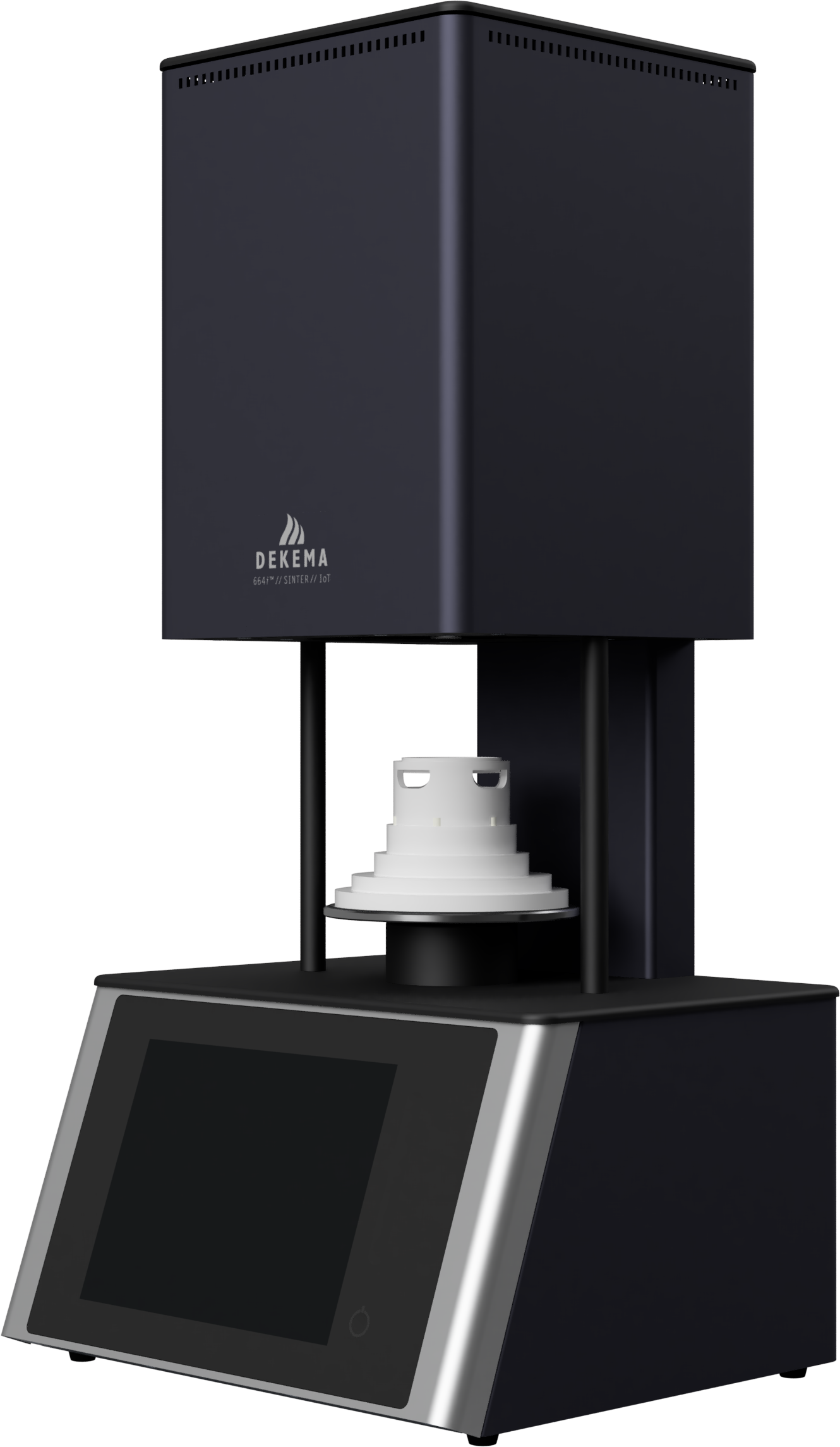

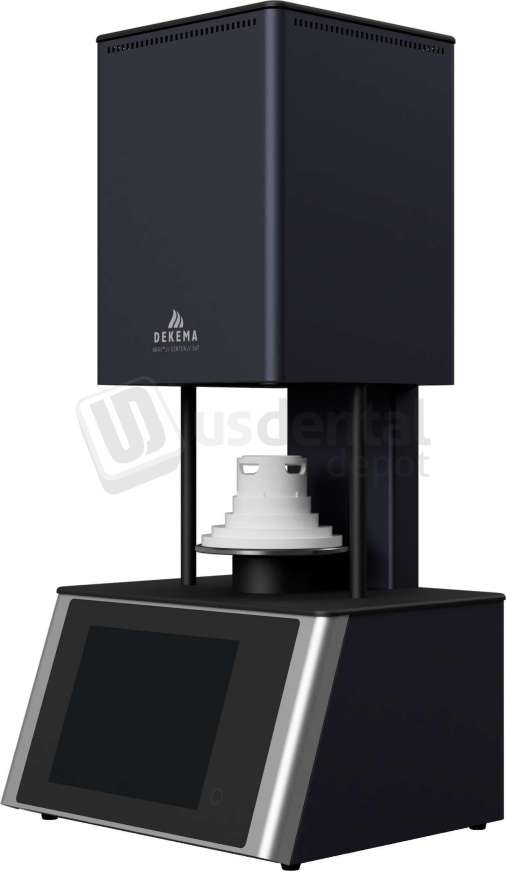

DEKEMA AUSTROMAT 664i G2 Inverted
USDD #489730 · MFG #105549-02 · Inverted · Made in Germany since 1973
Overview
The DEKEMA AUSTROMAT 664i G2 Inverted is a fast, dynamic, compact-chamber zirconia sintering furnace for labs that need sub-one-hour cycles without sacrificing precision. Two silicon-carbide (SiC) heating elements and a 65 mm platform sinter up to 40 units per level — 80 across the patented two-level table — at temperatures up to 1,530°C.
Key Features
- Compact-chamber design — the fastest-cycling DEKEMA in its class
- Two silicon-carbide (SiC) heating elements for homogeneous heat
- 65 mm platform: up to 40 units/level, 80 across the two-level table
- Temperatures up to 1,530°C (extensible to 1,560/1,600°C, optional)
- Sub-1-hour cycles; energy-efficient, small footprint
- AutoDry lift-controlled drying; Platinum/Platinum-Rhodium thermocouple
Technical Specifications
Furnace type: Zirconia sintering furnace (Series 6)
Max. temperature: up to 1,530°C (ext. 1,600°C)
Heating elements: 2 × SiC
Platform: 65 mm
Capacity: up to 40/level, 80 (2 levels)
Cycle: sub-1-hour
Made in: Germany
Configuration: Inverted
Brand: DEKEMA (Made in Germany)
Max. temperature: up to 1,530°C (ext. 1,600°C)
Heating elements: 2 × SiC
Platform: 65 mm
Capacity: up to 40/level, 80 (2 levels)
Cycle: sub-1-hour
Made in: Germany
Configuration: Inverted
Brand: DEKEMA (Made in Germany)
Why You'll Love It
- Sub-one-hour zirconia cycles without sacrificing accuracy or color
- High capacity per cycle keeps a busy mill or grinding line fed
- AutoDry / SiC technology protects shade stability and precision
How It Compares
Cross-brand alternatives in the same furnace category. Values are manufacturer-stated and approximate.
| Feature | DEKEMA AUSTROMAT (this furnace) | Ivoclar Programat S | Dental Direkt |
|---|---|---|---|
| Type | Zirconia sintering | Zirconia sintering | Zirconia sintering |
| Max temperature | up to 1,530°C (ext 1,600) | ~1,600°C | ~1,600°C |
| Heating elements | 2–3 × SiC | MoSi2 | MoSi2 |
| Capacity / platform | 40/level, up to 80, Ø65–100 mm | ~20–60 units | varies |
| Cycle | Sub-1-hour, AutoDry | Speed / long | Speed |
See It In Action
DEKEMA AUSTROMAT 674i — overview
Documents & Downloads
- DEKEMA product catalog, instruction manuals & brochures available on request — use the form above or call 954-874-6325.
- Manufacturer: DEKEMA » · US Dental Depot is an authorized DEKEMA dealer (USA).
Authorized DEKEMA dealer — US Dental Depot
Installation guidance, voltage selection, accessories and genuine spare parts — our team helps you specify the right AUSTROMAT setup for your lab.
