DEKEMA - AUSTROMAT 654 press-i-dent - # 105059
Earn up to 10,171 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

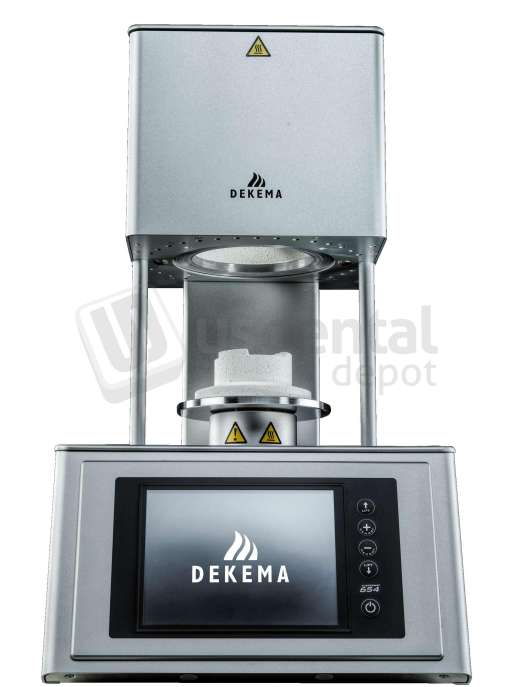

AUSTROMAT 654 press-i-dent
Combi press & firing furnace — fire and press ceramics in one machine.
SKU: 105059 | Brand: DEKEMA | Category: Fire + Press
The DEKEMA AUSTROMAT 654 press-i-dent is a versatile combi furnace for both ceramic firing and press sintering. Its patented upward pressing system with electromechanical feed accommodates standard ring systems up to Ø70mm and heights up to 88mm, with individually adjustable pressing force from 30 to 350N. Three plungers can be pressed simultaneously, making it the most productive solution for IPS e.max and press ceramic workflows.
► Key Features
- Combines ceramic firing AND press sintering in one furnace
- Maximum firing/pressing temperature: 1,200°C
- Patented upward pressing system with electromechanical feed
- Pressing travel: max. 26 mm
- Pressing force: 30–350 N, adjustable in 10 steps
- Ring system capacity: up to ×70mm diameter, 88mm height
- Supports up to 3 press plungers simultaneously
- 230V, 50/60 Hz | Max. power: 1,500 W (incl. vacuum pump)
► Technical Specifications
| Specification | Value |
|---|---|
| Max. Temperature | 1,200°C |
| Pressing Travel | Max. 26 mm |
| Pressing Force | 30–350 N (10 adjustable steps) |
| Ring System | Up to ×70mm, H 88mm |
| Dimensions (W×D×H) | 38.3 × 34.3 × 65.3 cm |
| Weight | 22 kg |
| Power Supply | 230V, 50/60 Hz |
| Max. Power Consumption | 1,500 W (incl. vacuum pump) |
► Downloads & Resources
- DEKEMA Official Product Page — AUSTROMAT 654 press-i-dent
- DEKEMA Downloads — Instruction Manuals, Catalogs & Brochures
- US Dental Depot — Authorized DEKEMA Dealer (USA)
[DEKEMA, AUSTROMAT 654 press-i-dent, AUSTROMAT 654, 105059, Fire + Press, dental furnace, ceramic furnace, porcelain firing]
