Description

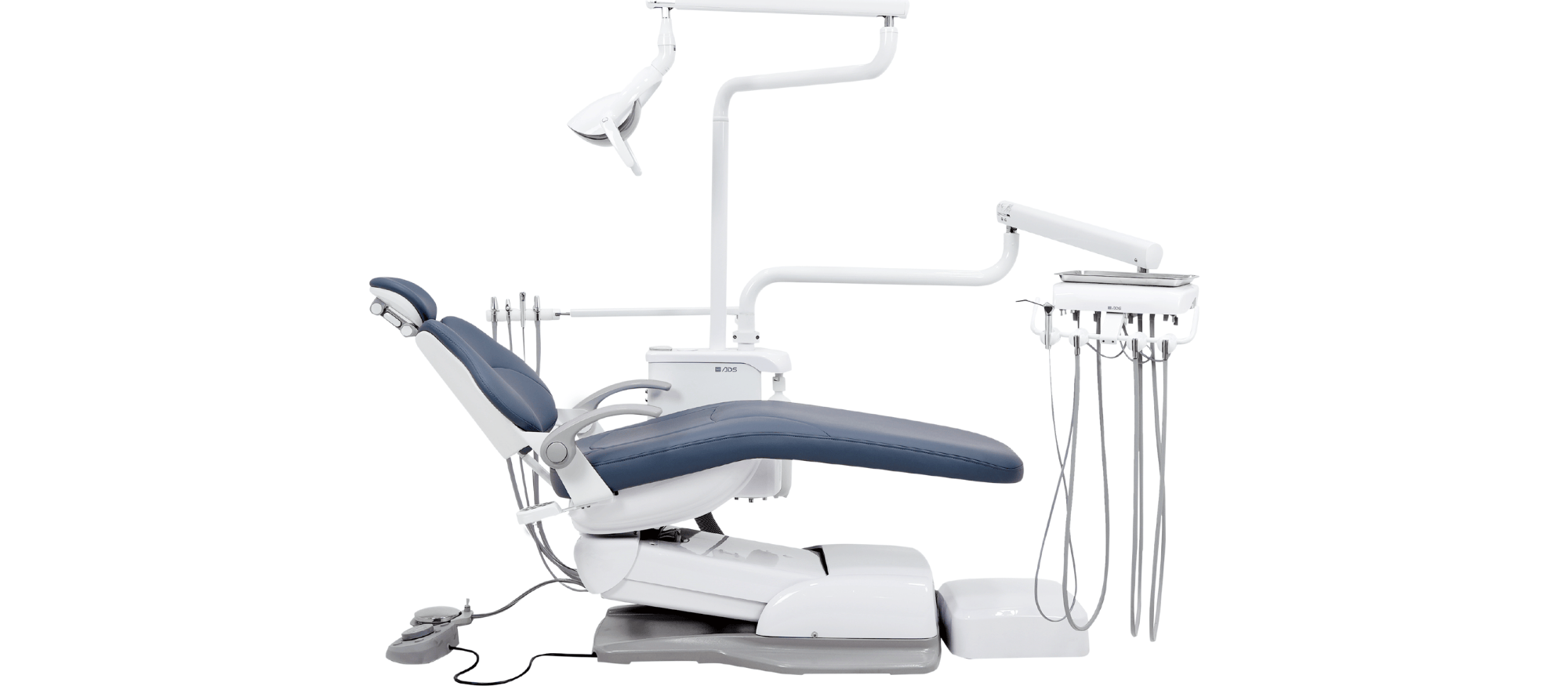

AJ16 CLASSIC 100

■ OTP Operatory Package without cuspidor

PRODUCT DESCRIPTION

■ AJ16 Luxury hydraulic chair with 3 programmable positions,

■ Double articulating headrest,

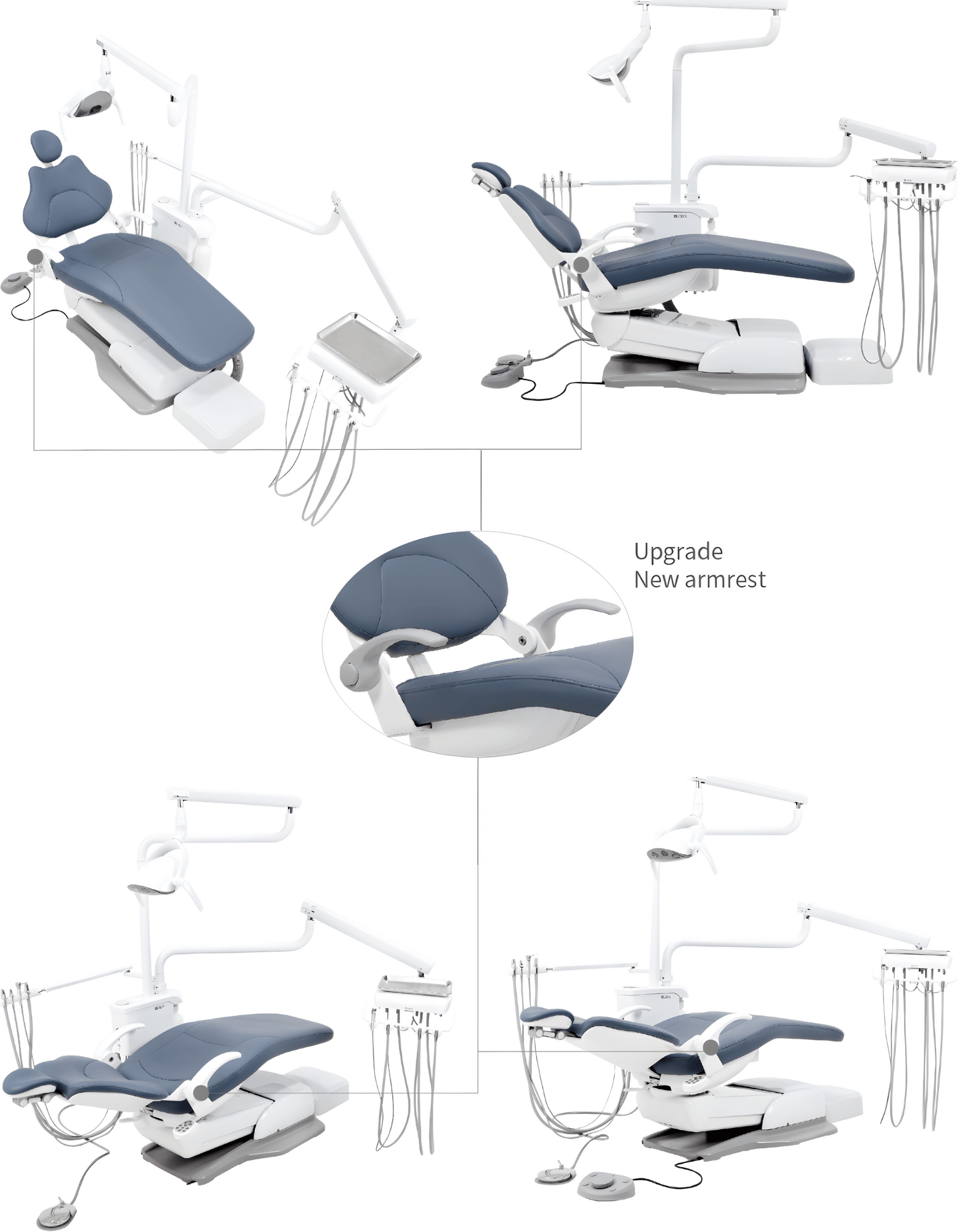

■ Swing up/down armrest,

■ Cast iron chair frame,

■ Cast aluminum backrest stand,

■ Cast aluminum base,

■ 60 degrees seat rotation, chair safety switch,

■ Wide backrest, Upgraded fiber leather,

■ One touchpad attached on armrest, Foot control

STANDARD FEATURES

■ Classic dentists control head with 3 auto H.P. control,

■ Individual water coolant controls,

■ Master handpiece air coolant adjustment,

■ Asepsis handpiece tubing,

■ Master on/off switch,1 doctor syringe, Wet/Dry foot control,

■ Stainless steel tray with non-slip pad, Flex arm air brake switch,

■ Classic 100 Post mounted utility (PMU) with steel side box,

■ City water/bottled system, Water outlet and airQD, Solids collector,

■ 2 HVE, 1SE, 1 syringe on telescoping assistant's control,

■ Junction box with air/water filters, regulators, master shut-off valves,

■ 5 ft.umbilical Post mount LED light with sensor control, 3 level intensity adjustment

PACKAGE INCLUDES

PART NUMBER

A091602

A0711001

A0502520

A0710010

A0602600

A11202

DESCRIPTION

A J 1 6 Hydraulic Chair
A J 1 6 wide backrest hydraulic chair with 3 programmable postions and fiber leather

Classic 100 delivery system
Classic Over the patient (OTP) dental unit with PMU

Classic Post mount Dentist's Control
Classic dentist's control head with 3 auto H.P.control, 1 doctor syringe,
Wet/Dry foot control, Stainless steel tray with non-slip pad, Rigid arm and Flex arm

Classic 100 Post Mounted Utility (PMU)
Classic 100 Post mounted utility (PMU) with steel side box, City water/bottled system,
Water outlet and air QD, Telescoping assistant's arm with 2 HVE,
1SE, 1 syringe, Junction box with valves

Post mount Whale LED light
Post mount touchless sensor Whale LED light with 30" light post

Chair adapter B
Chair adapter for ADS chairs

PACKING DIMENSIONS (L*W*H)

Chair

Upholstery

Classic Dentist's Control

PMU

Dental Light

47.6*30.5*31.3"

50.4*25*8.9"

30.4*19.1*12"

43.9*21.1*13.7"
