Description

AJ16 BEYOND401

■ Operatory Packages

PRODUCT DESCRIPTION

■ AJ16 Luxury hydraulic chair with 3 programmable positions,

■ Double articulating headrest,

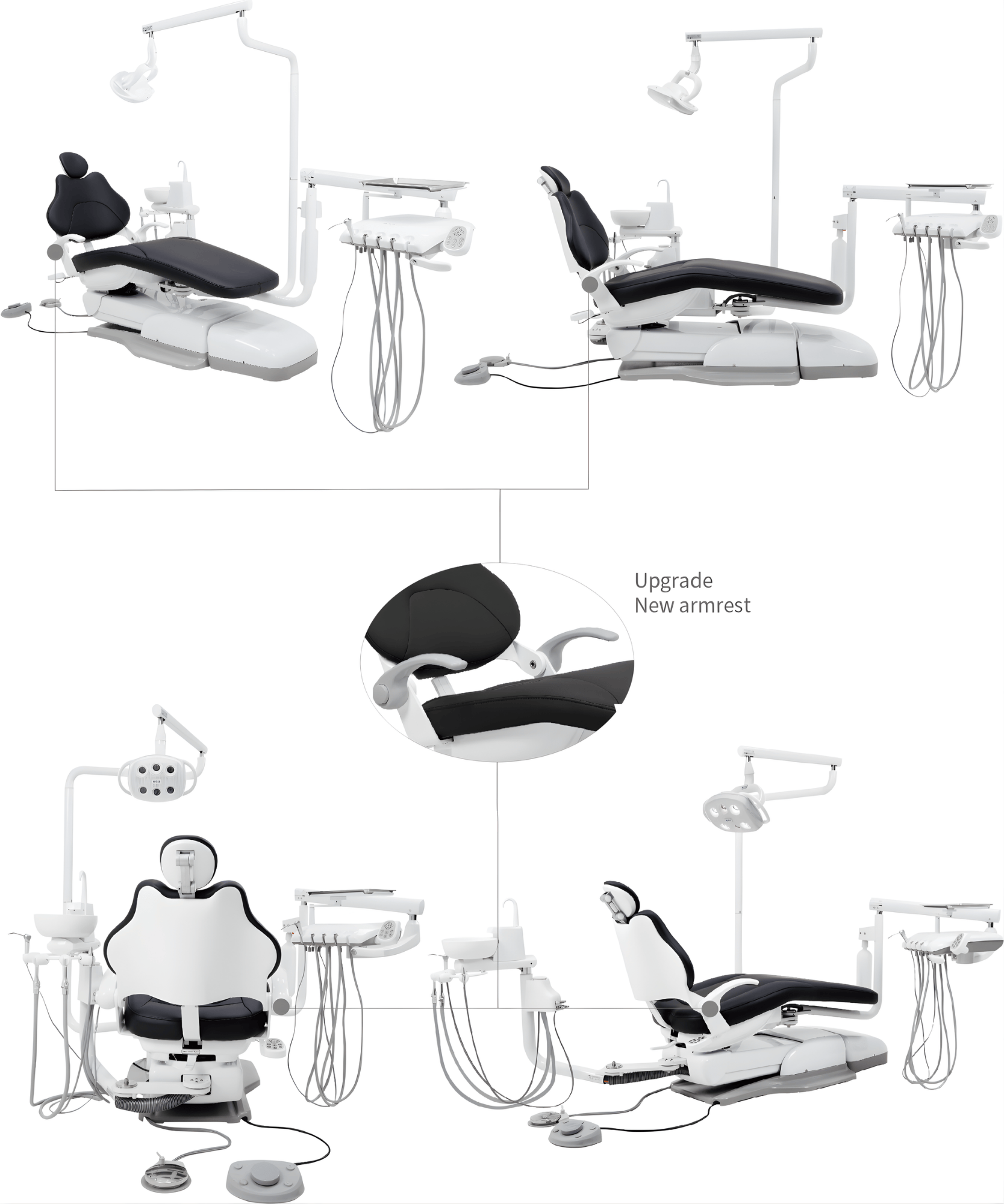

■ Swing up/down armrest,

■ Cast iron chair frame,

■ Cast aluminum backrest stand,

■ Cast aluminum base,

■ 60 degrees seat rotation, chair safety switch,

■ Wide backrest, Upgraded fiber leather,

■ One touchpad attached on armrest, Foot control

STANDARD FEATURES

■ Swing Beyond dentist's control head, Standard touchpad,

■ Cast aluminium delivery head base, double pivot delivery head with 3 auto H.P. control

■ Individual water coolant controls

■ Master handpiece air coolant adjustment, Asepsis handpiece tubing,

■ Master on/off switch, 1 doctor syringe,

■ Wet/Dry foot control, Stainless steel tray with non-slip pad,

■ City/bottled water system, 5 ft umbilical,

■ Junction box with air/water filters, regulators, master shut-off valves.

■ Chair mounted swing rear assistant vacuum package,

■ Assistant touchpad, Water outlet and air QD on assistant tray,

■ Solids collector,2 HVE,1SE, 1 syringe

■ Swing mount LED light with sensor control,3 level intensity adjustment

PACKAGE INCLUDES

PART NUMBER

A091602

A0724012

A0502551

A0402400

A0602673

A11206

DESCRIPTION

A J 1 6 Hydraulic Chair
A J 1 6 wide backrest hydraulic chair with 3 programmable postions and fiber leather

Beyond-401 delivery system
Beyond 401 Left/Right Swing Luxury Delivery System with 3 auto HP control, dentist touchpad,
bottled water system, Swing mount side box, cuspidor and assistant vac pac with 2HVE,
1SE and 1 syringe, assitant touchpad.

Beyond Swing mount dentist's control
Swing Beyond dentist's control head, Standard touchpad, Cast aluminium delivery head base,
double pivot delivery head, 3 auto H.P. control, 1 doctor syringe,
Wet/Dry foot control, Stainless steel tray, City/bottled water system,
5 ft umbilical, Junction box with valves

Classic-201/Beyond-401 Swing mount cuspidor and assistant vacuum package
Chair mounted swing rear cuspidor and assistant vacuum package,
2 HVE,1 SE, 1 syringe

Swing mount Amber II LED light
Swing mount touchless sensor Amber II LED Dental Light
with 24"light post and swing compass arm

Chair adapter E

PACKING DIMENSIONS (L*W*H)

Chair

Upholstery

Beyond Dentist's Control

Swing mount assistant vacuum package

Beyond Junction box

Dental Light

47.6*30.5*31.3"

50.4*25*8.9"

30.8*23.1*14.1"
