Description

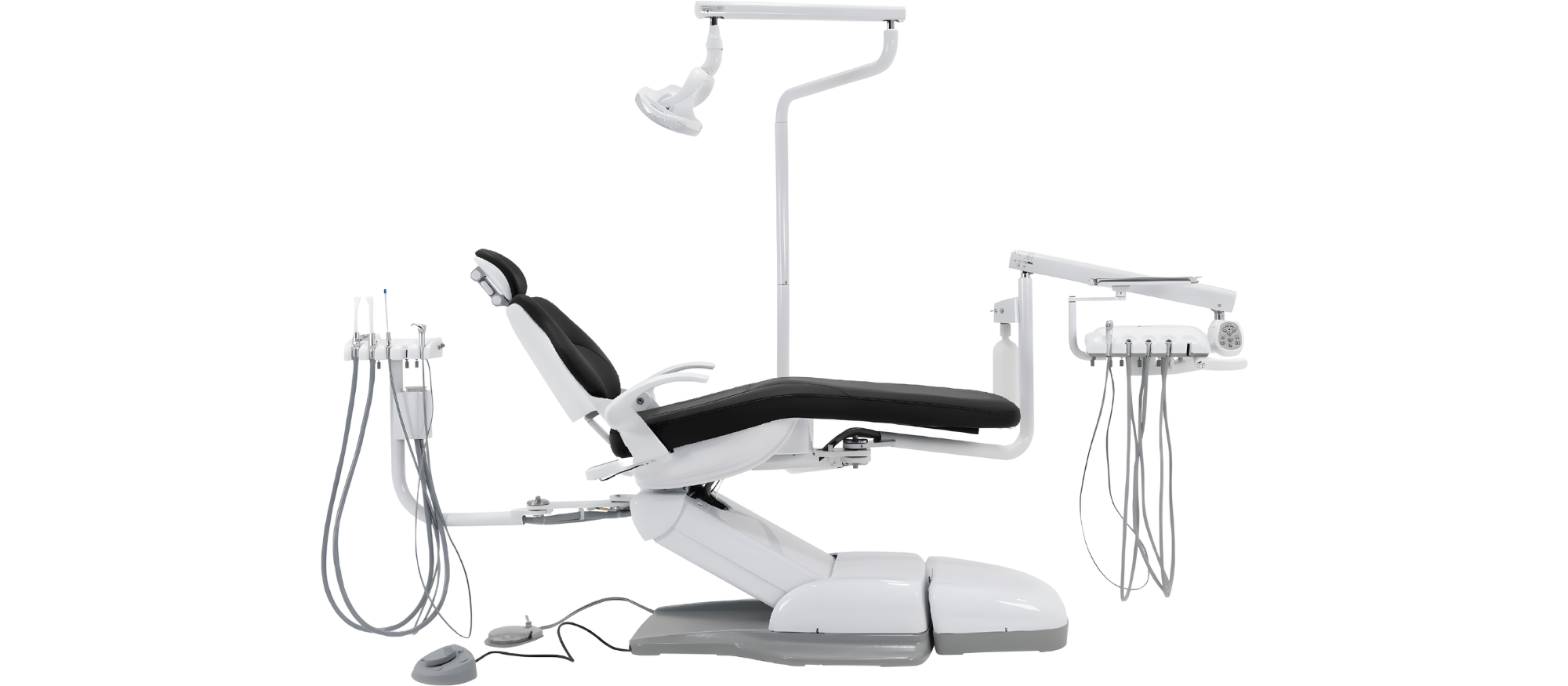

AJ16 Beyond 400

Left/Right Swing Operatory Package

STANDARD FEATURES

STANDARD FEATURES: AJ16 BEYOND400:

■ AJ16 Luxury hydraulic chair, with 3 programmable positions,

■ Double articulating headrest, Swing up/down armrest,

■ Wide backrest, upgraded fiber leather, Cast iron chair frame,

■ Cast alurminiun backrest stand, Cast aluminium base,

■ 60 degrees seat rotation, chair safety switch,

■ One touchpad, Foot control

SWING BEYOND DENTIST'S CONTROL HEAD & STANDARD TOUCHPAD:

■ Cast aluminium delivery head base, double pivot delivery head with 3 auto H.P. control

■ Individual water coolant controls

■ Master handpiece air coolant adjustment, Asepsis handpiece tubing,

■ Master on/off switch, 1 doctor syringe,

■ Wet/Dry foot control, Stainless steel tray with non-slip pad,

■ City/bottled water system, 5 ft umbilical,

■ Junction box with air/water filters, regulators, master shut-off valves.

CHAIR MOUNTED SWING REAR ASSISTANT VACUUM PACKAGE:

■ Assistant touchpad, Water outlet and air QD on assistant tray,

■ Solids collector, 2 HVE,1SE, 1 syringe

■ Swing mount LED light with sensor control, 3 level intensity adjustment

PACKAGE INCLUDES

PART NUMBER

A091602

A0724003

A0502551

A0332302

A0602673

A11204

DESCRIPTION

A J 1 6 Hydraulic Chair
AJ16 wide backrest hydraulic chair with 3 programmable postions and fiber leather

Beyond-400 delivery system
Beyond 400 Left/Right Swing Delivery System with 3 auto HP control, dentist touchpad, bottled water system, Swing assistant vac pac with 2HVE, 1SE and 1 syringe, assitant touchpad.

Beyond Swing mount dentist's control
Swing Beyond dentist's control head, Standard touchpad, Cast aluminium delivery head base, double pivot delivery head, 3 auto H.P. control, 1 doctor syringe, Wet/Dry foot control, Stainless steel tray, City/bottled water system, 5 ft umbilical, Junction box with valves

Beyond Swing mount assistant vacumm package
Chair mounted swing rear assistant vacumm package, Assistant touchpad, 2 HVE,1SE, 1 syringe

Swing mount Amber II LED light
Swing mount touchless sensor Amber IILED Dental Light with 24" light post and swing compass arm

Chair adapter D

OPTIONAL

PART NUMBER

A121532

A121533

A11302

A120401

A120403

A120301

A121902
