Description

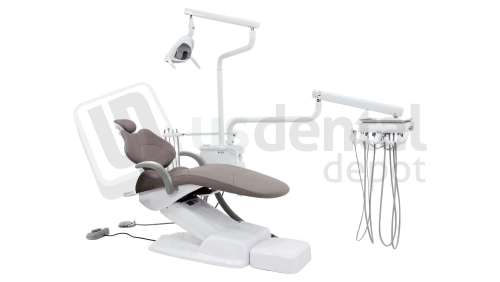

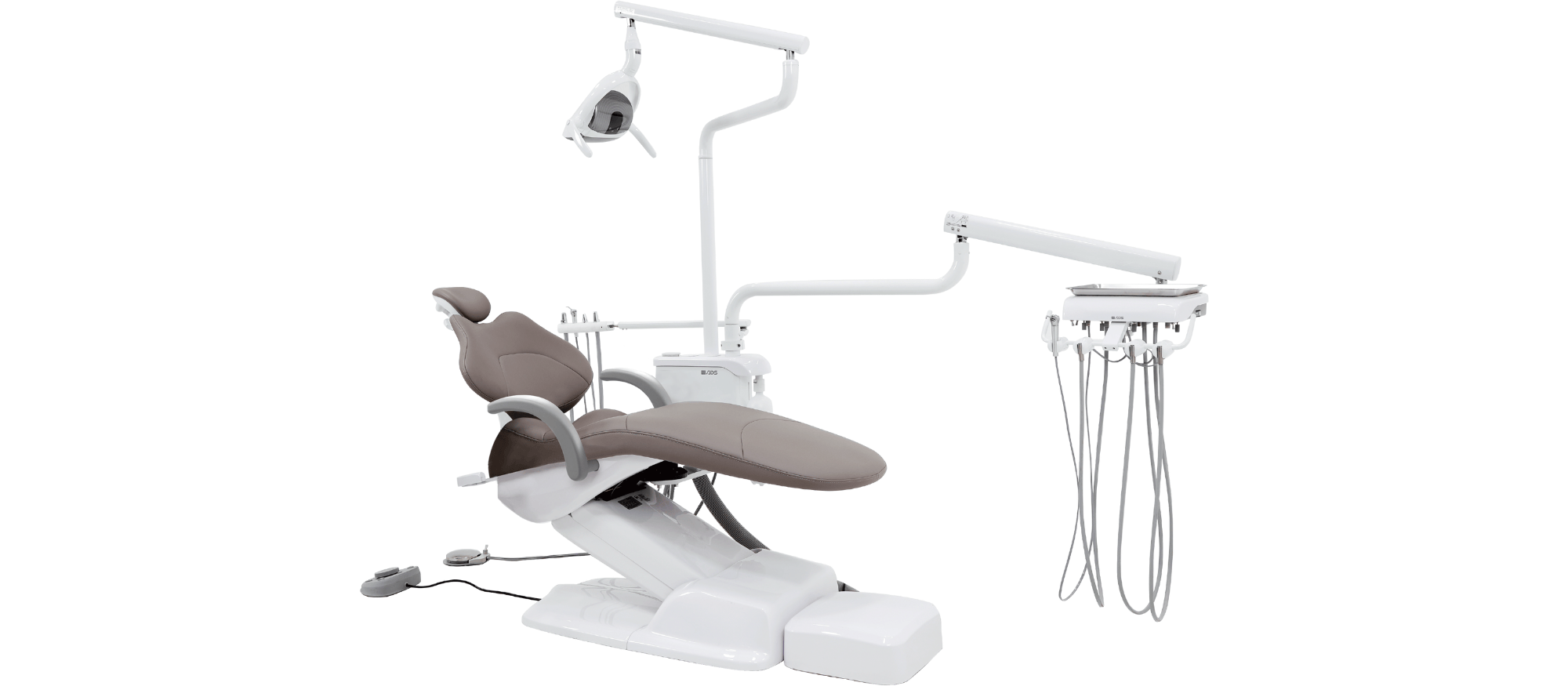

AJ12 CLASSIC 100

OTP Operatory Package without cuspidor

PRODUCT DESCRIPTION

■ AJ12 Electromechanical chair with 3 programmable positions,

■ Articulating headrest,

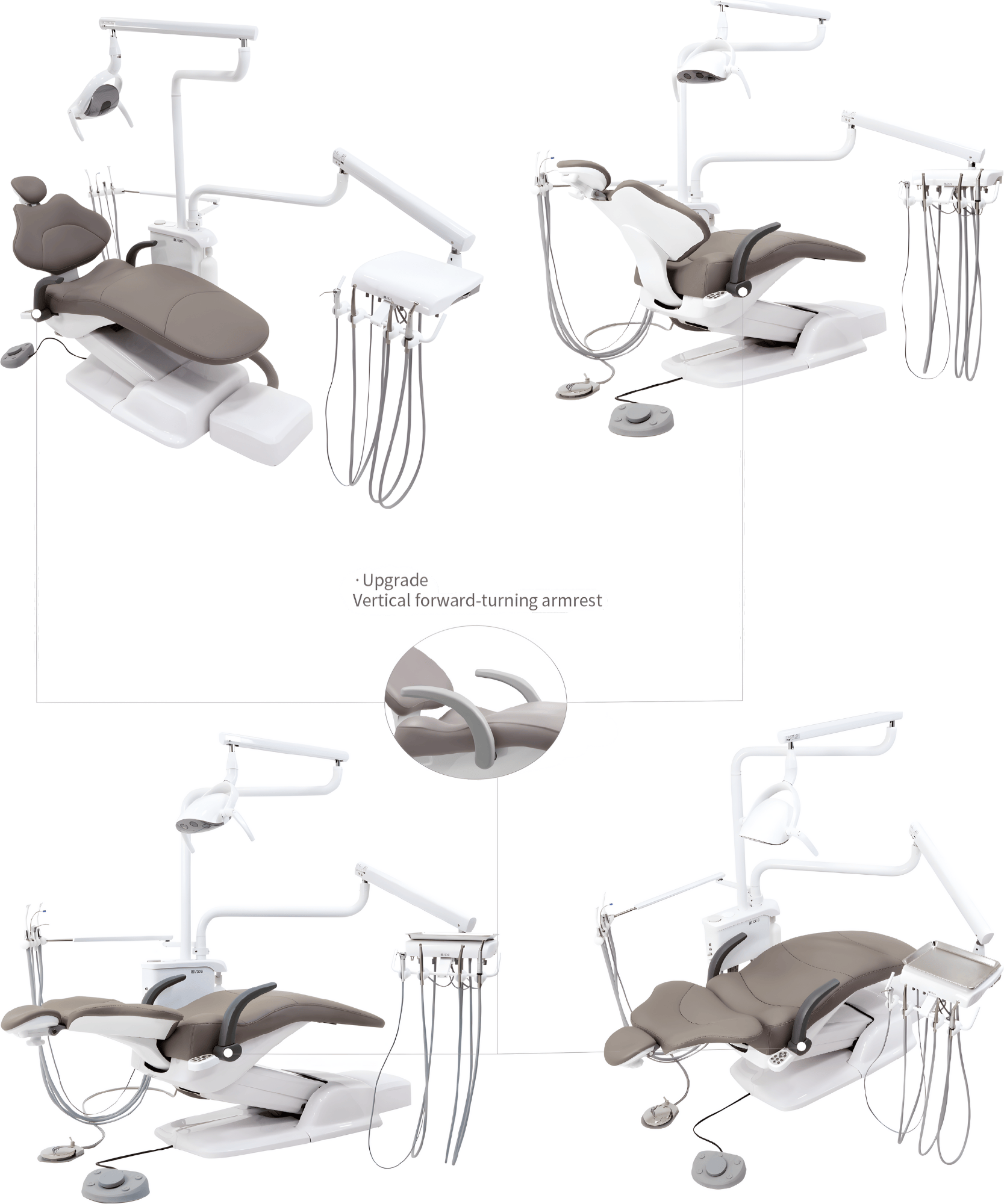

■ Vertical forward-turning armrest,

■ Steel backrest stand,

■ Steel base plate,

■ Chair safety switch,

■ Wide backrest,

■ Upgraded fiber leather,

■ One touchpad, Foot control

STANDARD FEATURES

■ Classic dentist's control head with 3 auto H.P. control,

■ Individual water coolant controls,

■ Master handpiece air coolant adjustment,

■ Asepsis handpiece tubing,

■ Master on/off switch, 1 doctor syringe, Wet/Dry foot control

■ Stainless steel tray with non-slip pad, Flex arm air brake switch

■ Classic 100 Post mounted utility (PMU) with steel side box,

■ City water/bottled system, Water outlet and air QD, Solids collector,

■ 2 HVE, 1SE, 1 syringe on telescoping assistant's control,

■ Junction box with air/water filters, regulators, master shut-off valves,5 ft. umbilical

■ Post mount LED light with sensor control, 3 level intensity adjustment

PACKAGE INCLUDES

PART NUMBER

A091201

A0711001

A0502520

A0710010

A0602600

A11202

DESCRIPTION

A J 1 2 EL Chair
Electric mechanical patient chair with 3 programmable positions and fiber leather

Classic 100 delivery system
Classic Over the patient (OTP) dental unit with PMU

Classic Post mount Dentist's Control
Classic dentist's control head with 3 auto H.P.control,
1 doctor syringe, Wet/Dry foot control,
Stainless steel tray with non-slip pad, Rigid arm and Flex a

Classic 100 Post Mounted Utility (PMU)
Classic 100 Post mounted utility (PMU) with steel side box,
City water/bottled system, Water outlet and air QD, Telescoping assistant's arm
with 2 HVE,1SE, 1 syringe, Junction box with valves

Post mount Whale LED light
Post mount touchless sensor Whale LED light with 30" light post

Chair adapter B
Chair adapter for ADS chairs

PACKING DIMENSIONS (L*W*H)

Chair

Upholstery

Classic Dentist's Control

PMU

Dental Light

47.6*30.5*31.3"

50.4*25*8.9"

30.4*19.1*12"

43.9*21.1*13.7"
