HANDLER 76M Mid-Size 2-Station Bench-Top Polishing Unit with 1/3 HP double-shaft motor and integrated dust collector, 150 CFM, 115V/60Hz
13130_f.jpg)
Earn up to 854 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

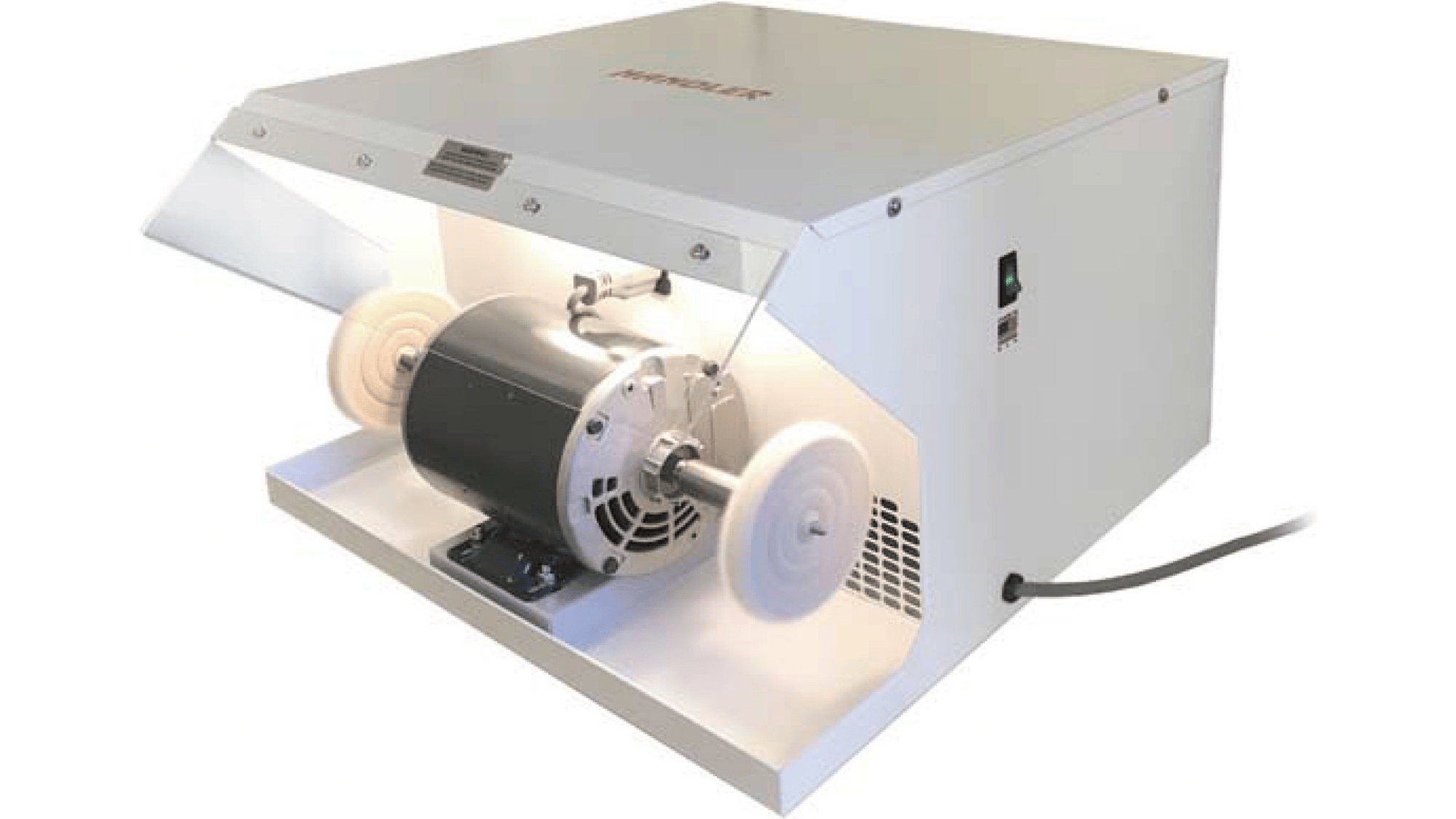

HANDLER Model 76M — Mid-Size 2-Station Bench-Top Polishing Unit
1/3 HP double-shaft motor with left/right spindles + integrated 150 CFM dust collection — the production-lab workhorse
HANDLER Manufacturing has been a family-owned American maker of dental laboratory equipment since 1920. The 76-Series Polishing Units combine reliable Polishing motors with integrated dust collection in a single rugged baked-enamel bench-top cabinet. The 76M is the mid-size 2-station workhorse of the 76 Series — double-shaft motor, left and right tapered spindles, integrated 150 CFM dust collection, and a baked-enamel chassis tough enough for daily shop abuse.
Key Features
- 2-station configuration with 1/3 HP double-shaft Polishing motor
- Left and right tapered spindles — rough on one side, finish on the other
- Integrated dust collection — 150 CFM airflow
- Pre-installed 20″ × 12″ × 2″ (480 cu. in.) fiberglass filter — nearly 2× the filter media of the 76E
- Mid-size footprint: 20.5″ W × 19.75″ D × 12.5″ H
- Sturdy metal housing with baked-enamel finish
- Quiet and efficient operation for continuous shop use
- 115V / 60 Hz standard
- Manufactured by HANDLER Manufacturing (USA) since 1920
Key Selling Points
- Two stations on one bench — rough cut + polish without switching tools
- Double-shaft motor handles continuous duty
- Larger filter than the 76E — longer service intervals between filter changes
- Right-size for most production dental labs
- Single power cord, single warranty, single point of factory support
What Makes This Unique
The 76M is the model most production labs buy as their primary Polishing station. The double-shaft motor and dual tapered spindles mean the operator can mount different wheels for rough and finish work and switch sides instead of switching wheels — minutes saved per case multiplied across a typical lab's daily caseload.
💡 Selling Tips for Sales Team
- Sell the workflow. "Rough on the left, polish on the right." That single line closes more 76M sales than any spec sheet.
- 76M vs. 76E. If the lab has bench room and runs more than 5–10 cases per day, recommend the 76M — the 2-station saves real time. 76E for satellite or jewelry use.
- Larger filter = lower TCO. 480 cubic inches of filter media vs. 260 in the 76E means filter changes are less frequent.
- Continuous-duty rating. The 1/3 HP double-shaft motor is built for shop use, not light hobby use. Highlight this when comparing to lower-priced jewelry-grade Units.
- Cross-sell: HANDLER 86B Sta-Kleen splash shield, replacement 20″ × 12″ × 2″ filters, full buffing-wheel set, AK3D 3-D model Polishing kit.
- Made in USA since 1920. Customers comparing to imports almost always upgrade once they hear the brand story.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer SKU | 76M |
| Brand | HANDLER (a Blackstone Industries brand) |
| Configuration | 2-station mid-size bench-top polisher with integrated dust collector |
| Motor | 1/3 HP double-shaft Polishing motor |
| Spindles | Left + right tapered, for standard buffing wheels |
| Airflow | 150 CFM |
| Filter | 20″ × 12″ × 2″ (480 cu. in.) fiberglass, pre-installed |
| Dimensions | 20.5″ W × 19.75″ D × 12.5″ H |
| Shipping Weight | 53 lbs (24.0 kg) — packaging adds ~30% for freight |
| Housing | Sturdy metal with baked-enamel finish |
| Voltage | 115V 50/60 Hz |
| Country of Manufacture | United States of America |
Compatibility
Works with standard tapered-spindle buffing wheels, Polishing wheels, lab brushes, and felt polishers. Compatible with HANDLER 86B Sta-Kleen splash shield, HANDLER 405 magnifying bench light, and the AK3D 3-D Model & Flexible Partial Polishing Kit.
What's in the Box
- 1 × HANDLER 76M Mid-Size 2-Station Polishing Unit
- 1/3 HP double-shaft Polishing motor (factory-installed)
- Left and right tapered spindles (factory-mounted)
- Pre-installed 20″ × 12″ × 2″ fiberglass dust filter
- Manufacturer operating manual
- Power cord (115V)
Manufacturer Warranty
HANDLER Manufacturing carries a factory warranty on all Polishing Units. For current warranty terms, the RMA process, and technical support, visit handlermfg.com/warranty or call (800) 274-2635.
Manufacturer Contact
Toll-Free: (800) 274-2635
Website: www.handlermfg.com
US Dental Depot Customer Support
Customer Service: +1 (954) 874-6325
Email: support@usdentaldepot.com
Website: www.usdentaldepot.com
Downloads & Resources
Product Video
HANDLER Manufacturing — Polishing Unit Demonstration
