Low maintenance
- Sealed slide protects mechanics from zirconia/PMMA dust
- Stable accuracy with less cleaning downtime
P53 DENTAL MILLING UNIT - UP3D
US Dental Depot • CAD/CAM
UP3D P53 — Smart 5‑Axis Dry Milling Machine
40,000 rpm spindle, 11‑tool ATC, BK‑1 quick clamp for disc ↔ block swaps, 90° vertical micro‑carving, and one‑click calibration with MillMind remote oversight.
Materials: Zirconia • PMMA • Wax • PEEK • Soft CoCr
Built for daily lab production — fast, precise, low‑maintenance
P53 seals critical motion rails behind a dust‑proof slide, pairs a 40,000 rpm spindle with precise 5‑axis kinematics, and uses a BK‑1 clamp to switch between discs and blocks in seconds. One‑click smart calibration and MillMind remote reminders keep jobs moving without babysitting.
Versatile
- Disc & block workflows on one platform
- Faster changeovers = more throughput
Precision
- One‑click calibration keeps tolerances tight
- 0.3 mm tools for fine occlusal detail & margins

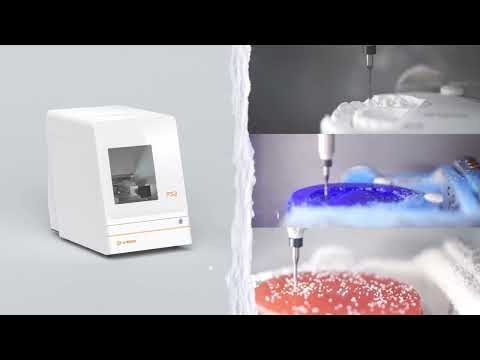

Watch the P53 in action
Short demos & feature explainers you can share with decision‑makers.
Key features
- 5‑axis simultaneous dry milling (discs & blocks)
- 40,000 rpm spindle; 11‑tool automatic changer
- BK‑1 quick‑change clamp; one‑click calibration

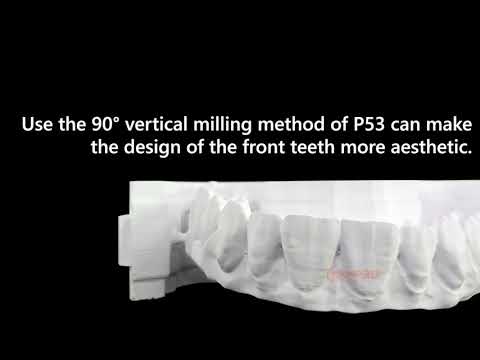

- 90° vertical micro‑carving with 0.3 mm tools
- MillMind remote control & tool‑life monitoring
- Materials: Zirconia, PMMA, Wax, PEEK, soft CoCr
- CAM: UPCAM (official) • MillBox compatible
- Data: Ethernet (UPCNC control; remote status)
- Disc 98/98.5 mm (10–30 mm); blocks up to 40×20×20 mm
- Resume‑after‑breakpoint + multi‑machine control
- Dust‑proof slide extends service life and stability
- Compact footprint for lab benches
- Clear LED progress strip for at‑a‑glance status
- Designed for daily production and easy upkeep
Advantages for your lab
Throughput
- Rapid disc/block changeovers keep the spindle cutting
- High feed rates and optimized CAM strategies
Consistency
- One‑click calibration maintains accuracy between jobs
- Tool‑life tracking reduces remakes and stoppages
Low upkeep
- Dust‑proof slide design cuts cleaning time
- Straightforward daily maintenance routines
Requirements & Technical Specs
Electrical & Pneumatics
- Voltage
- AC 100–240 V, 50–60 Hz
- Max Power
- ~1.1 kW
- Compressed Air
- ATC: >0.5 MPa • Spindle cooling: 0.15–0.20 MPa
- Dust Extraction
- M‑class filter; ~2,500–2,600 L/min recommended
- Data
- Ethernet (UPCNC control); Wi‑Fi/USB supported
Machine & Performance
- Axes / Mode
- 5‑axis simultaneous / Dry
- Spindle
- 40,000 rpm; Φ4.0 mm collet
- Tool Magazine
- 11 tools (auto change)
- Travel
- X/Y/Z: 167/200/90 mm • A: ±30° • B: ±360°
- Size / Weight
- 443.5 × 718 × 628.5 mm • 87 kg
Computer (UPCAM / UPCNC)
- OS
- Windows 10/11 (64‑bit, Professional recommended)
- CPU
- Intel® i7‑7700 or higher
- RAM
- 16 GB or more
- GPU
- NVIDIA® GTX 1050 or better
- Storage
- SSD for OS + ≥300 GB free on secondary drive
Workholding & Materials
- Discs
- 98 mm (10–30 mm height)
- Blocks
- Up to 40 × 20 × 20 mm
- Materials
- Zirconia, PMMA, Wax, PEEK, soft CoCr
- CAM
- UPCAM (official); MillBox compatible
