MGF COMPRESSORS

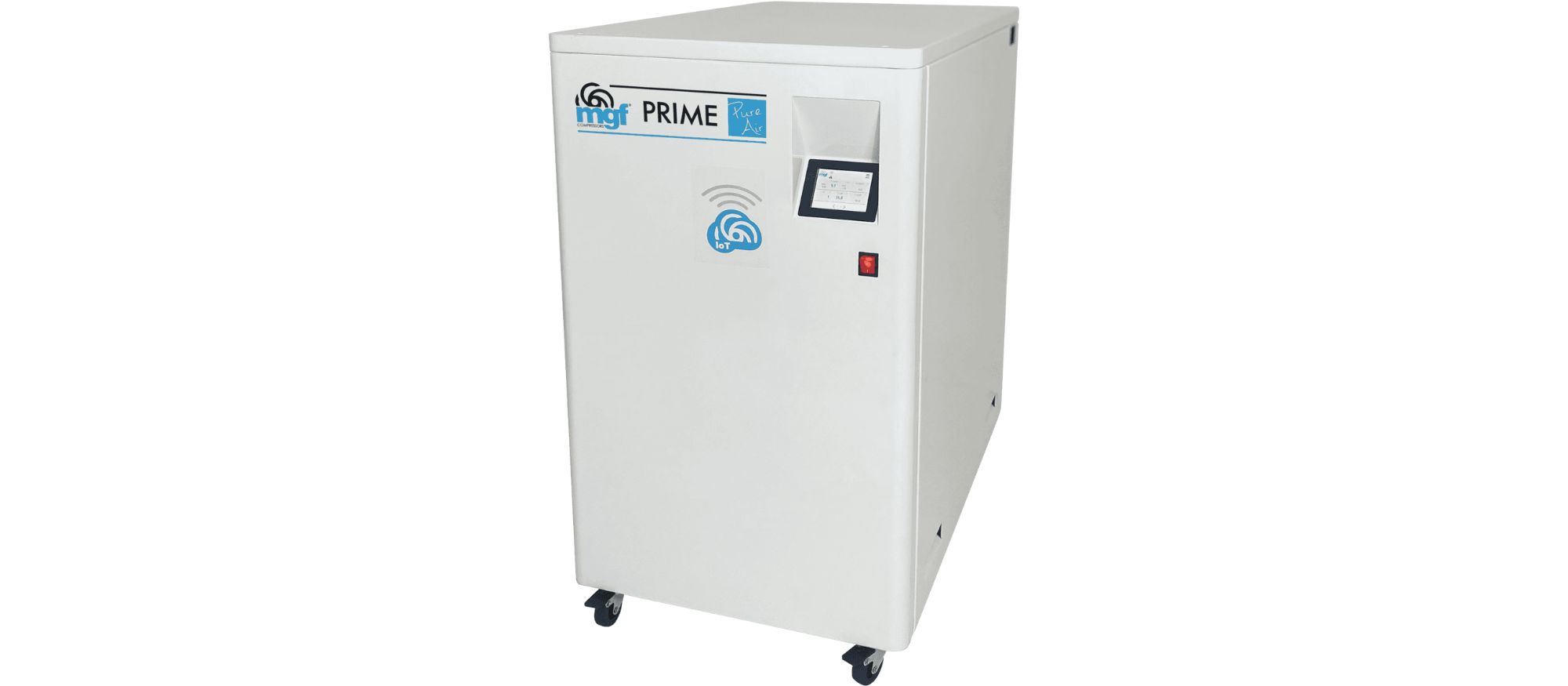

• CS 50/25 Prime M - 3 Phase w/ IoT

PRODUCT DESCRIPTION

The high efficiency and the new perfect cooling system complete the profile of this exceptional product.

• Maximum simultaneous use: 3 - 4

• Dental Chairs: 4

• Tank size (Gal.): 10.6

• Tank size (Liters): 40

• Free-air capacity (CFM): 7.9

• Free-air capacity (LPM): 225

• Max Pressure (PSI): 116

• Max Pressure (Bar): 8

• Port Size (NPT): 1/4" F

• HP: 3

• Power (VAC): 230

• Power (Hz): 60

• Power (Phases): 3

• Power (Amps): 7

• Noise Level (dB): 53

• Product Subcategory: Prime 3

• Chairs: 3-4

• Weight: 233 lbs

• Dimensions (LxWxH): 19.3 × 28.3 × 35 in

TANK MOUNTED W/ membrane DRYER & Silencing Cabinet

Tank-Mounted Compressors with membrane Dryer & Silencing Cabinet

A tank-mounted air Compressor with both a membrane dryer and a Silencing Cabinet offers an all-in-one solution for sensitive environments. This system provides the same oil-free, dry, instrument-grade air as Tank Mounted w/ membrane Dryer, but it is enclosed in a soundproof Cabinet that dramatically reduces noise output to about 55–60 dB(A) (roughly the level of a conversation).

The acoustic enclosure means the Compressor can run near treatment areas without disrupting patients or staff, ensuring a quieter, more comfortable clinical environment. At the same time, the integrated membrane dryer and high-efficiency filters guarantee that the air supply remains completely oil-free, moisture-free, and particle-free to protect your equipment and maintain strict hygiene standards.

This configuration maximizes reliability, air purity, and quiet operation – an ideal choice for hospitals, Dental clinics, and laboratories where silence and air quality are paramount.
