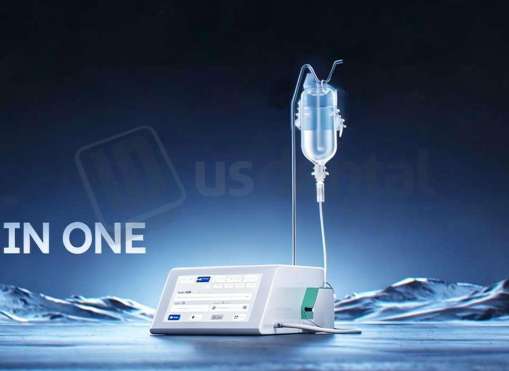

JINME - JINME ES70 Portable Surgical System, Implant-Only configuration. Includes one 40:1 implant handpiece. Fully portable with no compressed air or external water supply required for operation. - # ES70-IMP
Earn up to 3,150 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description
JINME ES70 implant system (USDD #491606 / MFG #ES70-IMP)
Description
JINME ES70 Portable surgical system, implant-Only configuration. Includes one 40:1 implant handpiece. Fully portable with no compressed air or external water supply required for operation.
Key Features
- implant only
- Portable
- no air/water
- Autoclavable to 134–135 °C
One compact console with automatic torque control and a quiet peristaltic pump covers extraction, restoration, low-speed and implant — industrial-grade responsiveness at a clinic-friendly price.
About JINME
Guangdong JINME Medical Technology Co., Ltd. (Foshan, Guangdong, China; founded 2008) develops and manufactures Dental high- and low-speed handpieces, electric micromotors, surgical and implant contra-angles, surgical drive systems, mobile units and chairs. JINME builds under an ISO 13485 quality system with CE marking and FDA registration, on imported Japanese / Swiss / Taiwanese precision machinery, and sells through 50+ agents in 30+ countries. U.S. Dental Depot stocks and supports the line stateside.
Compatibility
Self-contained benchtop drive; accepts JINME E-type surgical attachments (1:4.2 / 1:5 / 1:1 / 40:1). Saline via peristaltic pump.
Technical Specifications
Model: ES70
Main unit size: 260 × 240 × 110 mm
Input voltage: 220 VAC ±10%
Max power: 180 VA
Motor voltage: DC 32 V
Motor speed: 0–40,000 rpm
implant program: 40:1 (0–1,000 rpm)
Sterilization: 134 °C, 5 min
Included: 40:1 implant handpiece (W401LW)
Portability: Self-contained — no compressor or external water
Irrigation: Saline, peristaltic pump
MFG #: ES70-IMP
USDD #: 491606
How It Compares
| Brand / Model | Type | Handpieces | Self-contained | Origin |
|---|---|---|---|---|
| JINME ES70 | surgical drive (4-in-1) | 1:5/1:1/1:4.2/40:1 | Yes | China |
| NSK Surgic Pro | implant motor | 20:1 | Console | Japan |
| W&H Implantmed | implant motor | 20:1 | Console | Austria |
Competitor values are typical vendor-published figures for comparison only; confirm current specs with each maker.
Video
Downloads & Support
- JINME data sheets, manuals & maintenance guides: jinmedental.com — Data Download & Support
- Handpiece care & lubrication (pairs with the C100): ask USDD for the JINME maintenance quick-start (EN/ES).
