BIOART A7-PLUS Articulator w/ ELITE Facebow each - # AAR60529
12603_f.jpg)
12602_f.jpg)
12601_f.jpg)
Earn up to 369 rewards points with this product!
Join today and start earning rewards points and unlock exclusive savings with US Dental Depot's Customer Loyalty Rewards Program
Description

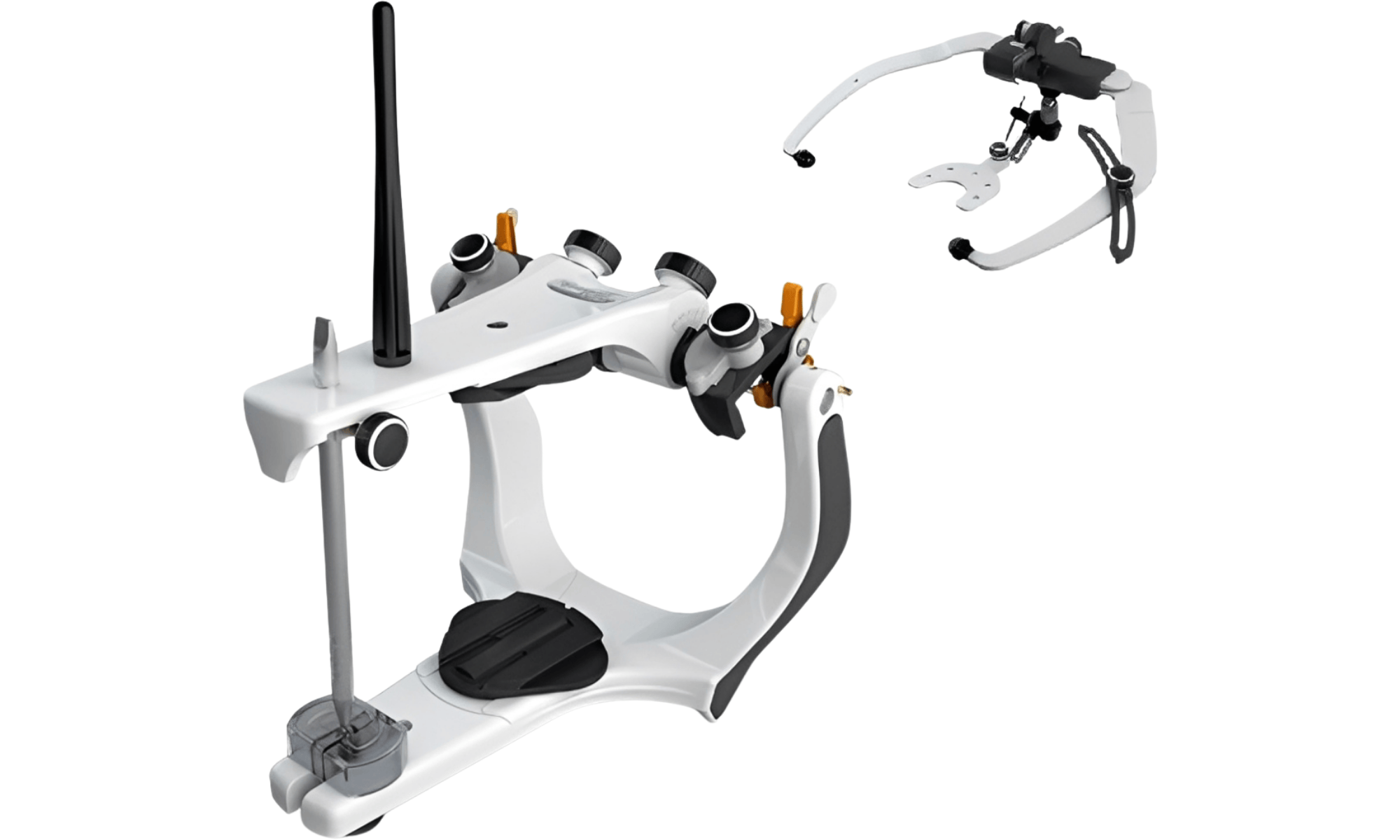

A7-PLUS ARTICULATOR
W/ ELITE Facebow - Semi-Adjustable articulators
DESCRIPTION
FEATURE:
The articulators role is to reproduce the static and dynamic mandible positions with the following applications:
• Occlusion and occlusal pathology study;
• Confection of complete, partial and removable prostheses;
• Making interocclusal devices (trays).
This articulator has a robust structure made of aluminum, assuring greater stability. Design that provides greater visibility
SPECIFICATION:
• Semi-Adjustable / Arcon Type
• Fixed Intercondylar distance at the average 110 mm
• Curved condylar guide
• Adjustable condylar guide angle
• Adjustable Bennet Angle
• Central Lock
• Stabilization system of Condylar Guide movement with silicone connection
• Pin to support the Upper Frame at the open position
• ELITEFace Bow.
COMES WITH:
• 1 ELITE Facebow
• 1 Standard Fork
• 1 Pair of Rail Plates
• 1 Standard Incisal Guide
• 1 Plastic Case
BIOART
Bio AAR60529 Bio A7 PLUS Articulator with ELITE face bow
WHAT YOU NEED?
What You Need to Start Using the A7 ELITE Articulator?
1. A7 ELITE Articulator (Bio-Art)
Precision Semi-Adjustable articulator with:
• Adjustable condylar path
• Intercondylar distance
• Bennett angle
• Removable magnetic mounting plates
• Incisal pin and guide table (adjustable)
• Upper and lower arms with precision hinges

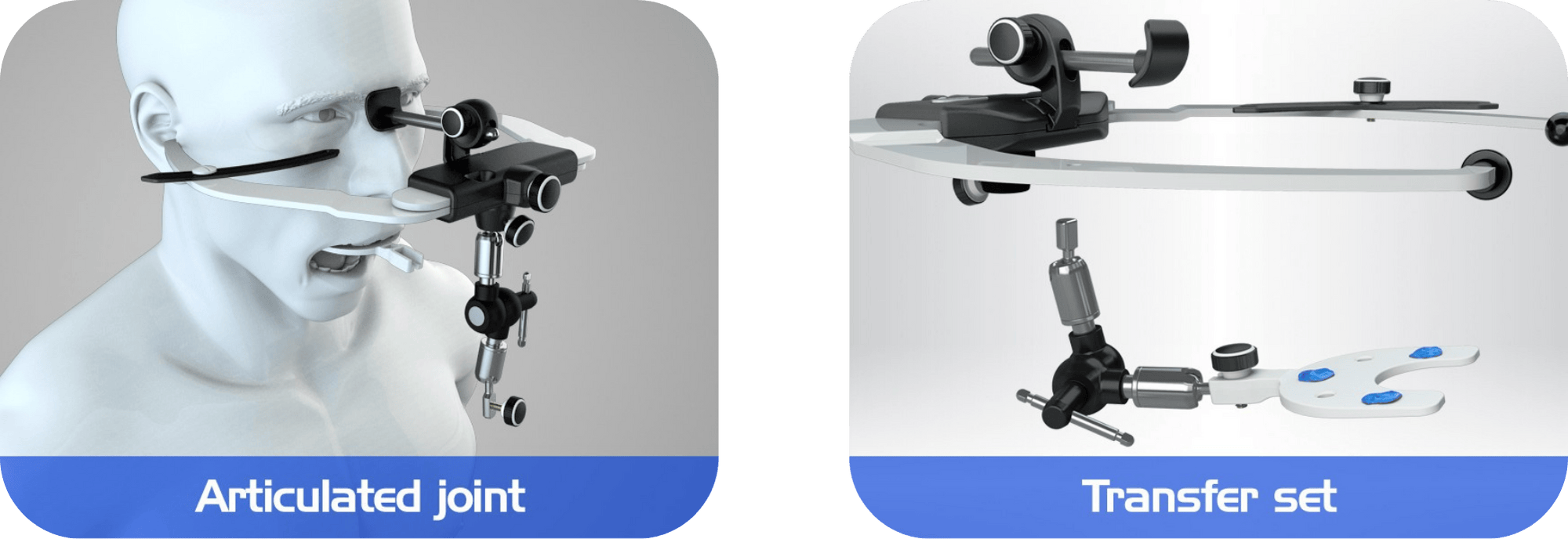

2. Facebow (Bio-Art ELITE Facebow or Compatible)
Used to transfer the spatial relationship of the maxilla to the articulator. You’ll need:
• Facebow frame
• Bite fork
• Transfer jig (transfer base)
• Locking rods and components
Recommended:
• Use the Bio-Art ELITE Facebow Kit for seamless compatibility.
3. Mounting Plates (Magnetic)
The A7 ELITE uses magnetic mounting plates.
You’ll need at least 2 plates per case (1 upper, 1 lower), plus extras if managing multiple cases.
4. Mounting Accessories
Mounting stone or mounting plaster
Articulator support stand or jig (optional but useful for stable mounting)
Silicone or thermoplastic bite registration material for accurate bite transfers
5. Compatible Transfer Stand (Optional)
For repeated facebow transfers or multiple articulators in use.
Helps reduce setup time and increases precision for high-production labs.
6. Model Support Rods or Stabilizers (Optional)
For supporting stone Models during mounting and simulation of mandibular movement.
Optional but Useful Add-ons:
• Magnetic split cast systems
• Incisal tables of different angles
• Protective storage case
• Extra incisal pins, lock screws, or replacement parts
A7-PLUS ARTICULATOR VIDEO's
